ARB High Output On-Board 12V Air Compressor

ARB High Output On-Board 12V Air Compressor

For 1984–1995 Toyota 4Runner & 1979-1995 Toyota Pickup & 12V Vehicles, ARB Air Lockers & On-Board Air Systems

Overview

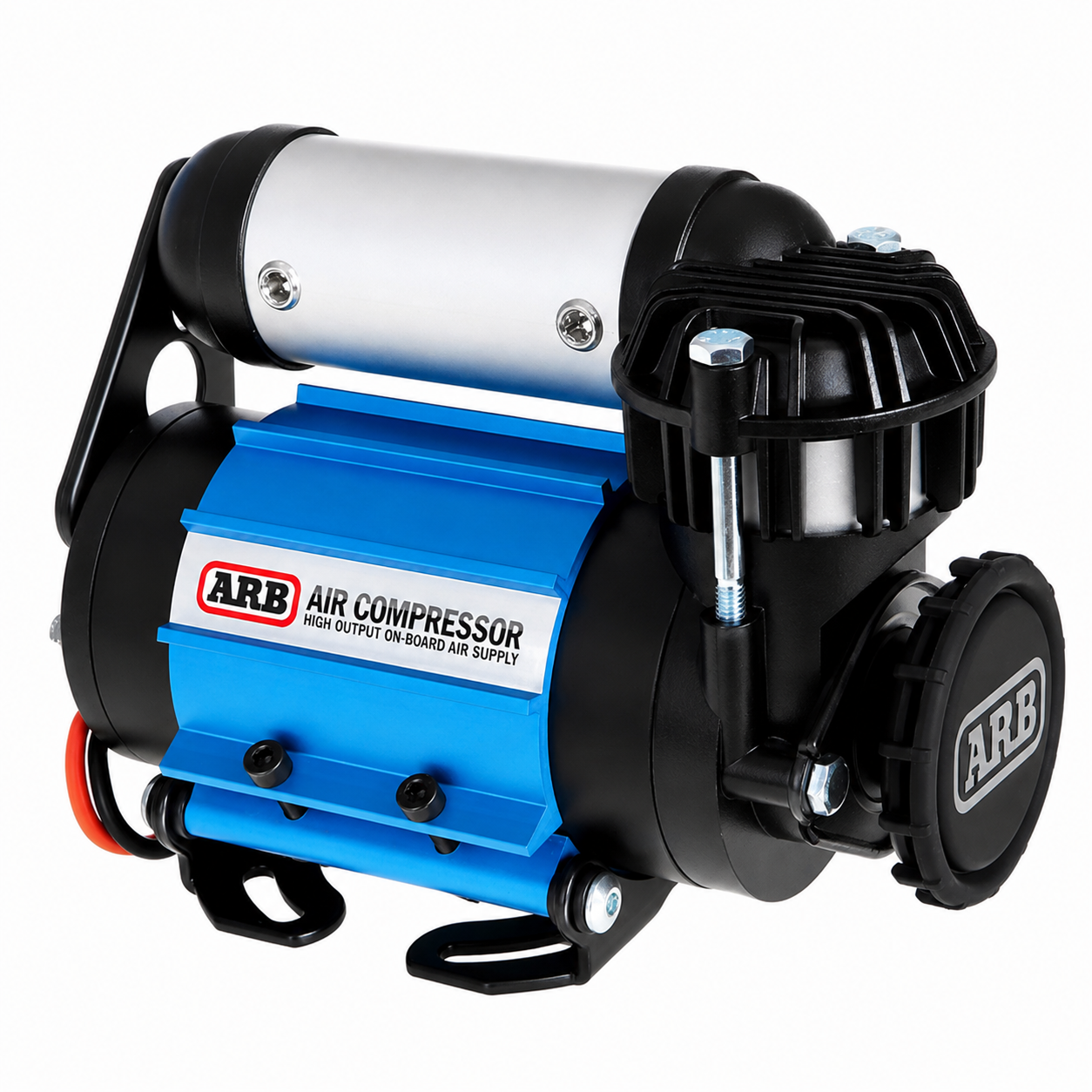

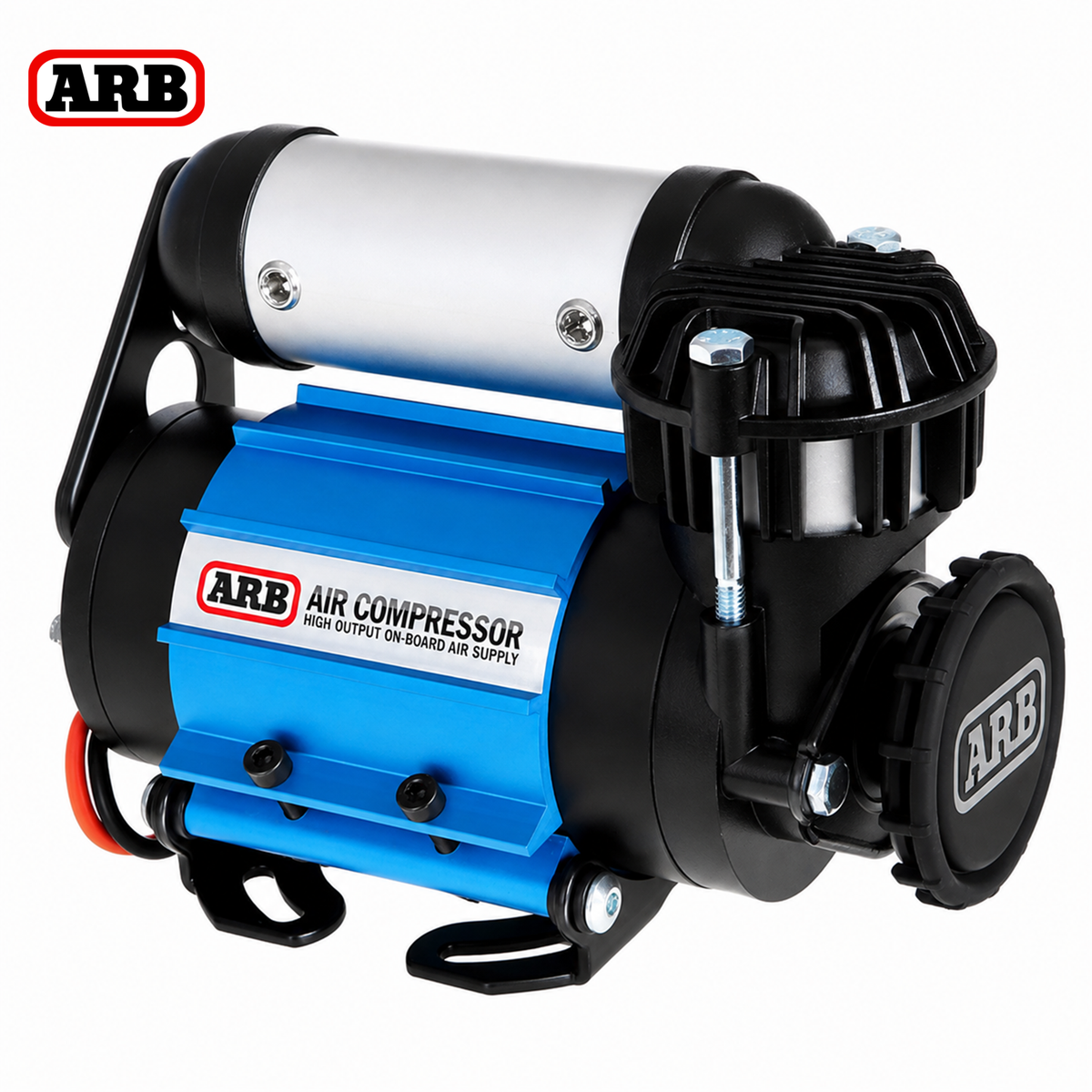

The ARB High Output On-Board 12V Air Compressor is a permanently mounted compressed-air system designed for tire inflation, ARB Air Locker activation, and other on-board air applications.

Its compact single brushed motor delivers up to 3.08 CFM at 0 PSI and 2.34 CFM at 29 PSI, with a maximum working pressure of 100 PSI. Moisture- and dust-resistant construction, thermal protection, and a 50% duty cycle make it well suited for off-road, overland, and utility vehicle installations.

The kit includes the wiring loom and universal mounting hardware required for installation. Air hoses, tire inflation accessories, and vehicle-specific brackets may be required separately depending on the intended setup.

Key Features

• Genuine ARB high-output on-board air compressor

• 12V single brushed motor

• Up to 3.08 CFM airflow at 0 PSI

• Up to 2.34 CFM airflow at 29 PSI

• Maximum working pressure of 100 PSI

• 50% duty cycle

• Suitable for tire inflation and ARB Air Locker operation

• Moisture- and dust-resistant construction

• Internal thermal and over-pressure protection

• Includes wiring loom and universal mounting hardware

• ARB 3-year warranty

Compressor Design

The compressor uses a hard-anodized cylinder bore and Teflon-impregnated carbon-fiber piston seal designed to reduce friction and support long-term operation.

Its anodized mounting bracket helps dissipate motor heat and allows the compressor orientation to be adjusted during installation. Internal thermal protection, an over-pressure safety valve, and heavy-duty in-line circuit protection help protect the compressor and electrical system during operation.

Toyota Pickup & 4Runner Installation

The ARB on-board compressor is particularly well suited for 1979–1995 Toyota Pickup and 1984–1995 Toyota 4Runner builds where on-board air is needed for tire inflation, ARB Air Locker operation, or both. Although the compressor uses a universal mounting system rather than a Toyota-specific bolt-in bracket, its compact dimensions allow it to be integrated into these classic Toyota platforms without requiring a dedicated factory mounting location.

A common installation approach on Toyota Pickup and 4Runner builds is under-hood mounting on an available inner-fender or engine-bay surface. This location keeps the compressor relatively close to the battery and can simplify routing of the supplied wiring harness and Air Locker air lines. Available space varies according to model year, engine, emissions equipment, dual-battery systems, and other modifications, so the exact mounting location should be determined on the individual vehicle.

4Runner models provide additional interior mounting possibilities in the rear seating or cargo area, including custom installations behind interior trim or within unused storage space. Interior mounting can provide additional protection from engine-bay heat, water, mud, and trail debris, although compressor noise will be more noticeable inside the cabin.

For 1979–1995 Toyota Pickup and 1984–1995 Toyota 4Runner applications, installation should be considered a custom universal installation rather than a predetermined bolt-in fit. The included ARB mounting hardware can be used with a suitable flat, rigid mounting surface, or a custom bracket can be fabricated when necessary. Verify adequate clearance from exhaust components, moving parts, wiring, hoses, and other accessories before installation.

Airflow & Performance

The compressor provides an on-board source of compressed air for situations where a conventional air supply is unavailable.

ARB-Rated Performance

• Airflow at 0 PSI: 3.08 CFM / approximately 87.2 L/min

• Airflow at 29 PSI: 2.34 CFM / approximately 65.9 L/min

• Maximum Pressure: 100 PSI

• Duty Cycle: 50%

Common applications include airing tires back up after trail driving and operating compatible ARB Air Lockers.

Vehicle Fitment

Universal 12V Vehicle Application

Designed for installation in suitable vehicles equipped with a 12V electrical system.

Toyota Applications Commonly Used With This Compressor

• 1979–1983 Toyota Pickup – 1st Generation

• 1984–1988 Toyota Pickup – 2nd Generation

• 1989–1995 Toyota Pickup – 3rd Generation

• 1984–1989 Toyota 4Runner – 1st Generation

• 1990–1995 Toyota 4Runner – 2nd Generation

These Toyota applications use the compressor as a universal custom-mounted component, not a vehicle-specific direct bolt-on part.

Fitment Notes

• Designed for 12V electrical systems

• Permanently mounted on-board compressor

• Universal mounting hardware included

• Not a vehicle-specific bolt-in component

• Vehicle-specific or custom mounting brackets may be required

• Requires an appropriate mounting location and electrical installation

• Air hose and tire inflation accessories may be required separately

• Compatible with ARB Air Locker actuation when properly configured

• Verify available mounting space before installation

• Follow ARB instructions for compressor orientation, wiring, and mounting

Product Specifications

Brand: ARB
Product Type: On-Board Air Compressor
Motor: Single Brushed Motor
Voltage: 12V
Design: Permanently Mounted / On-Board
Maximum Pressure: 100 PSI
Airflow at 0 PSI: 3.08 CFM / 87.2 L/min
Airflow at 29 PSI: 2.34 CFM / 65.9 L/min
Maximum Amperage: 32A
Duty Cycle: 50%
IP Rating: IP55
Length: 7.5 in
Width: 3.86 in
Height: 5.7 in
Weight: 7.7 lb
Warranty: 3 Years

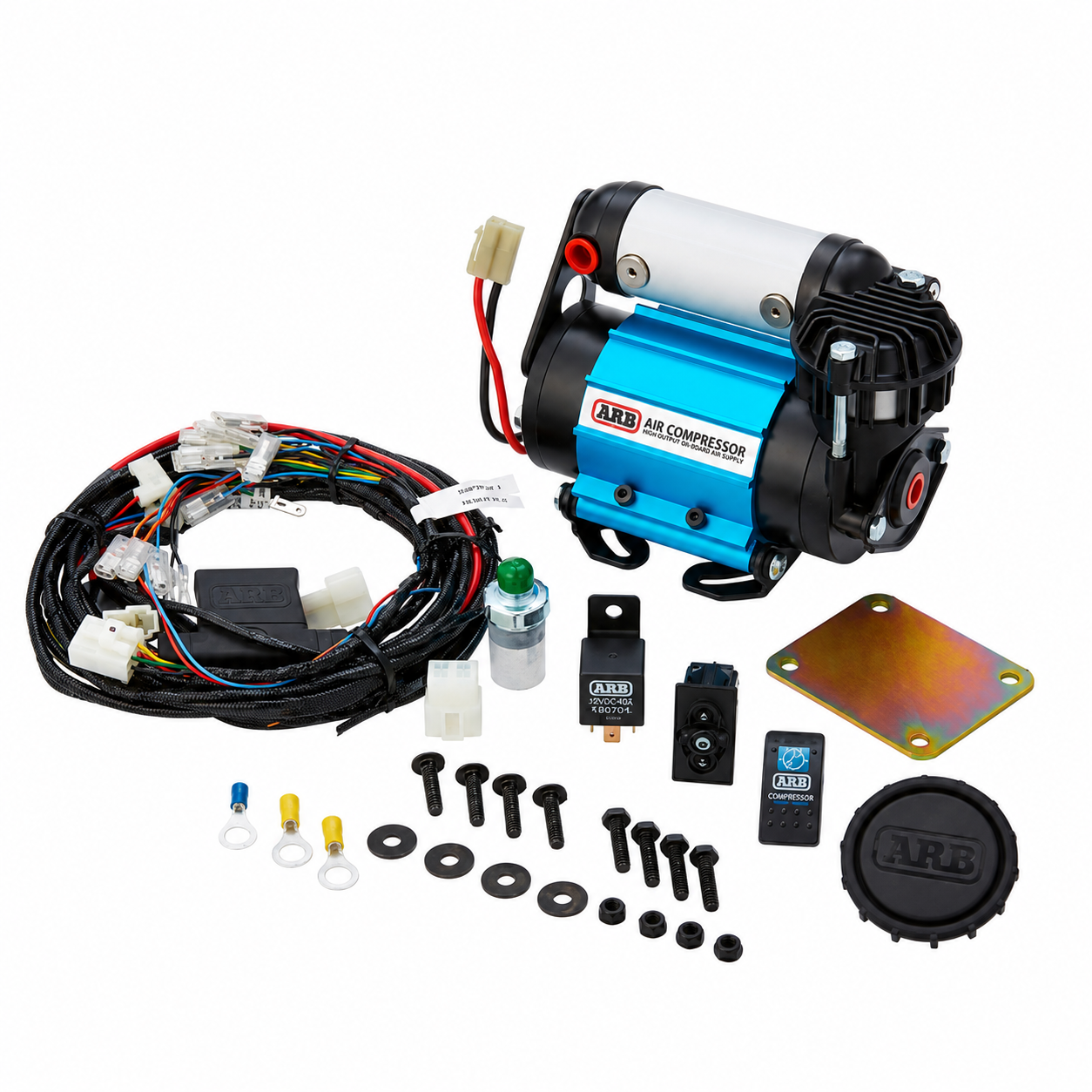

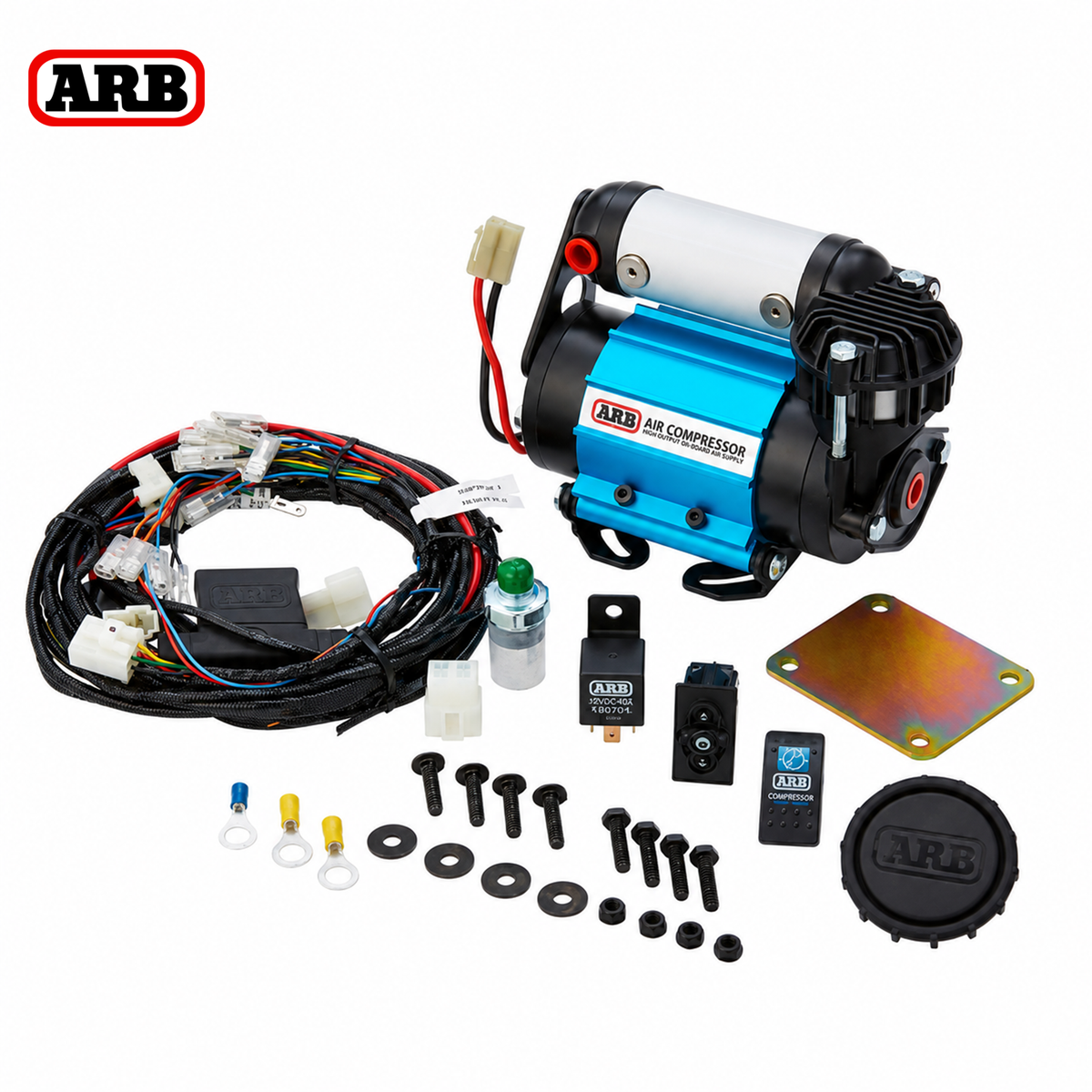

What's Included

• (1) ARB High Output 12V On-Board Air Compressor

• Wiring loom

• Universal mounting hardware

Air hoses, tire inflation accessories, and vehicle-specific mounting brackets are sold separately unless otherwise specified with the purchase configuration.
