AISIN Clutch Slave Cylinder (1984-95 4Runner)

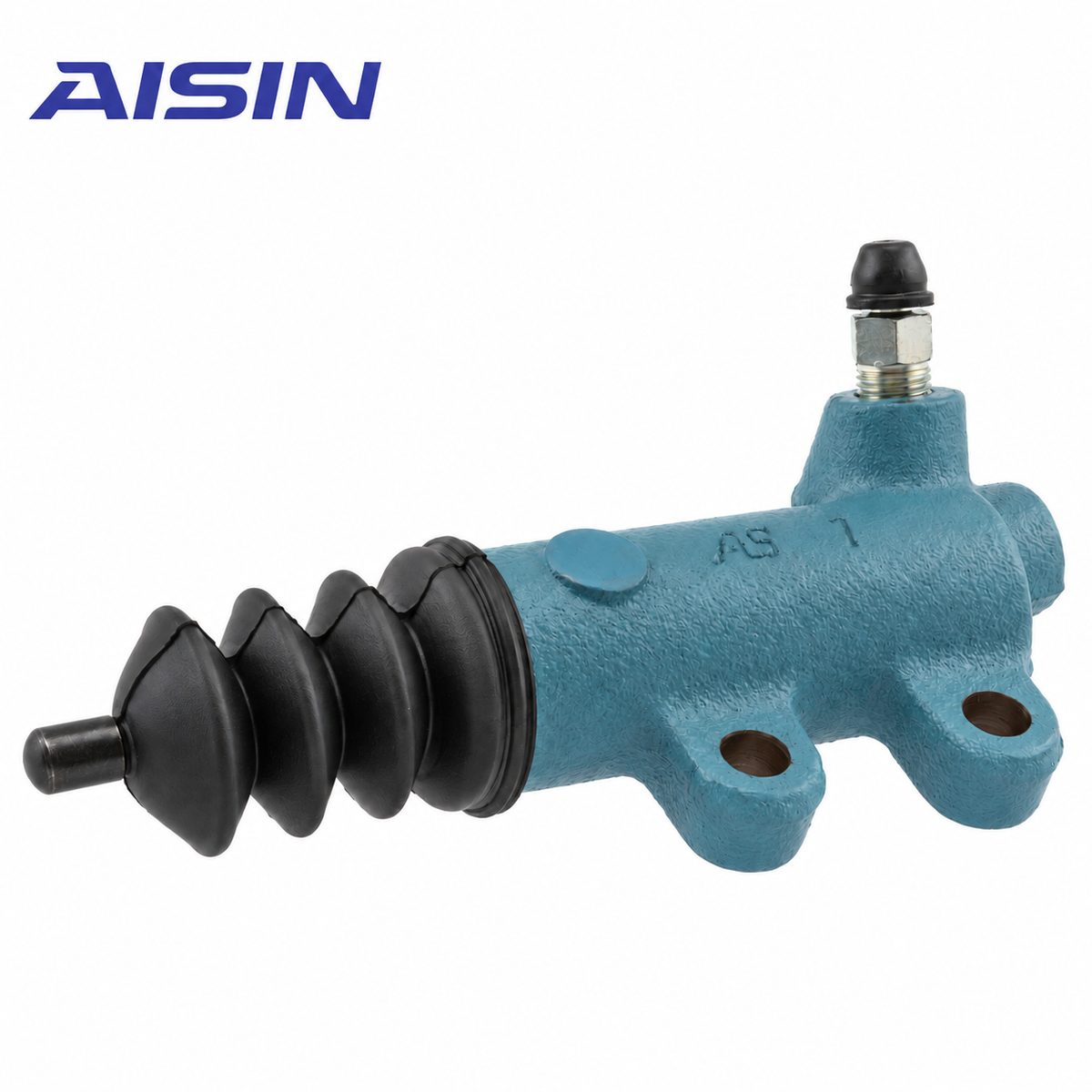

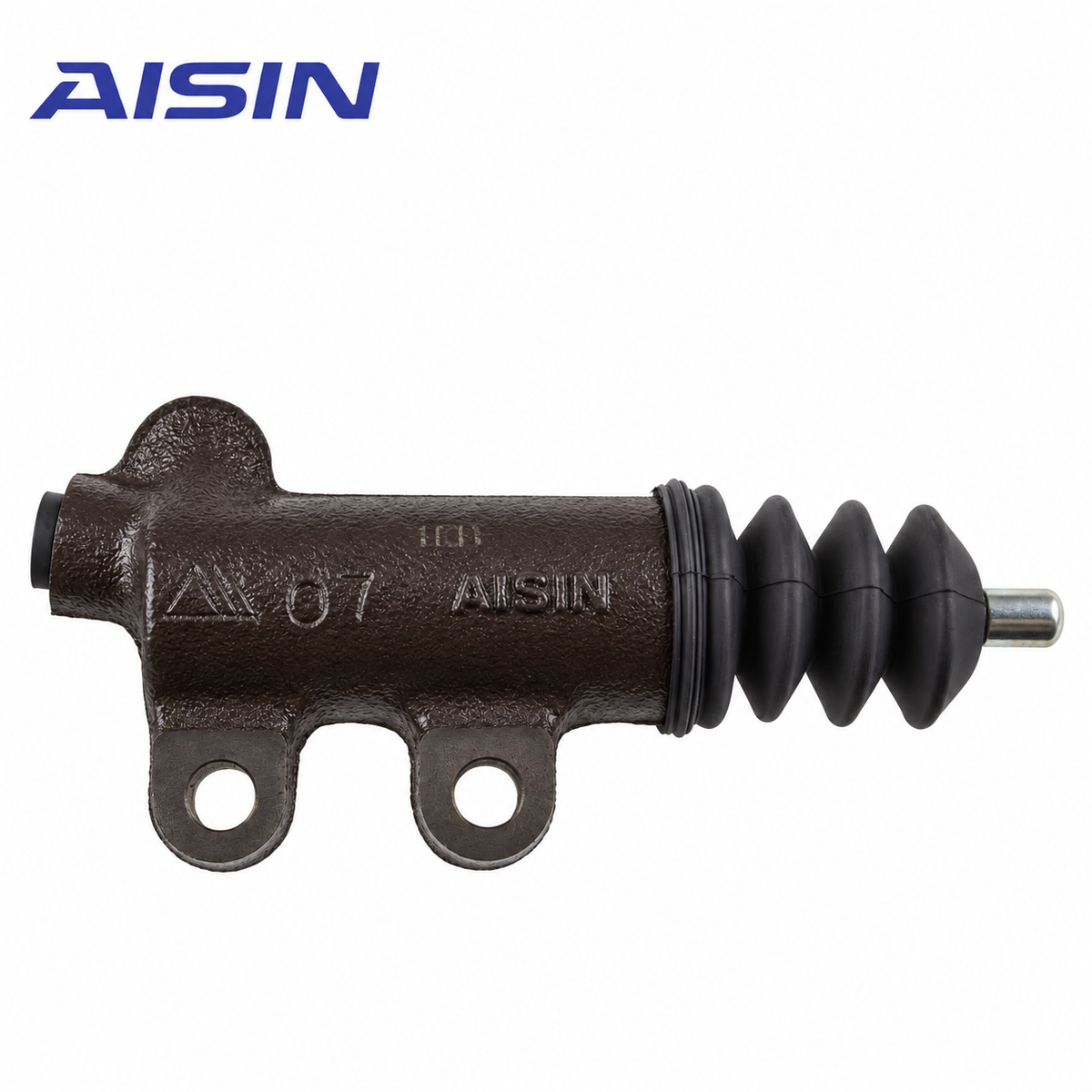

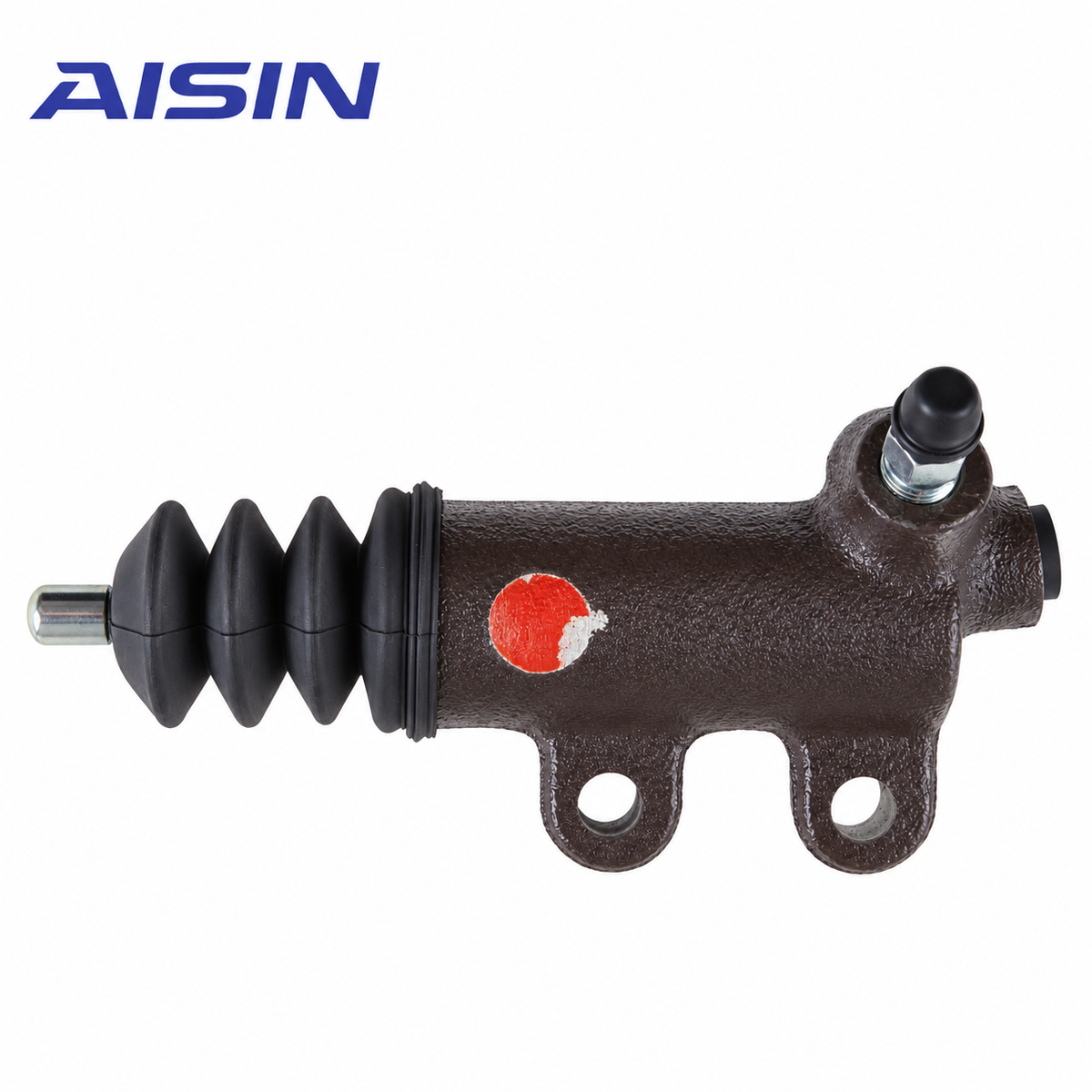

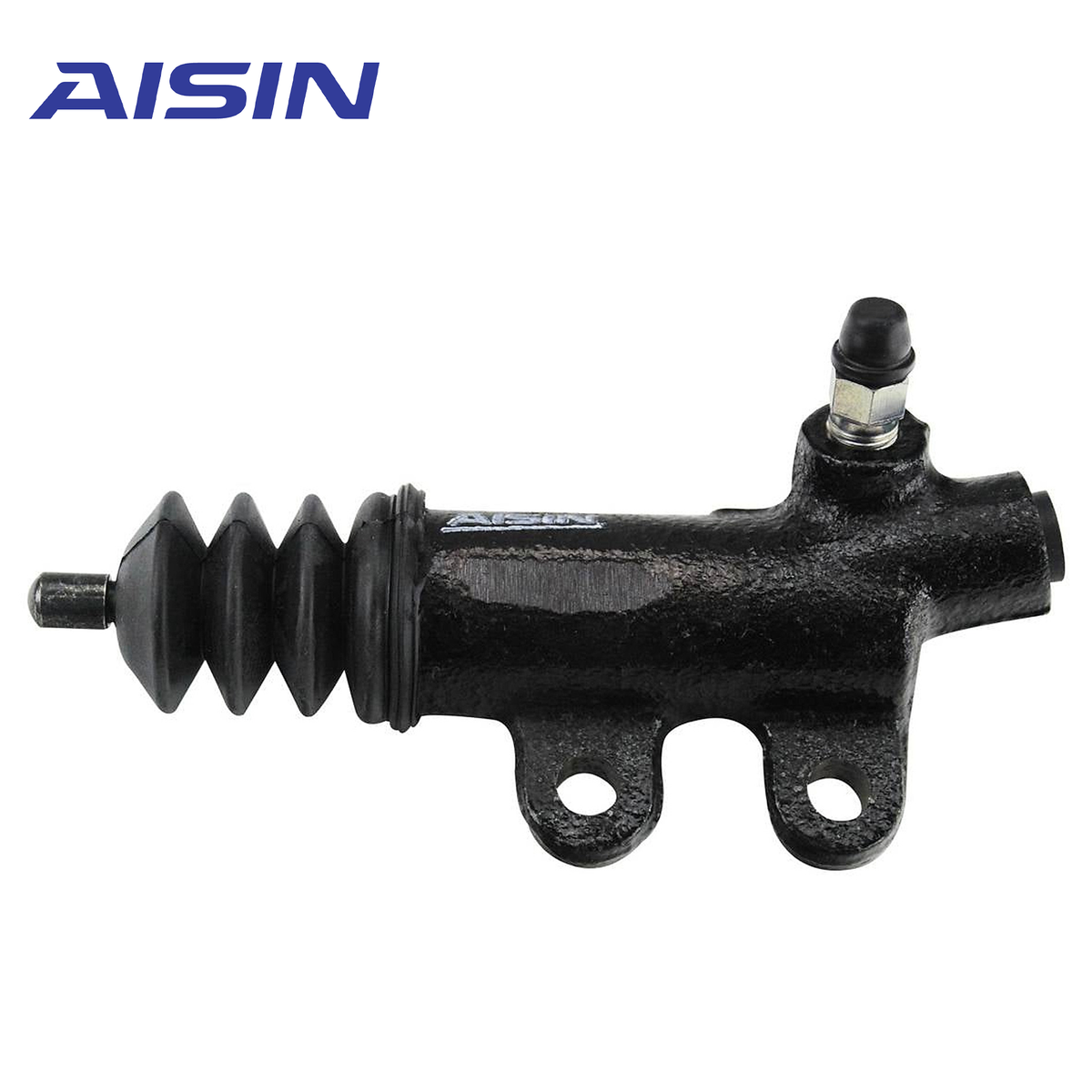

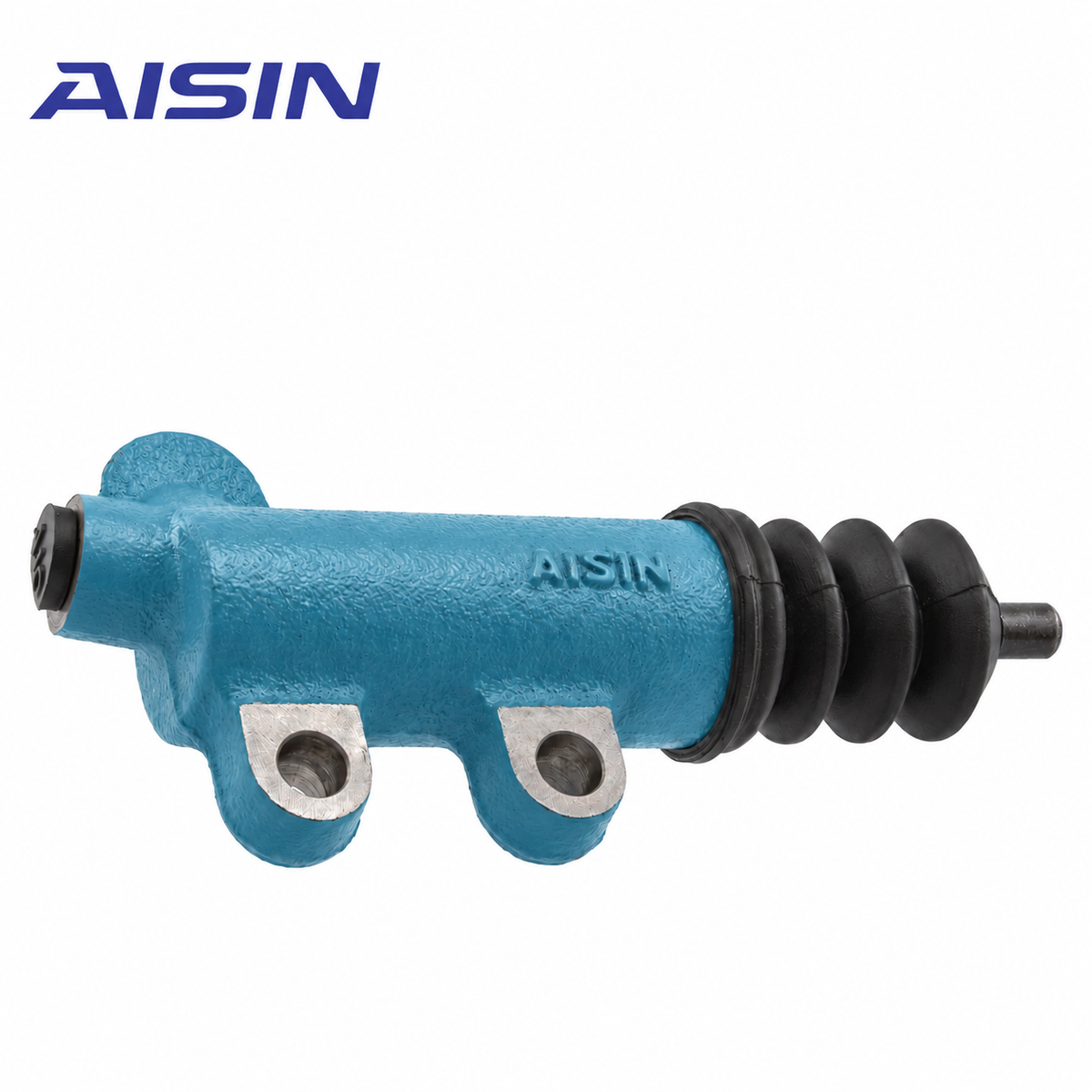

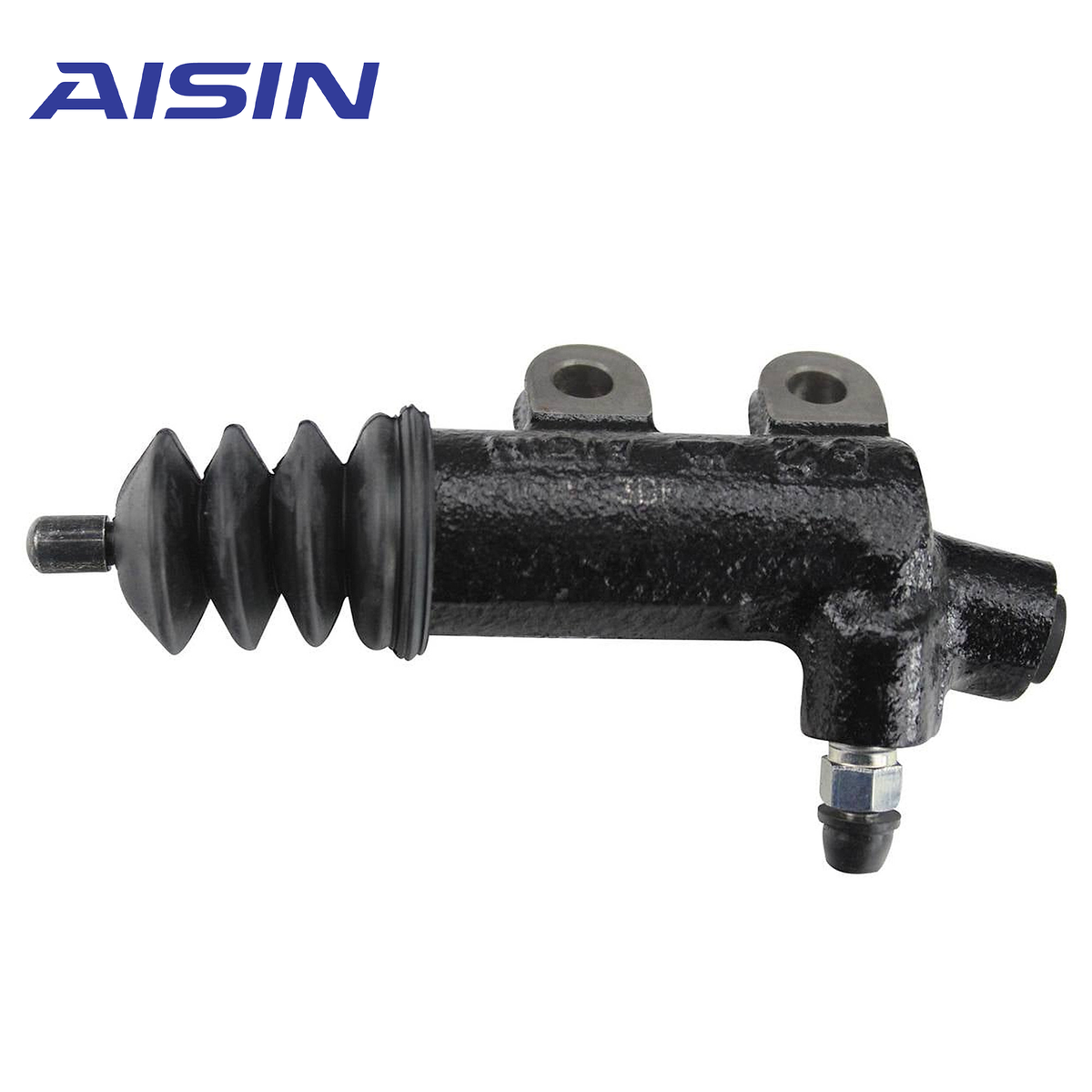

AISIN Clutch Slave Cylinder

For 1984–1995 Toyota 4Runner with manual transmission

Overview

The AISIN clutch slave cylinder is an OE-manufacturer replacement for Toyota external hydraulic clutch systems. AISIN supplied original-equipment hydraulic components to Toyota, providing factory-style fit, hydraulic response, and serviceability without representing the part as Genuine Toyota.

The 4Runner application uses three distinct configurations: an early four-cylinder cylinder through 1991, a later 22RE cylinder beginning in 1992, and a separate V6 cylinder for 3VZ-E applications.

Key Features

• AISIN OE-manufacturer replacement for applicable Toyota clutch-hydraulic systems
• External bolt-on design for the factory-style hydraulic clutch system
• Threaded hydraulic connection matching the applicable OE-style system
• Precision-honed hydraulic cylinder for smooth piston travel
• Corrosion- and heat-resistant construction features represented in the Shopify category attributes
• Sold individually

Which Configuration Fits?

22R 1984 / 22RE 1985-91
Choose this configuration for the 1984 22R or 1985–1991 22RE manual-transmission 4Runner.

22RE | 1992-1995
Choose this configuration for the 1992–1995 22RE manual-transmission 4Runner.

3VZ-E | 1988-1995
Choose this configuration for the 1988–1995 3.0L 3VZ-E V6 manual-transmission 4Runner.

Vehicle Fitment

All applications require a manual transmission and factory-style external hydraulic clutch system.

Toyota 4Runner

• 1984 Toyota 4Runner – 1st Gen – 2.4L 22R – Manual – Early Four-Cylinder Configuration
• 1985–1989 Toyota 4Runner – 1st Gen – 2.4L 22RE – Manual – Early Four-Cylinder Configuration
• 1988–1989 Toyota 4Runner – 1st Gen – 3.0L 3VZ-E V6 – Manual – V6 Configuration
• 1990–1991 Toyota 4Runner – 2nd Gen – 2.4L 22RE – Manual – Early Four-Cylinder Configuration
• 1992–1995 Toyota 4Runner – 2nd Gen – 2.4L 22RE – Manual – Late Four-Cylinder Configuration
• 1990–1995 Toyota 4Runner – 2nd Gen – 3.0L 3VZ-E V6 – Manual – V6 Configuration

Fitment Notes

• Manual-transmission applications only.
• 1992 is the four-cylinder slave-cylinder changeover year. 1984–1991 four-cylinder applications use the early configuration; 1992–1995 22RE applications use the later configuration.
• The 3.0L 3VZ-E V6 uses its own configuration from 1988–1995.
• Factory turbo 22R-TE 4Runner applications are excluded because the U.S.-market turbo 4Runner was not offered with a factory manual transmission.
• Vehicles with engine, transmission, or clutch-hydraulic swaps must be matched to the installed components.
• After installation, bleed the clutch hydraulic system completely and inspect the AISIN Clutch Master Cylinder, hose, hard line, and release hardware for leakage or deterioration.

Product Specifications

Brand: AISIN
Product Type: Drivetrain
Component Type: Clutch Slave Cylinder
Clutch System: External Hydraulic Slave Cylinder
Mounting: External Bolt-On
Connection: Threaded Port
Transmission: Manual
Condition: New
Sold As: Each

Available Configurations

22R 1984 / 22RE 1985-91

• Includes: (1) AISIN clutch slave cylinder for the applicable 1984–1991 four-cylinder manual-transmission applications above.

22RE | 1992-1995

• Includes: (1) AISIN clutch slave cylinder for the applicable 1992–1995 22RE manual-transmission applications above.

3VZ-E | 1988-1995

• Includes: (1) AISIN clutch slave cylinder for the applicable 1988–1995 V6 manual-transmission applications above.
