AW11 AISIN Clutch Kit | 4A-GE NA, 212 mm (1985-89 MR2)

AISIN Stock Replacement Clutch Kit

For 1985–1989 U.S.-Market Toyota MR2 AW11 with Naturally Aspirated 4A-GE and Manual Transmission

Overview

This AISIN clutch kit renews the friction and release components of the later 212 mm clutch system in the naturally aspirated AW11 MR2. The organic sprung disc and diaphragm pressure plate provide a conventional stock-replacement clutch arrangement for road use.

The clutch disc, pressure plate and flywheel must form a matching system. Early cars originally fitted with a 200 mm clutch require a matched conversion; changing the disc alone does not establish fitment.

Key Features

• Organic friction disc for stock-replacement service.
• Sprung hub helps damp torsional vibration through the driveline.
• Diaphragm pressure plate supplied with the matching clutch disc.
• Release bearing included for clutch-release operation.
• Alignment tool included for centering the disc during assembly.

Vehicle Fitment

All applications require: naturally aspirated 4A-GE, manual transmission and the matching later 212 mm clutch/flywheel system.

Toyota MR2 (AW11 / MK1)

• 1985 U.S.-Market — Built from June 1985 onward.
• 1986–1989 U.S.-Market

Fitment Notes

• Does not fit the original early 200 mm clutch/flywheel combination, factory supercharged 4A-GZE / E51 applications or automatic transmissions.
• Verify the installed flywheel and clutch arrangement on modified cars. A model year or transmission code alone does not establish fitment after a conversion.
• The MR2 installation does not use a pilot bearing.
• A new side-gear-shaft snap ring is required only if that shaft is extracted; it is not a universal clutch-kit installation item.
• The flywheel and mounting bolts are not included. The ARP 4A-GE Flywheel Bolt Kit is an optional fastener upgrade when servicing the flywheel; it is not required with every clutch replacement.

Product Specifications

• Brand: AISIN
• Product type: Stock replacement clutch kit
• Clutch disc diameter: 212 mm
• Input spline count: 21
• Disc construction: Organic friction material with sprung hub
• Pressure plate type: Diaphragm

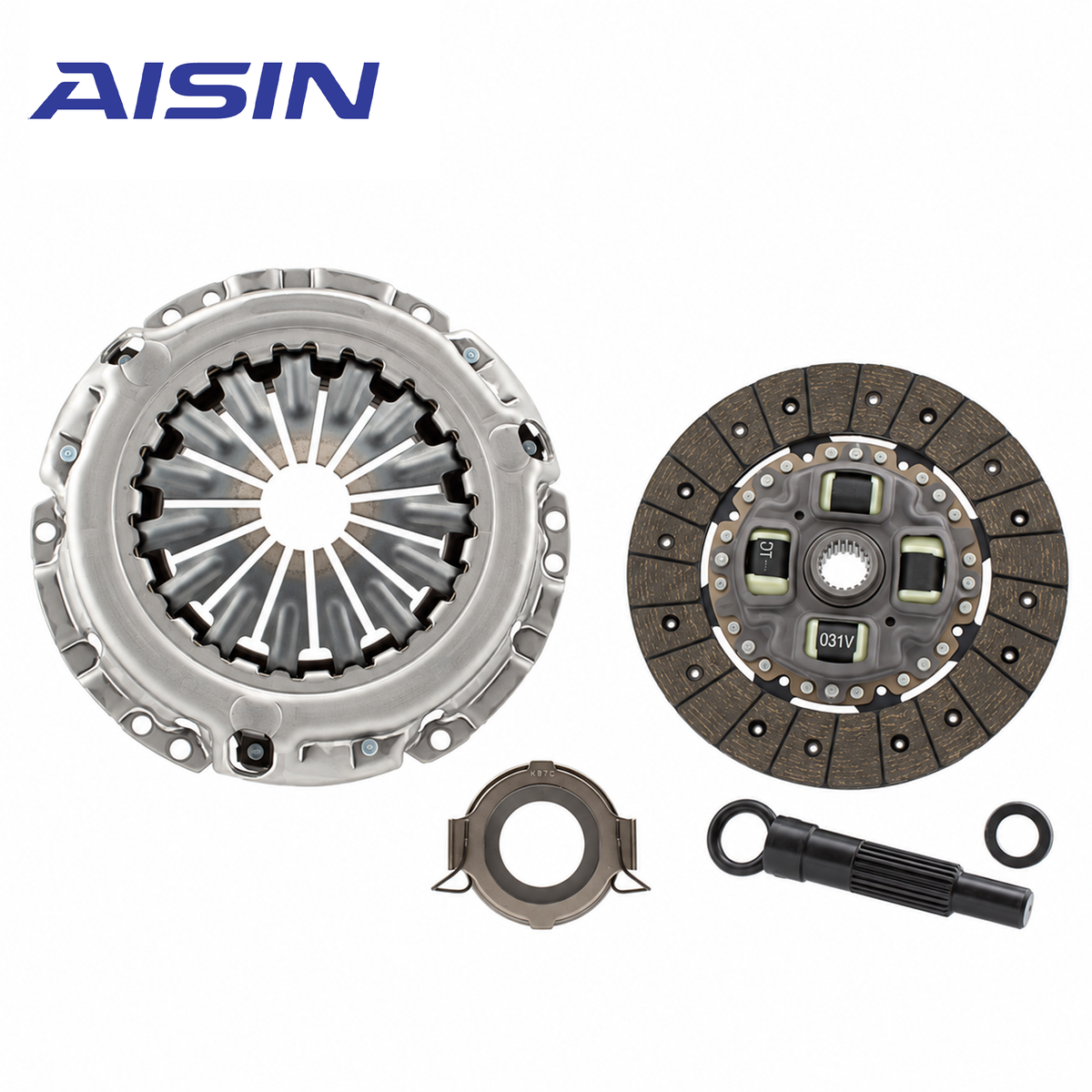

What's Included

• (1) Clutch cover / pressure plate assembly
• (1) Clutch disc
• (1) Release bearing
• (1) Clutch alignment tool
