TOMEI T-TRAX Advance Limited Slip Differential

For 1983–1987 Toyota Corolla AE86 Trueno / Levin and 1985–1987 U.S.-Market Corolla Sport AE86 (GT-S) with 4A-GE and the factory open T-Series rear differential

Overview

The TOMEI T-TRAX Advance is a mechanical clutch-type limited slip differential for Toyota Corolla AE86 4A-GE rear-wheel-drive applications using the T-Series rear differential. Separate Zenki / early and Kouki / late versions are available because the early and late AE86 rear axle configurations use different differential specifications.

Each version is available as either a 1.5-way or 2-way LSD. The internal clutch design uses a high initial torque setting, spring discs, and a large friction surface area to provide quick, repeatable locking response during acceleration and performance driving.

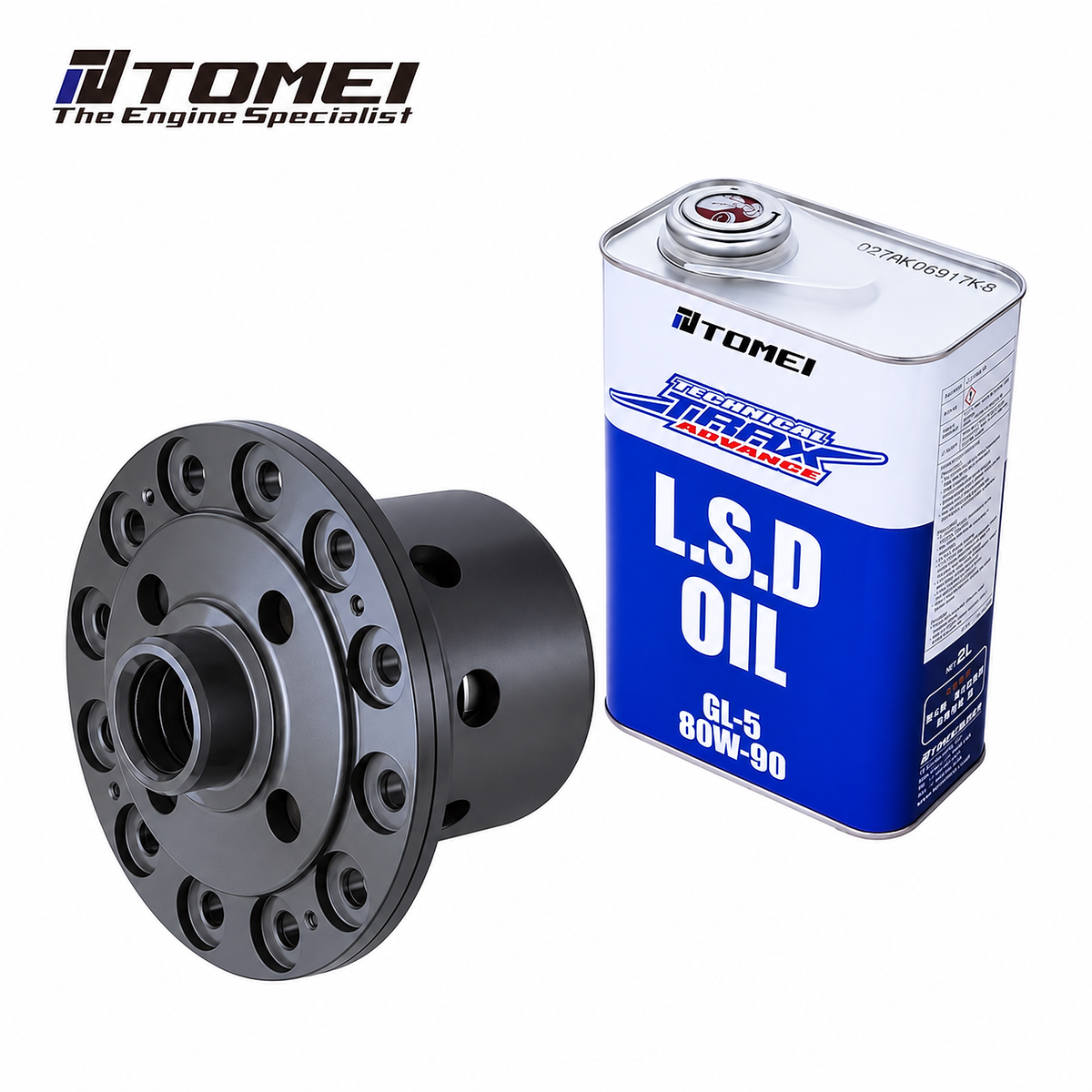

Each T-TRAX Advance AE86 kit includes the limited slip differential assembly and 2 liters of TOMEI low-friction high-grade differential oil.

Key Features

• Mechanical clutch-type limited slip differential for AE86 T-Series rear differential applications
• Available in 1.5-way and 2-way configurations
• Separate Zenki / early and Kouki / late versions
• 12-disc small-size clutch pack for the AE86 application
• High initial torque setting for quick differential response
• Spring-disc-assisted clutch engagement
• Designed for rear-wheel-drive performance, grip, circuit, and drift-oriented use depending on the selected lock configuration
• Includes 2 liters of TOMEI differential oil

1.5-Way vs. 2-Way

1.5-Way: Provides strong locking under acceleration with reduced locking on deceleration. This configuration is well suited to street-performance, grip, touge, autocross, and mixed-use builds where smoother off-throttle differential behavior is preferred.

2-Way: Provides strong locking during both acceleration and deceleration. This configuration is better suited to drift, circuit, and more aggressive performance driving where consistent lock in both directions is desired.

Vehicle Fitment

Toyota Corolla AE86

• 05/1983–10/1985 Trueno (JDM) — 4A-GE, Zenki / Early, T-Series rear differential, factory open differential
• 10/1985–04/1987 Trueno (JDM) — 4A-GE, Kouki / Late, T-Series rear differential, factory open differential
• 05/1983–10/1985 Levin (JDM) — 4A-GE, Zenki / Early, T-Series rear differential, factory open differential
• 10/1985–04/1987 Levin (JDM) — 4A-GE, Kouki / Late, T-Series rear differential, factory open differential
• 1985 GT-S (U.S.-Market) — 4A-GE, Zenki / Early, T-Series rear differential, factory open differential
• 1986–1987 GT-S (U.S.-Market) — 4A-GE, Kouki / Late, T-Series rear differential, factory open differential

Fitment Notes

• Does not directly fit the factory North American SR5 S-Series rear axle.
• Zenki / Early and Kouki / Late differential versions are not interchangeable without confirming the installed rear axle configuration.
• The early-to-late differential changeover occurs in October 1985.
• Cars with rear axle swaps must be matched to the actual installed T-Series differential rather than exterior Zenki / Kouki appearance.
• The standard differential application is an open rear differential.

Product Specifications

Brand: TOMEI
Series: T-TRAX Advance
Product Type: Mechanical Clutch-Type Limited Slip Differential
Position: Rear
Drivetrain: Rear-Wheel Drive
Engine Application: 4A-GE
Rear Differential: Toyota T-Series
Standard Differential Application: Open Differential
Clutch Discs: 12
Disc Size: Small
Available Lock Configurations: 1.5-Way / 2-Way
Included Oil: 2 Liters TOMEI Low-Friction High-Grade Differential Oil

Which AE86 LSD Should I Choose?

Available Configurations

2-Way | Zenki / Early (05/1983–10/1985)

• Early-model AE86 T-Series rear differential
• 2-way clutch-type LSD
• Includes 2 liters of TOMEI differential oil

2-Way | Kouki / Late (10/1985–04/1987)

• Late-model AE86 T-Series rear differential
• 2-way clutch-type LSD
• Includes 2 liters of TOMEI differential oil

1.5-Way | Zenki / Early (05/1983–10/1985)

• Early-model AE86 T-Series rear differential
• 1.5-way clutch-type LSD
• Includes 2 liters of TOMEI differential oil

1.5-Way | Kouki / Late (10/1985–04/1987)

• Late-model AE86 T-Series rear differential
• 1.5-way clutch-type LSD
• Includes 2 liters of TOMEI differential oil
