NGK Spark Plug Set | 4A-GE (1983-87 Corolla)

NGK Laser Platinum / Iridium IX Spark Plug Set

For 1983–1987 Toyota Corolla AE86 equipped with the factory naturally aspirated 4A-GE engine.

Overview

The NGK Laser Platinum / Iridium IX Spark Plug Set provides four matching plugs for the factory naturally aspirated 4A-GE in 1983–1987 Japanese-market Corolla AE86 and 1985–1987 U.S.-market Corolla Sport GT-S.

Choose Laser Platinum for an OE-spec precious-metal electrode design and long service life, or Iridium IX for its fine-wire iridium center electrode and performance-oriented ignitability.

Factory Pre-Gapped — 1.1 mm (0.044 in.) for both Laser Platinum and Iridium IX, matching the stock naturally aspirated 4A-GE service gap. Both choices use NGK heat range 5, M14 x 1.25 thread, 19 mm reach, resistor construction, and a gasket seat.

Key Features

• 4A-GE spark-plug set for these Corolla AE86 applications
• Choose Laser Platinum or Iridium IX
• Includes four spark plugs per set
• Factory Pre-Gapped: Both Laser Platinum and Iridium IX have a 1.1 mm (0.044 in.) manufacturer-set nominal gap for the stock 4A-GE.
• NGK heat range 5
• M14 x 1.25 thread and 19 mm / 0.750 in. reach
• 16 mm / 5/8 in. hex with resistor construction and gasket seat

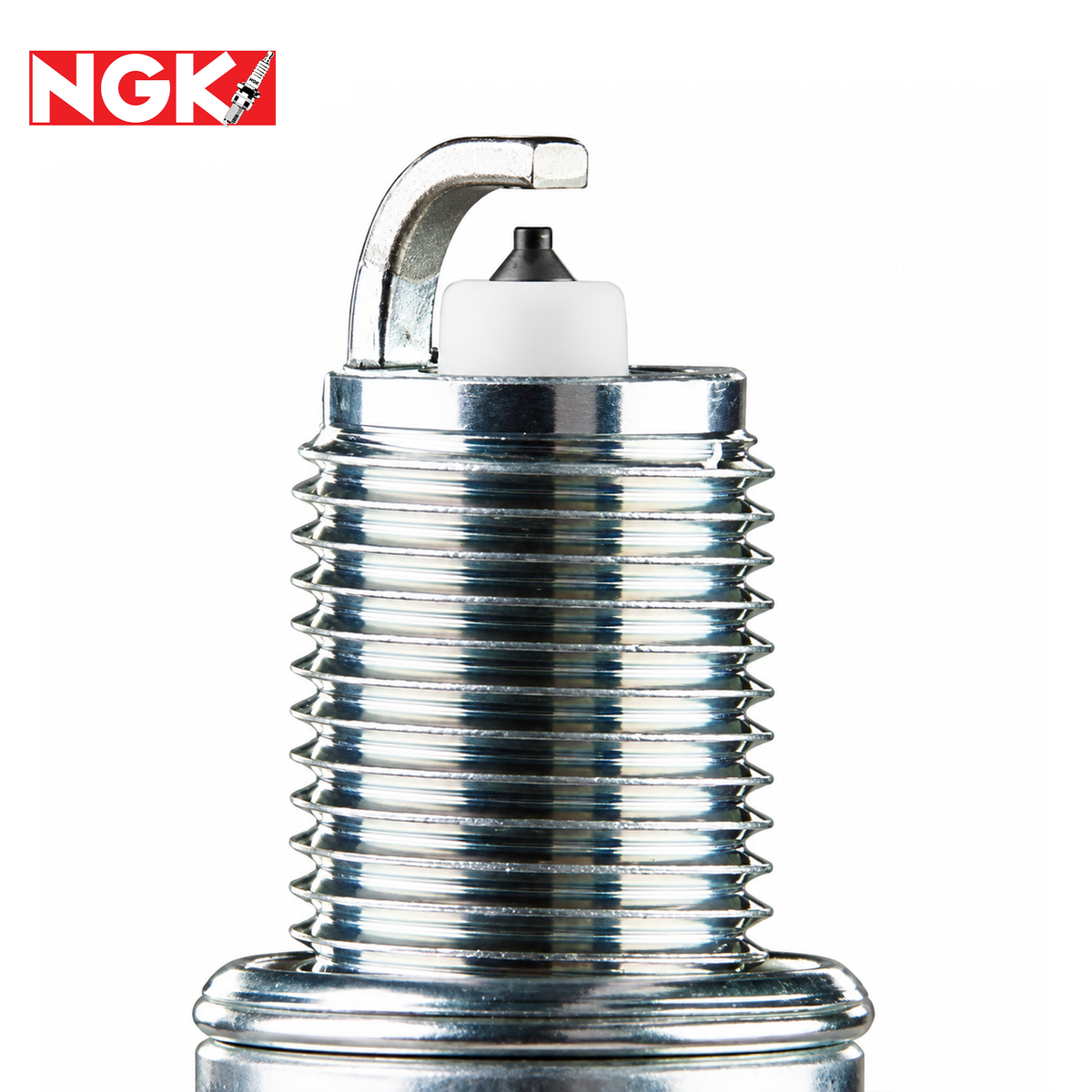

• Iridium IX tapered-cut ground electrode complements the fine-wire iridium center.

Vehicle Fitment

Toyota Corolla — AE86

• 1983–1987: Trueno (JDM) / 4A-GE
• 1983–1987: Levin (JDM) / 4A-GE
• 1985–1987: GT-S (U.S.-Market) / 4A-GE, manual transmission

Fitment Notes

• Factory 4A-GE applications only. Does not fit Corolla Sport SR5 models with the factory 4A-C engine.
• U.S.-market GT-S models use a manual transmission; later Japanese-market 4A-GE models were also offered with an automatic transmission.

Product Specifications

Brand: NGK
Product Type: Spark Plug Set
Engine: Naturally Aspirated 1.6L 4A-GE
Heat Range: NGK 5
Thread Size: M14 x 1.25
Thread Reach: 19 mm / 0.750 in.
Hex Size: 16 mm / 5/8 in.
Seat Type: Gasket
Factory Pre-Gap: 1.1 mm / 0.044 in. (both options, nominal)
Resistor Type: Yes
Quantity: 4 Spark Plugs
Available Electrode Types: Laser Platinum / Iridium IX

Which Spark Plug Is Right for You?

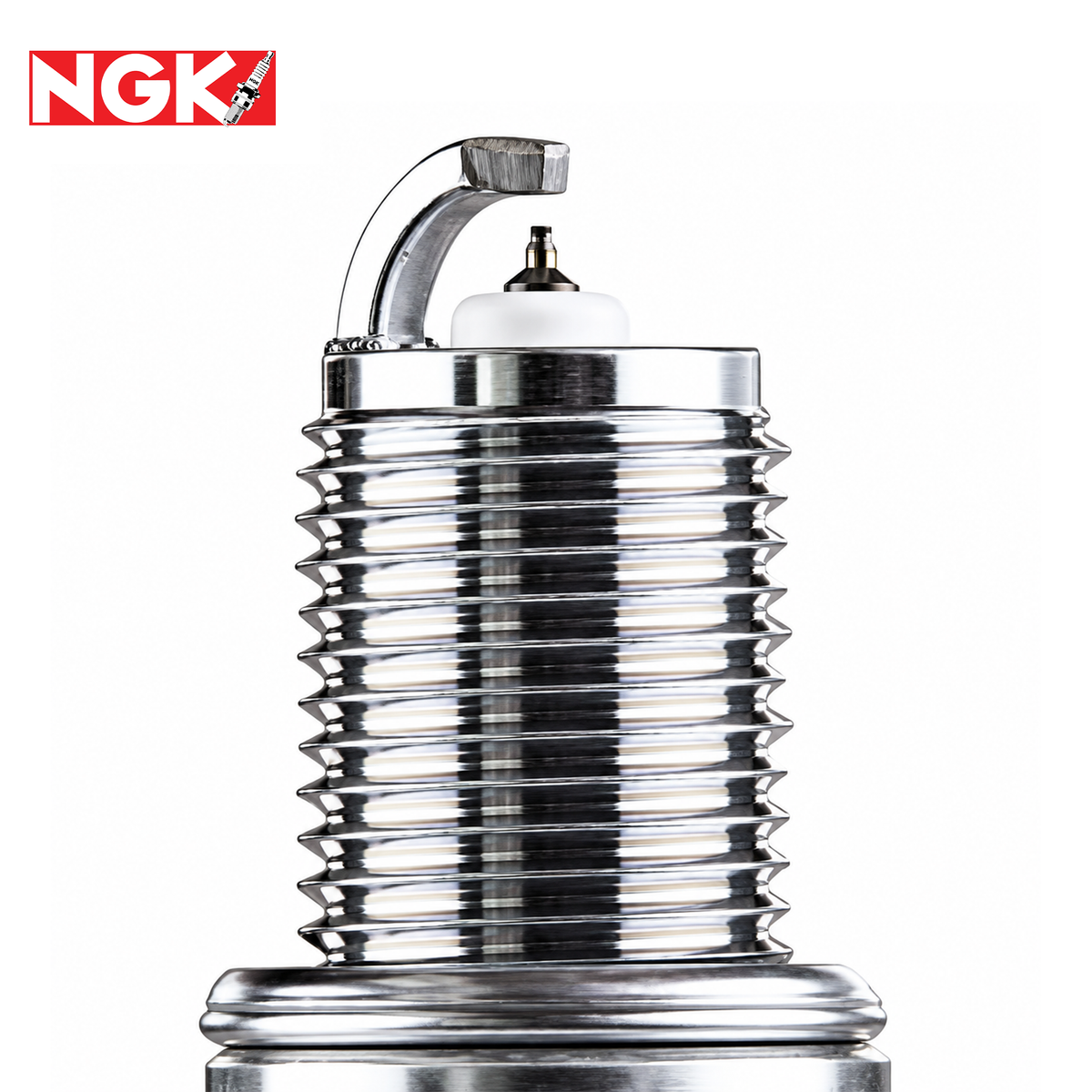

Laser Platinum — Best for Daily Driving & Longer Service Life

Choose Laser Platinum if your AE86 is a daily driver, weekend cruiser, or factory-style restoration and you want dependable ignition with fewer spark plug changes. It is the best all-around choice for most stock 4A-GE engines.

Iridium IX — Best for Spirited Driving & Throttle Response

Choose Iridium IX if you enjoy spirited driving and prefer NGK's performance-oriented plug, designed to support responsive throttle feel and consistent ignition during acceleration. It is not a guaranteed horsepower or throttle-response upgrade over fresh Laser Platinum plugs, and it typically has a shorter service interval.

The DENSO Spark Plug Set is an alternative if you prefer DENSO for a factory-engine ignition refresh. The set offers Double Platinum for factory-style service and Iridium TT for a modern twin-tip alternative, both for the listed AE86 factory 4A-GE applications.

Our Recommendation: Choose Laser Platinum for most stock, restored, or daily-driven AE86s. Choose Iridium IX for a spirited-driving AE86 if you value NGK's performance-focused design more than maximum spark plug life.

Supporting Ignition Wires

Worn spark plug wires can still cause ignition misfires after replacing the plugs. For an AE86 4A-GE ignition refresh, the AE86 NGK Blue Silicone Spark Plug Wire Set is a separately sold matching wire option for the factory ignition system; it is not included with these spark plugs.

Available Configurations

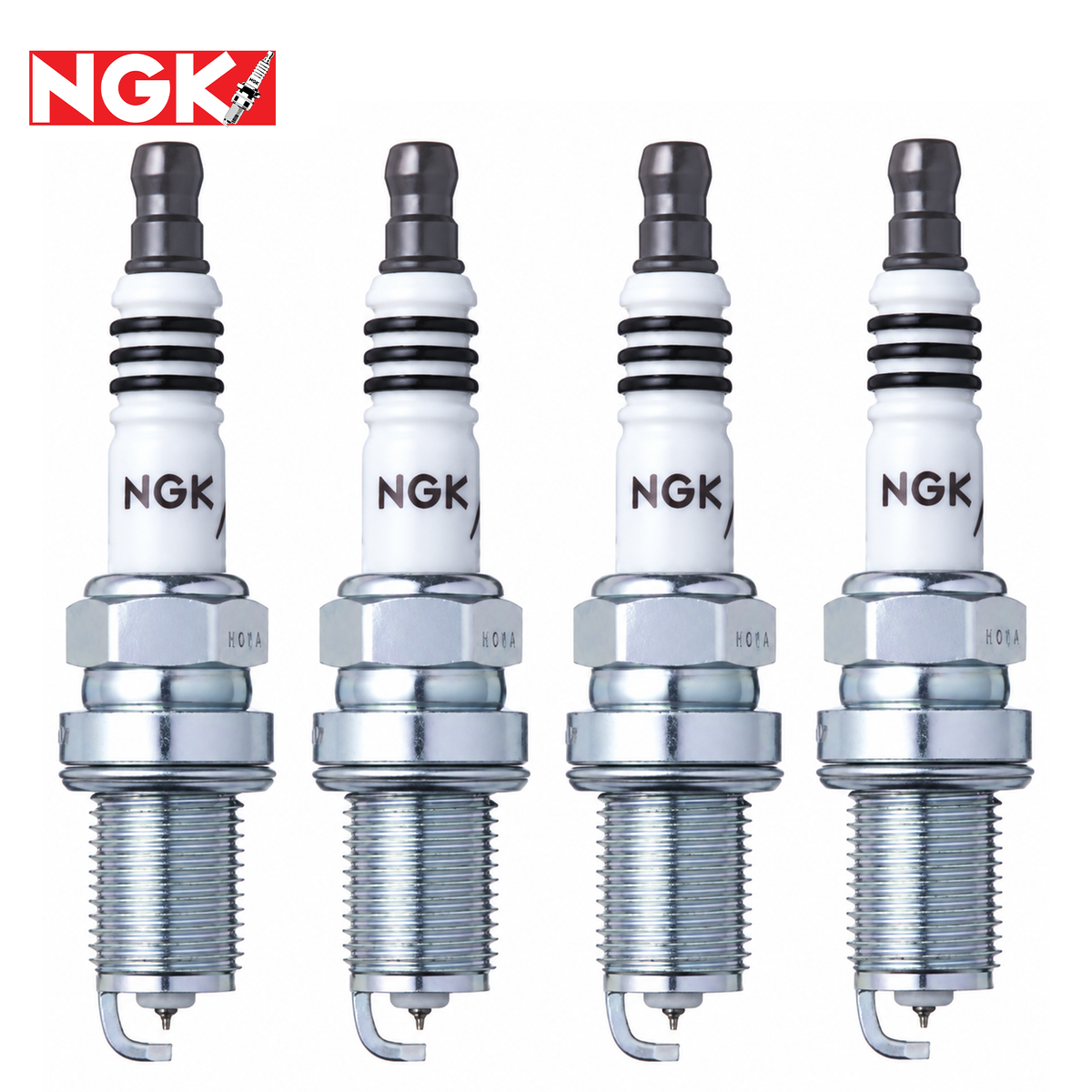

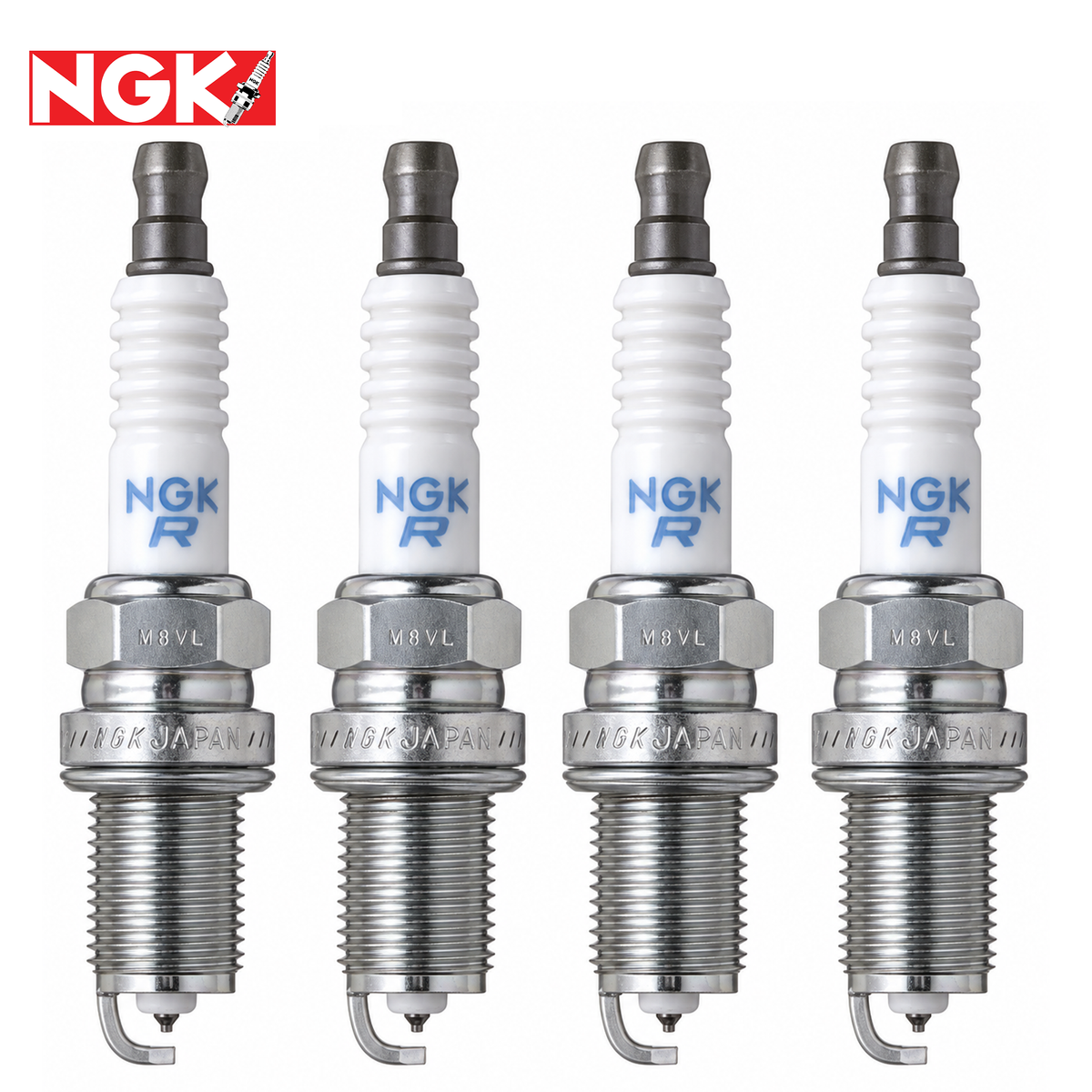

Laser Platinum

• (4) NGK Laser Platinum spark plugs

Iridium IX

• (4) NGK Iridium IX spark plugs
