AE86 Fortune Auto 500 Series Coilovers | OEM / Separate Rear (1983-87 Corolla)

Fortune Auto 500 Series Coilovers — OEM / Separate Rear

For 1983–1987 Toyota Corolla AE86 Trueno / Levin, 1985–1987 U.S.-Market Corolla Sport AE86 (GT-S), and 1984–1987 U.S.-Market Corolla Sport AE86 (SR5)

Overview

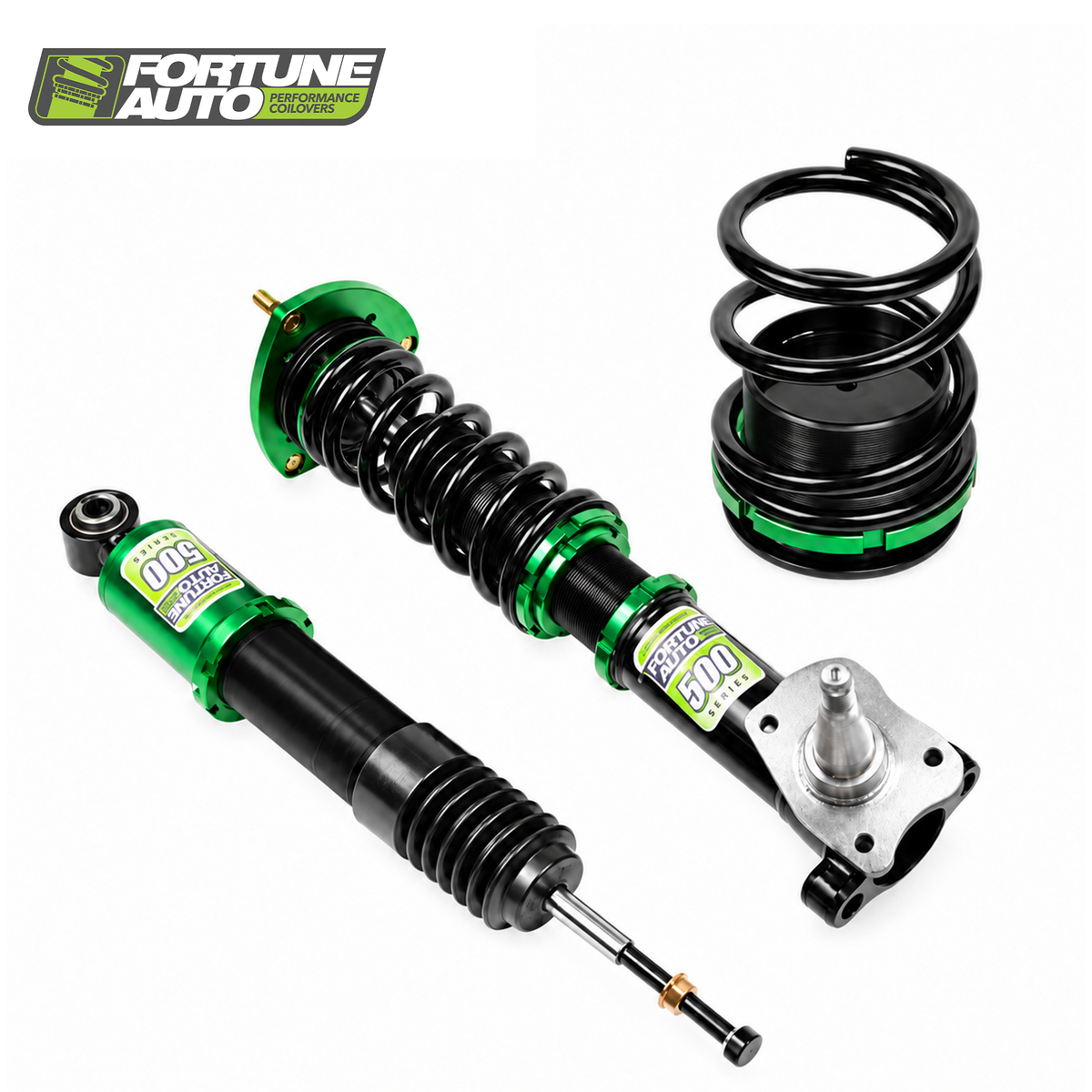

The Fortune Auto Generation 8 500 Series is a single-adjustable, rebuildable, and modular coilover system developed to balance street comfort with responsive performance. This AE86 version retains the factory-style separate rear spring and damper layout while using complete front coilover assemblies with front spindles included.

Fortune Auto's High Flow Digressive piston design provides strong low-speed damping control to help manage body roll, dive, and squat while remaining more compliant over faster suspension movements such as bumps and surface irregularities. Each set is custom-built and dyno-tested in Richmond, Virginia.

The standard AE86 spring setup is 8 kg/mm front and 6 kg/mm rear. The Front Spring Upgrade (Front Only) selection substitutes the two front springs with Swift or Hyperco springs when selected. The rear springs remain standard Fortune Auto units at 6 kg/mm; this selection does not change the rear spring rate or separate rear layout.

Key Features

• Generation 8 500 Series single-adjustable damper platform
• 24-step damping adjustment
• 8 kg/mm front / 6 kg/mm rear standard spring rates
• Optional custom front spring-rate configuration
• Optional front Swift or Hyperco spring upgrades
• Optional full-set protective covers, coil spring sleeves, or combined protection bundle
• High Flow Digressive piston technology
• Monotube dampers with high-pressure nitrogen and FA synthetic shock oil
• T6 6061 aluminum front mounts and camber plates
• Front spindle assemblies included
• Custom-built and dyno-tested in the USA
• Rebuildable and revalveable at Fortune Auto's Richmond, Virginia facility
• Modular platform with a future 2-way / 3-way canister upgrade path
• 5-year limited manufacturer warranty

Choosing Your Spring Brand

Front spring upgrade — front only: Swift and Hyperco upgrades replace only the two front springs on this OEM / Separate Rear configuration. Both rear springs remain standard Fortune Auto units at 6 kg/mm, regardless of the front spring brand selected. Spring-brand selection does not change the nominal spring rate.

Default Fortune Auto — Best for a complete Fortune Auto setup and strong value. The standard Fortune Auto springs use premium chrome-silicon spring material and are designed around performance, longevity, and ride quality. This is the straightforward choice for customers who want the complete 500 Series system without paying for an upgraded spring brand.

Swift Springs — Best for street, canyon, and mixed-use drivers prioritizing compliance, response, and usable suspension travel. Swift's proprietary HS5.TW spring alloy allows a given rate to be produced with fewer coils and less spring mass while retaining more usable stroke before coil bind. The material is designed to return to position quickly, helping the tire follow uneven pavement more consistently. At the same nominal spring rate, that combination can produce a smoother, more composed feel over bumps without requiring a softer rate. Swift linear springs are engineered for close rate consistency through their working stroke and strong rate retention over repeated use.

Hyperco Springs — Best for competition-focused builds and drivers prioritizing precise, repeatable spring behavior. Hyperco coilover springs use high-tensile spring material and are engineered for high usable deflection, low spring weight, tight rate linearity, and long-term retention of free length and spring rate. Hyperco has a long motorsports focus and manufactures its springs in the United States. For a track, drift, autocross, or highly setup-sensitive AE86, Hyperco is a strong choice when predictable rate behavior and repeatability are primary priorities.

Which spring brand should you choose? Choose Fortune Auto for the best-value complete system, Swift when ride quality, rough-road grip, lower spring mass, and usable stroke are the priorities, or Hyperco when competition use, rate consistency, repeatability, and American-made spring construction matter most. None of the three brands automatically makes the chosen spring rate softer or stiffer; the rate itself still controls nominal stiffness.

Protection Add-On Guide

The optional protection accessories address two different types of wear. Protective covers shield the outside of the dampers from dirt, moisture, grit, and road debris, while coil spring sleeves help reduce spring-coil contact noise and coating wear. The OEM / Separate Rear setup retains separate rear springs and rear dampers; covers protect the damper assemblies, while sleeves protect the front and rear springs.

Protective Covers — Full Set (4 Covers)

• Includes (4) 14-inch Fortune Auto protective covers for the front and rear damper assemblies.
• Fortune Auto's proprietary synthetic blend, zip-lock closure, and felt line guides provide external shielding.
• Helps limit contamination and corrosion around exposed shock components, threads, and adjustment areas, particularly on cars driven in rain, dust, and road grime.
• On the OEM / Separate Rear layout, the rear springs are separate from the rear dampers and are not enclosed by the damper covers.

Coil Spring Sleeves — Full Set (8 Sleeves)

• Includes (8) adhesive-lined sleeves — two per spring across all four springs.
• Works with Fortune Auto, Swift, and Hyperco spring configurations.
• Helps reduce coil-to-coil contact, suspension NVH, and unnecessary wear to the spring coating.
• Provides spring-contact protection for both front and rear springs, independently of the spring brand selected for the front.

Protective Covers + Coil Spring Sleeves — Full Set (4 Covers + 8 Sleeves)

• Includes (4) 14-inch protective covers and (8) adhesive-lined coil spring sleeves.
• Combines external damper protection with coil-contact noise and coating protection at all four springs.
• A complete optional protection package for owners who regularly drive their AE86 and want to help keep its suspension components cleaner and in better condition over time.

None means no additional protection accessories. The coilover kit remains functional without optional covers or sleeves.

Vehicle Fitment

Toyota Corolla AE86

• 1983–1987 Trueno (JDM) — AE86 chassis
• 1983–1987 Levin (JDM) — AE86 chassis
• 1985–1987 GT-S (U.S.-Market) — 4A-GE, Manual
• 1984–1987 SR5 (U.S.-Market) — 4A-C, Manual / Automatic

Fitment Notes

• Front spindles are included.
• The rear suspension retains the factory-style separate spring and damper arrangement.
• The standard configuration uses 8 kg/mm front and 6 kg/mm rear springs.
• The custom spring-rate configuration applies to the front spring rate; the rear remains the separate 6 kg/mm setup.
• Swift and Hyperco spring upgrades replace only the front pair; standard Fortune Auto rear springs remain at 6 kg/mm.
• Made-to-order 500 Series builds that are not in stock typically require approximately 4–8 weeks.
• Fortune Auto 500 Series coilovers are intended for off-road / motorsports use only.

Product Specifications

• Brand: Fortune Auto
• Series: Generation 8 500 Series
• Vehicle Platform: Toyota Corolla AE86
• Rear Layout: OEM / Separate Rear
• Position: Front & Rear
• Damper Design: Monotube, high-pressure nitrogen
• Damping Adjustment: 24-step, single-adjustable
• Standard Spring Rate: 8 kg/mm front / 6 kg/mm rear
• Front Spring Upgrade (Front Only): Fortune Auto Standard, Swift Springs (Front Only), or Hyperco Springs (Front Only); standard rear springs retained.
• Piston Technology: High Flow Digressive
• Shock Oil: Fortune Auto synthetic shock oil
• Front Mounts: T6 6061 aluminum camber plates / mounts
• Front Spindles: Included
• Serviceability: Rebuildable and revalveable
• Warranty: 5-year limited manufacturer warranty

Supporting Suspension Components

Lowered AE86 builds can benefit from supporting geometry adjustments. The CUSCO Adjustable Rear Panhard Rod provides rear-axle lateral-position adjustment after ride-height changes.

Available Configurations

Rear / Spring-Rate Configuration

• Separate / OEM-Style Rear: 8 kg/mm front / 6 kg/mm rear.
• Separate / OEM-Style Rear — Custom Front Spring Rate: Custom front spring rate with the separate 6 kg/mm rear spring retained. Preserve Rad will contact you after checkout to confirm the requested front rate before the build order is submitted.

Front Spring Upgrade (Front Only)

Important: This selection changes only the two front springs. The rear springs remain standard Fortune Auto units at 6 kg/mm; the separate rear suspension configuration is unchanged.

• Fortune Auto Standard: Standard Fortune Auto front and rear springs.

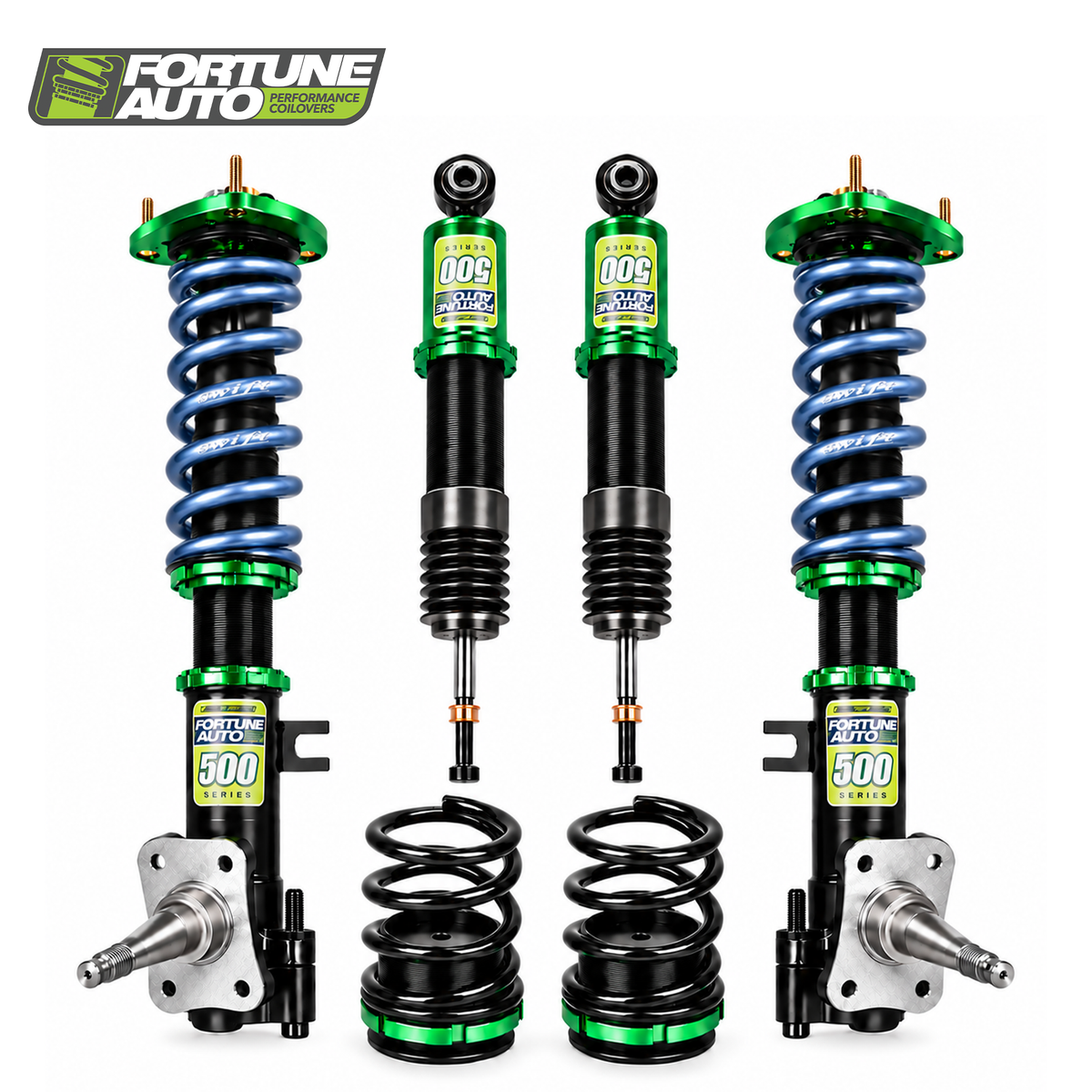

• Swift Springs (Front Only): Swift front spring pair with standard Fortune Auto rear springs.

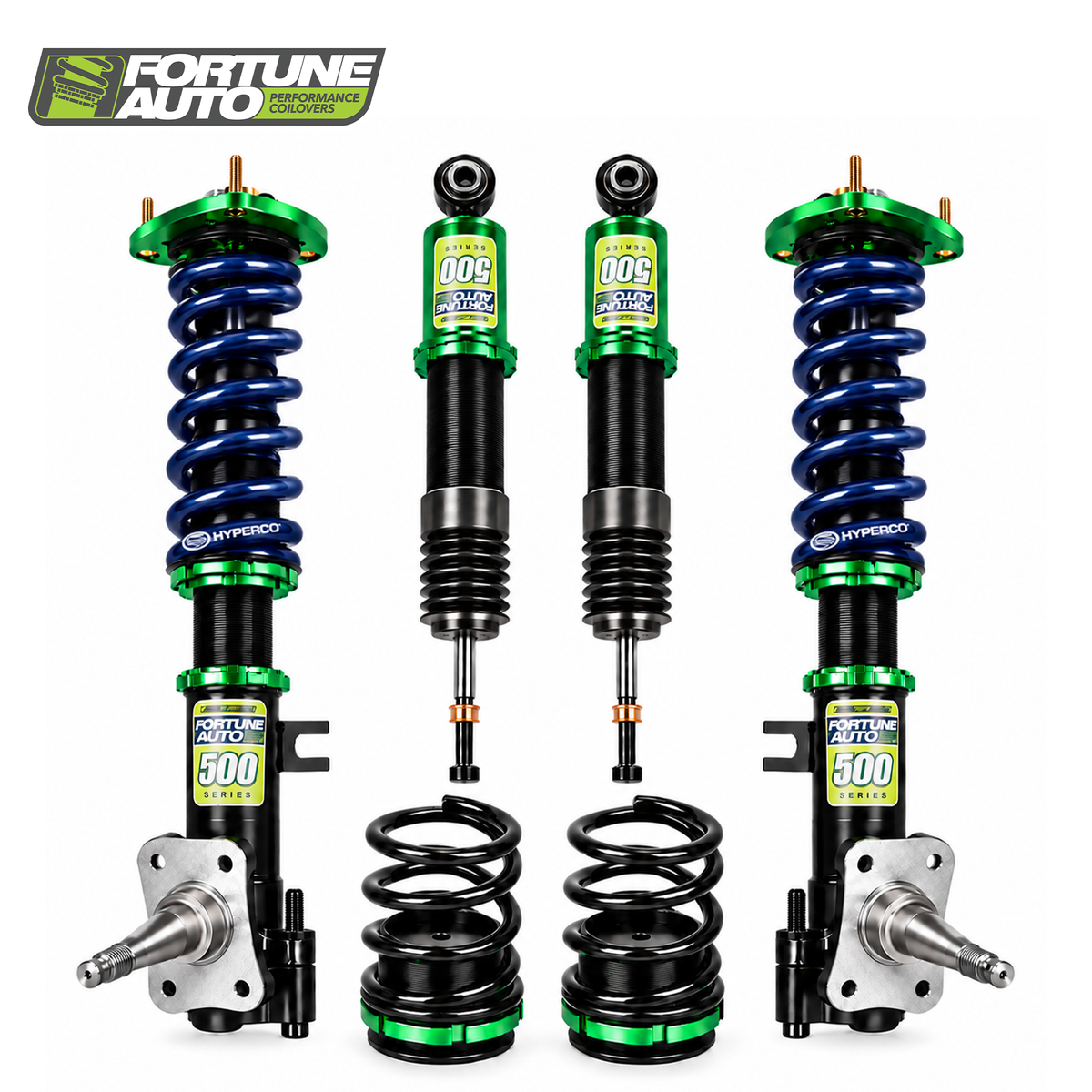

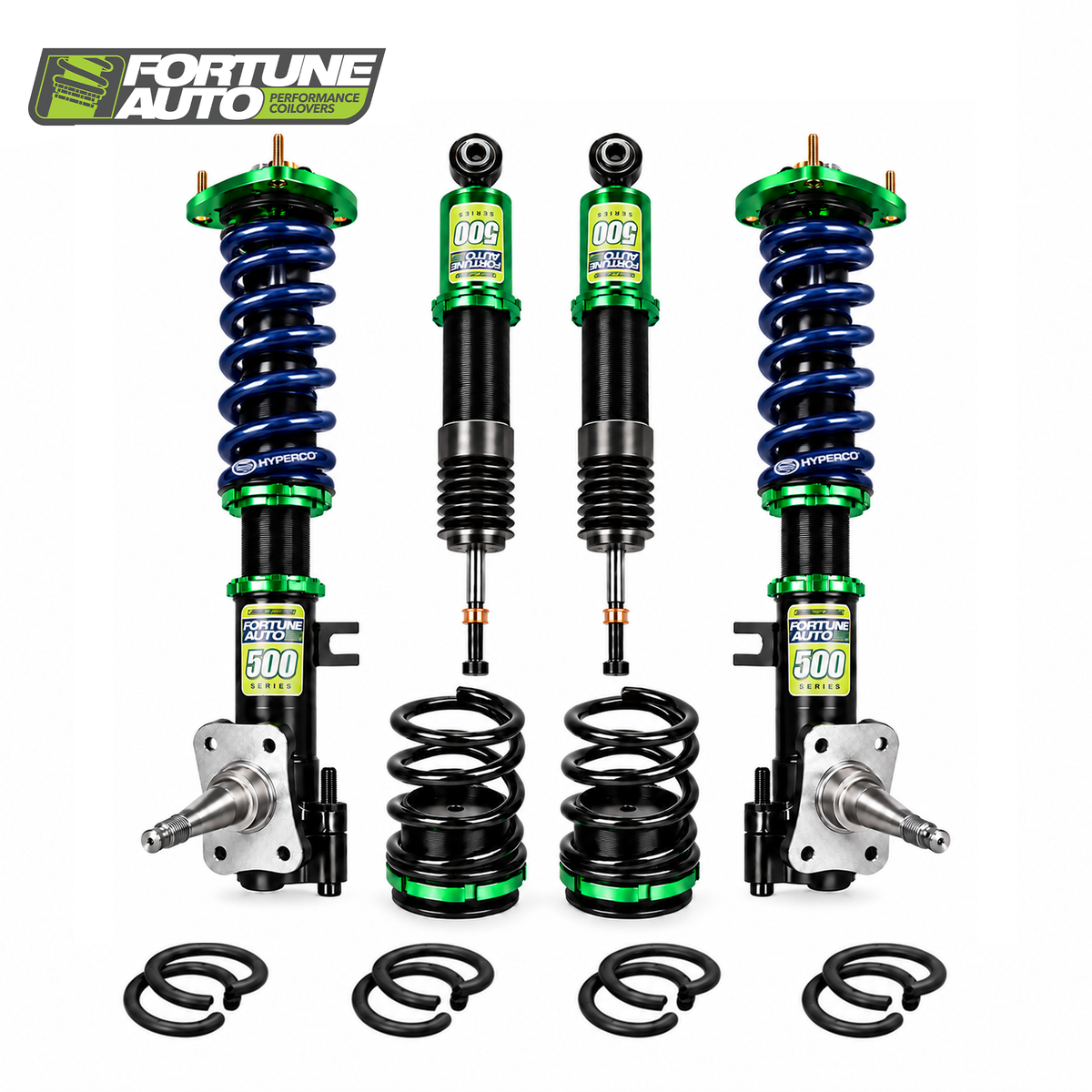

• Hyperco Springs (Front Only): Hyperco front spring pair with standard Fortune Auto rear springs.

Protection Add-On

• None: No additional protection accessories.

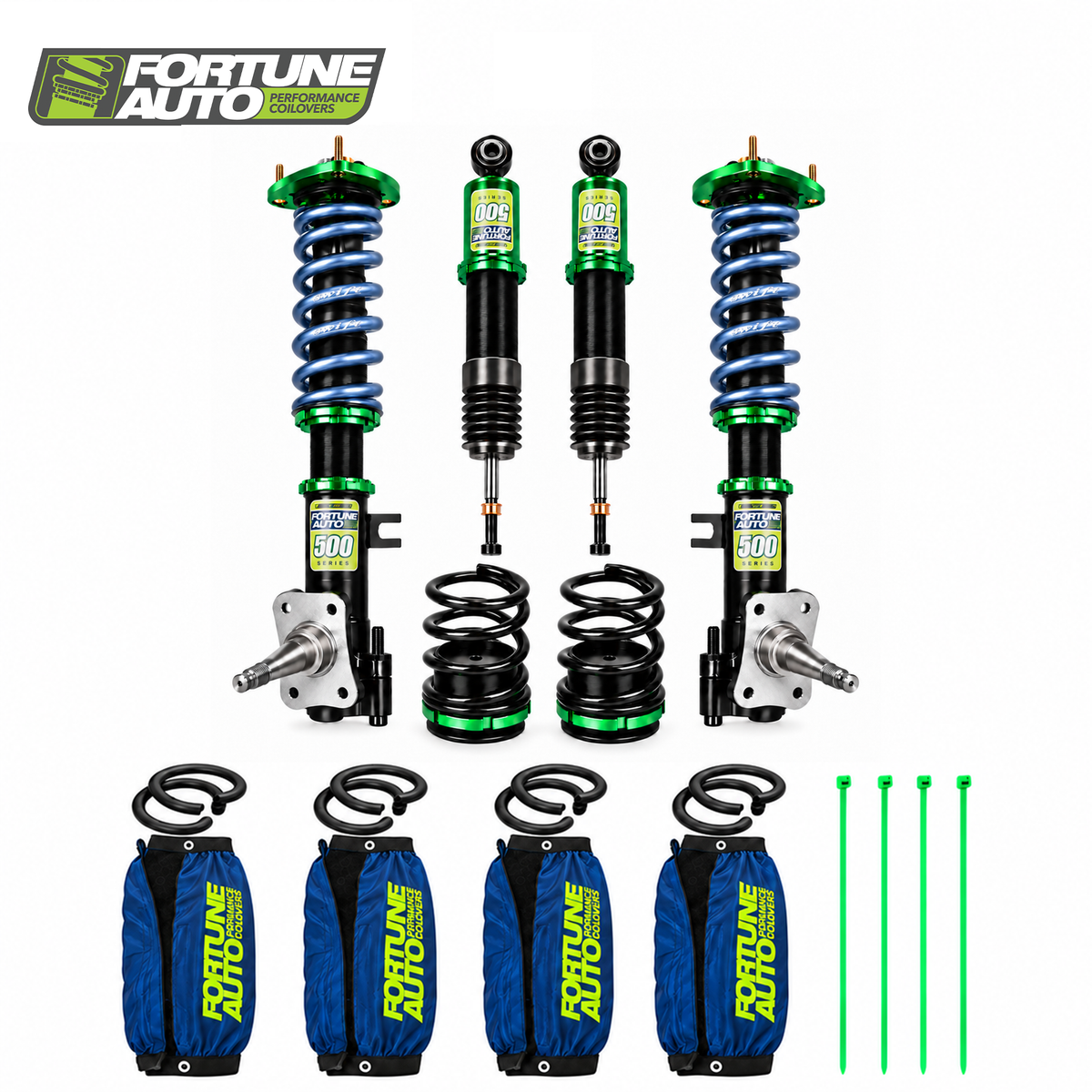

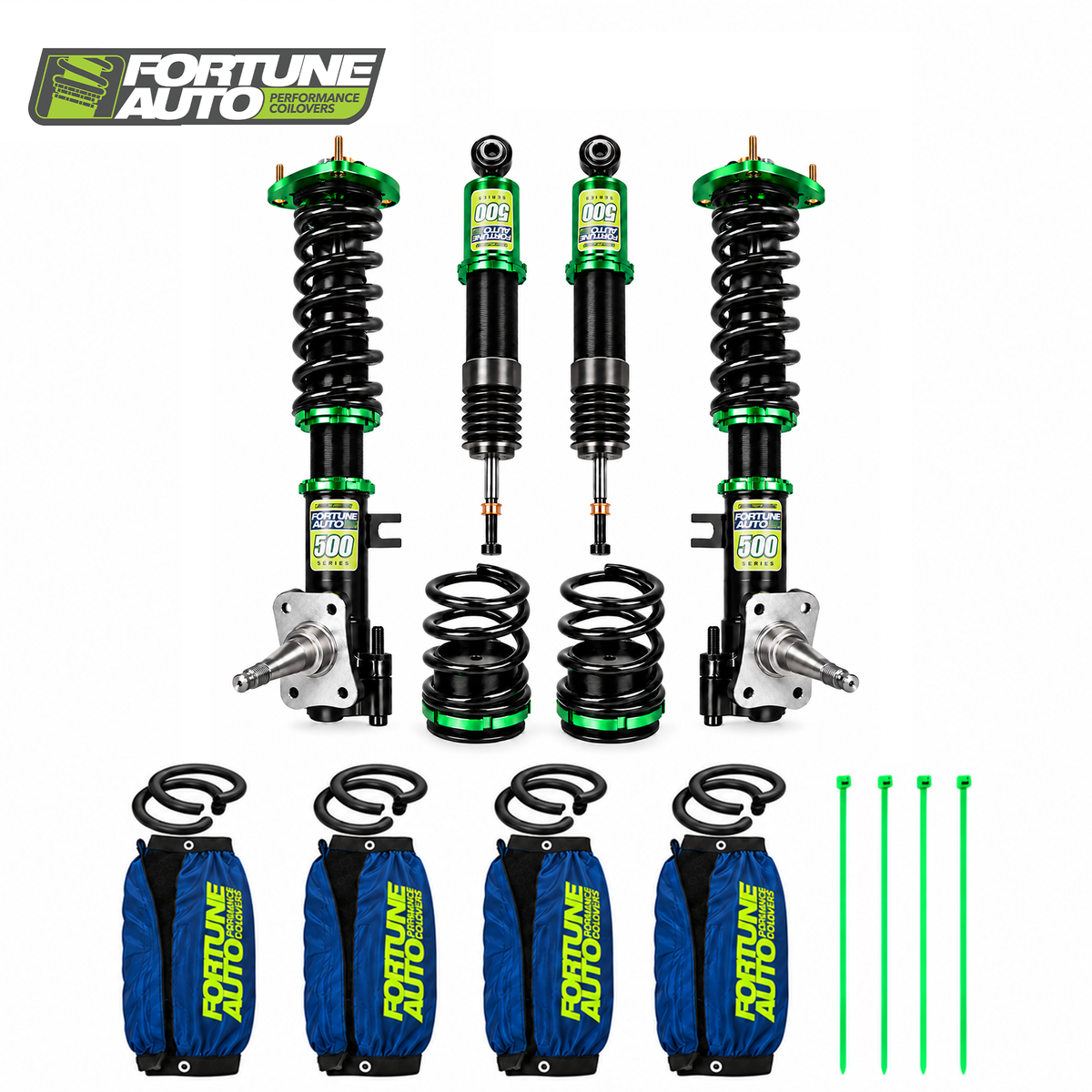

• Protective Covers + Coil Spring Sleeves — Full Set (4 Covers + 8 Sleeves):

  Includes:

  • (4) 14-inch Fortune Auto protective covers
  • (8) adhesive-lined coil spring sleeves

  Combines outer damper shielding with coil-contact protection for all four springs.

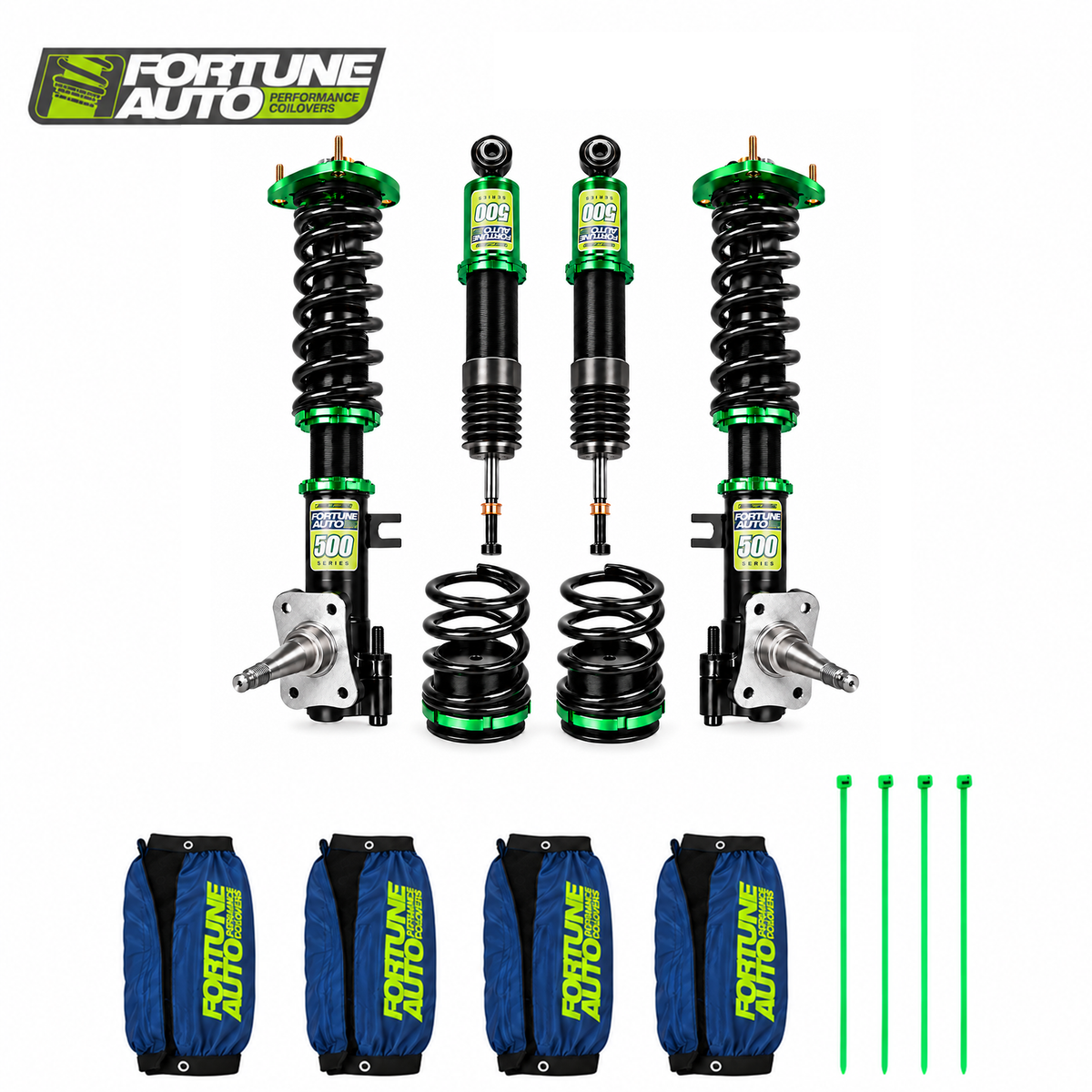

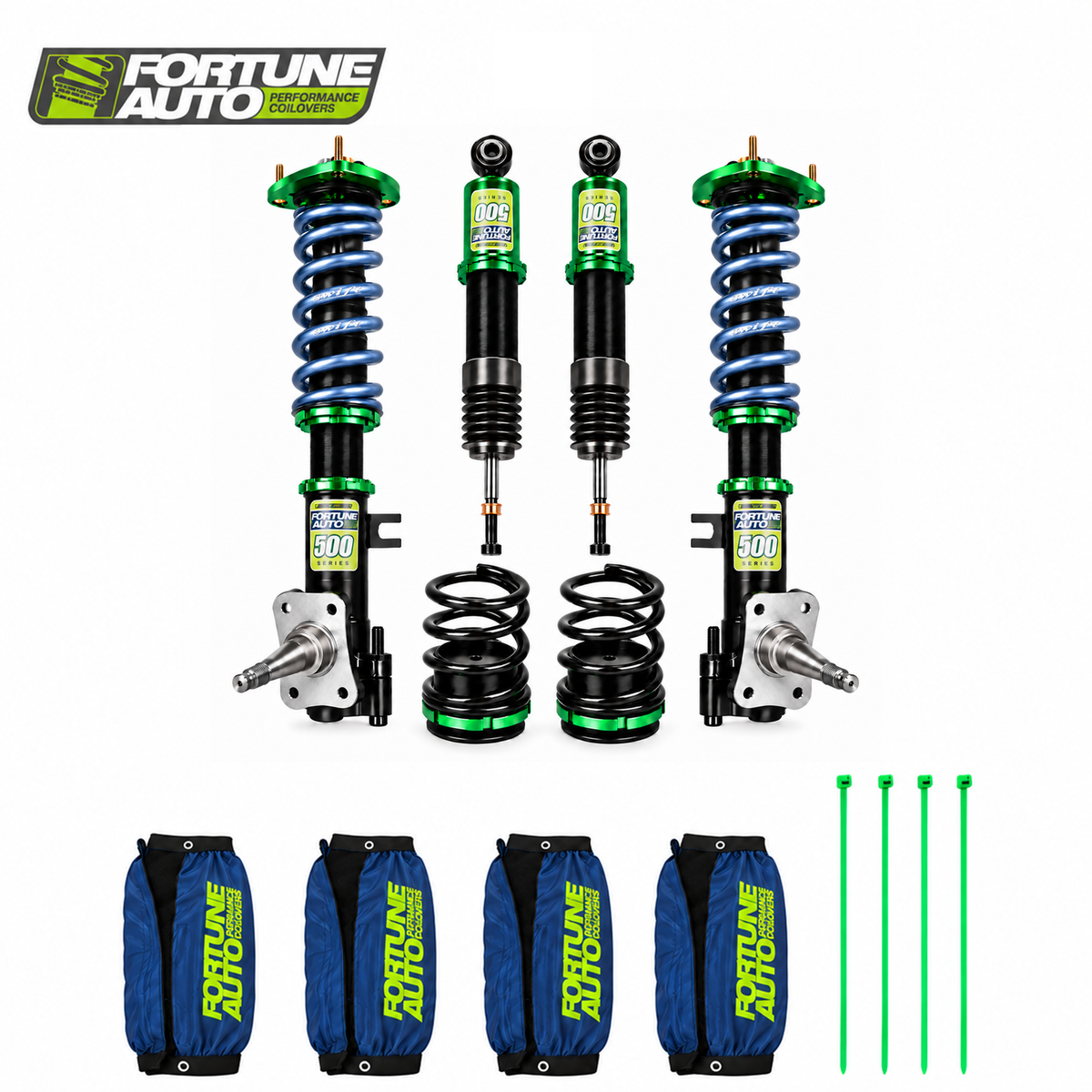

• Protective Covers — Full Set (4 Covers):

  Includes:

  • (4) 14-inch Fortune Auto protective covers

  Helps shield front and rear dampers from debris and moisture; the separate rear springs are not enclosed.

• Coil Spring Sleeves — Full Set (8 Sleeves):

  Includes:

  • (8) adhesive-lined coil spring sleeves

  Two sleeves per spring to help reduce coil contact, noise, and coating wear.
