AE86 CUSCO 23mm Front Sway Bar (1983-87 Corolla)

AE86 CUSCO 23mm Front Sway Bar

For 1983–1987 Toyota Corolla AE86 Trueno / Levin, 1985–1987 U.S.-Market Corolla Sport AE86 (GT-S), and 1984–1987 U.S.-Market Corolla Sport AE86 (SR5)

Overview

The CUSCO 23mm Front Sway Bar is a solid, fixed-rate front stabilizer bar for Toyota AE86 applications. The 23 mm diameter increases front roll stiffness to help reduce body roll and sharpen chassis response during cornering.

The bar provides 130% of the standard front sway-bar rate. It installs at the factory sway-bar mounting locations and includes replacement bushings for the body-side mounts and factory end-link shafts.

Key Features

• 23 mm solid front sway bar
• Fixed-rate, non-adjustable design
• Provides 130% of the standard front sway-bar rate
• Designed to reduce body roll and improve front-end response
• Uses factory sway-bar mounting locations
• Reuses the factory brackets and end-link shafts
• Includes replacement body-side and end-link bushings

Vehicle Fitment

Toyota Sprinter Trueno

• 1983–1987 Toyota Corolla AE86 – Trueno (JDM)

Toyota Corolla Levin

• 1983–1987 Toyota Corolla AE86 – Levin (JDM)

Toyota Corolla Sport

• 1985–1987 Toyota Corolla Sport AE86 – GT-S (U.S.-Market) – 4A-GE
• 1984–1987 Toyota Corolla Sport AE86 – SR5 (U.S.-Market) – 4A-C

Fitment Notes

• AE86 chassis application.
• Front suspension application only.
• Fixed-rate sway bar; not externally adjustable.
• Factory sway-bar brackets and end-link shafts are reused.
• Included replacement bushings install at the body mounts and factory end-link shafts.
• Refer to the Toyota factory service manual for installation procedures and torque specifications.

Product Specifications

Brand: CUSCO
Product Type: Sway Bar / Stabilizer Bar
Position: Front
Diameter: 23 mm
Construction: Solid Steel
Design: Fixed Rate / Non-Adjustable
Rate vs. Standard: 130%
Vehicle Chassis: AE86
Fit Type: Vehicle Specific

CUSCO 23mm vs. Whiteline 24mm Adjustable Front Sway Bar

The main difference between these two AE86 front sway-bar options is adjustability. The CUSCO bar uses a fixed 23 mm design with one predetermined rate, while the AE86 Whiteline 24mm 4-Point Adjustable Front Sway Bar Kit provides four adjustment positions for front roll-stiffness tuning.

• CUSCO 23mm: Fixed-rate configuration with no external adjustment.
• Whiteline 24mm: Four selectable adjustment positions for suspension tuning.

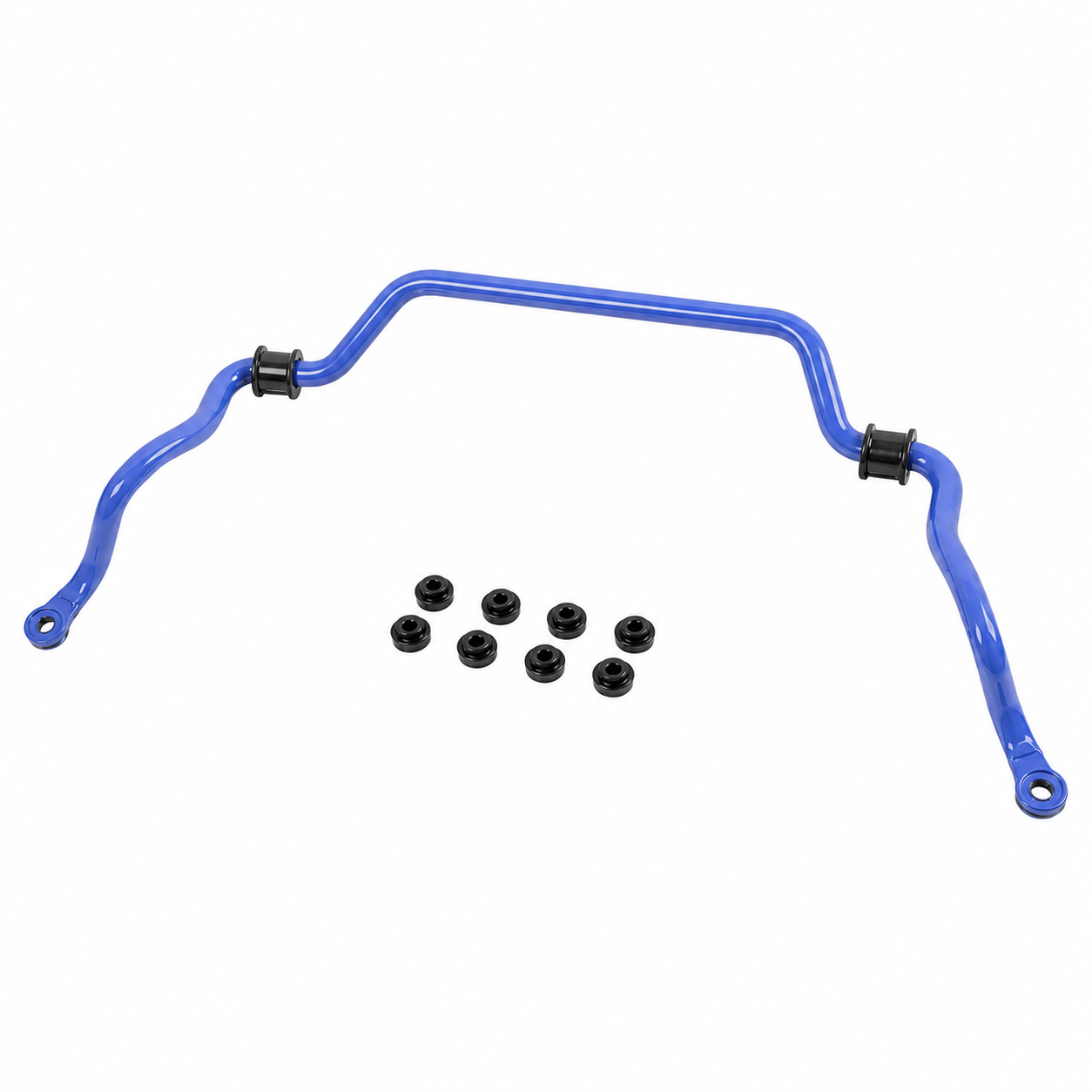

What's Included

• (1) CUSCO 23 mm front sway bar
• (2) Body-side sway-bar bushings
• (8) End-link bushings
