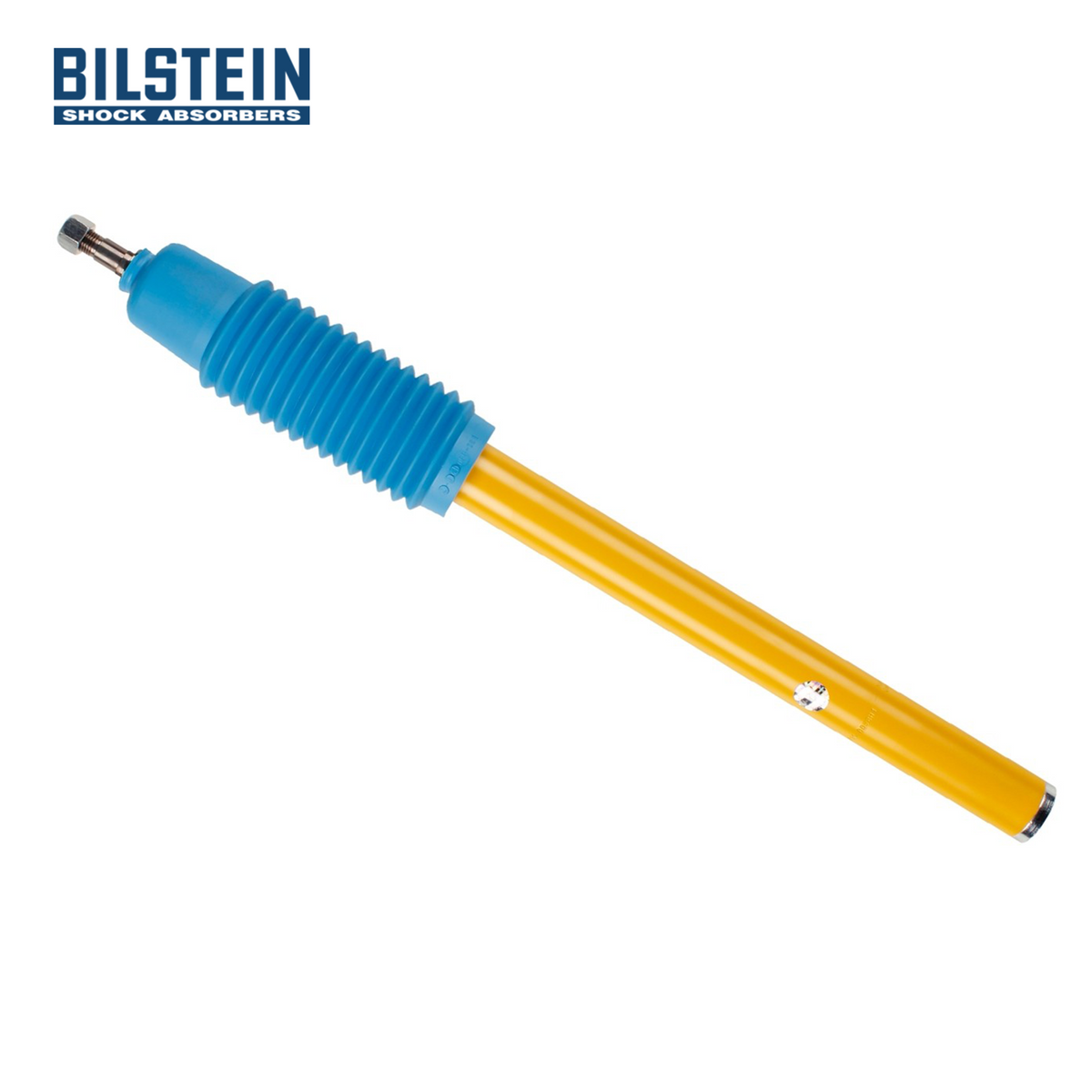

AE86 Bilstein B6 Performance Front Strut Insert (1983-87 Corolla)

Bilstein B6 Performance Front Strut Insert

For May 1983–May 1987 Toyota Corolla Levin / Sprinter Trueno AE86 (JDM), 1985–1987 Corolla Sport GT-S AE86 (USDM), and 1984–1987 Corolla Sport SR5 AE86 (USDM)

Overview

The Bilstein B6 Performance front strut insert is a monotube gas-pressure damper upgrade for the rear-wheel-drive Toyota AE86 front suspension. It installs as a cartridge inside the factory-style front strut housing and is designed primarily around OE-height, OE-style spring applications.

Its fixed, application-specific damping makes the B6 a strong fit for drivers who want sharper body control, excellent consistency during sustained hard use, and a set-it-and-forget-it suspension upgrade without external adjustment.

Key Features

• Monotube gas-pressure construction for consistent damping control
• Front strut cartridge / insert for factory-style AE86 housings
• Fixed application-specific damping calibration
• Excellent match for stock and OE-style springs
• Strong heat-management characteristics for repeated hard driving
• Blue protective bellows included with each insert
• Available as a Single insert or Pair for both front corners

Vehicle Fitment

• May 1983–May 1987 Toyota Corolla Levin – AE86 – JDM – 4A-GE – Front
• May 1983–May 1987 Toyota Sprinter Trueno – AE86 – JDM – 4A-GE – Front
• 1985–1987 Toyota Corolla Sport GT-S – AE86 – USDM – 4A-GE – Front
• 1984–1987 Toyota Corolla Sport SR5 – AE86 – USDM – 4A-C – Front

Fitment Notes

• Front application only.
• Installs as a cartridge inside a compatible factory-style serviceable front strut housing.
• The same insert is used on the left and right front; two inserts are required to service both front corners.
• The B6 is primarily designed around stock-height / OE-style spring applications. Mild lowering can be workable when suspension travel remains appropriate, but spring rate and available stroke should be considered as a complete system.
• Aggressively lowered or shortened-strut AE86 builds should use a damper length and valving package matched to the modified suspension geometry.

Product Specifications

• Brand: Bilstein
• Series: B6 Performance
• Product Type: Front Strut Insert / Suspension Strut Cartridge
• Position: Front
• Internal Design: Monotube
• Adjustment: Fixed / Non-adjustable
• Collapsed Length: 18.11 in (460.0 mm)
• Extended Length: 24.07 in (611.5 mm)
• Upper Mount: Stem
• Lower Mount: Housing
• Finish: Yellow paint
• Boot: Blue bellows included
• Spring Seat: Not included
• Product Weight: 4.54 lb per insert
• Quantity Required per Vehicle: 2
• Country of Origin: Germany
• Warranty: Limited lifetime warranty

KONI Sport vs. Bilstein B6

Choose KONI Sport when adjustable rebound, mild lowering springs, street/canyon use, and value are the priorities. Choose Bilstein B6 when the car retains stock or OE-style springs and the goal is a fixed-valving monotube setup with excellent sustained-use consistency and minimal tuning required.

More AE86 Suspension & Steering Parts

Pair your front strut service with additional AE86 suspension and steering parts for 1983–1987 Corolla, Levin, and Sprinter Trueno builds.

Available Configurations

Single Front Strut Insert

• (1) Bilstein B6 Performance front strut insert
• (1) Blue bellows

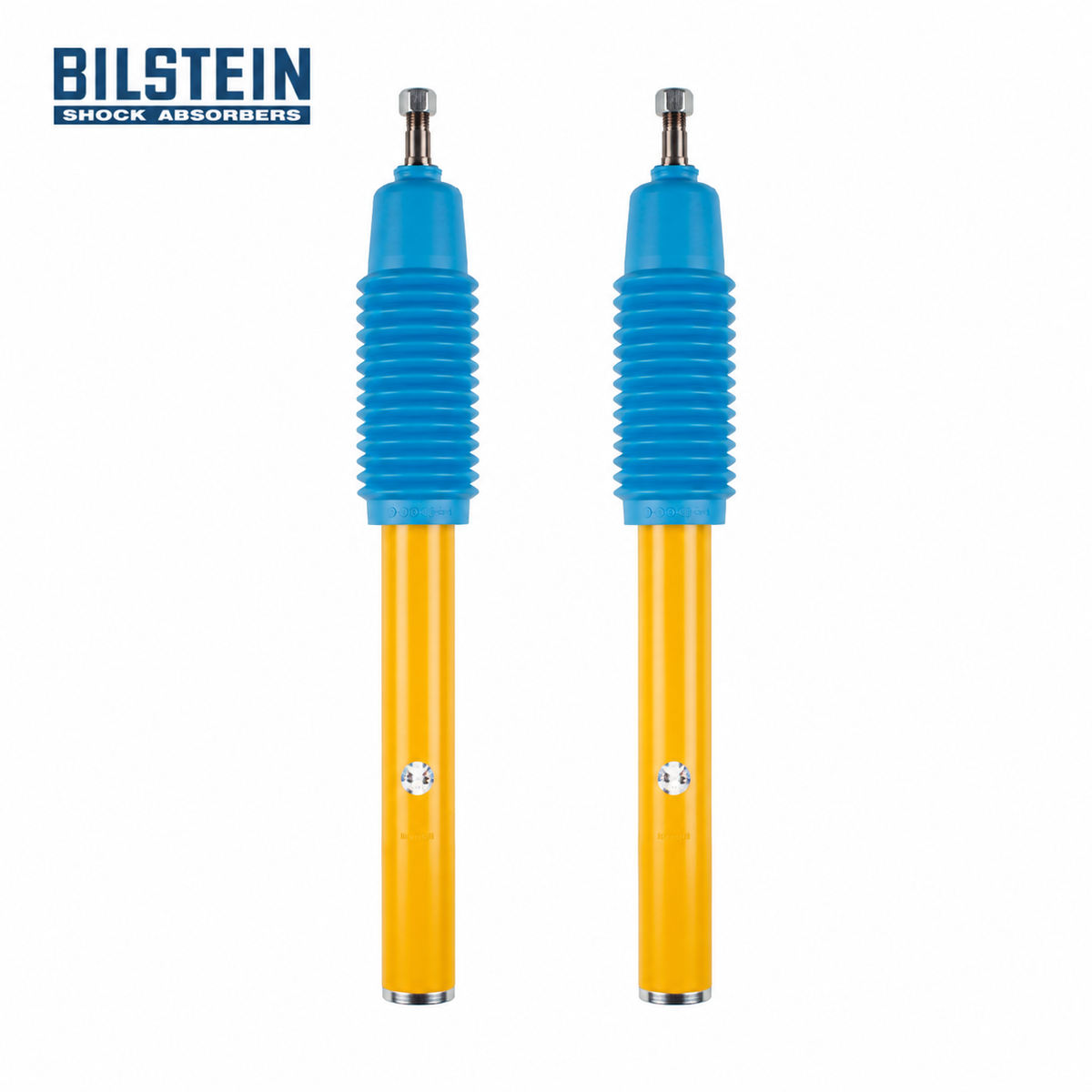

Pair of Front Strut Inserts

• (2) Bilstein B6 Performance front strut inserts
• (2) Blue bellows
• Complete quantity for the left and right front corners
