ACT HDSS Performance Street Clutch Kit | 22R / 22RE (1984-95 4Runner)

ACT HDSS Heavy Duty Performance Street Clutch Kit

For 1984–1995 Toyota 4Runner 2.4L 22R / 22RE Manual Models

Overview

The ACT HDSS Heavy Duty Performance Street Clutch Kit combines a heavy-duty pressure plate with a sprung, full-face organic performance street disc. The design increases clutch holding capacity while retaining smooth, positive engagement and light-to-moderate pedal effort for street-driven and off-road Toyota 4Runners.

Multiple application-specific configurations are available. Choose the configuration by model year and drivetrain, as clutch diameter and fitment vary by application.

Key Features

• Heavy Duty pressure plate designed for increased clamp load and reduced diaphragm deflection
• Sprung full-face organic Performance Street clutch disc for smooth, positive engagement
• Light-to-moderate pedal effort for street-friendly drivability
• Steel-backed organic friction material for improved heat capacity and durability
• Pressure plate assemblies are clamp-load tested and dynamically computer balanced
• Increased torque capacity over the factory clutch while retaining an organic street-disc configuration

HDSS vs. HDG4

Choose the HDSS when smooth launches, daily driving, and progressive clutch control are the priority.

Choose the HDG4 when the build needs a ceramic race clutch and more aggressive engagement. The HDG4 uses a sprung hub to help damp vibration, but its 4-pad ceramic disc engages more abruptly than the HDSS organic street disc.

Vehicle Fitment

• 1984–1988 Toyota 4Runner – 1st Gen – 2.4L 22R / 22RE – Non-Turbo – 4WD – Manual Transmission
• 1989 Toyota 4Runner – 1st Gen – 2.4L 22RE – 4WD – Manual Transmission
• 1990–1992 Toyota 4Runner – 2nd Gen – 2.4L 22RE – 2WD – Manual Transmission
• 1990–1992 Toyota 4Runner – 2nd Gen – 2.4L 22RE – 4WD – Manual Transmission
• 1993–1995 Toyota 4Runner – 2nd Gen – 2.4L 22RE – 2WD – Manual Transmission
• 1993–1995 Toyota 4Runner – 2nd Gen – 2.4L 22RE – 4WD – Manual Transmission

Fitment Notes

• Manual transmission applications only.
• Does not fit 22R-TE turbo applications.
• Does not fit 3.0L 3VZ-E V6 applications.
• 1989 4Runner fitment is 4WD only.
• Select the configuration using both model year and drivetrain; 2WD and 4WD applications can require different clutch configurations.
• Organic Performance Street discs require approximately 300–500 miles of mild-engagement break-in before racing or spirited driving.
• Flywheel is not included.

Product Specifications

Brand: ACT – Advanced Clutch Technology
Series: HDSS Heavy Duty Performance Street
Product Type: Performance Clutch Kit
Pressure Plate: Heavy Duty
Clutch Disc: Sprung Full-Face Organic
Transmission: Manual
Input Shaft Diameter: 1.125 in.
Spline Count: 21
Torque Capacity: 275–285 ft-lb at the engine/crank, depending on configuration
Clutch Disc Diameter: 224 mm / 8.8 in. or 236 mm / 9.3 in., depending on configuration
Pedal Feel: Light to moderate with smooth, positive engagement
Warranty: 12 months

Available Configurations

1984–1988 | 2.4L 22R / 22RE | Non-Turbo | 4WD

• 1st Gen Toyota 4Runner application
• 224 mm organic sprung clutch disc
• 275 ft-lb crank torque capacity

1989–1992 | 2.4L 22RE | 4WD

• 1989 1st Gen and 1990–1992 2nd Gen Toyota 4Runner application
• 224 mm organic sprung clutch disc
• 275 ft-lb crank torque capacity

1990–1995 | 2.4L 22RE | 2WD

• 2nd Gen Toyota 4Runner application
• 224 mm organic sprung clutch disc
• 275 ft-lb crank torque capacity

1993–1995 | 2.4L 22RE | 4WD

• 2nd Gen Toyota 4Runner application
• 236 mm organic sprung clutch disc
• 285 ft-lb crank torque capacity

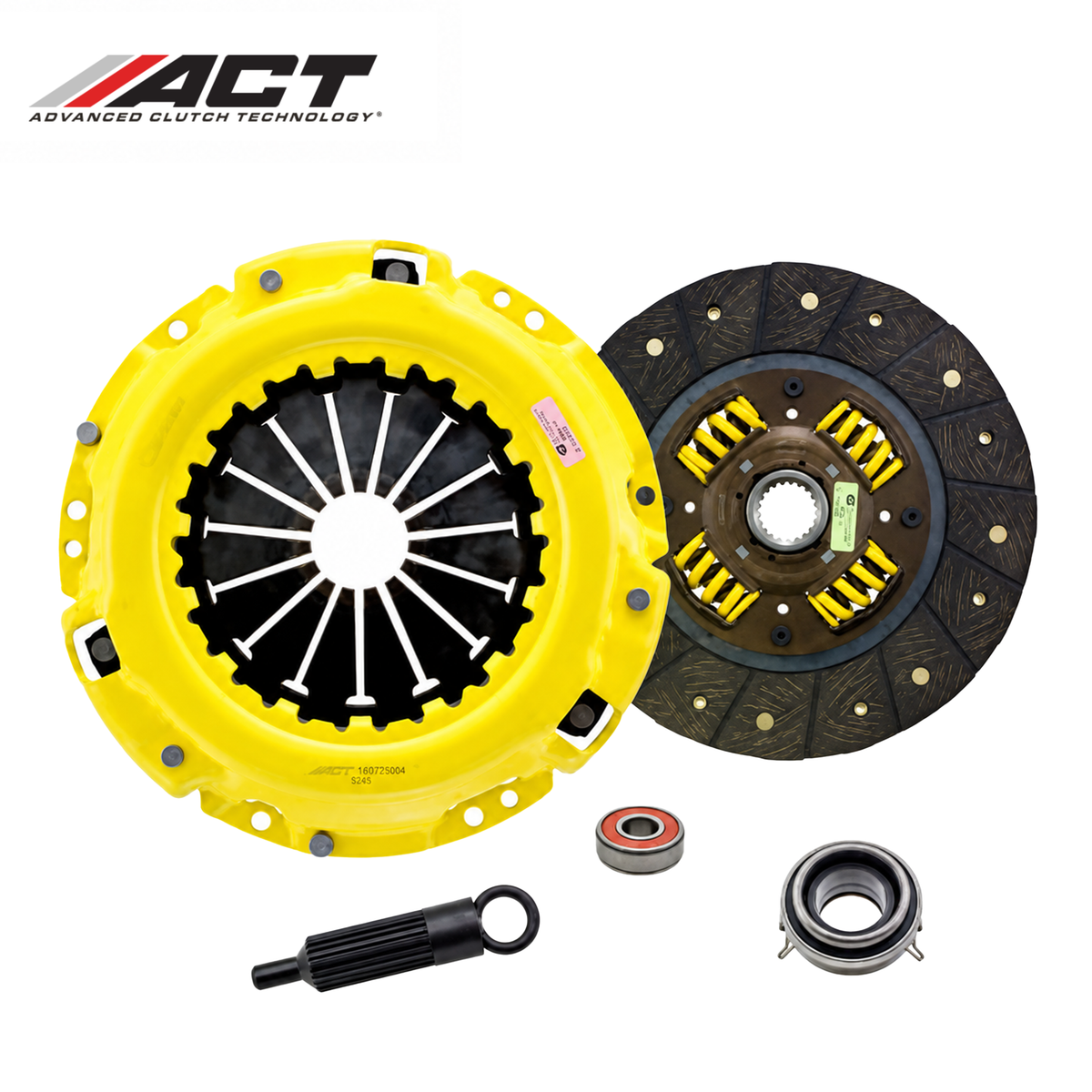

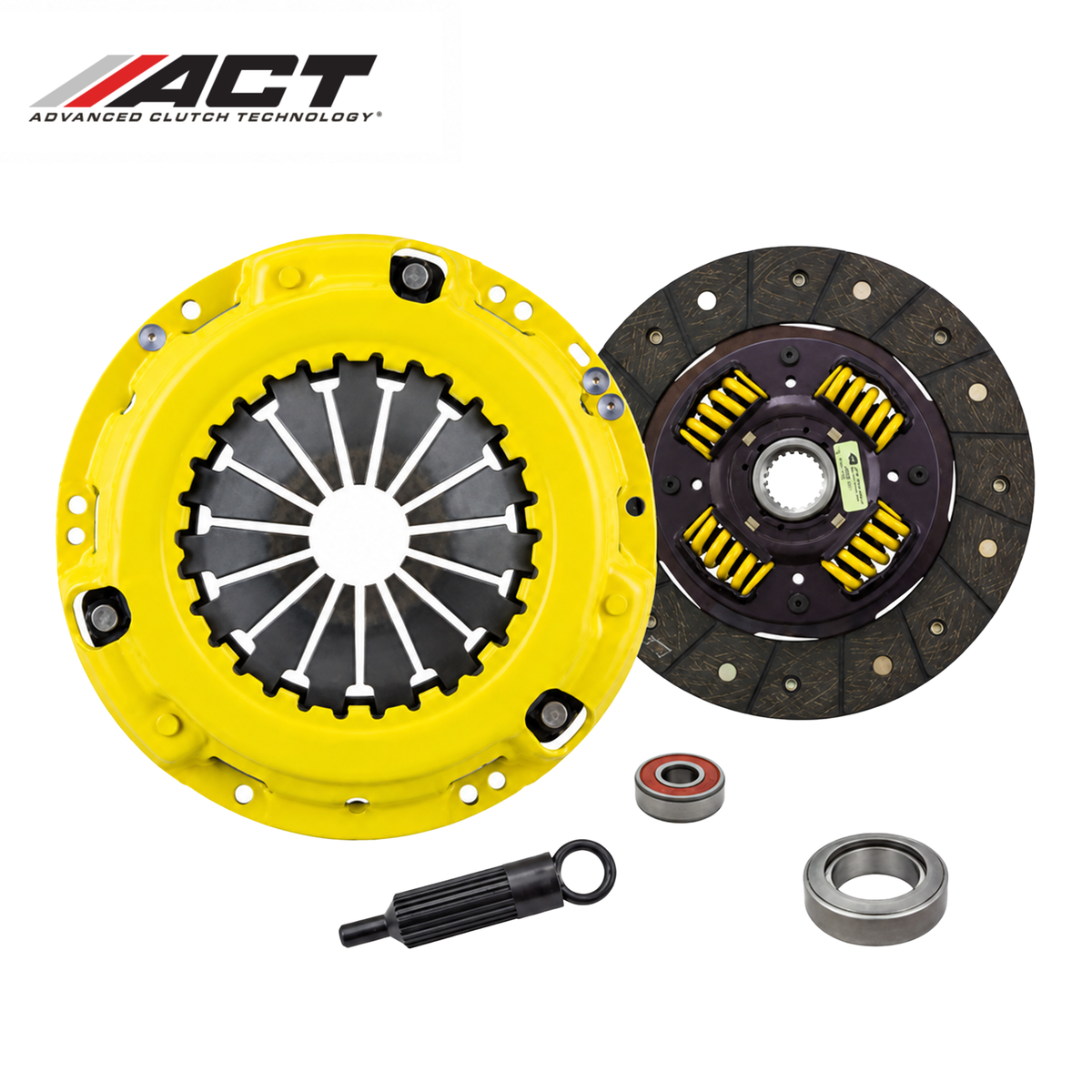

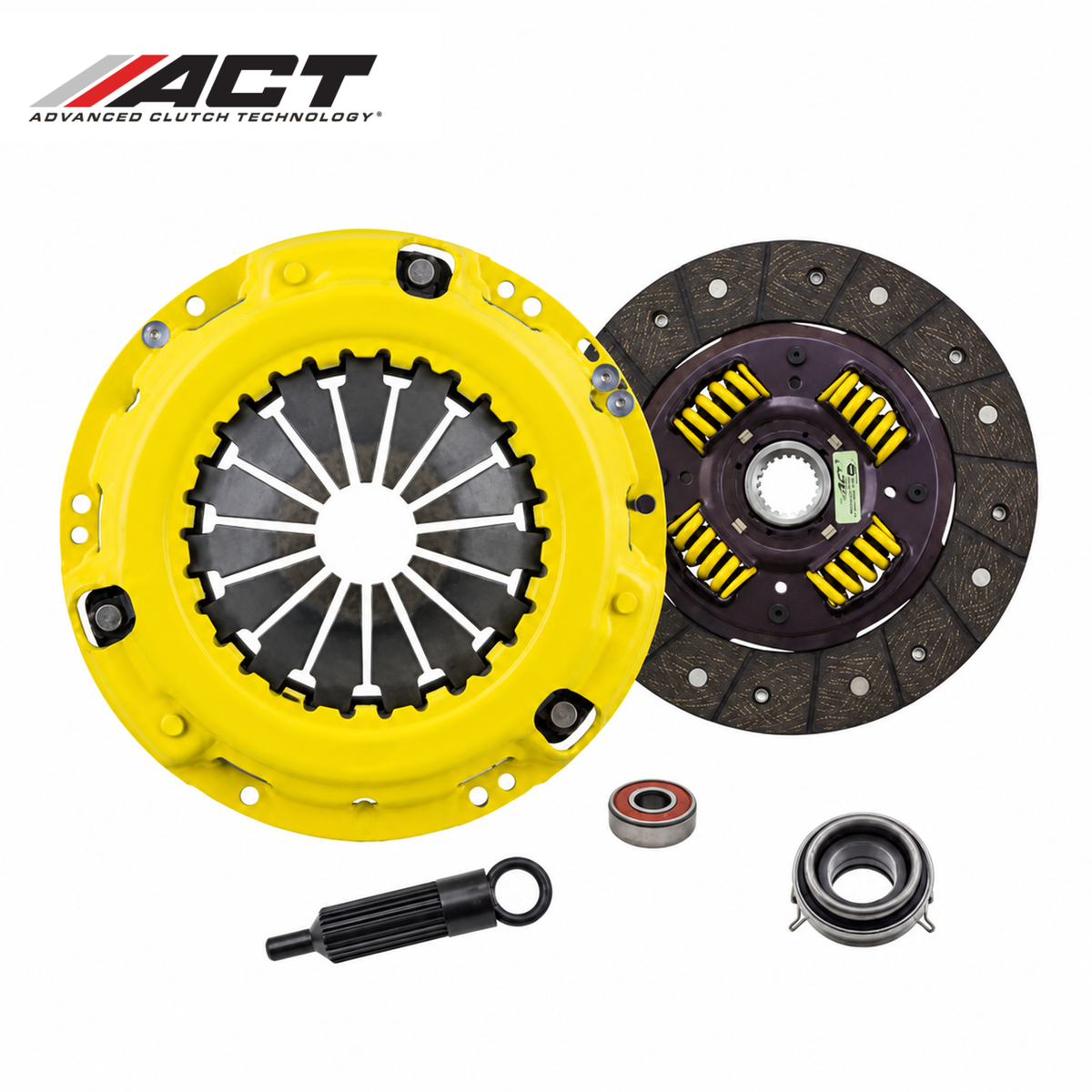

Each Configuration Includes

• Heavy Duty pressure plate
• Performance Street sprung organic clutch disc
• Release bearing
• Pilot bearing
• Clutch alignment tool
