Steering-box fitment on a classic Toyota cannot always be determined from chassis year. Factory solid-axle trucks use a different steering arrangement from the later IFS trucks, while crossover steering, high-steer, solid-axle swaps, and hydro assist often put a later IFS-style steering box onto an earlier chassis.
Quick answer: which steering-box configuration do I have?
| Vehicle configuration | Typical steering box / layout | What it means for parts |
|---|---|---|
| 1979–1985 factory solid-axle Pickup / 1984–1985 4Runner | Factory push-pull steering | Original box is not the IFS-style box normally used for crossover/high-steer conversions. |
| 1986–1995 factory IFS Pickup / 4Runner | IFS-style steering box | This later box style is the common basis for crossover/high-steer conversions. |
| 1979–1985 solid axle with crossover or high-steer | Often converted to an IFS-style box | Order by the installed box and steering geometry, not the original chassis year. |
| 1986–1995 truck converted from IFS to solid axle | Often retains the IFS-style steering box | Crossover steering can use the existing box when the conversion is designed around it. |
Push-pull vs. crossover steering
The original solid-axle Toyota steering system is commonly referred to as push-pull steering. Crossover steering changes the drag-link path so the steering box drives a steering arm across the axle. High-steer kits move the steering links higher for clearance and are generally designed around an IFS-style Toyota steering box.
Why an older solid-axle truck may have a later box
When crossover/high-steer is installed on a 1979–1985 solid-axle Toyota, the original push-pull box is normally replaced with an IFS-style box. That means a 1984 Pickup or 1985 4Runner can legitimately have a steering box associated with a later 1986–1995 IFS truck. This is one of the most common reasons steering parts should be selected from the installed configuration rather than year alone.
1986–1988 vs. 1989–1995 IFS-style box fitment

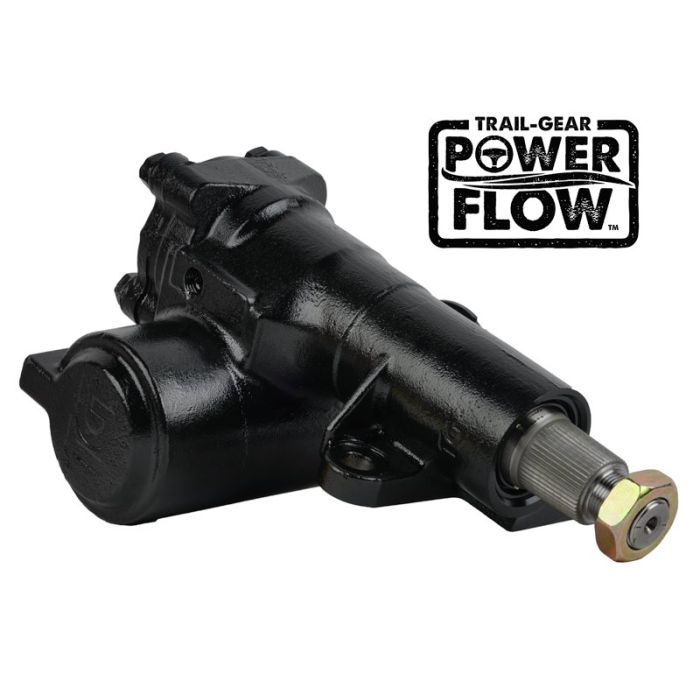

Current Trail-Gear Power Flow replacement-box documentation uses the 1986–1988 box as its serviceable design basis. It is a direct replacement for the 1986–1988 configuration and can be used in 1989–1995 applications with the specified steering input-shaft adjustment. That distinction matters when replacing a box on a later truck or on a conversion that used later steering-shaft geometry.
Hydro-assist and pre-tapped steering boxes
Hydraulic-assist systems require a steering box with the correct hydraulic ports. Some aftermarket boxes are supplied pre-drilled and tapped; an original box may need to be professionally drilled and tapped when used with a compatible hydro-assist system. The ram, high-steer tie rod, hose routing, box ports, and steering travel all have to match the complete steering system.
Before ordering steering or high-steer parts
- Confirm whether the front axle is factory solid axle, factory IFS, or a solid-axle swap.
- Identify factory push-pull versus crossover/high-steer steering.
- Look for an IFS-style steering box conversion on early solid-axle trucks.
- Confirm left-hand-drive versus right-hand-drive application.
- On 1989–1995 applications, verify steering input-shaft requirements for the exact replacement box.
- If using hydro assist, confirm whether the box is already drilled/tapped and match the ram/tie-rod setup.
Browse 1st Gen 4Runner Suspension & Steering or 2nd Gen Pickup Suspension & Steering. Also see the 1st Gen 4Runner Solid Axle vs. IFS Guide. For a modified truck, use Fitment Help and include photos of the steering box, pitman arm, drag link, front axle, and frame mounting area.
Preserve Rad fitment guides are built from manufacturer application data and our catalog research. Steering conversions vary, so modified vehicles must be matched to the installed box, axle, steering links, and drive orientation.
