Trail-Gear RF1A Transfer Case Rebuild Kit (1985-95 4Runner / 1979-95 Pickup)

Trail-Gear RF1A Transfer Case Rebuild Kit

For 1985–1995 Toyota 4Runner / 1979–1995 Toyota Pickup 4WD with the RF1A gear-driven transfer case.

Overview

The Trail-Gear RF1A Transfer Case Rebuild Kit provides the gaskets, seals, and bearings needed to service Toyota gear-driven transfer cases. Choose the Minor or Major configuration based on the depth of the rebuild and the condition of the internal bearings.

Both configurations use Toyota OEM gaskets. The supplied bearings use SKF, NSK, NACHI, or KOYO components, while the idler-gear front roller bearing included with the Major kit is supplied as NACHI or Trail-Gear.

Key Features

• Designed for the Toyota RF1A gear-driven transfer case
• Toyota OEM transfer-case gaskets
• SKF, NSK, NACHI, and KOYO bearings throughout the primary rebuild components
• Minor and Major rebuild configurations for different service depths
• Major configuration adds the deeper internal bearings required for a more comprehensive rebuild

Minor vs. Major Rebuild Kit

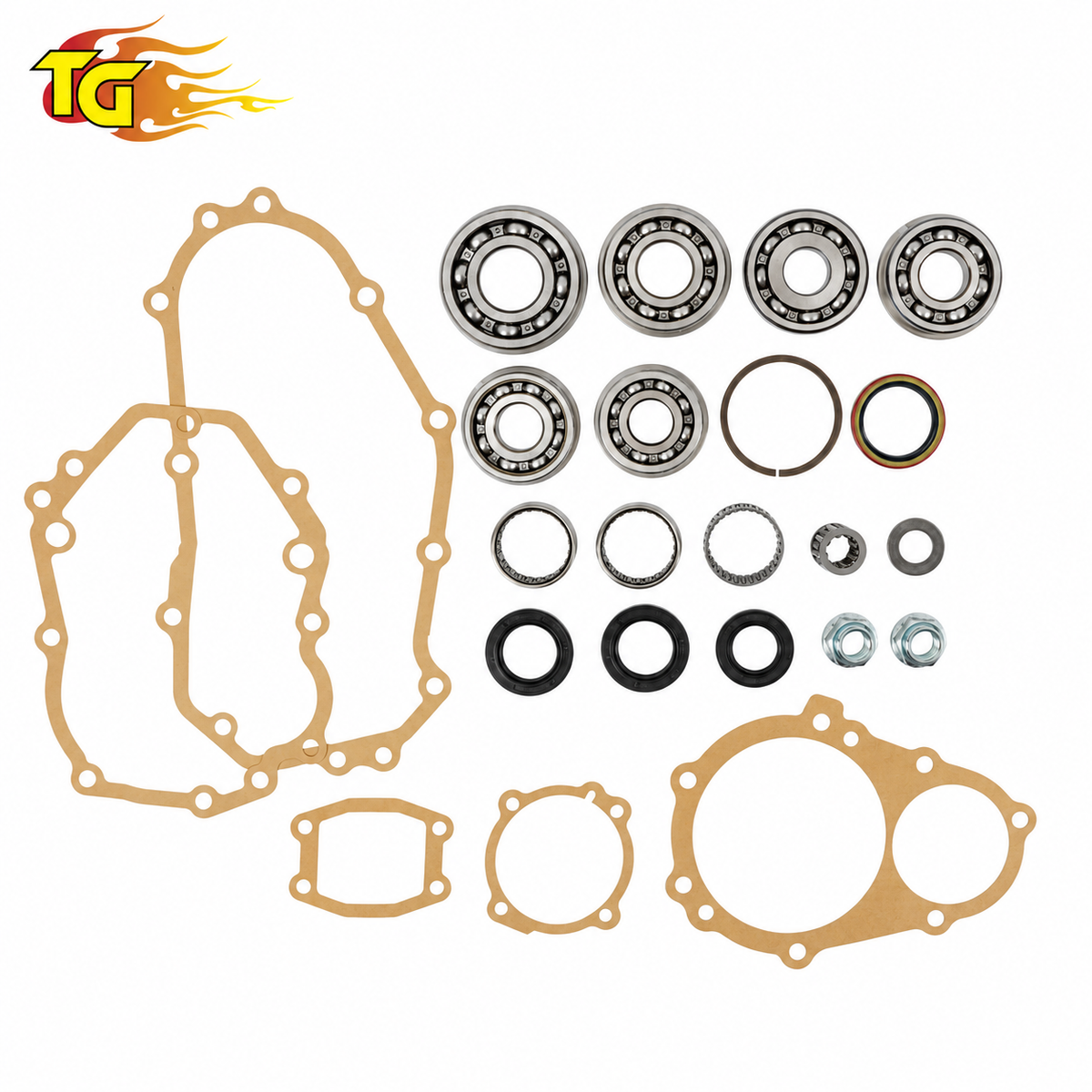

Minor Rebuild Kit — Includes the major gaskets, seals, and most bearings used during a standard RF1A transfer-case rebuild.

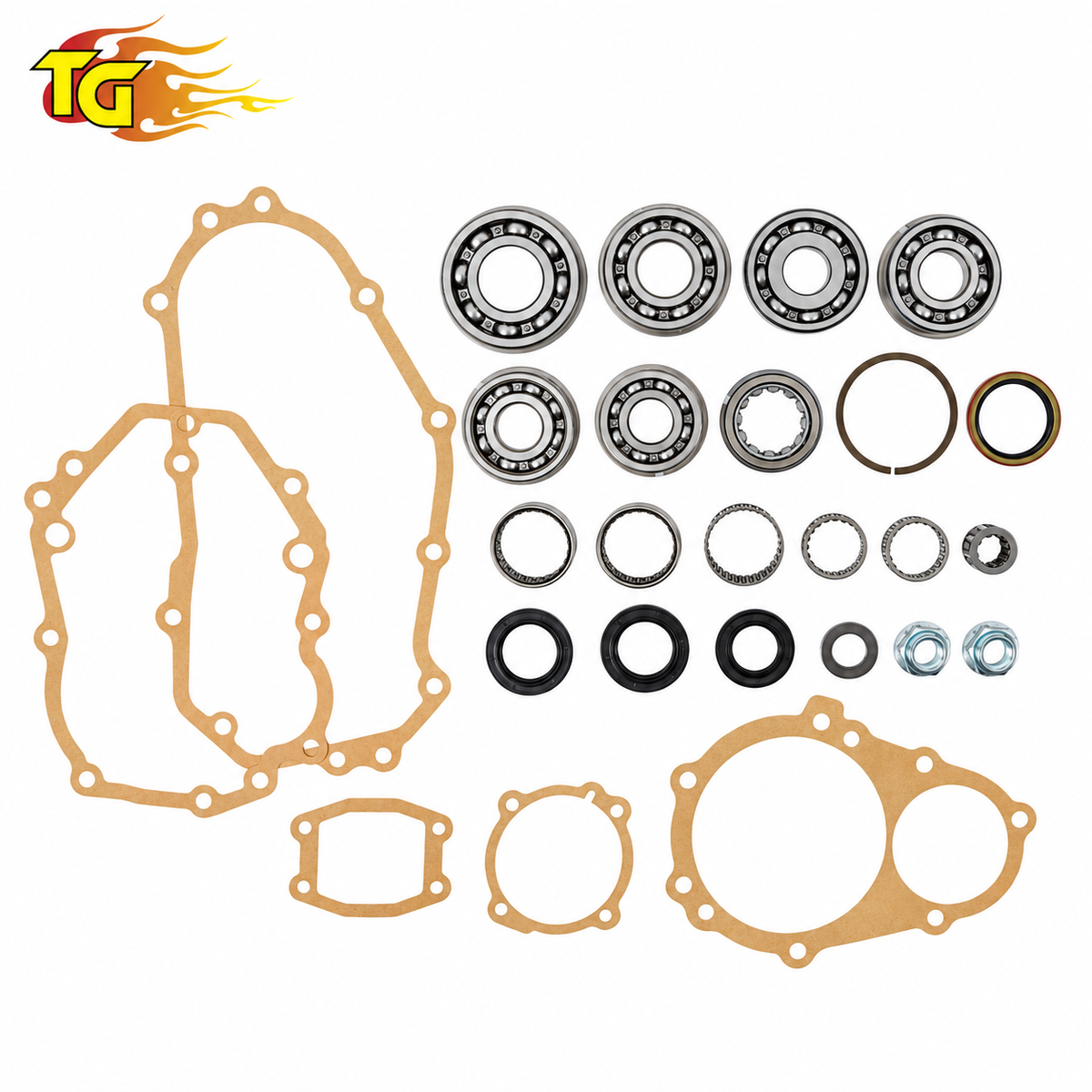

Major Rebuild Kit — Includes everything in the Minor kit plus the idler-gear front roller bearing and two countershaft needle bearings.

If you are comparing rebuild options for the same RF1A application, Preserve Rad also carries the Sumo Gear RF1A Transfer Case Rebuild Kit.

Vehicle Fitment

• 1985–1989 Toyota 4Runner – 1st Gen – 4-Cylinder – Manual – 4WD – RF1A Gear-Driven Transfer Case
• 1990–1995 Toyota 4Runner – 2nd Gen – 4-Cylinder – Manual – 4WD – RF1A Gear-Driven Transfer Case
• 1979–1983 Toyota Pickup – 1st Gen – 4-Cylinder – Manual – 4WD – RF1A Gear-Driven Transfer Case
• 1984–1988 Toyota Pickup – 2nd Gen – 4-Cylinder – Manual – 4WD – RF1A Gear-Driven Transfer Case
• 1989–1995 Toyota Pickup – 3rd Gen – 4-Cylinder – Manual – 4WD – RF1A Gear-Driven Transfer Case

Fitment Notes

• RF1A gear-driven transfer cases only.
• Factory/direct-fit applications are 4-cylinder, manual-transmission 4WD models.
• Does not service the factory chain-driven V6 transfer case.
• V6-swapped or converted vehicles using an RF1A should be verified by transfer-case type before ordering.
• Transfer-case rebuilding requires proper disassembly, inspection, bearing installation, sealing, and torque procedures.

Product Specifications

Brand: Trail-Gear
Product Type: Transfer Case Rebuild Kit
Transfer Case: Toyota RF1A Gear-Driven
Drivetrain: 4WD
Factory Transmission Application: Manual
Configurations: Minor / Major
Gaskets: Toyota OEM
Primary Bearing Brands: SKF / NSK / NACHI / KOYO
Major-Kit Idler Front Roller Bearing: NACHI or Trail-Gear

Available Configurations

Minor Rebuild Kit

• Toyota OEM transfer-case gaskets
• Transfer-case seals
• Most bearings required for a standard RF1A rebuild

Major Rebuild Kit

• Everything included with the Minor Rebuild Kit
• Idler-gear front roller bearing
• Two countershaft needle bearings
