Trail-Gear Dual Transfer Case Crossmember | 4WD Manual (1979-95 Pickup / 1985-95 4Runner)

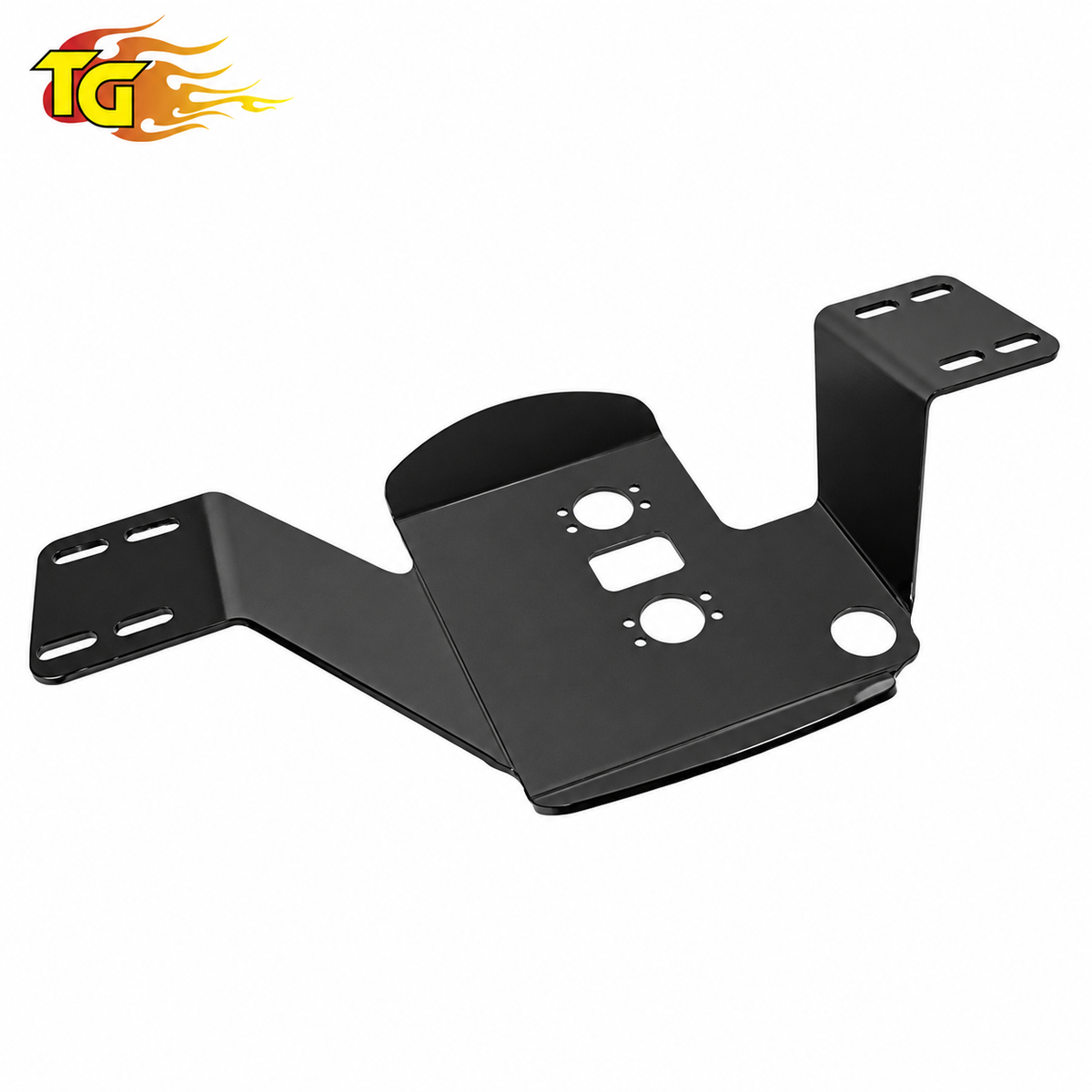

Trail-Gear Dual Transfer Case Crossmember

For 1979–1995 Toyota Pickup and 1985–1995 Toyota 4Runner 4WD with factory manual transmissions and dual gear-driven transfer cases.

Overview

The Trail-Gear Dual Transfer Case Crossmember is a heavy-duty crossmember and skid-style drivetrain support for Toyota Pickup and 4Runner dual-transfer-case conversions. It replaces the standard transfer-case crossmember with a low, smooth-bottom structure that supports the dual-case drivetrain while adding protection beneath the transfer cases.

The crossmember is precision laser cut from 3/8-inch plate steel and uses slotted mounting holes to simplify alignment during installation. Tapered mounting hardware creates a smoother underside to reduce exposed hardware beneath the vehicle.

Key Features

• Designed for dual gear-driven transfer-case setups
• 3/8-inch plate-steel construction
• Precision laser-cut design
• Slotted mounting holes for easier alignment
• Tapered mounting hardware for a smooth bottom
• Application-specific 4-cylinder and V6 configurations
• Factory 4- or 5-speed manual transmission required
• Ships raw and unfinished for customer-selected coating

Construction & Dual-Case Protection

Dual transfer cases place additional drivetrain components beneath the vehicle. This crossmember combines drivetrain support with a heavy plate-steel lower structure designed to protect the dual-case assembly from trail contact.

Separate configurations match the Toyota chassis and engine-family ranges used by the dual-case conversion. The crossmember is designed around the factory transmission for the vehicle year and model.

Vehicle Fitment

All applications require: 4WD, a factory 4- or 5-speed manual transmission, and dual gear-driven transfer cases.

Toyota Pickup

• 1979–1983 | 1st Gen — 4-Cylinder 1979–1983 configuration
• 1984–1988 | 2nd Gen — Select the configuration that matches the engine family and model year
• 1989–1995 | 3rd Gen — Select the configuration that matches the engine family and model year

Toyota 4Runner

• 1985–1989 | 1st Gen — Select the configuration that matches the engine family and model year
• 1990–1995 | 2nd Gen — Select the configuration that matches the engine family and model year

Fitment Notes

• Dual gear-driven transfer-case configurations only.
• Not for automatic-transmission applications.
• Designed for the factory transmission used in the supported vehicle year and model; it does not fit other transmissions.
• Choose the configuration that matches the vehicle year and engine family.
• Product ships raw and unfinished; apply a corrosion-resistant finish before long-term use.

Product Specifications

Brand: Trail-Gear
Product Type: Dual Transfer Case Crossmember
Drivetrain: 4WD
Transmission: Factory 4- or 5-Speed Manual
Transfer Case Configuration: Dual Gear-Driven Cases
Material: 3/8-inch Plate Steel
Manufacturing Process: Precision Laser Cut
Mounting Holes: Slotted
Bottom Hardware: Tapered Mounting Hardware
Finish: Raw / Unfinished

Available Configurations

4-Cylinder 1979–1983

• 1979–1983 Toyota Pickup 4-cylinder manual-transmission dual-case configuration

4-Cylinder 1984–1995

• 1984–1995 Toyota Pickup and 1985–1995 Toyota 4Runner 4-cylinder manual-transmission dual-case configuration

V6 1987–1995

• Trail-Gear V6 manual-transmission dual-case configuration for the supported Toyota Pickup and 4Runner applications
