Trail-Gear 26 in. Extended Brake Lines
For 1979–1995 Toyota Pickup & 1985–1995 Toyota 4Runner
Overview
The Trail-Gear 26 in. Extended Brake Lines provide additional brake-hose length for Toyota Pickup and 4Runner applications where increased suspension travel or modified suspension geometry requires more line length than a factory-style hose.
Each line uses a braided stainless steel outer cover with a PTFE inner hose and permanently crimped fittings. The 26-inch design is DOT approved and provides a substantial increase in usable brake-line length for lifted and modified Toyota truck applications.
Choose a complete three-line kit for front and rear service, or purchase an individual front or rear line as needed.
Key Features
- 26-inch extended brake-line length
- DOT-approved brake hose construction
- 3/16-inch brake-line size
- Braided stainless steel wire outer cover
- PTFE inner hose
- Clear protective PVC outer jacket

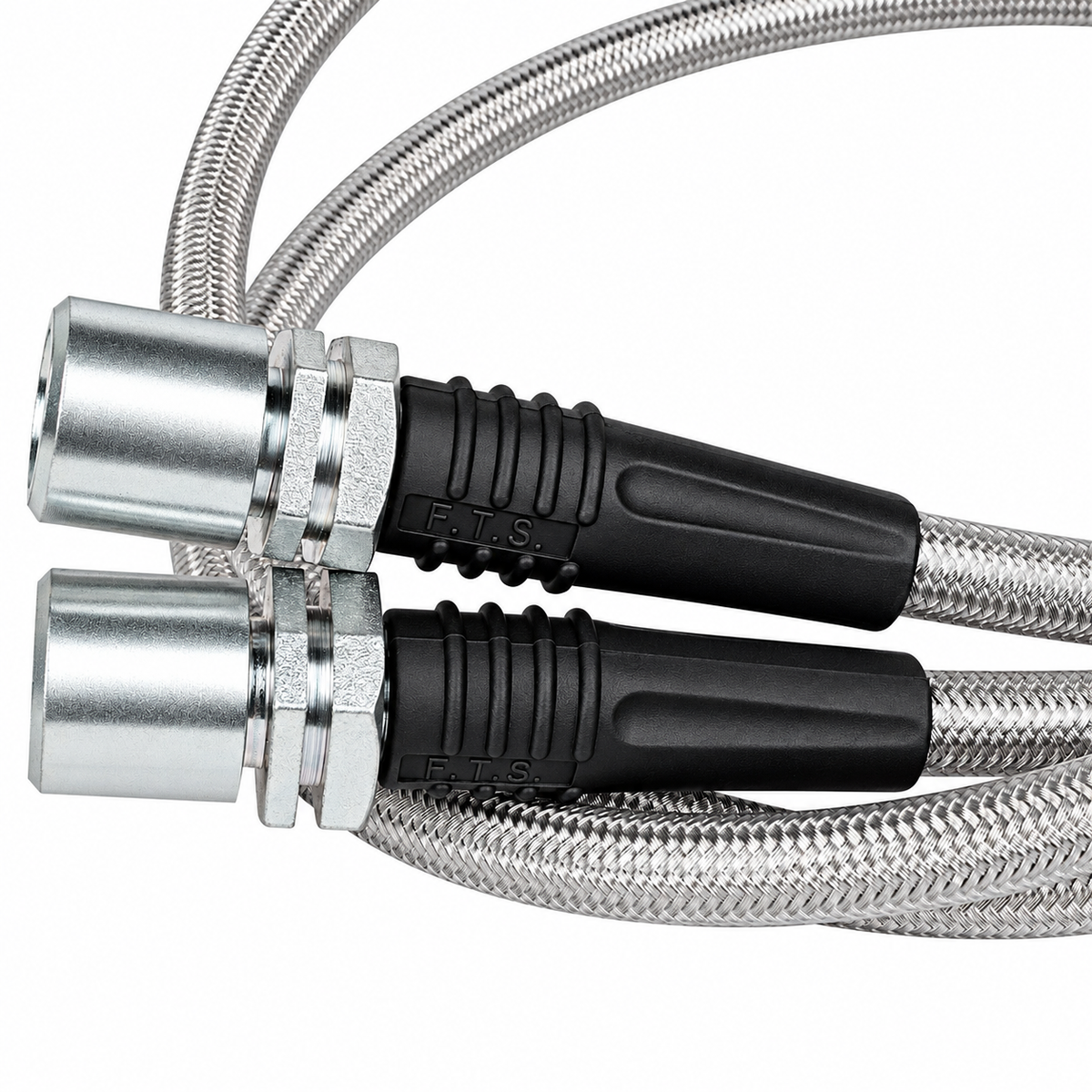

- Permanently crimped zinc-plated steel fittings
- 1,750 PSI operating pressure
- 7,000 PSI burst pressure
- Front lines retain the factory mounting clips
Vehicle Fitment
Toyota Pickup
- 1979–1983 Toyota Pickup – 1st Gen
- 1984–1988 Toyota Pickup – 2nd Gen
- 1989–1995 Toyota Pickup – 3rd Gen
Toyota 4Runner
- 1985–1989 Toyota 4Runner – 1st Gen
- 1990–1995 Toyota 4Runner – 2nd Gen
Fitment Notes
- Extended 26-inch brake-line design
- Front lines use the factory mounting clips without modification
- Select the complete kit when replacing both front lines and the rear line together
- Individual front and rear lines are available separately
Product Specifications
Brand: Trail-Gear
Product Type: Extended Brake Hose / Line
Length: 26 in.
Size: 3/16 in.
Fitting Size: M10-1.0 Inverted Flare
Hose Material: PTFE
Outer Construction: Braided Stainless Steel Wire with Clear PVC Jacket
Operating Pressure: 1,750 PSI
Burst Pressure: 7,000 PSI
Bend Radius: 2 in.
Approval: DOT Approved
Available Configurations

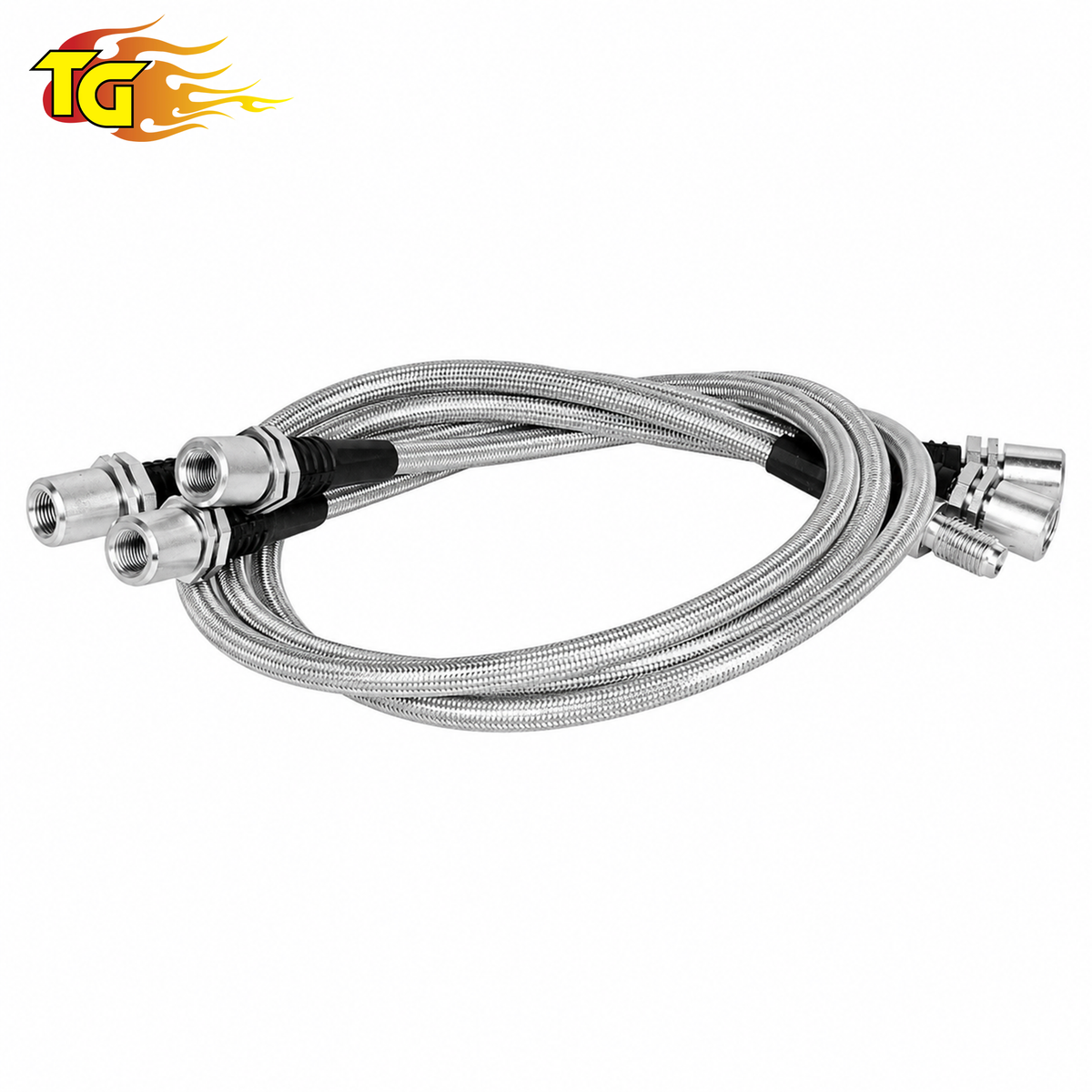

Complete Kit — 2 Front + 1 Rear
- (2) 26-inch front extended brake lines
- (1) 26-inch rear extended brake line

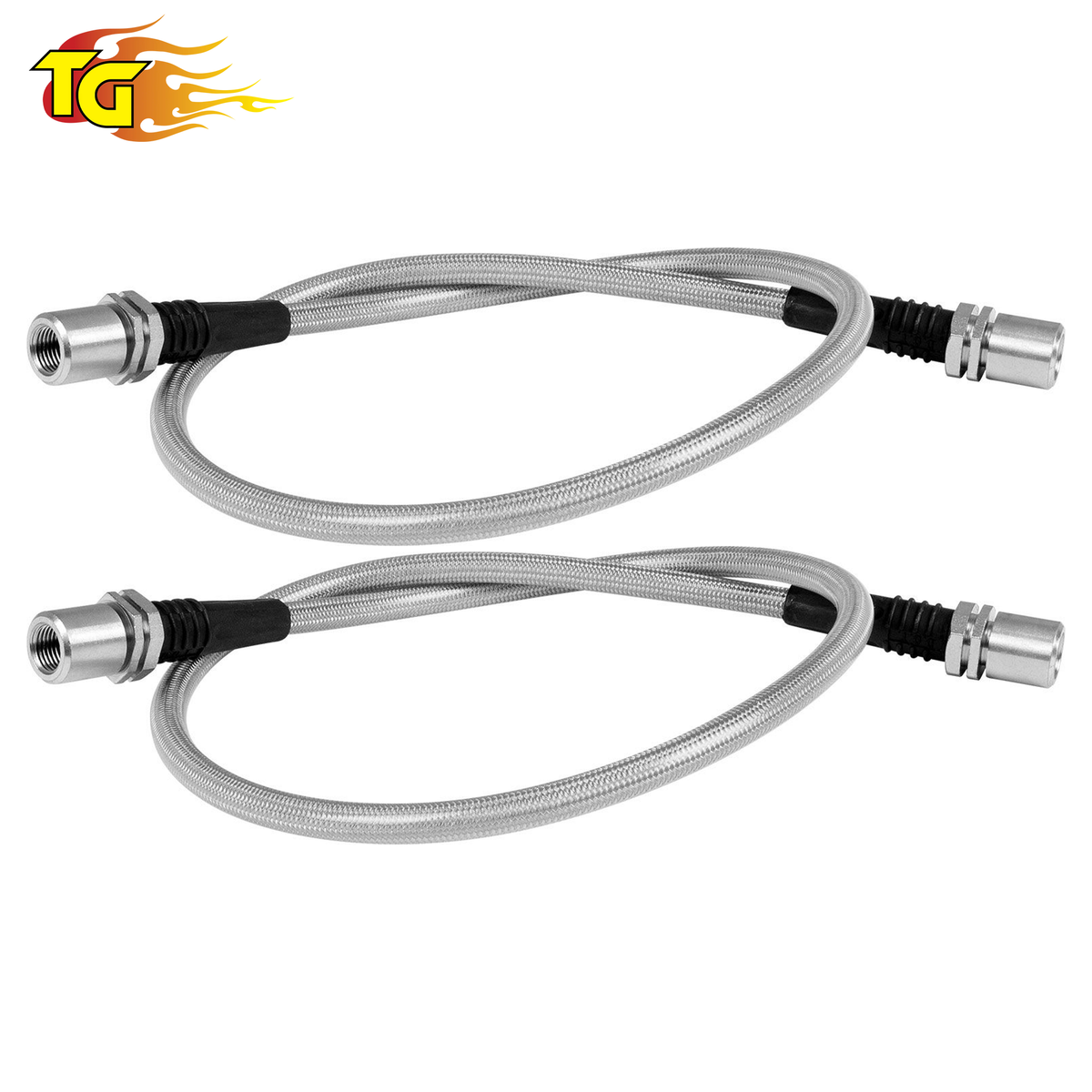

Front Line — Pair
- (2) 26-inch front extended brake line
- Female-to-female fitting configuration

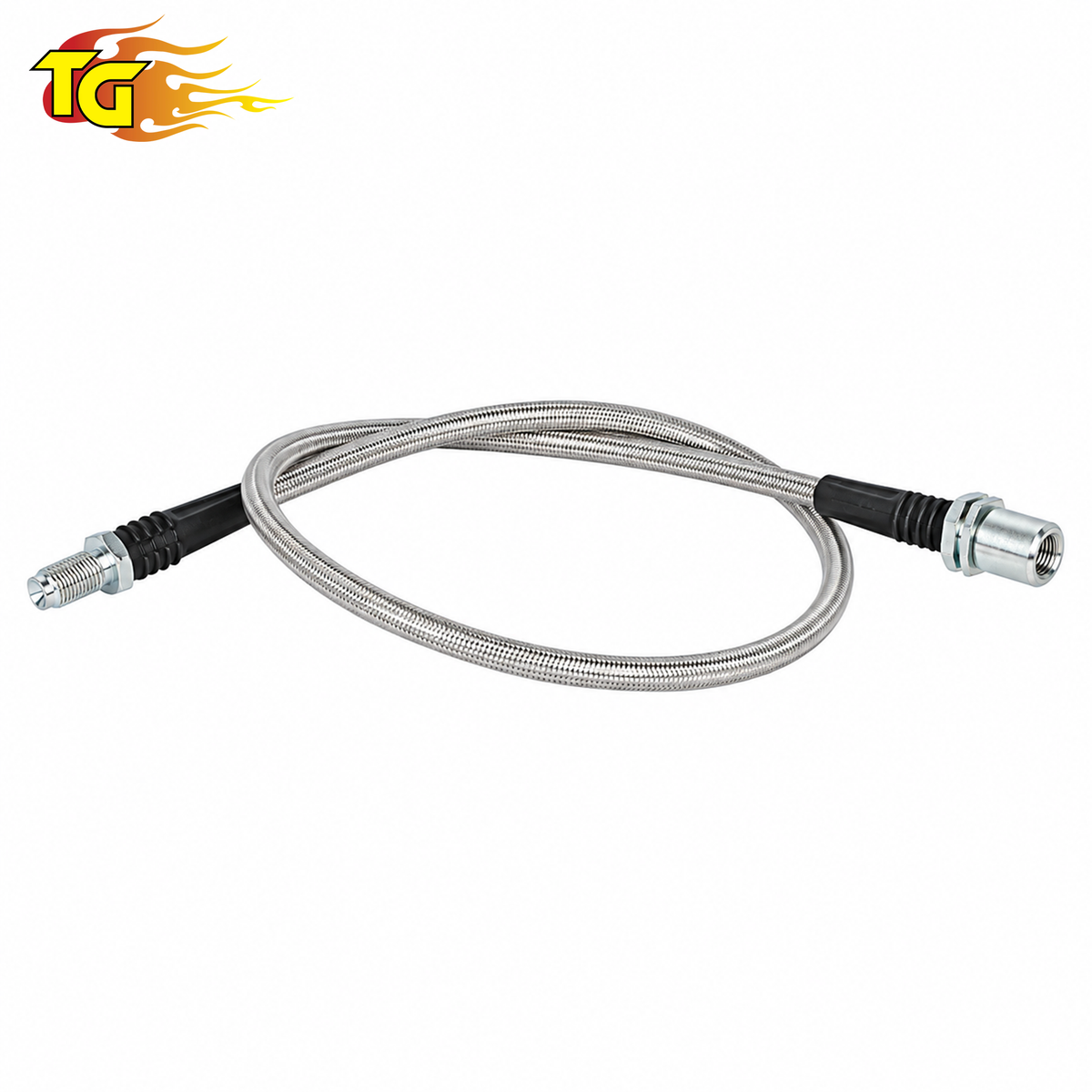

Rear Line — Single
- (1) 26-inch rear extended brake line
- Female-to-male fitting configuration
