Front Blower Motor Resistor (1984-89 4Runner / 1984-88 Pickup)

Front Blower Motor Resistor

For 1984–1989 Toyota 4Runner with Original A/C or August 1986-Onward Front Heater Circuits and 1984–1988 Toyota Pickup with Original A/C or August 1986-Onward Heavy-Duty Heater Circuits

Overview

This Standard resistor regulates current in the front heater and A/C blower circuit, providing the lower fan-speed settings controlled by the dashboard switch.

Toyota used different resistor circuits within these model years. This assembly covers the original four-terminal cooler circuit, the Pickup factory heavy-duty heater from the August 1986 production change, and the first-generation 4Runner front-heater circuit from that change.

Key Features

• 12-volt electrical application
• Four male blade terminals for the original connector interface

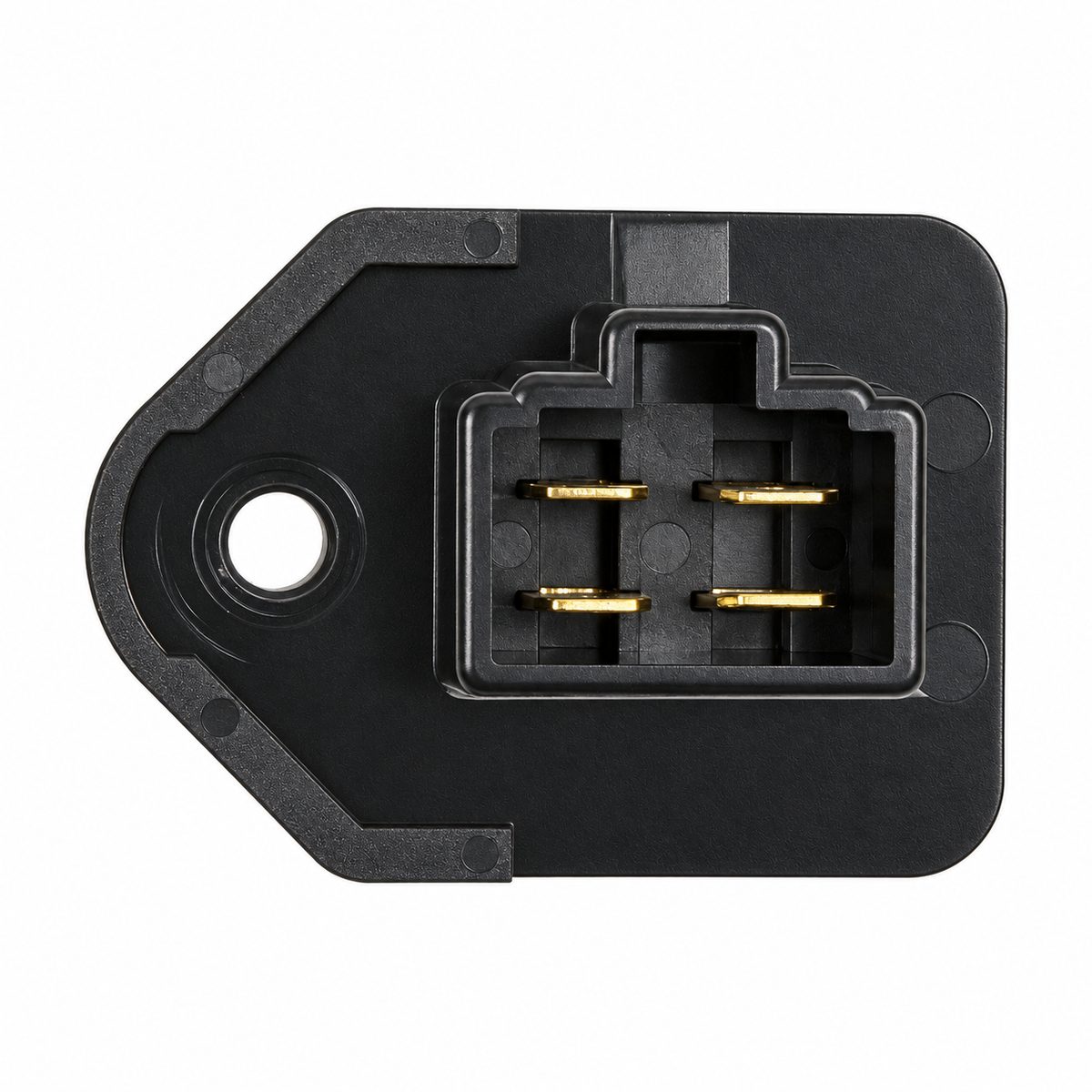

• One rectangular female connector housing
• Copper electrical connectors
• Screw attachment at the front blower housing

Vehicle Fitment

All applications require: U.S.-market vehicles with the original Toyota front blower circuit specified for the engine, transmission and heater/A/C configuration.

Toyota 4Runner

• 1984 Toyota 4Runner – 1st Gen – 4WD – 22R – Manual – original factory A/C four-terminal cooler circuit
• 1985–1989 Toyota 4Runner – 1st Gen – 4WD – 22RE – Manual / Automatic – original factory A/C four-terminal cooler circuit; front-heater circuit also covered for vehicles built from August 1986
• 1986–1987 Toyota 4Runner – 1st Gen – 4WD – 22R-TE – Automatic – original factory A/C four-terminal cooler circuit; front-heater circuit also covered for vehicles built from August 1986
• 1988–1989 Toyota 4Runner – 1st Gen – 4WD – 3VZ-E – Manual / Automatic – original front-heater circuit, with or without factory A/C

Toyota Pickup

22R / 22RE / 22R-TE heater and A/C configurations: Original factory A/C four-terminal cooler circuit, or the factory heavy-duty heater on vehicles built from August 1986.

• 1984–1988 Toyota Pickup – 2nd Gen – 2WD – 22R – Manual
• 1984–1987 Toyota Pickup – 2nd Gen – 2WD – 22R – Automatic
• 1984–1987 Toyota Pickup – 2nd Gen – 4WD – 22R – Manual
• 1984–1988 Toyota Pickup – 2nd Gen – 2WD – 22RE – Manual / Automatic
• 1985–1988 Toyota Pickup – 2nd Gen – 4WD – 22RE – Manual / Automatic
• 1985–1986 Toyota Pickup – 2nd Gen – 2WD – 22R-TE – Automatic – Xtracab – factory A/C only
• 1986–1988 Toyota Pickup – 2nd Gen – 2WD – 22R-TE – Manual – Xtracab
• 1986 Toyota Pickup – 2nd Gen – 4WD – 22R-TE – Automatic – Xtracab – factory A/C only
• 1986–1987 Toyota Pickup – 2nd Gen – 4WD – 22R-TE – Manual – regular cab; Xtracab built from August 1986
• 1988 Toyota Pickup – 2nd Gen – 4WD – 3VZ-E – Manual – factory heavy-duty heater
• 1988 Toyota Pickup – 2nd Gen – 4WD – 3VZ-E – Automatic – cab/chassis – factory heavy-duty heater

2L / 2L-T diesel configurations: Original factory A/C four-terminal cooler circuit only.

• 1984–1985 Toyota Pickup – 2nd Gen – 2WD – 2L diesel – Manual – LN56 cab/chassis; Xtracab complete trucks built from August 1984
• 1984 Toyota Pickup – 2nd Gen – 4WD – 2L diesel – Manual – LN65 regular cab or Xtracab cab/chassis
• 1985 Toyota Pickup – 2nd Gen – 2WD – 2L-T turbo diesel – Manual – LN56 regular-cab / Xtracab cab/chassis
• 1985 Toyota Pickup – 2nd Gen – 4WD – 2L-T turbo diesel – Manual – LN65 regular cab

Fitment Notes

• Four terminals alone do not establish fitment. Pickup standard-heater / boost-ventilator circuits use a different resistor even when the connector has four contacts.
• Not for the three-terminal heater circuit or the optional rear heater.
• The factory heavy-duty heater is a separate equipment option; a truck’s payload rating or cab/chassis body does not identify that heater.
• Cab/chassis applications retain the original Toyota cabin HVAC requirements. Vehicle-year coverage does not establish fitment after changes to the blower housing, control switch or wiring, or for dealer-installed / aftermarket A/C conversions.

Product Specifications

Brand: Standard
Manufacturer: Standard Motor Products
Product Type: Front blower motor resistor

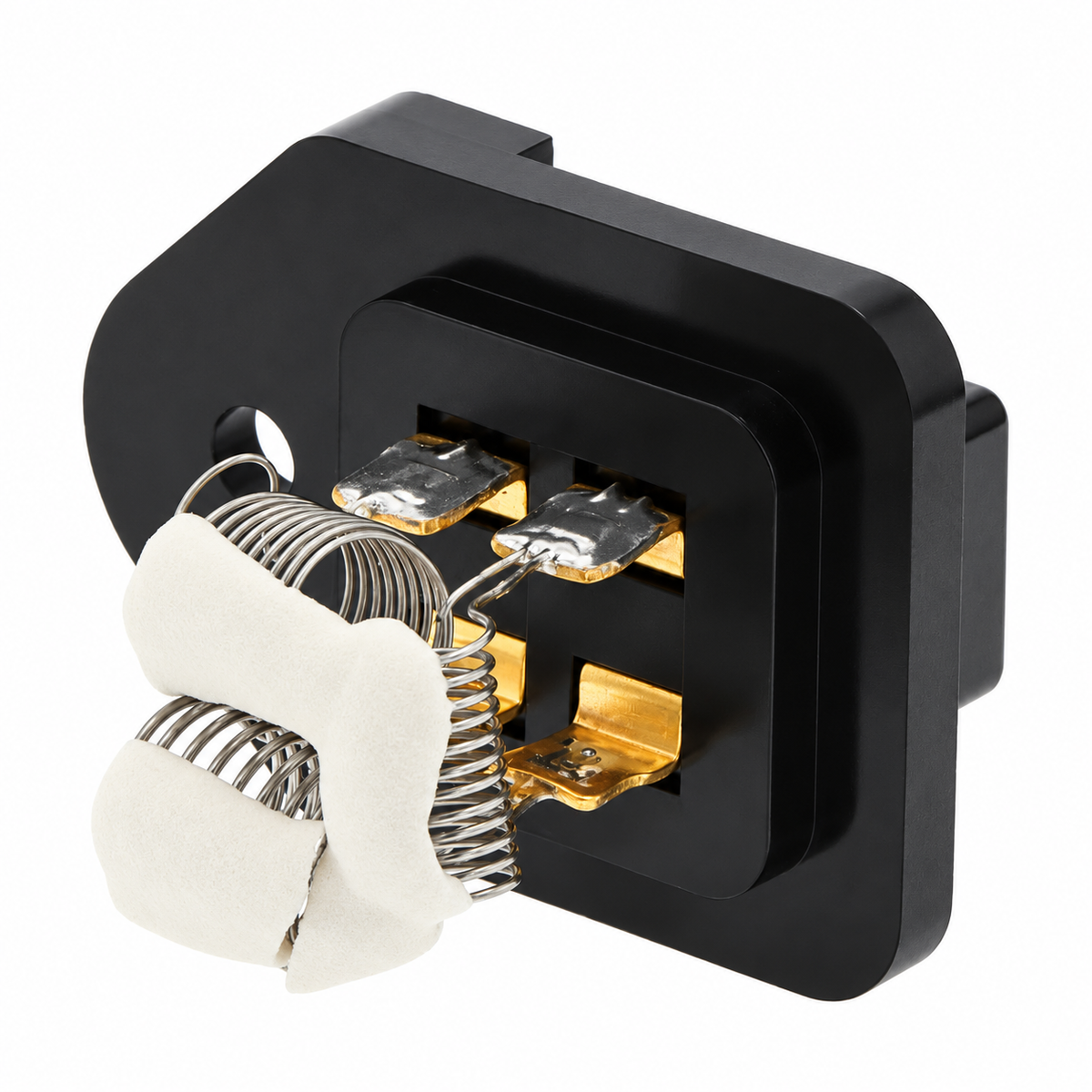

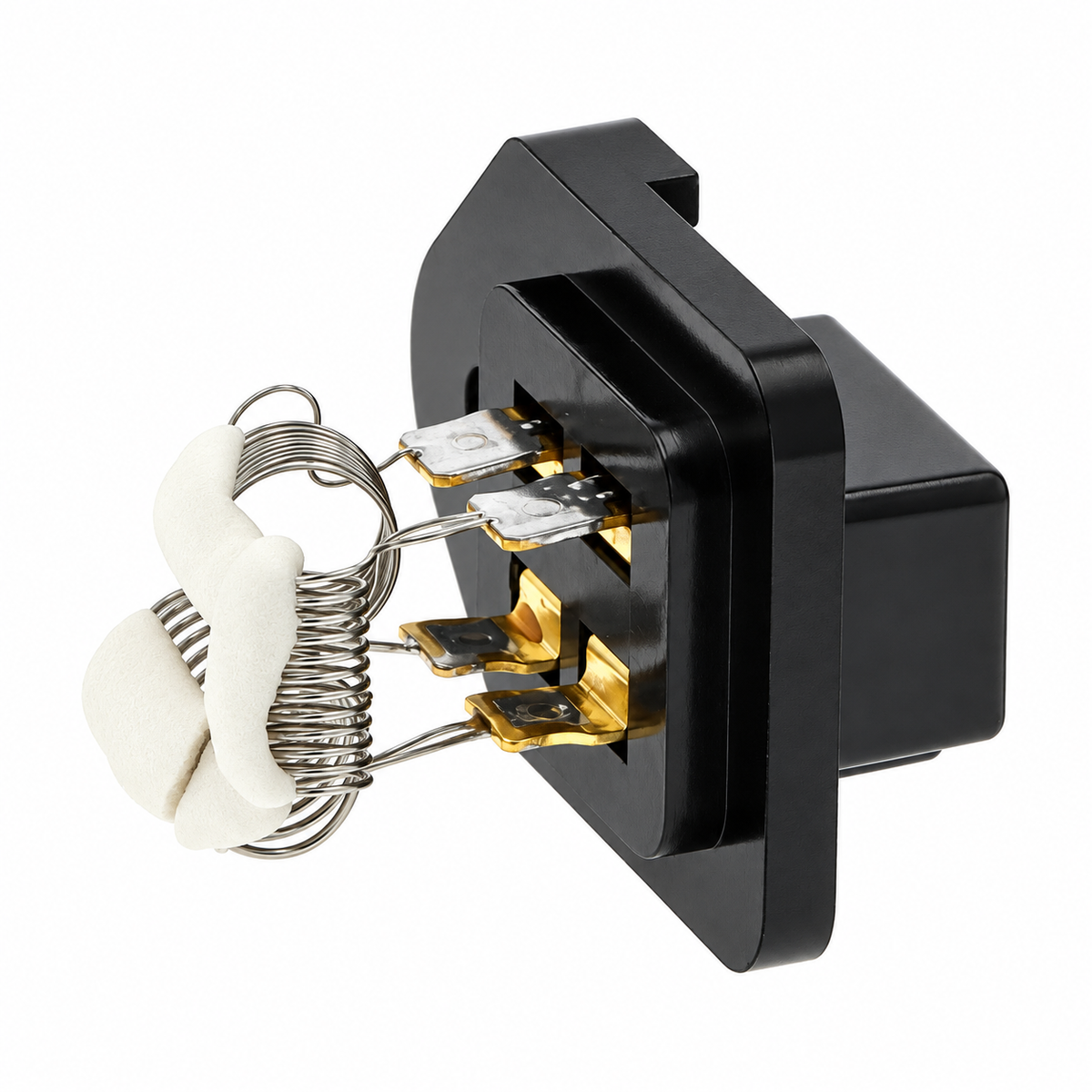

Construction: Exposed wire-wound resistor elements
Color / Finish: Black and white

What's Included

• (1) Front blower motor resistor assembly

Wiring harness, loose mounting hardware and a separate mounting bracket are not included.
