Blower Motor Resistor

For 1987–1989 U.S.-Market Toyota MR2 AW11

Overview

This Standard blower motor resistor provides the resistance used for the lower cabin-fan speeds. It is a direct-fit replacement for the MK1 MR2's heater and air-conditioning blower circuit.

The resistor works with the original stepped-speed blower controls. High blower speed uses a bypass circuit rather than the resistor's lower-speed paths.

Key Features

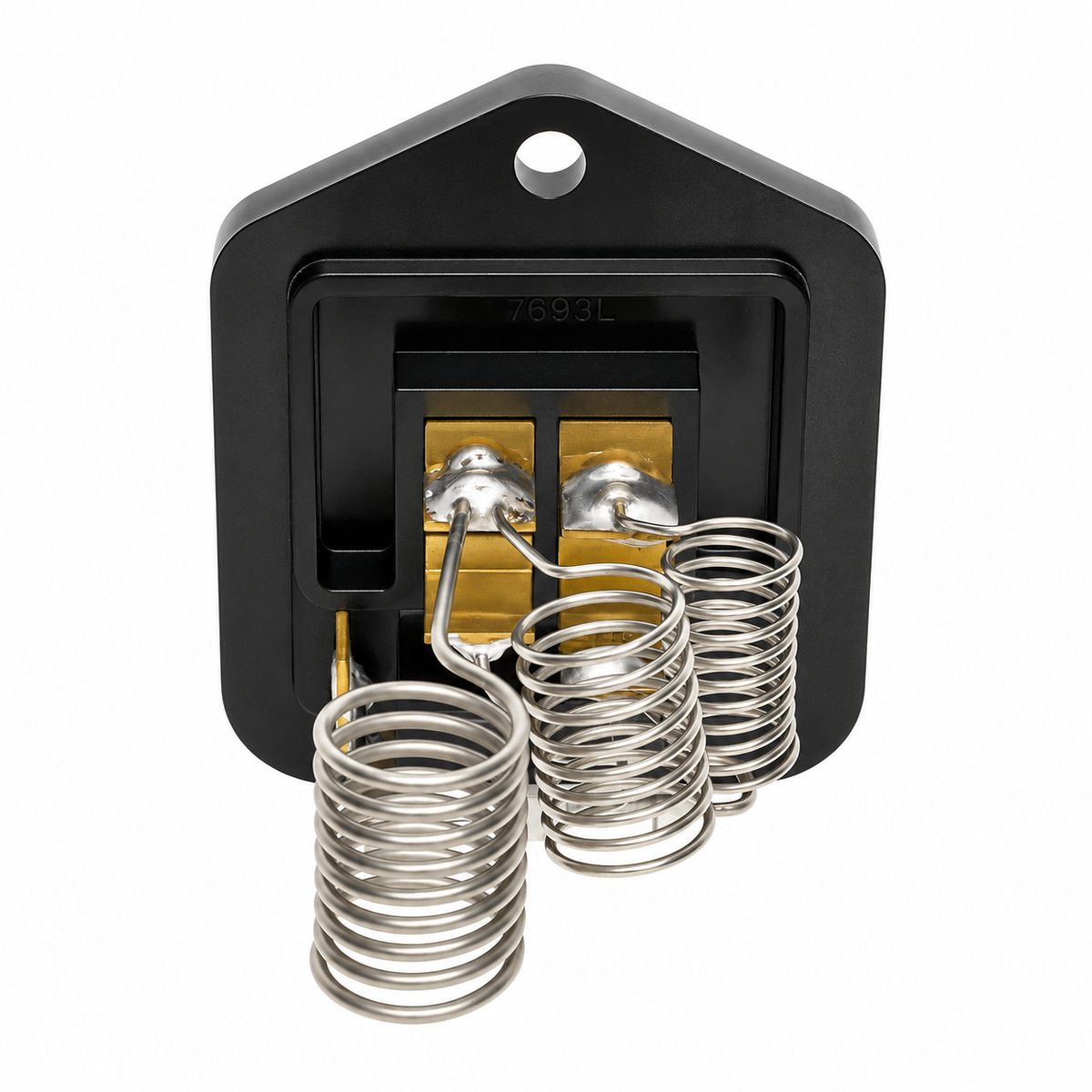

• Exposed-coil construction with a compact connector and mounting base
• Copper electrical connectors and copper-alloy conductors
• Integral two-hole mounting base with screw attachment

Vehicle Fitment

Toyota MR2 (AW11 / MK1)

• 1987–1989 U.S.-Market — 4A-GE naturally aspirated
• 1988–1989 U.S.-Market Supercharged — 4A-GZE

Fitment Notes

• Fits original heater-only and factory A/C configurations with either manual or automatic transmission.
• Vehicle-year fitment does not cover A/C conversions, imported climate-control assemblies, or altered blower housings and wiring.

Product Specifications

• Brand: Standard
• Manufacturer: Standard Motor Products
• Operating voltage: 12 V

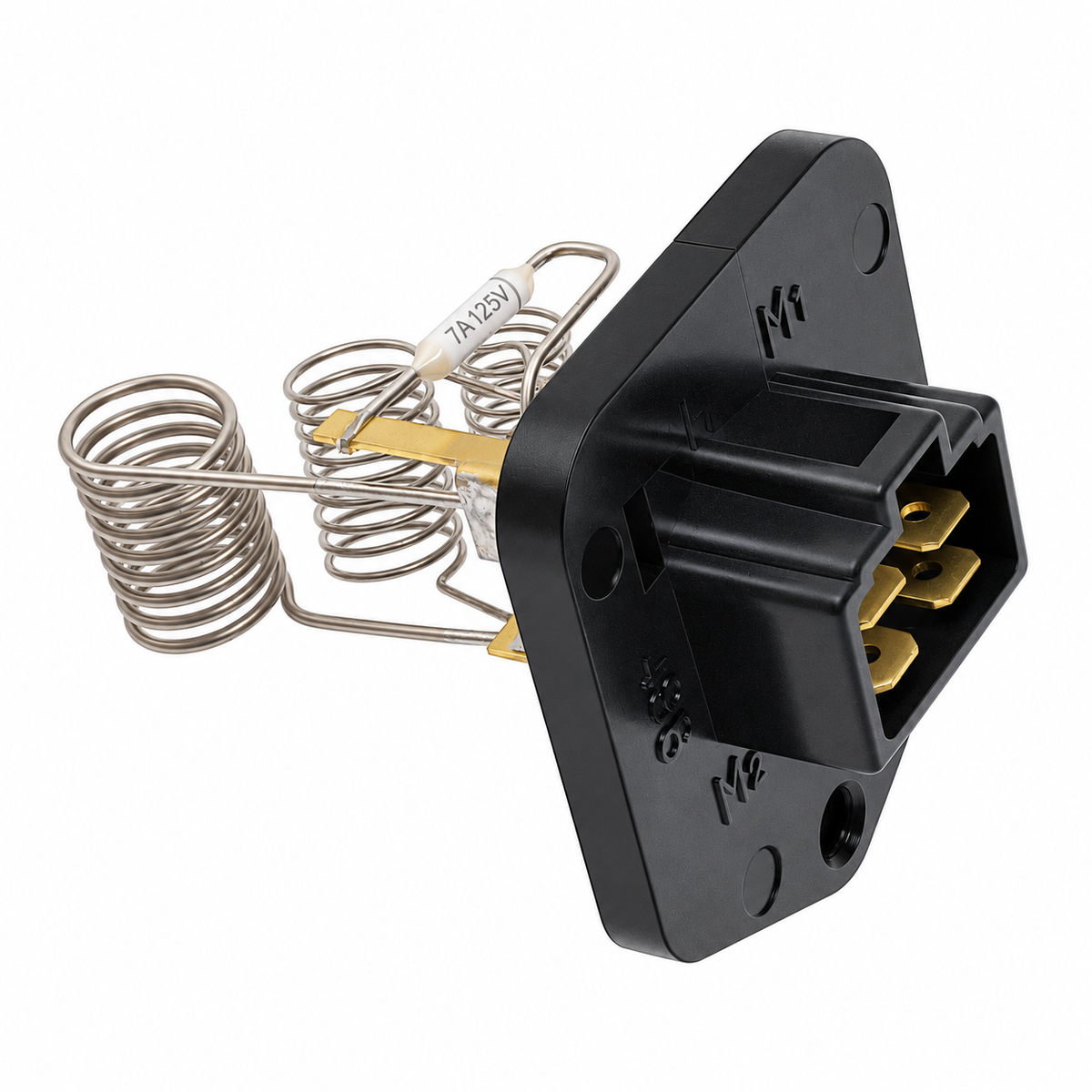

• Electrical interface: One rectangular female connector housing with four male blade terminals

What's Included

• (1) Blower motor resistor assembly

Wiring harness, loose mounting hardware, separate mounting bracket and blower motor are not included.
