Sankei 555 Front Lower Ball Joint (1990-95 4Runner / 1989-95 Pickup)

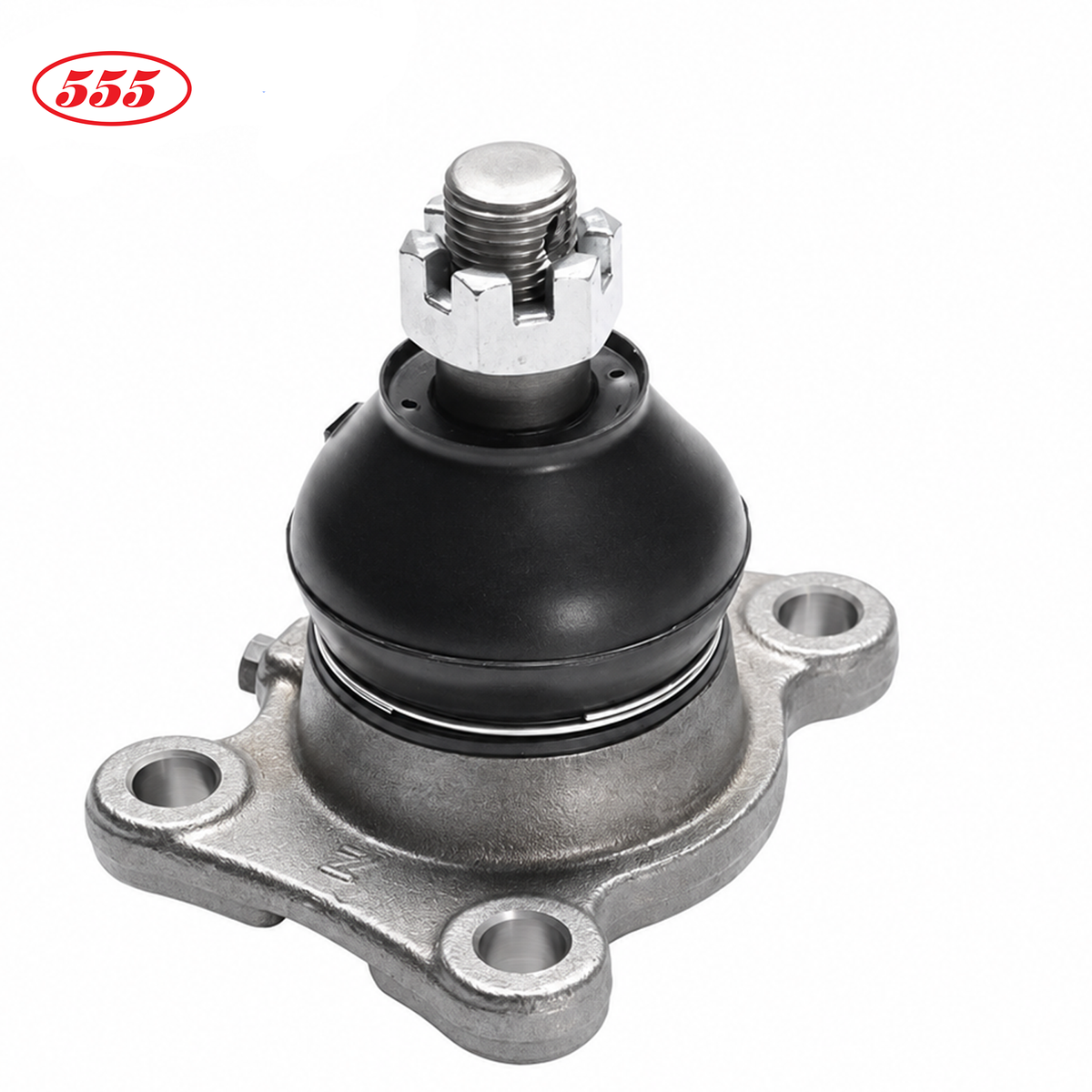

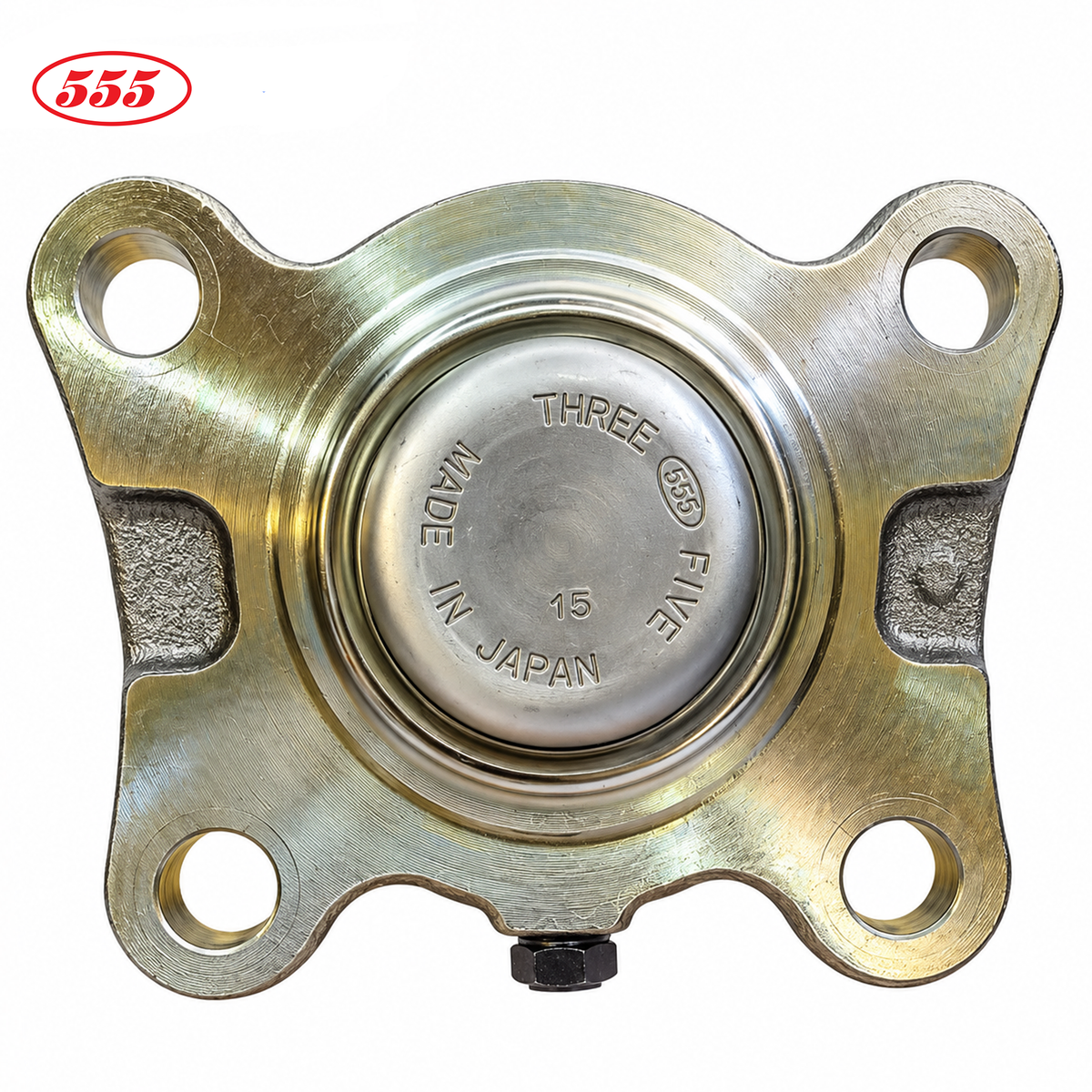

Sankei 555 Front Lower Ball Joint

For 1990–1995 Toyota 4Runner 2WD and 4WD and 1989–1995 Toyota Pickup 4WD with April 1989–1995 production.

Overview

This Sankei 555 front lower ball joint connects the steering knuckle to the lower control arm, permitting steering and suspension articulation. It fits 1990–1995 Toyota 4Runner 4WD, 1990–1991 2WD 4Runners with 22RE and 1990–1995 2WD 4Runners with 3VZ-E (both four-door automatic models), and 1989–1995 Toyota Pickup 4WD with April 1989–1995 production.

Key Features

• Left or right fitment: The same joint serves either front lower position.
• Four-bolt mounting flange: Attaches at the steering knuckle, with a tapered stud for the lower control arm.
• Grease fitting included: Angled fitting supplied with the joint.

Vehicle Fitment

Toyota 4Runner — 2nd Gen — U.S. Models

• 1990–1995: U.S. models, 4WD, 22RE or 3VZ-E, factory manual or automatic transmission.
• 1990–1991: U.S. RN120 models, 2WD, 22RE, four-door, automatic transmission.
• 1990–1995: U.S. VZN120 models, 2WD, 3VZ-E, four-door, automatic transmission.

Toyota Pickup — 3rd Gen — U.S. Models

• 1989–1995: U.S. models with April 1989–1995 production, 4WD, 22RE or 3VZ-E, standard cab or Xtra cab, factory manual or automatic transmission.

Fitment Notes

• 1989 Pickup build date matters: This joint fits U.S. 4WD Pickups with April 1989–1995 production. Earlier 1989 builds use a different lower-joint application.
• Pickup 4WD only. The specified 2WD 4Runner applications are included.
• Not for modified lower-arm tapers or uniball conversions. Solid-axle conversions are outside the original independent-front-suspension application.
• Does not fit first-generation U.S. 4Runner, 1995 Tacoma or 1996-on U.S. 4Runner.

Product Specifications

Brand: Sankei 555
Product Type: Ball joint
Position: Front lower, left or right
Mounting Configuration: Four-bolt flange and tapered stud

Available Configurations

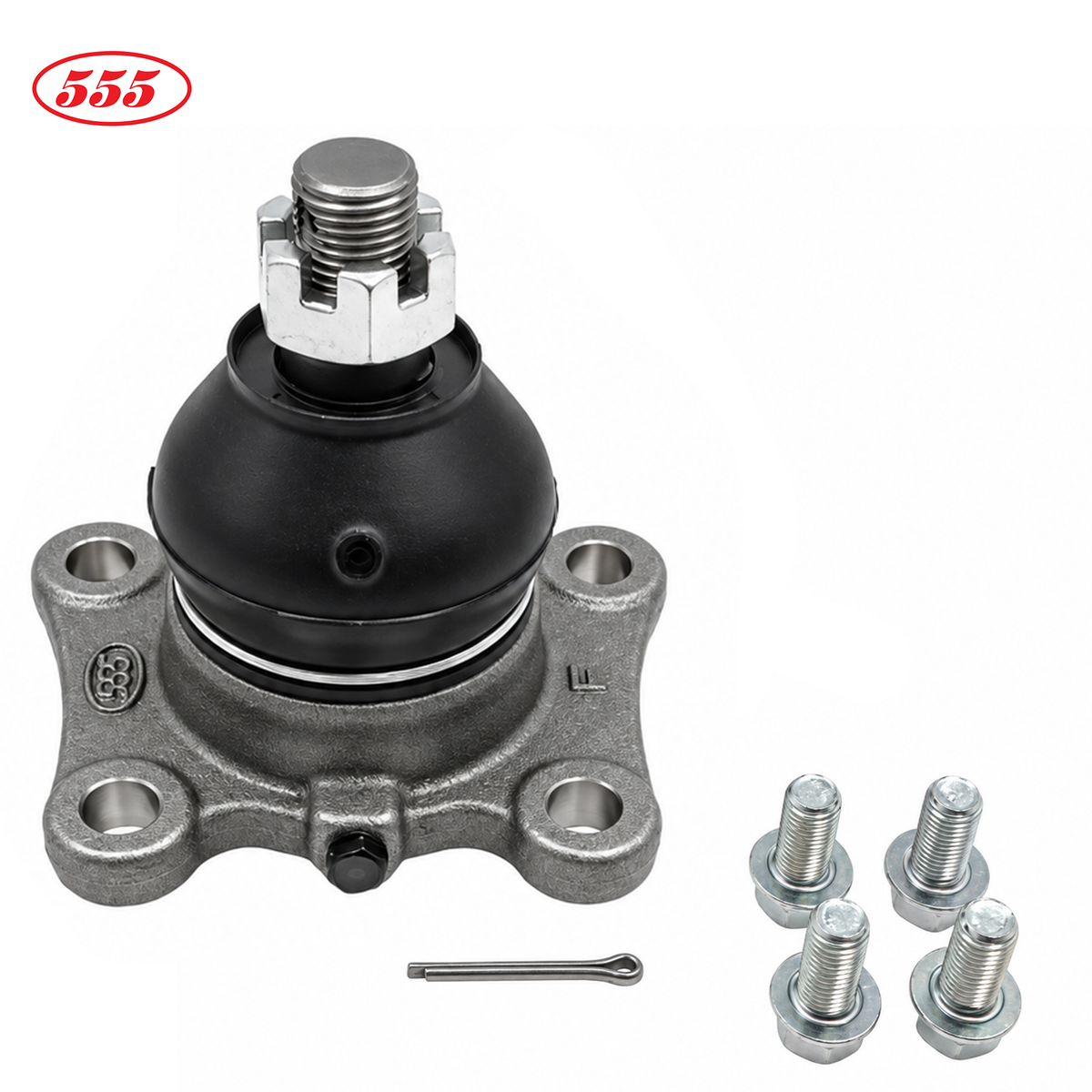

Choose the quantity needed. Each ball joint includes one boot, one castellated stud nut, four mounting bolts, one cotter pin and one angled grease fitting.

Quantity

• Single: One front lower ball joint for either the left or right side.

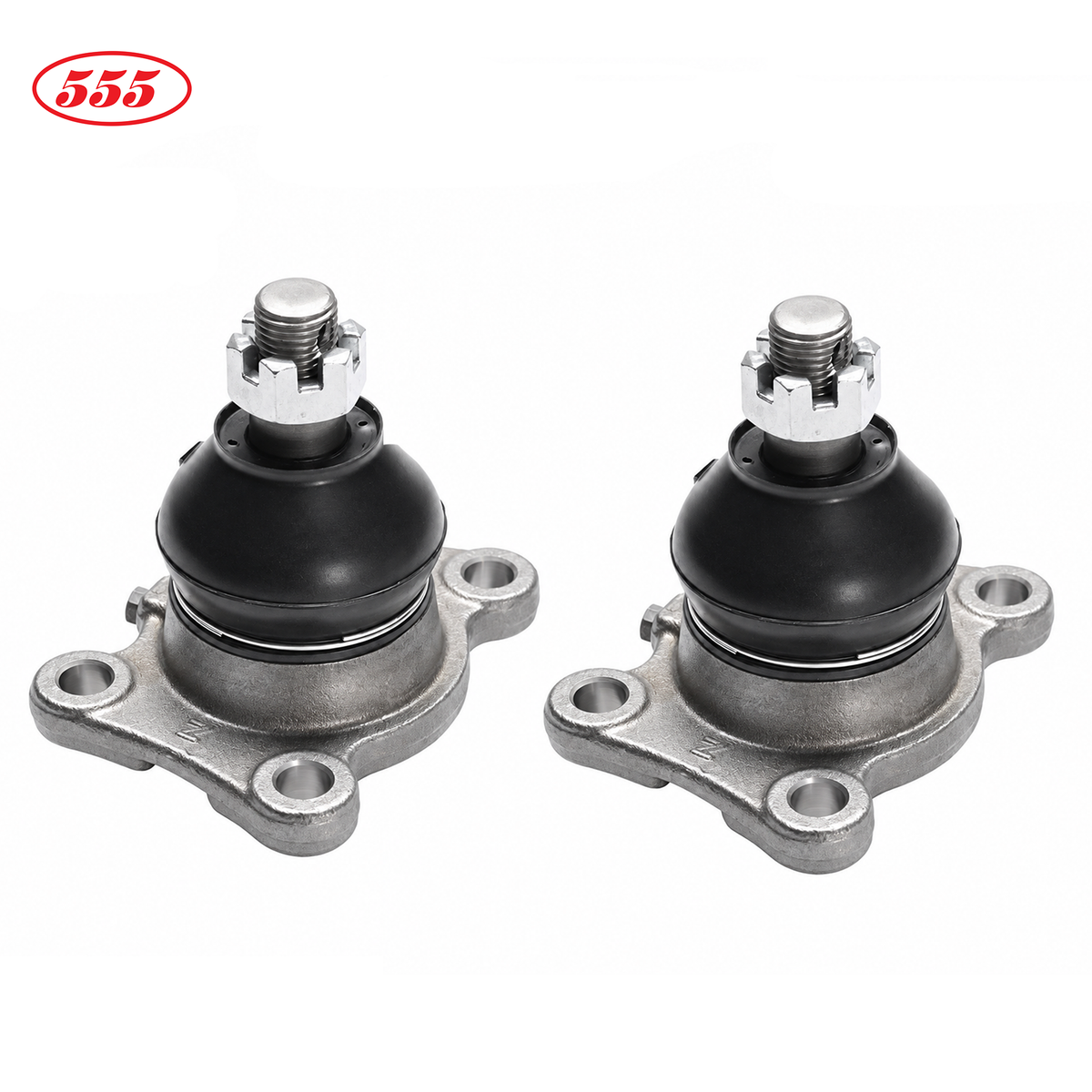

• Pair: Two identical front lower ball joints, one for each front side, with two sets of the included hardware.
