Prothane Polyurethane Front Control Arm Bushing Kit | 4WD (1986-95 Pickup)

Prothane Polyurethane Front Control Arm Bushing Kit | 4WD

For 1986–1995 Toyota Pickup 4WD front upper and lower control arms

Overview

The Prothane Front Control Arm Bushing Kit replaces worn factory rubber bushings in the upper and lower front control arms on 1986–1995 Toyota Pickup 4WD models. The firmer polyurethane construction helps reduce excess control-arm deflection and supports more consistent suspension geometry, steering response, and alignment.

Toyota uses two different front control-arm bushing configurations across this application. The 1986–1988 kit uses the earlier bushing design, while the 1989–1995 kit uses the later design. Select the configuration that matches the vehicle model year.

Key Features

• Polyurethane front control arm bushing kit
• Services upper and lower front control arms
• Driver- and passenger-side coverage
• Firmer than factory rubber bushings
• Helps reduce unwanted control-arm deflection
• Supports more consistent suspension geometry and alignment
• Polyurethane installation grease included
• Available in black or red
• Separate 1986–1988 and 1989–1995 configurations

Model-Year Configuration

1986–1988 Toyota Pickup 4WD

• Earlier front control-arm bushing configuration
• 6 polyurethane control-arm bushings
• Services the front upper and lower control arms

1989–1995 Toyota Pickup 4WD

• Later front control-arm bushing configuration
• 8 polyurethane control-arm bushings
• Services the front upper and lower control arms

The two model-year configurations are not interchangeable.

Vehicle Fitment

Toyota Pickup

• 1986–1988 Toyota Pickup – 2nd Gen – 4WD – Front Upper & Lower Control Arms
• 1989–1995 Toyota Pickup – 3rd Gen – 4WD – Front Upper & Lower Control Arms

Fitment Notes

• 4WD Toyota Pickup only.
• Does not fit 2WD Pickup applications.
• Front application only.
• One kit services both driver and passenger sides.
• Select the configuration matching the vehicle model year.
• Factory metal shells, sleeves, and mounting hardware are reused where required.
• Apply the supplied polyurethane grease to the required bushing contact surfaces during installation.
• Original bushings may require pressing or other appropriate removal tools.
• Inspect the control arms and mounting hardware before reassembly.
• A front-end alignment is recommended after installation.

Product Specifications

Brand: Prothane
Product Type: Front Control Arm Bushing Kit
Material: Polyurethane
Position: Front
Control Arm Coverage: Upper & Lower
Side Coverage: Driver & Passenger
Color Options: Black / Red
Drivetrain: 4WD
Fit Type: Vehicle-Specific / Direct Fit

Supporting Suspension Components

For 1989–1995 Toyota Pickup 4WD applications, the Prothane Front Sway Bar & End Link Bushing Kit | 4WD replaces the front sway-bar frame and end-link bushings. It services a separate front suspension area from the control-arm bushings and can be combined with them during a broader front suspension refresh.

Available Configurations

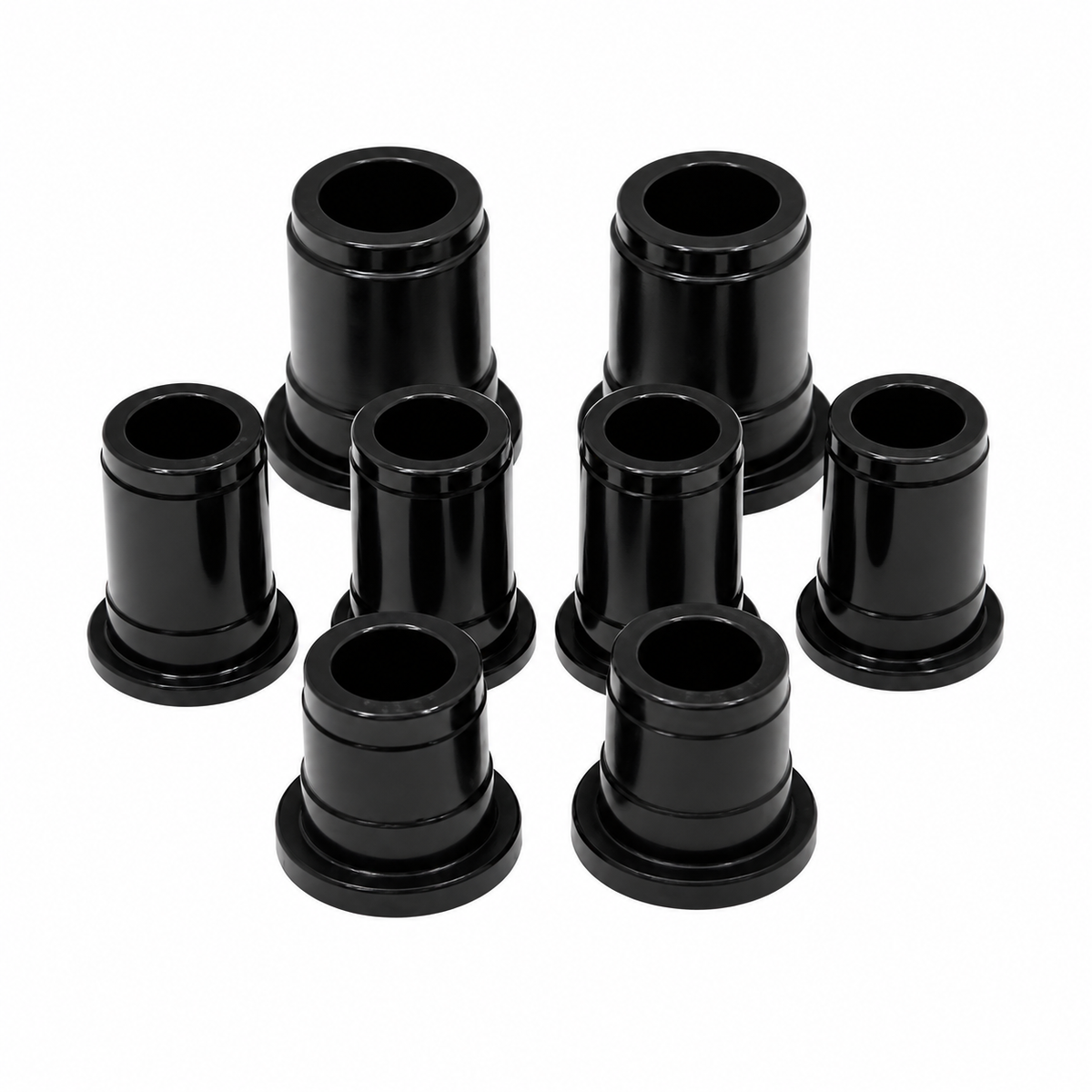

1986–1988 / Black

• Early-style front control arm bushing kit in black polyurethane

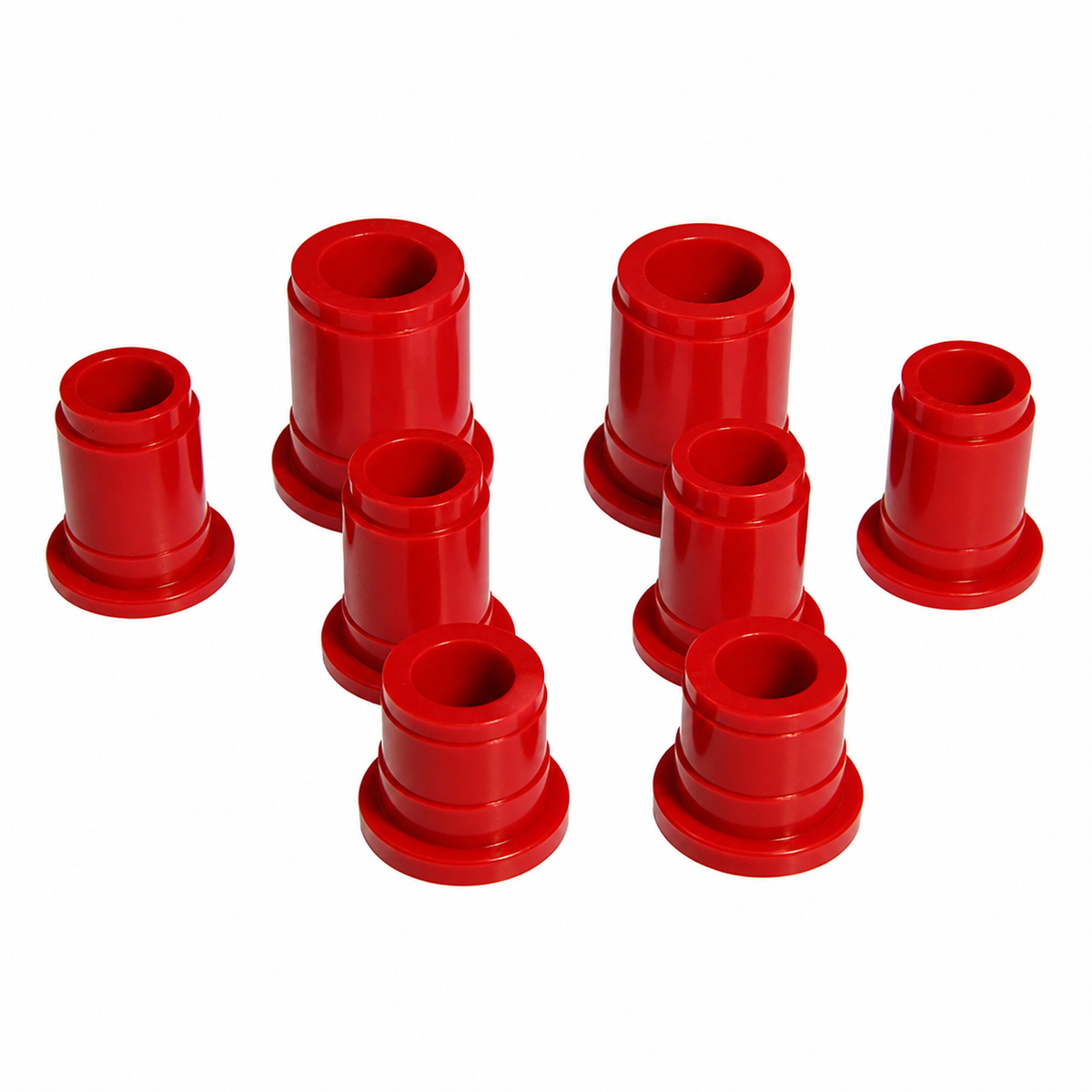

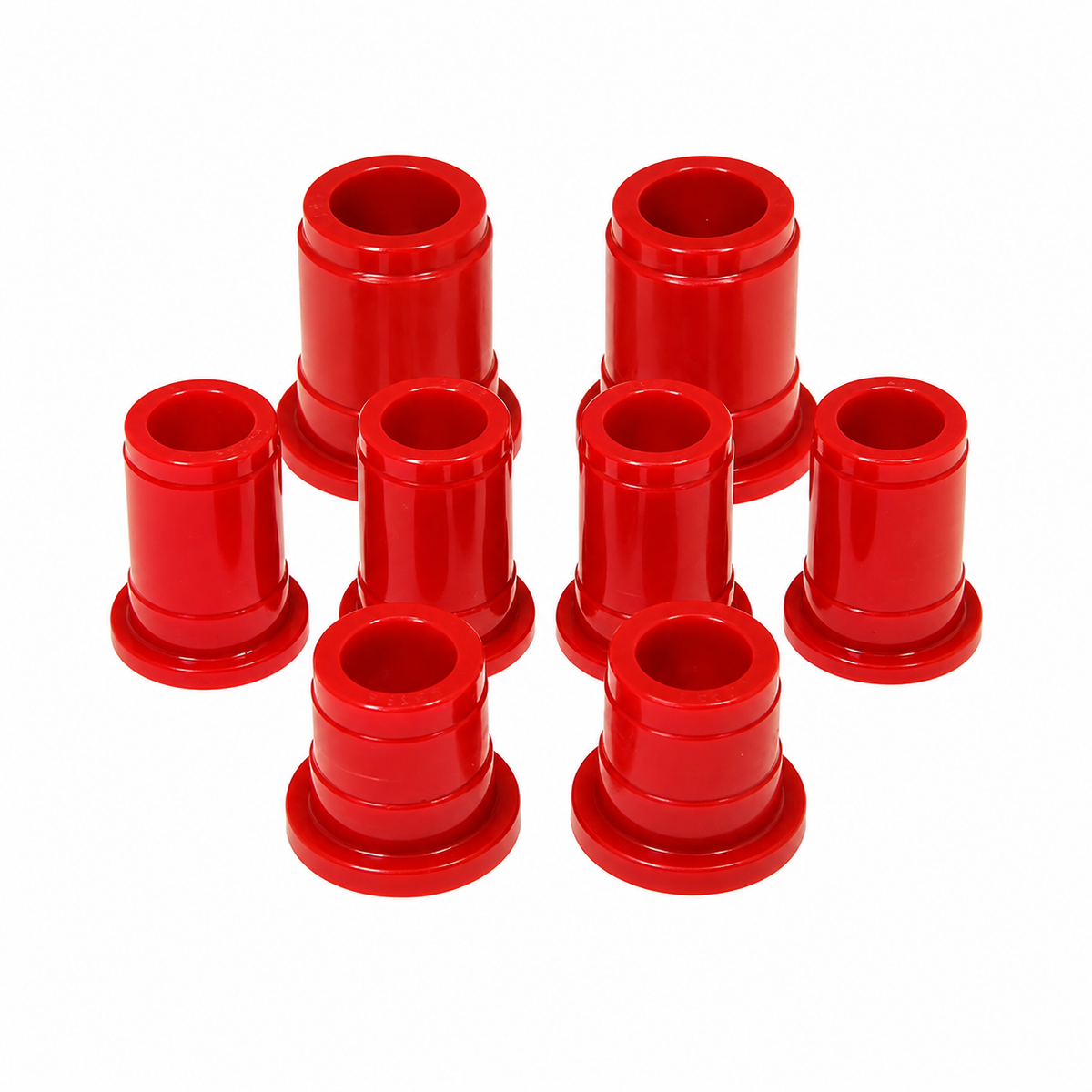

1986–1988 / Red

• Early-style front control arm bushing kit in red polyurethane

1989–1995 / Black

• Late-style front control arm bushing kit in black polyurethane

1989–1995 / Red

• Late-style front control arm bushing kit in red polyurethane
