Prothane Polyurethane Front Control Arm Bushing Kit | 2WD (1979-95 Pickup)

Prothane Polyurethane Front Control Arm Bushing Kit

For 1979–1995 Toyota Pickup 2WD Front Control Arm Applications

Overview

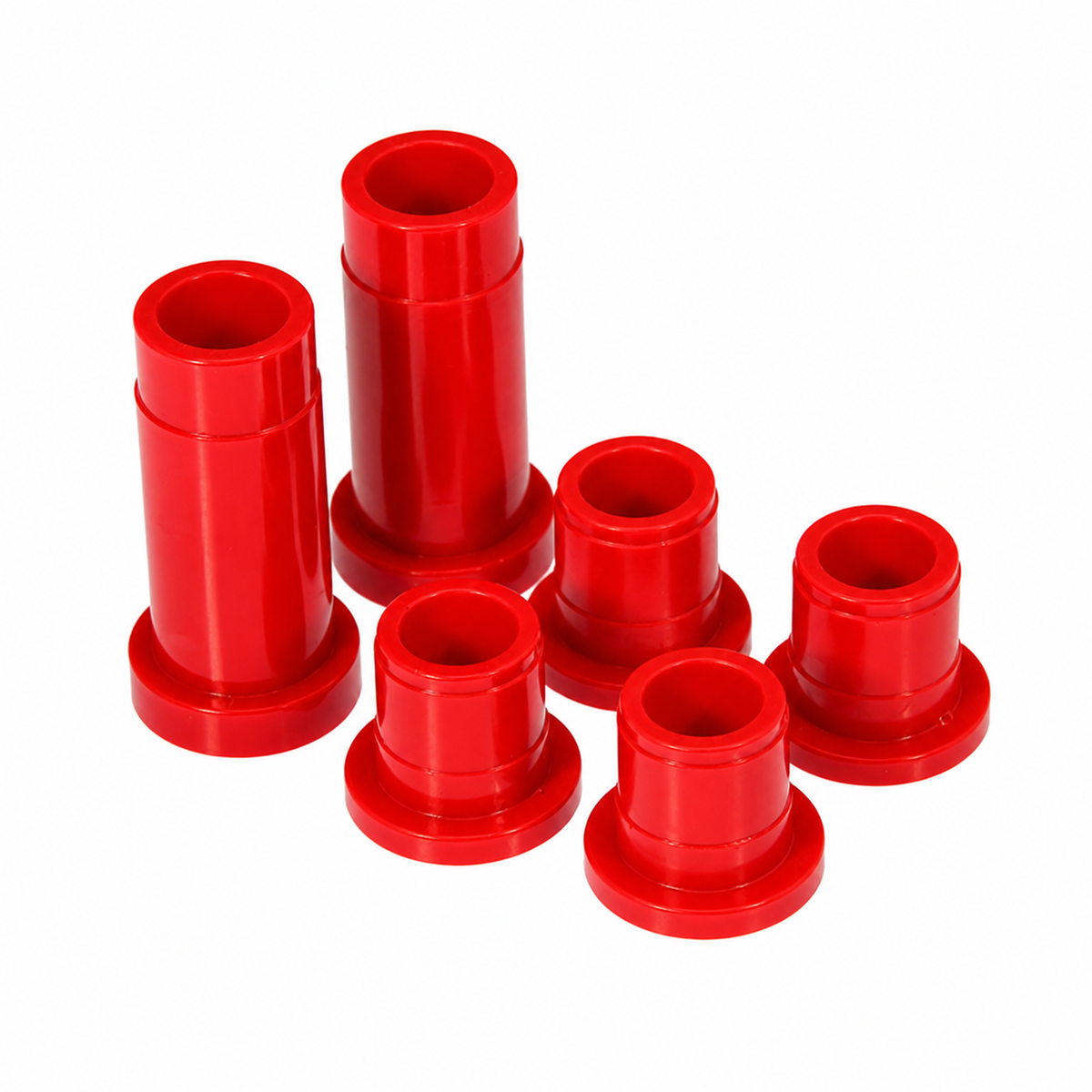

The Prothane Polyurethane Front Control Arm Bushing Kit replaces worn factory rubber bushings in the front upper and lower control arms of 1979–1995 Toyota Pickup 2WD models. The firmer polyurethane construction helps reduce unwanted control-arm movement and maintain more consistent suspension geometry, steering response, and alignment.

Toyota used three different front control-arm bushing configurations across this production range, so the correct kit must be selected by model year: 1979–1983, 1984–1988, or 1989–1995.

Key Features

• Polyurethane replacement for factory rubber control-arm bushings
• Services the front upper and lower control arms
• Covers both driver and passenger sides
• Three model-year-specific configurations
• Helps reduce suspension deflection under braking and cornering loads
• Helps maintain more consistent caster and camber settings
• Polyurethane installation grease included
• Available in black or red
• Installs in the factory bushing locations

Model-Year Configuration

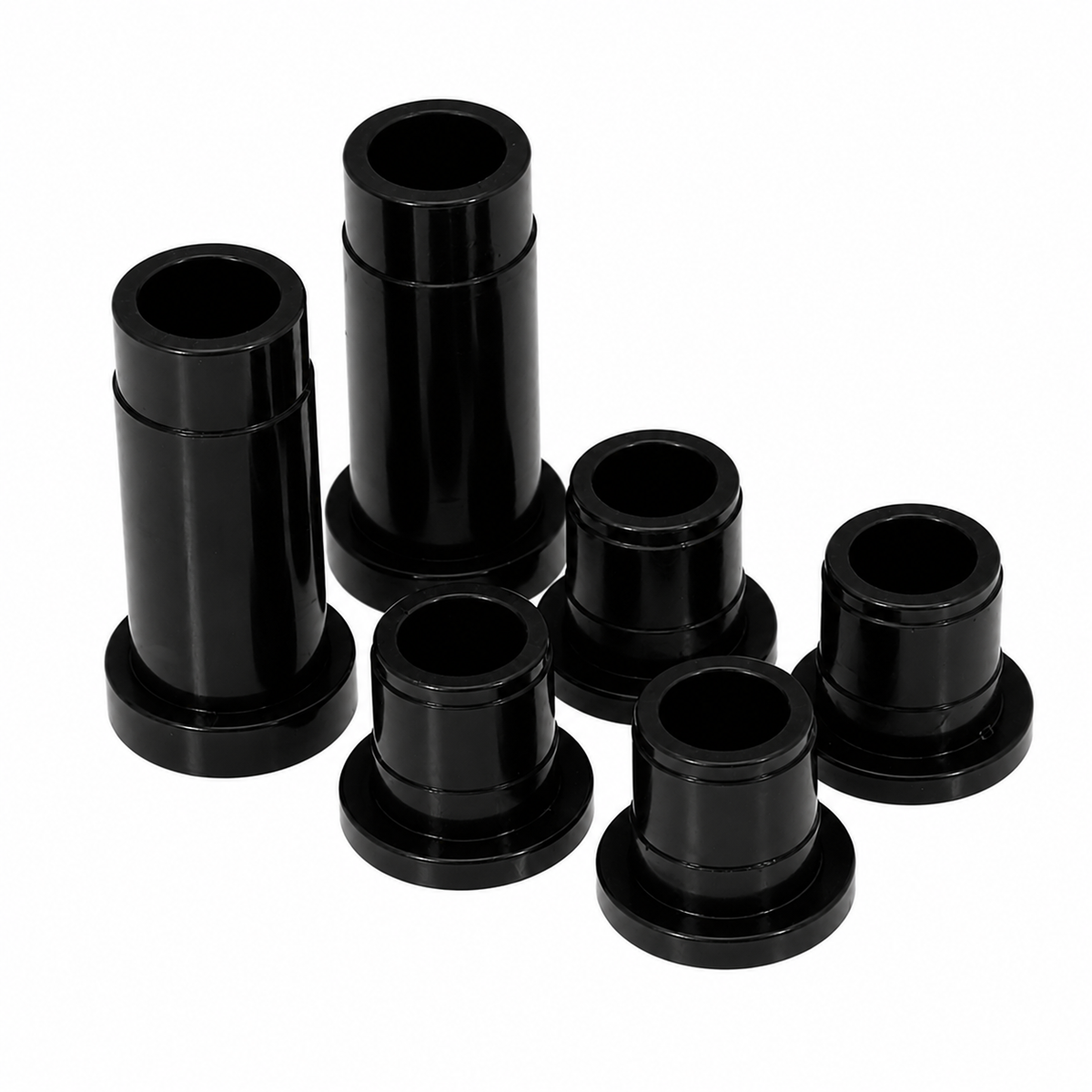

1979–1983 Toyota Pickup 2WD

• Early 1st Gen front control-arm bushing configuration
• (6) front control-arm bushings

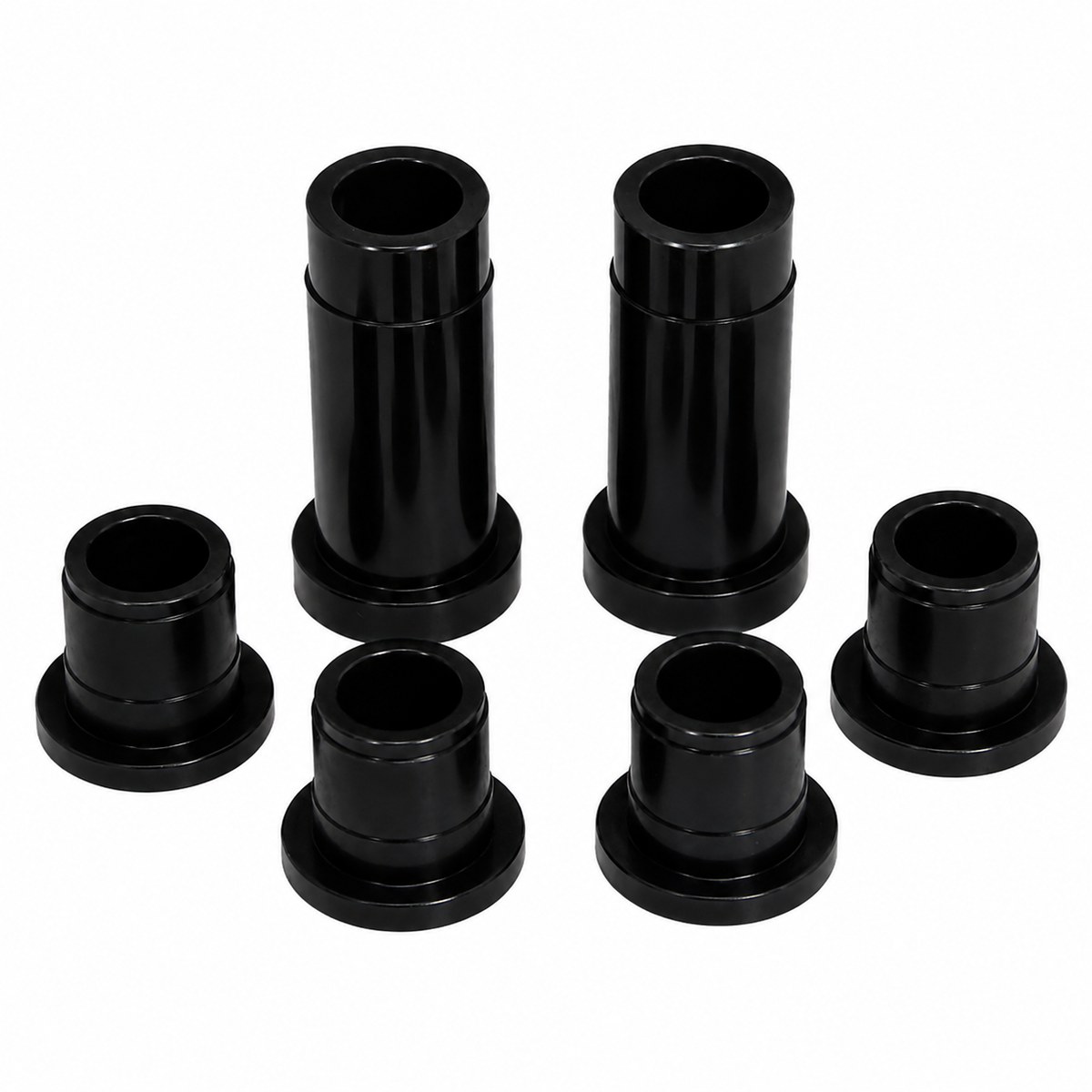

1984–1988 Toyota Pickup 2WD

• 2nd Gen front control-arm bushing configuration
• (6) front control-arm bushings

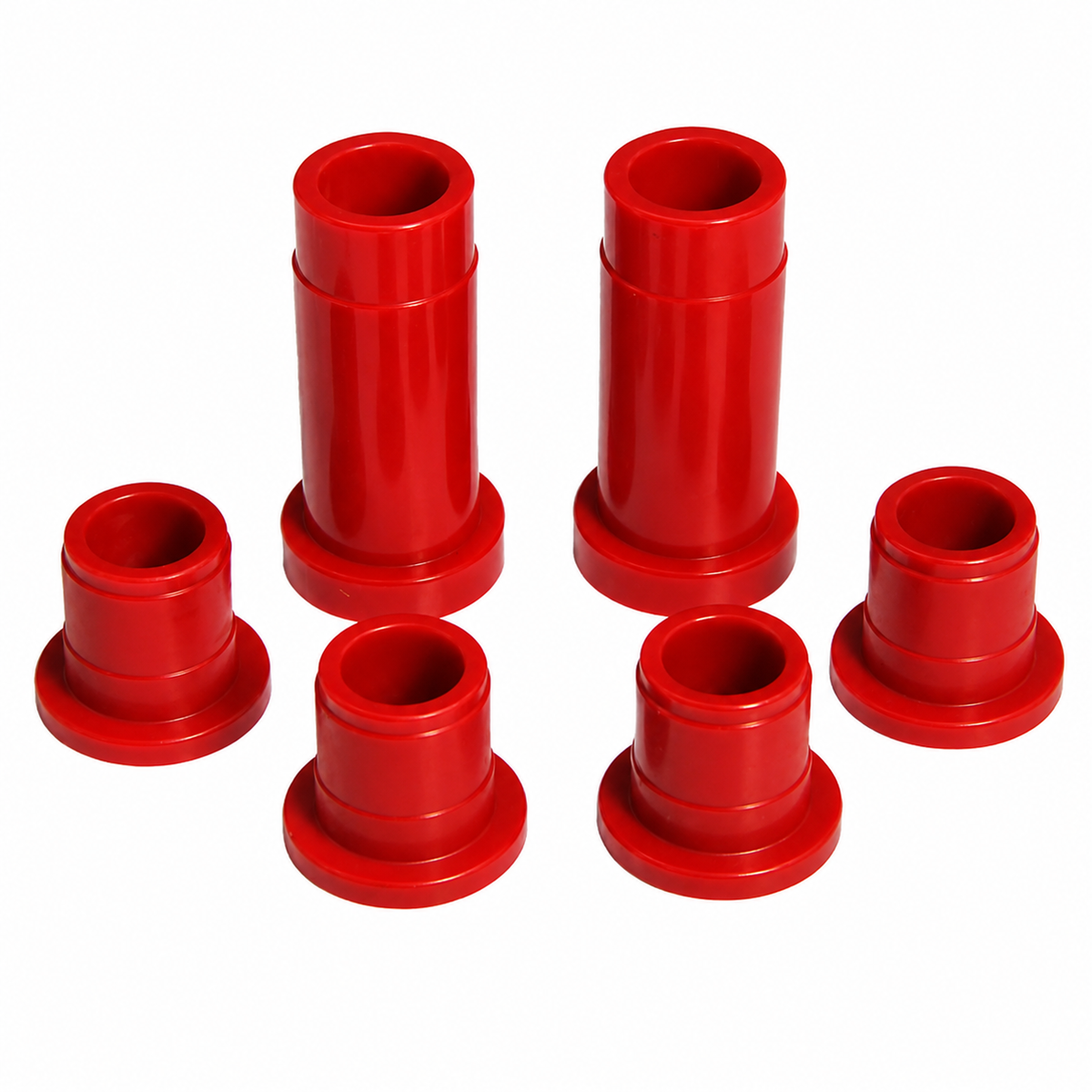

1989–1995 Toyota Pickup 2WD

• 3rd Gen front control-arm bushing configuration
• (6) front control-arm bushings

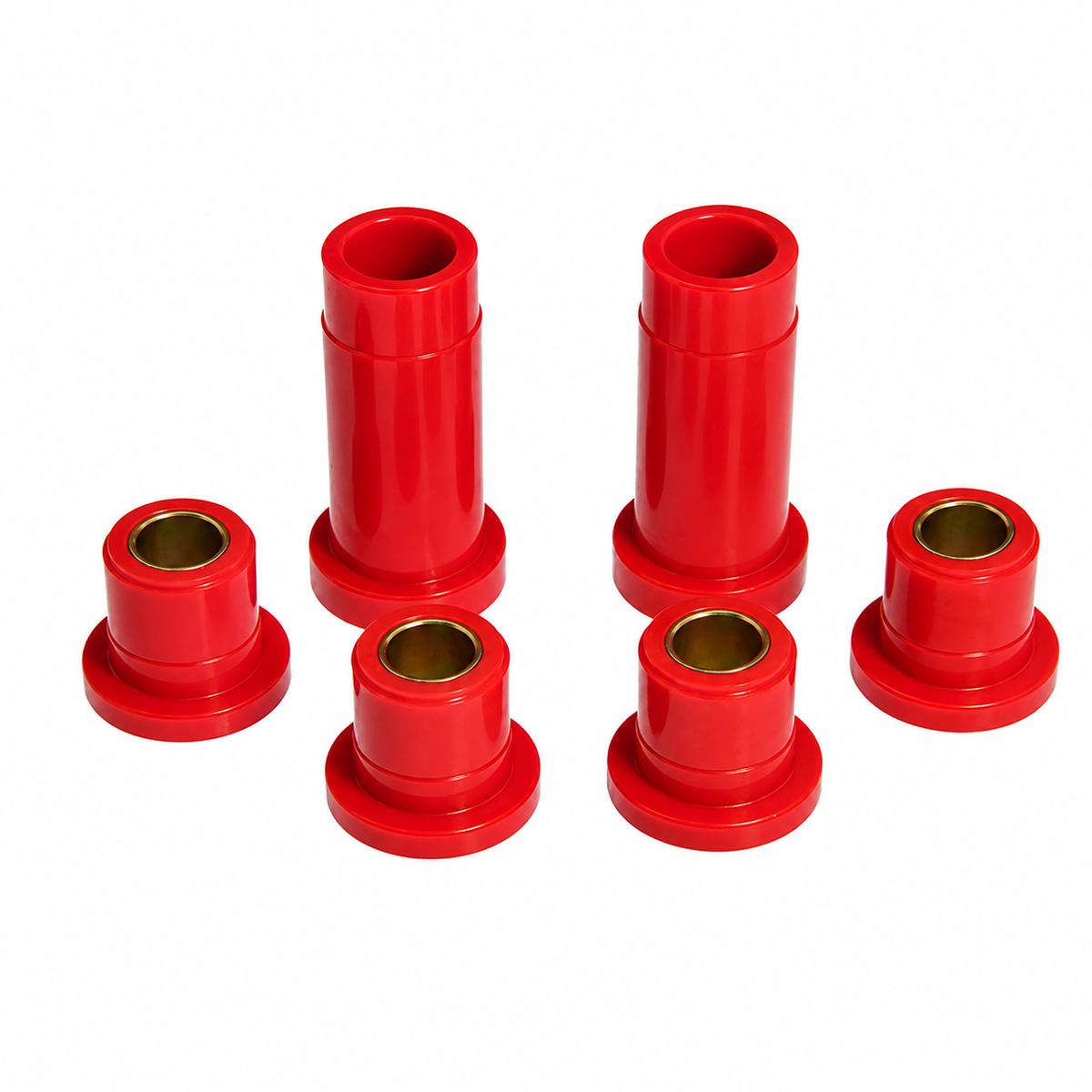

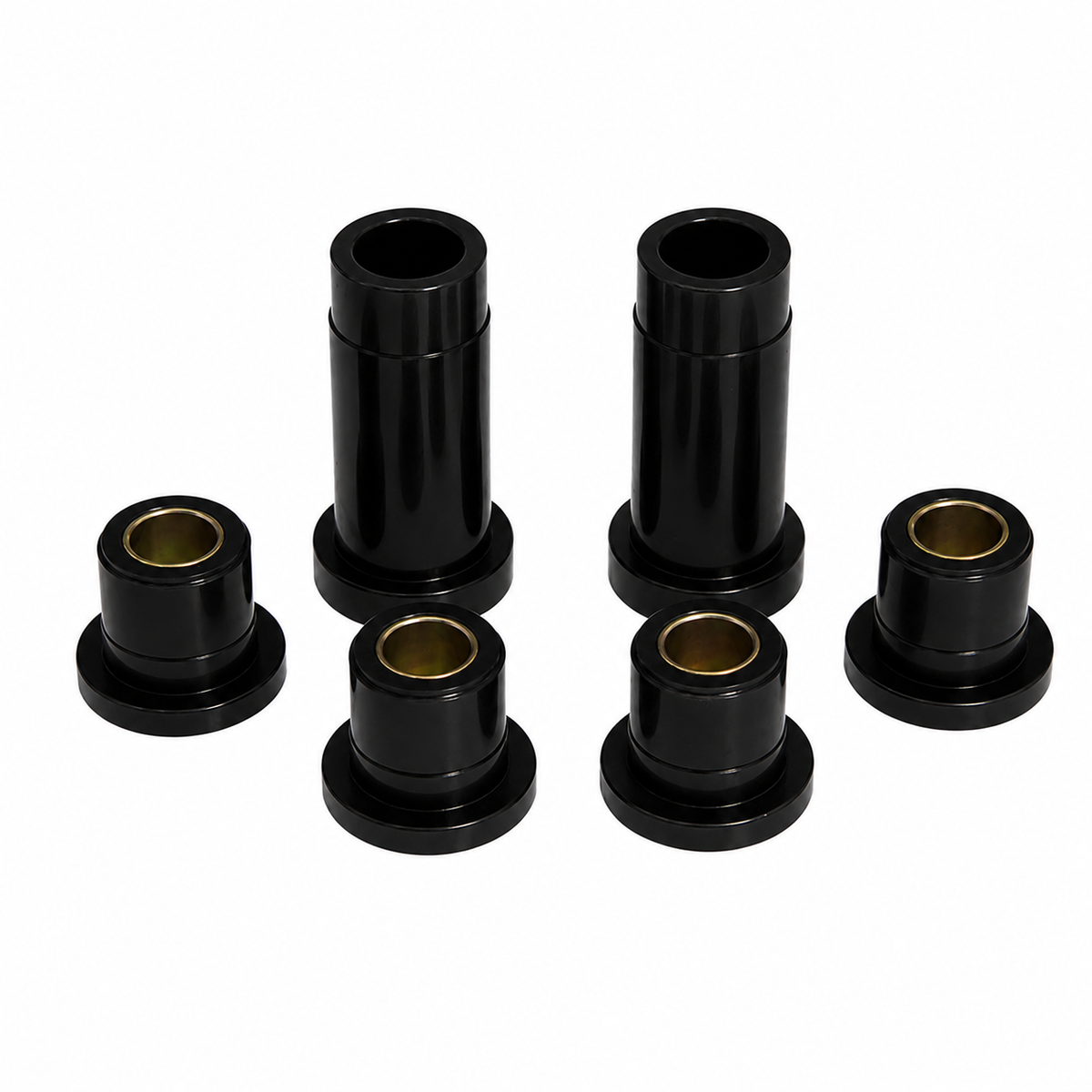

• (4) metal inner sleeves

The three model-year configurations are not interchangeable.

Vehicle Fitment

Toyota Pickup

• 1979–1983 Toyota Pickup – 1st Gen – 2WD
• 1984–1988 Toyota Pickup – 2nd Gen – 2WD
• 1989–1995 Toyota Pickup – 3rd Gen – 2WD

Fitment Notes

• 2WD Toyota Pickup only
• Does not fit 4WD Pickup applications
• Front upper and lower control-arm application
• Select the configuration matching the vehicle model year
• Apply the supplied polyurethane grease during installation
• Removal of the original bushings may require a press or other bushing-service tools
• A front-end alignment is recommended after installation

Product Specifications

Brand: Prothane
Product Type: Front Control Arm Bushing Kit
Position: Front
Material: Polyurethane
Control Arm Coverage: Upper & Lower
Side Coverage: Driver & Passenger
Color Options: Black / Red
Drivetrain: 2WD
Lubrication: Grease Required; No Grease Fittings
Installation Grease: Included
Fit Type: Vehicle-Specific / Direct Replacement

Available Configurations

1979–1983 | Black or Red

• Front upper and lower control-arm bushing kit
• Installation grease

1984–1988 | Black or Red

• Front upper and lower control-arm bushing kit
• Installation grease

1989–1995 | Black or Red

• Front upper and lower control-arm bushing kit
• Metal inner sleeves
• Installation grease
