Prothane Polyurethane Front Sway Bar & End Link Bushing Kit | 2WD (1989-95 Pickup)

Prothane Polyurethane Front Sway Bar Bushing & End Link Kit

For 1989–1995 Toyota Pickup 2WD with 23mm or 25mm Front Sway Bar

Overview

The Prothane Front Sway Bar Bushing & End Link Kit replaces worn factory rubber sway bar mounting and end-link bushings on 1989–1995 Toyota Pickup 2WD models equipped with a 23mm or 25mm front sway bar.

The polyurethane bushings provide a firmer connection between the sway bar, chassis, and end links, helping reduce unwanted bushing deflection and maintain more consistent sway bar operation. Each kit services both sides of the front suspension and includes frame bushings, end-link components, mounting brackets, hardware, and polyurethane installation grease.

Because fitment is determined by sway bar diameter, measure the installed front sway bar before ordering and select the matching 23mm or 25mm configuration.

Key Features

• Complete front sway bar bushing and end-link kit
• Available for 23mm or 25mm front sway bars
• Fits 1989–1995 Toyota Pickup 2WD
• Polyurethane replacement for factory rubber bushings
• Services both driver and passenger sides
• Includes frame-mounted sway bar bushings and brackets
• Includes end-link bushings, sleeves, washers, bolts, and lock nuts
• Helps reduce unwanted sway bar movement and bushing deflection
• Polyurethane installation grease included
• Available in black or red

Choosing the Correct Sway Bar Size

1989–1995 Toyota Pickup 2WD applications were equipped with more than one front sway bar diameter. Available configurations support 23mm and 25mm bars.

The frame bushings must closely match the actual sway bar diameter to properly locate the bar without excessive clearance or binding. Digital or vernier calipers provide the most accurate measurement.

Do not order by model year alone. Measure the installed bar before ordering and select the matching diameter.

Vehicle Fitment

Toyota Pickup

• 1989–1995 Toyota Pickup – 3rd Gen – 2WD – 23mm Front Sway Bar
• 1989–1995 Toyota Pickup – 3rd Gen – 2WD – 25mm Front Sway Bar

Fitment Notes

• 2WD Toyota Pickup only
• Choose the configuration matching the installed 23mm or 25mm front sway bar
• Front application
• One kit services both driver and passenger sides
• Measure the installed sway bar before ordering
• Apply the supplied polyurethane grease to the sway bar bushing contact surfaces during installation
• Inspect the sway bar, brackets, end links, and mounting points for wear or corrosion before reassembly
• Does not replace damaged sway bars or chassis mounting points

Product Specifications

Brand: Prothane
Product Type: Front Sway Bar Bushing & End Link Kit
Position: Front
Material: Polyurethane / Steel
Sway Bar Diameter Options: 23mm / 25mm
Color Options: Black / Red
Coverage: Driver & Passenger Sides
Drivetrain: 2WD
Fitment Type: Vehicle Specific
Installation Grease: Included

Available Configurations

23mm / Black

• 23mm front sway bar bushing and end-link kit
• Black polyurethane

23mm / Red

• 23mm front sway bar bushing and end-link kit
• Red polyurethane

25mm / Black

• 25mm front sway bar bushing and end-link kit
• Black polyurethane

25mm / Red

• 25mm front sway bar bushing and end-link kit
• Red polyurethane

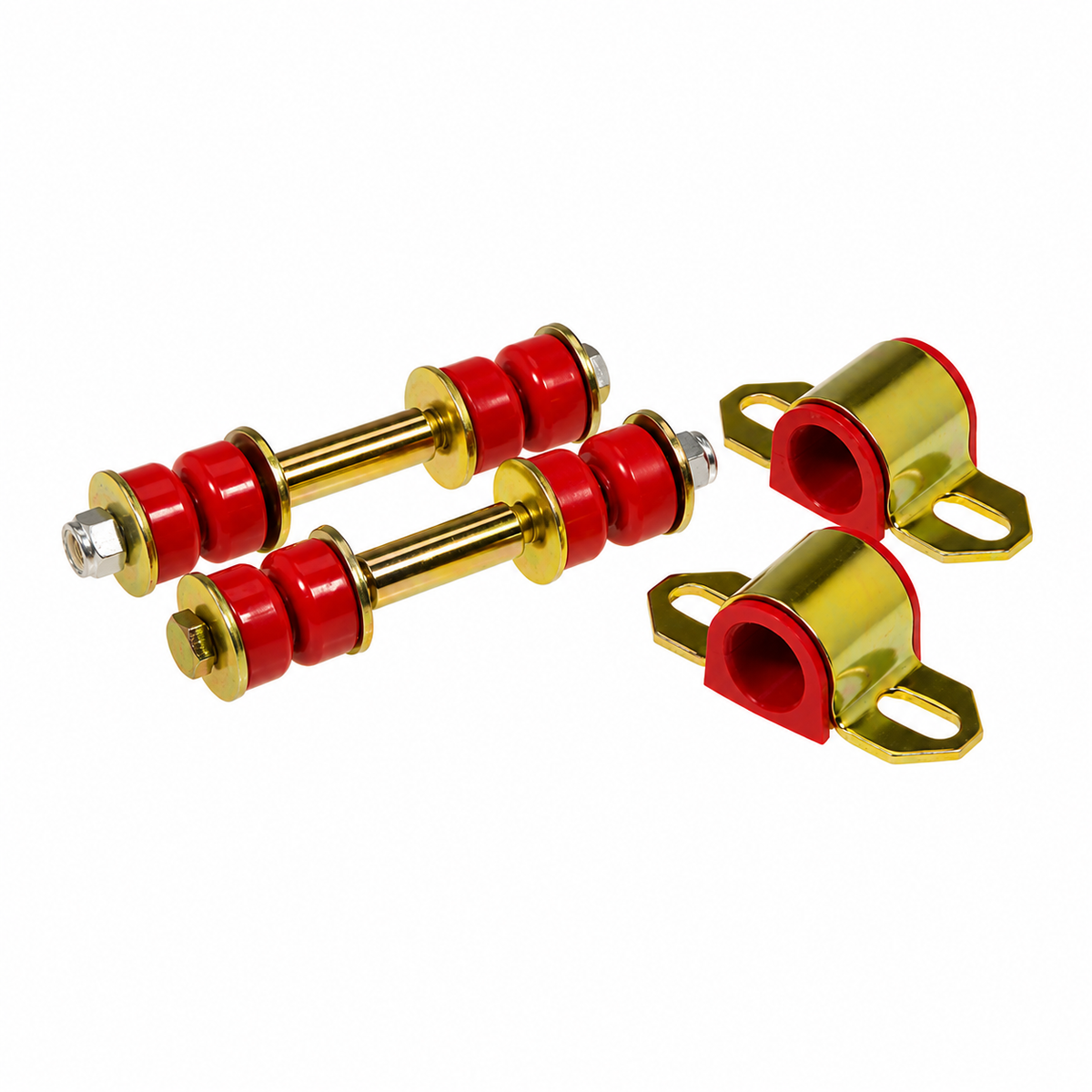

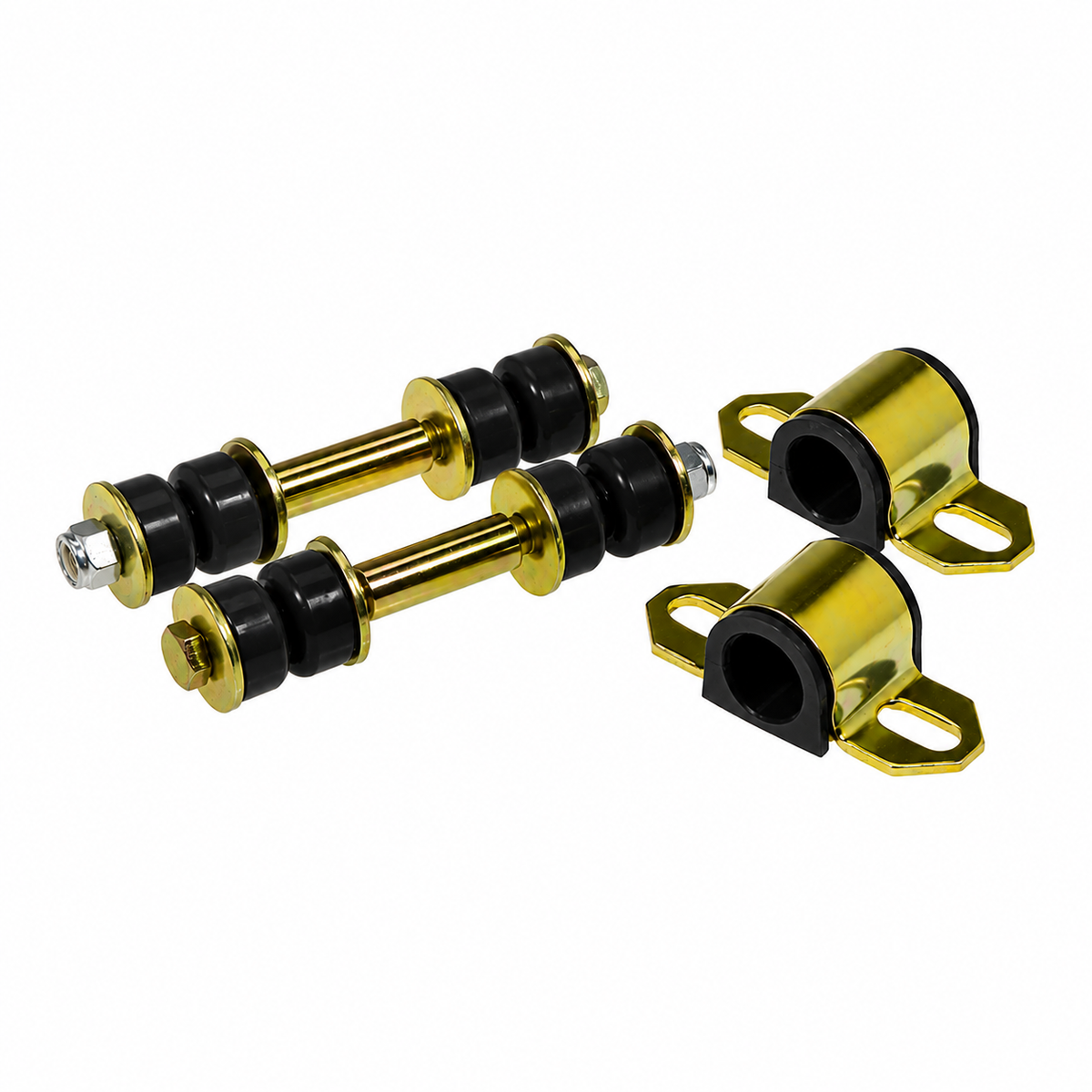

Each configuration includes:

• (2) Front sway bar bushings in the selected diameter
• (2) Sway bar mounting brackets
• (8) End-link bushings
• (8) Dished washers
• (2) Metal sleeves
• (2) End-link bolts
• (2) Nylon lock nuts
• (1) Polyurethane installation grease packet
