AE86 Project Mu SCR Pure Plus 6 Slotted Rear Brake Rotor Set | 4A-GE (Corolla 1983-87)

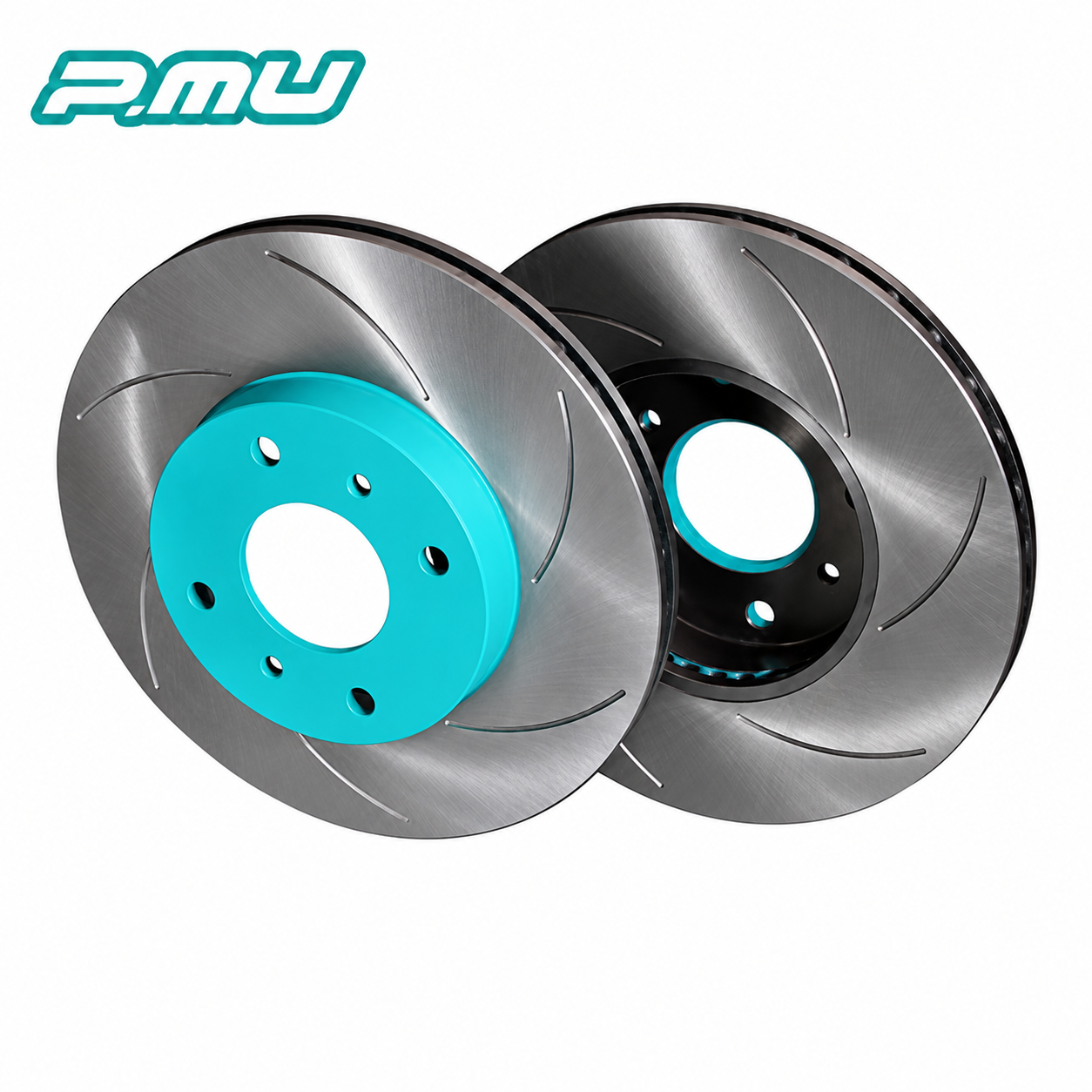

Project Mu SCR Pure Plus 6 Slotted Rear Brake Rotor Set

For 1983–1987 Toyota Corolla Levin / Sprinter Trueno AE86 GT-V & GT-APEX and 1985–1987 Toyota Corolla Sport GT-S with Rear Disc Brakes

Overview

The Project Mu SCR Pure Plus 6 Rear Brake Rotor Set is a performance-oriented replacement for the factory rear disc rotors on Toyota AE86 models equipped with the 4A-GE rear disc brake configuration. Designed primarily for spirited street driving, the SCR Pure Plus 6 combines factory-size fitment with Project Mu's distinctive six-slot rotor design.

Each rotor uses one-piece FC cast-iron construction with six curved slots per braking surface. The curved slot pattern improves pad-surface cleaning and initial braking response while providing a straightforward upgrade over conventional smooth replacement rotors.

The AE86 rear application uses a 231 mm diameter, 10 mm thick solid rotor with the original 4x114.3 mounting configuration. The set includes both rear rotors needed to service the driver and passenger sides.

Key Features

• Performance replacement rear brake rotors for Toyota AE86
• 231 mm diameter x 10 mm thickness
• One-piece FC cast-iron construction
• Solid disc design
• Six curved slots per side
• Curved slots improve pad-surface cleaning and initial braking response
• Factory-style 4x114.3 mounting configuration
• 60 mm center bore
• Project Mu signature green finish
• Sold as a matched pair of rear rotors

SCR Pure Plus 6 Rotor Design

The SCR Pure Plus 6 is designed as a street-performance step above a conventional smooth replacement rotor. Rather than using straight slots, each rotor incorporates six curved slots on each braking surface.

The rounded slot design continually sweeps the brake-pad surface as the rotor turns, helping remove brake dust and maintain consistent pad contact. This design also provides a more responsive initial brake application while remaining appropriate for daily-driven and performance street AE86 builds.

Unlike Project Mu's more competition-focused two-piece rotor systems, the SCR Pure Plus 6 retains a straightforward one-piece cast-iron construction, making it well suited to owners who want upgraded braking characteristics without converting away from the factory-style rear brake configuration.

Vehicle Fitment

Toyota Corolla Levin

• 05/1983–04/1987 Toyota Corolla Levin – AE86  – GT-V / GT-APEX – Rear Disc Brakes – Rear

Toyota Sprinter Trueno

• 05/1983–04/1987 Toyota Sprinter Trueno – AE86 – GT-V / GT-APEX – Rear Disc Brakes – Rear

Toyota Corolla Sport GT-S

• 1985–1987 Toyota Corolla Sport GT-S – AE86 – 4A-GE – Rear Disc Brakes – Rear

Fitment Notes

• Rear application only
• Requires the factory-style AE86 rear disc brake configuration
• Fits factory rear-disc GT-V, GT-APEX, and Corolla Sport GT-S applications listed above
• Does not fit factory rear drum brake AE86 applications
• U.S.-market Corolla SR5 models were equipped with rear drum brakes and do not use this rotor configuration
• Factory-size performance replacement; this is not a big-brake conversion
• Replace rear brake rotors in pairs for consistent braking performance
• Inspect brake pads and rear calipers during rotor replacement

Product Specifications

Brand: Project Mu
Series: SCR Pure Plus 6
Product Type: Slotted Brake Rotor Set
Position: Rear
Construction: One-Piece
Material: FC Cast Iron
Disc Type: Solid
Rotor Diameter: 231 mm
Rotor Thickness: 10 mm
Overall Height: 47.5 mm
Center Bore: 60 mm
Bolt Pattern: 4x114.3
Slot Design: Curved / Round
Slots: 6 Per Side / 12 Per Rotor
Color: Green
Recommended Use: Street / Performance Street

What's Included

• (2) Project Mu SCR Pure Plus 6 Rear Brake Rotors
• Provides both the driver- and passenger-side rear rotors
