AE86 Project Mu SCR Pure Plus 6 Slotted Front Brake Rotor Set | 4A-GE / 4A-C (1983-87 Corolla)

Project Mu SCR Pure Plus 6 Slotted Front Brake Rotor Set

For 1983–1987 Toyota Corolla AE86 Trueno / Levin, 1985–1987 U.S.-Market Corolla Sport AE86 GT-S, and 1984–1987 U.S.-Market Corolla Sport AE86 SR5

Overview

The Project Mu SCR Pure Plus 6 Front Brake Rotor Set is a performance-oriented replacement for the factory-size front rotors used across the supported Toyota AE86 applications. This includes the Japanese-market Trueno / Levin, the U.S.-market GT-S, and the 1984–1987 U.S.-market SR5.

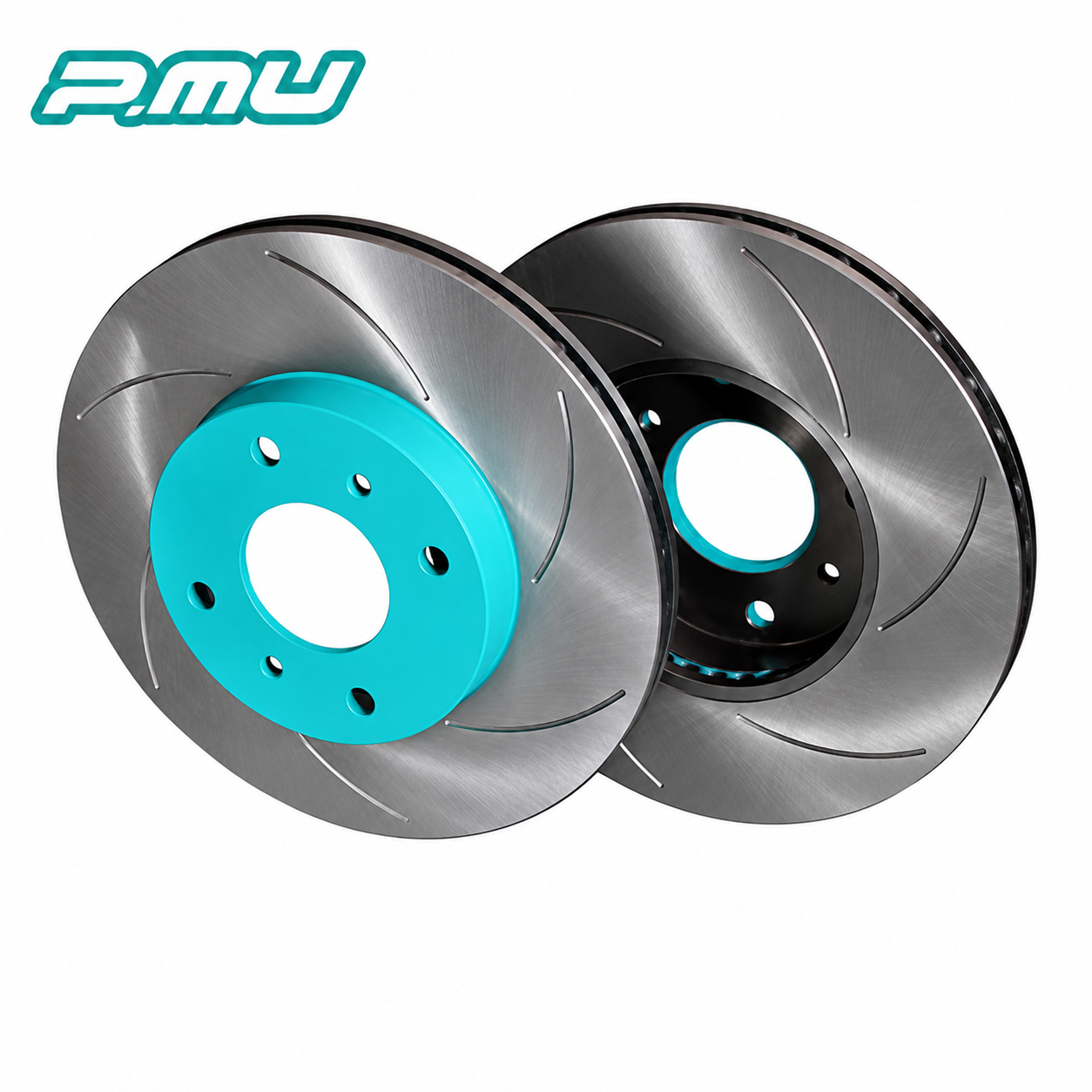

Each rotor uses one-piece FC cast-iron construction with a vented design and six curved slots on each braking surface. The AE86 front application measures 234 mm in diameter and 18 mm thick, retaining the factory rotor dimensions while providing a more performance-focused braking surface.

The rotors are heat treated and finished with Project Mu's distinctive green heat-resistant coating for corrosion protection and recognizable appearance.

Key Features

• Performance replacement front brake rotors for Toyota AE86
• 234 mm diameter x 18 mm thickness
• Vented front rotor design
• One-piece FC cast-iron construction
• Six curved slots per braking surface
• Curved slots improve pad cleaning and initial braking response
• Special heat treatment
• Heat-resistant painted finish rated to 600°C
• Project Mu signature green finish
• Sold as a matched pair of front rotors

SCR Pure Plus 6 Rotor Design

The SCR Pure Plus 6 is designed as a street-performance upgrade over a conventional smooth replacement rotor. Its rounded six-slot pattern continually sweeps the brake-pad surface, helping remove brake dust and maintain consistent contact between the pad and rotor.

Compared with a straight-slot design, the curved slots provide greater cleaning action while sharpening initial brake response. The vented construction retains the factory-style AE86 front brake configuration, making these rotors suitable for enthusiasts who want improved braking characteristics without converting to a larger aftermarket brake system.

Vehicle Fitment

Toyota Corolla AE86

• 1983–1987 Toyota Corolla AE86 – Trueno (JDM) – GT-V / GT-APEX – 4A-GE – Front
• 1983–1987 Toyota Corolla AE86 – Levin (JDM) – GT-V / GT-APEX – 4A-GE – Front
• 1985–1987 Toyota Corolla Sport AE86 – GT-S (U.S.-Market) – 4A-GE – Front
• 1984–1987 Toyota Corolla Sport AE86 – SR5 (U.S.-Market) – 4A-C – Front

Fitment Notes

• Front application only.
• Designed for the factory-style 234 x 18 mm vented front rotor configuration.
• U.S.-market SR5 fitment includes manual- and automatic-transmission cars.
• Factory-size performance replacement; this is not a big-brake conversion.
• The 87 mm four-hole specification refers to the rotor-to-hub mounting pattern, not the vehicle's wheel bolt pattern.
• Replace front rotors in pairs for consistent braking performance.
• Performance slotted rotors may increase brake-pad wear and braking noise compared with conventional smooth rotors.
• Inspect front brake pads, calipers, wheel bearings, and related hardware during installation.

Product Specifications

Brand: Project Mu
Series: SCR Pure Plus 6
Product Type: Slotted Brake Rotor Set
Position: Front
Engines: 4A-GE / 4A-C
Construction: One-Piece
Material: FC Cast Iron
Disc Type: Vented
Rotor Diameter: 234 mm
Rotor Thickness: 18 mm
Overall Height: 38 mm
Center Bore: 64 mm
Rotor-to-Hub Mounting PCD: 87 mm
Mounting Holes: 4
Slot Design: Curved / Round
Slots: 6 Per Side / 12 Per Rotor
Heat Treatment: Yes
Coating: Heat-Resistant Painted Finish
Coating Heat Rating: 600°C
Color: Green
Recommended Use: Street / Performance Street

What's Included

• (2) Project Mu SCR Pure Plus 6 Front Brake Rotors
• Provides both the driver- and passenger-side front rotors
