OS Giken OS-250R V2 80W-250 LSD Gear Oil

OS Giken OS-250R V2 80W-250 LSD Gear Oil

For OS Giken Mechanical Limited Slip Differentials in Rear-Wheel-Drive Applications

Overview

The OS Giken OS-250R V2 Gear Oil is a high-performance synthetic differential lubricant developed specifically for OS Giken mechanical limited slip differentials. Its friction characteristics support the smooth, progressive locking behavior of the Super Lock LSD while protecting gears and clutch plates during street, track, drift, and competition use.

Rated at SAE 80W-250, the V2 formulation combines a PAO and Polyol Ester synthetic base with an extreme-pressure additive package designed for high-load differential operation. The integrated friction modifiers help maintain consistent clutch-pack operation without requiring a separate LSD additive.

Choose between a single 1-liter can or a 2-liter package for a complete Toyota AE86 T-Series differential service. The AE86 rear differential requires approximately 1.3 liters, making the 2-liter option the correct quantity for a complete drain and refill.

Key Features

• Specifically formulated for OS Giken mechanical limited slip differentials
• SAE 80W-250 viscosity
• PAO and Polyol Ester synthetic base
• Extreme-pressure additive package
• Designed for smooth, progressive LSD engagement
• Helps reduce clutch-pack chatter and vibration
• Supports consistent lubrication under high temperatures and loads
• Integrated LSD friction modifiers
• Compatible with remaining original OS-250R fluid
• Distinctive blue V2 formulation
• Available in 1-liter or 2-liter quantities
• 2-liter option provides enough fluid for a complete AE86 rear differential service

Designed for OS Giken Super Lock LSDs

OS Giken mechanical LSDs rely on carefully controlled friction characteristics to determine how smoothly and consistently the differential locks. Using unsuitable gear oil or adding an unnecessary aftermarket friction modifier can change clutch behavior and potentially create chatter or inconsistent engagement.

OS-250R V2 is formulated specifically around the operating characteristics of OS Giken mechanical LSDs. Its friction-modifying and extreme-pressure additives help the clutch pack engage progressively while maintaining lubrication during repeated high-load and high-temperature driving.

The V2 formulation supersedes the original OS-250R gear oil and can be mixed with residual original OS-250R fluid remaining inside the differential.

Vehicle Fitment

Universal Rear-Wheel-Drive Application

• OS Giken Super Lock mechanical limited slip differentials – RWD differential applications
• Toyota Corolla AE86 – AE86 – RWD – T-Series Rear Differential with OS Giken Super Lock LSD
• Other rear-wheel-drive OS Giken mechanical LSD applications where OS-250R gear oil is specified

Fitment Notes

• Designed for OS Giken mechanical limited slip differentials
• Not recommended for transaxle applications
• Do not add a separate aftermarket LSD friction modifier unless specifically required for another application
• Compatible with residual original OS-250R fluid
• Each individual can contains 1 liter
• Toyota AE86 T-Series rear differential capacity is approximately 1.3 liters
• Select the 2-liter option for a complete AE86 differential drain and refill
• Approximately 0.7 liter will remain after filling an AE86 differential to its approximate 1.3-liter capacity
• Always set the final oil level according to the vehicle's proper differential fill procedure

Product Specifications

Brand: OS Giken
Series: OS-250R V2
Product Type: Limited Slip Differential Gear Oil
Viscosity: SAE 80W-250
Base Oil: PAO & Polyol Ester Synthetic
Application: Mechanical Limited Slip Differentials
Primary Use: Rear-Wheel-Drive Differentials
Fluid Color: Blue
Container Size: 1 Liter Per Can
Available Quantity: 1 Liter or 2 Liters
Friction Modifier: Integrated LSD Additive Package
Transaxle Use: Not Recommended

Original OS-250R vs. OS-250R V2

OS-250R V2 replaces the original OS-250R formula while retaining the friction characteristics required for OS Giken mechanical LSD operation. The updated formulation improves fluid flow and penetration through the clutch pack while maintaining high-load protection and smooth, progressive differential locking.

The V2 formula is compatible with remaining original OS-250R fluid, so small amounts of the previous formulation do not need to be completely purged before switching to V2.

Available Configurations

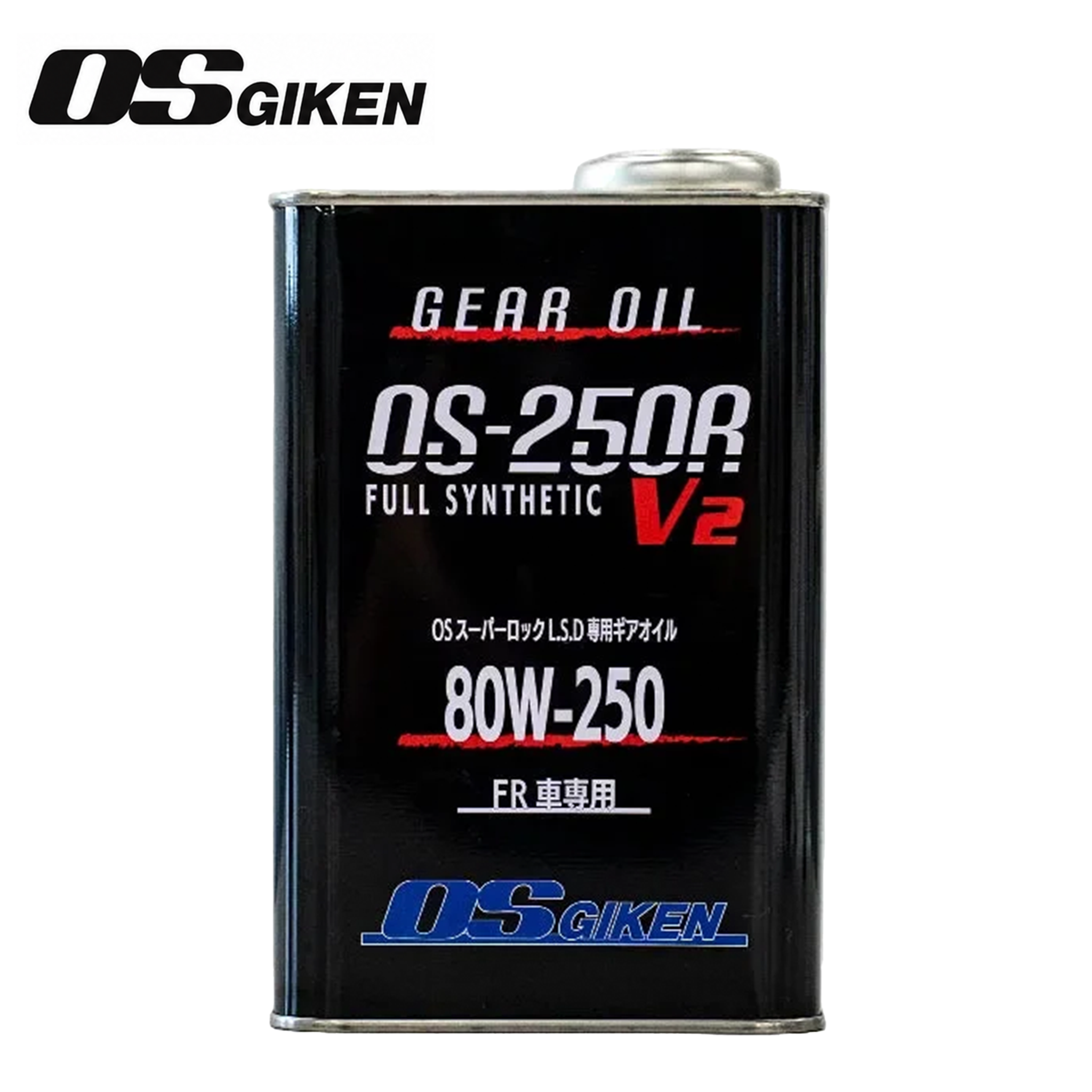

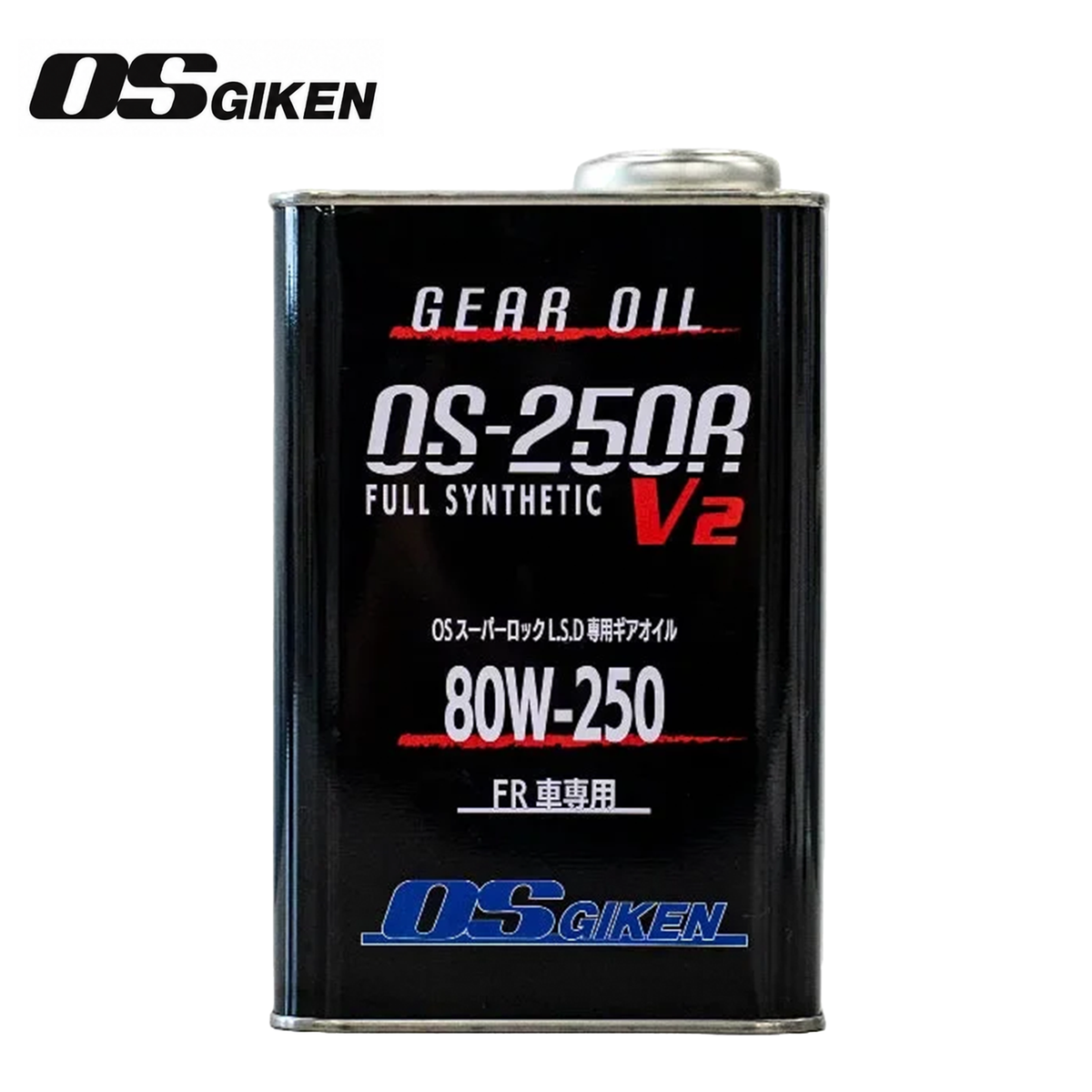

1 Liter

• (1) 1-Liter Can of OS Giken OS-250R V2 80W-250 LSD Gear Oil
• Suitable for topping off, partial service, or applications requiring 1 liter or less

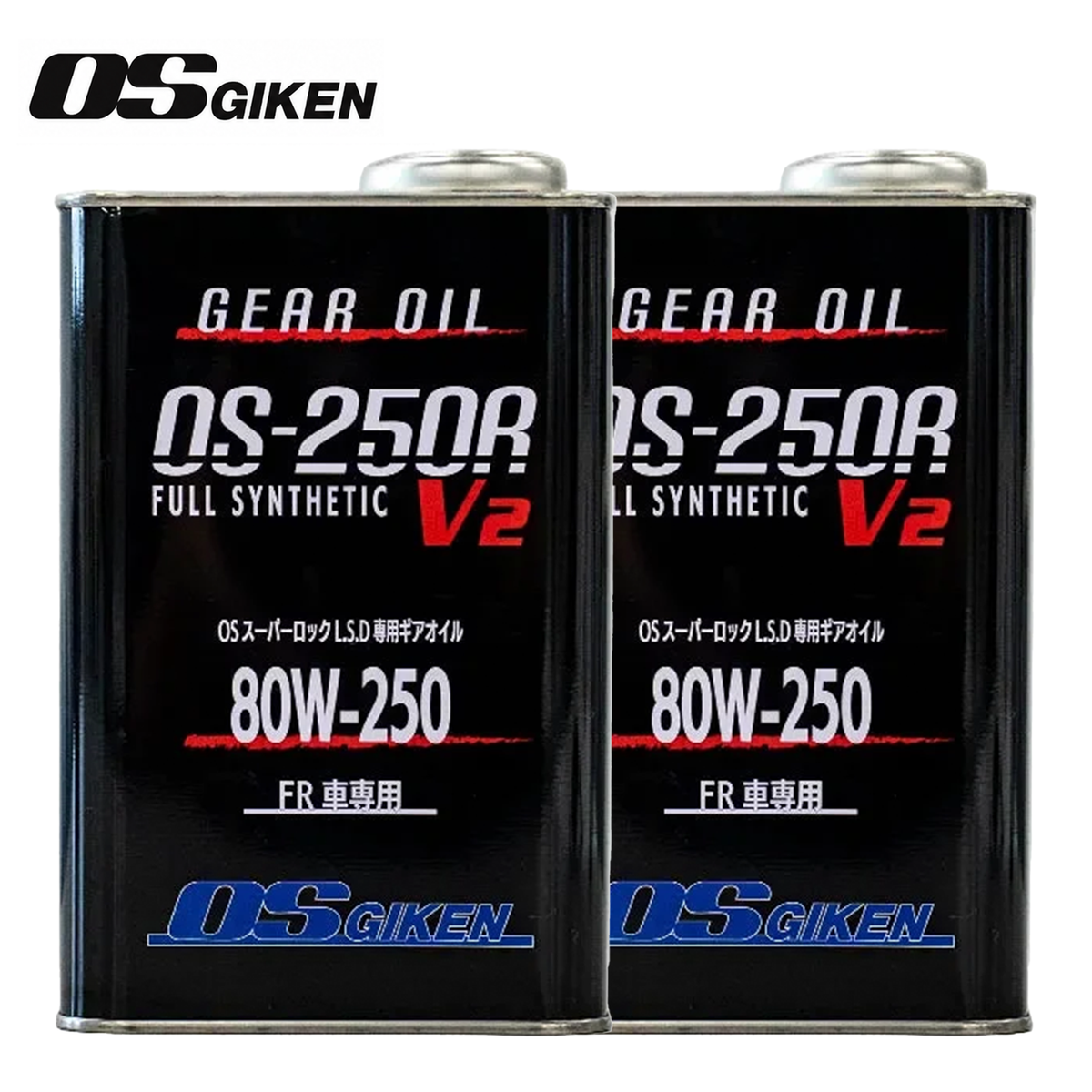

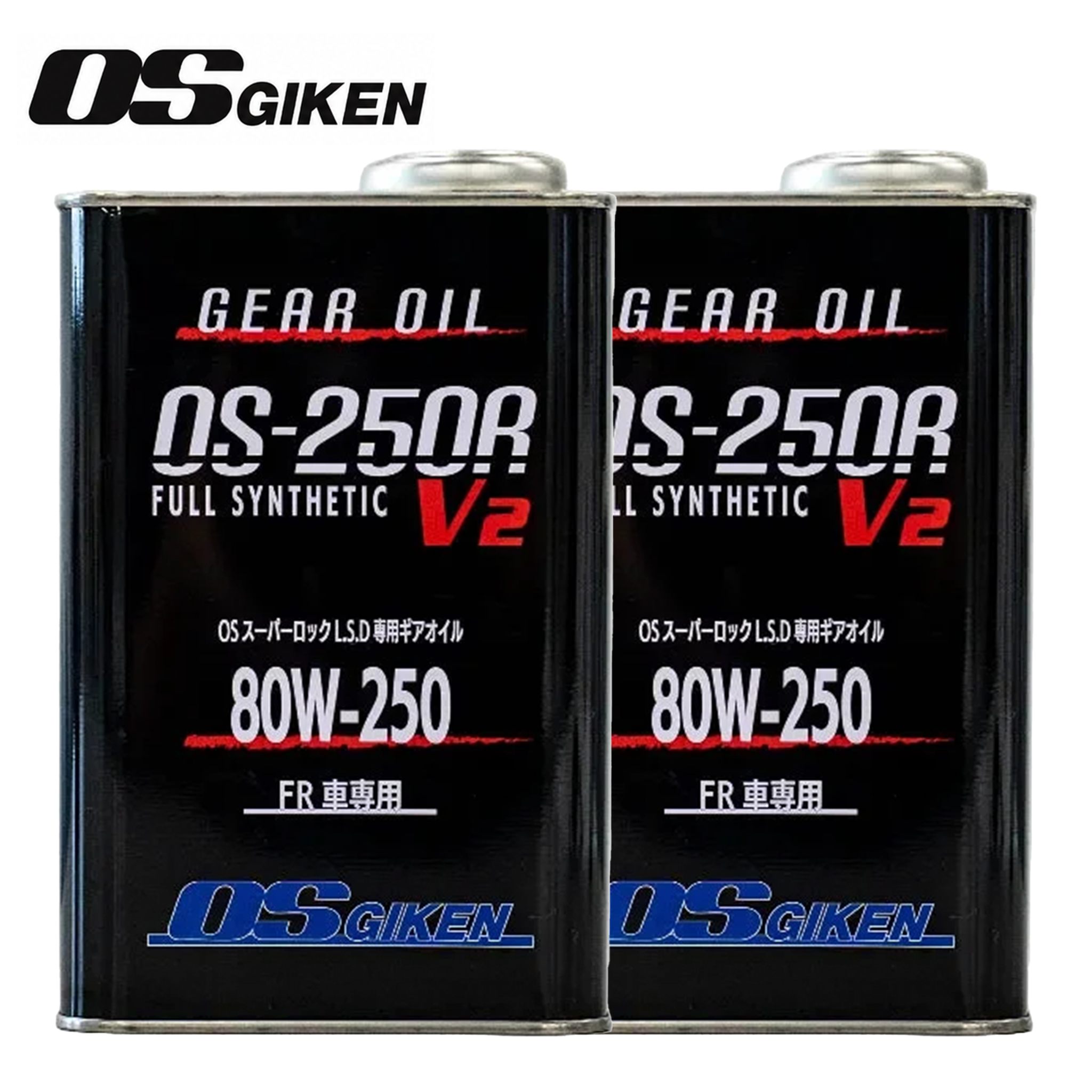

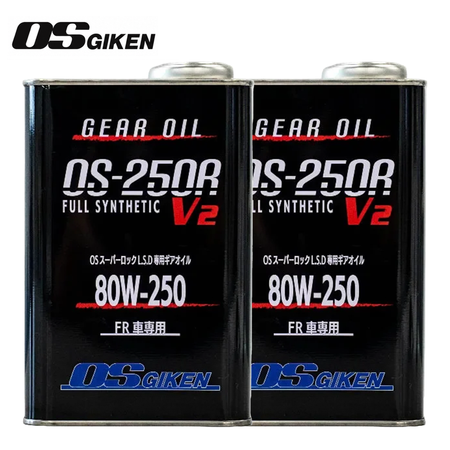

2 Liters | Full AE86 Differential Fill

• (2) 1-Liter Cans of OS Giken OS-250R V2 80W-250 LSD Gear Oil
• Recommended quantity for a complete Toyota AE86 T-Series rear differential service
• Provides enough fluid for the approximately 1.3-liter AE86 differential capacity
• Leaves approximately 0.7 liter remaining for future service or top-offs
