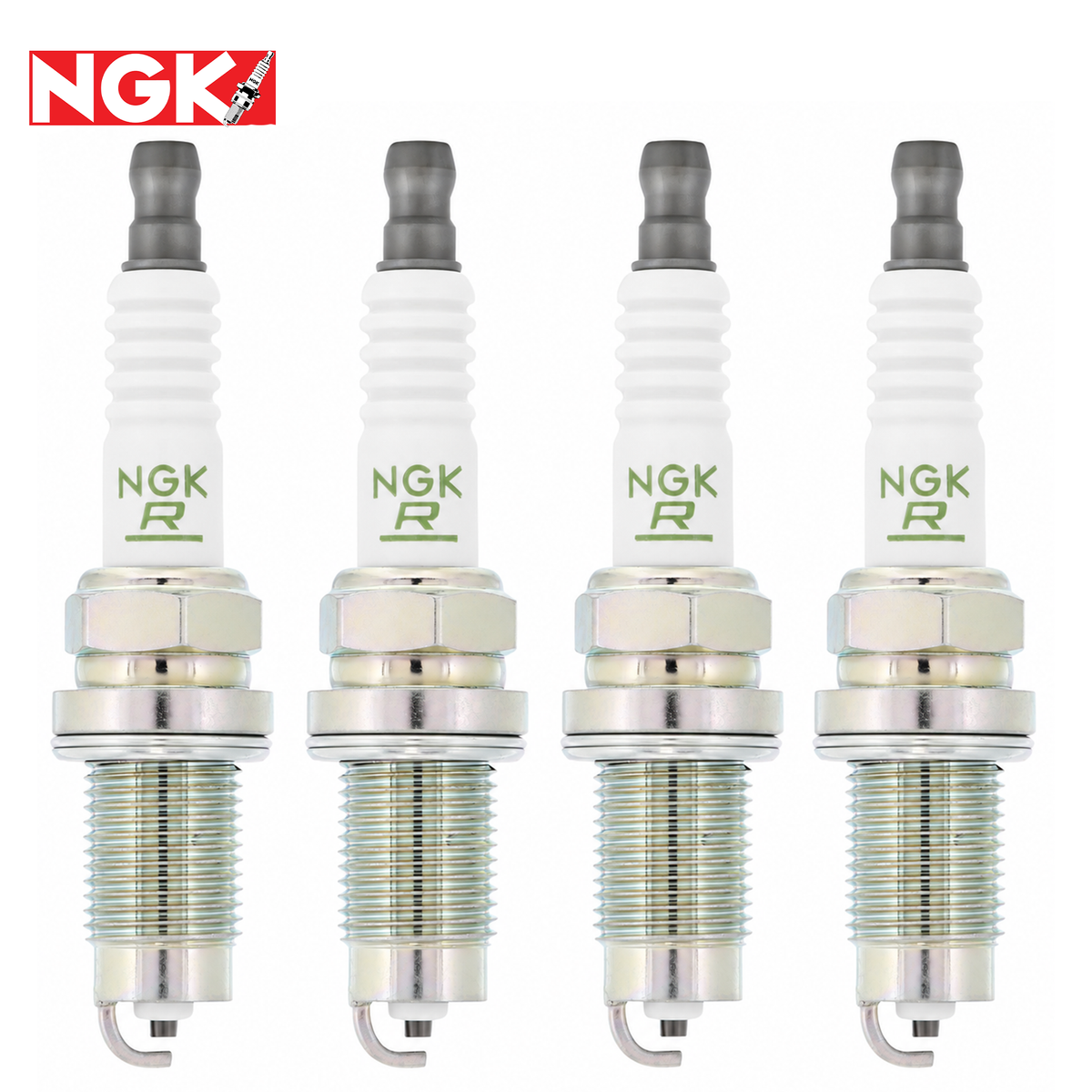

NGK V-Power / Iridium IX Spark Plug Set
For 1984–1987 Toyota Corolla Sport SR5 AE86 with 1.6L 4A-C
Overview
This NGK Spark Plug Set provides two ignition options for 1984–1987 Toyota Corolla Sport SR5 AE86 models equipped with the carbureted 1.6L 4A-C SOHC engine.
Choose V-Power Nickel for a conventional OE-style replacement using NGK's V-groove electrode design, or upgrade to Iridium IX for a fine-wire iridium center electrode with increased wear resistance and strong, consistent ignitability.
Both options use the correct 4A-C spark-plug dimensions, NGK heat range 5, resistor construction, and 1.1 mm / 0.044 in. gap, making the choice primarily a matter of conventional nickel versus premium iridium electrode technology.
Key Features
-
Designed for 1984–1987 AE86 4A-C applications
-
Choice of V-Power Nickel or Iridium IX
-
Complete set of 4 spark plugs
-
NGK heat range 5
-
Resistor-type construction
-
M14 x 1.25 thread
-
19 mm / 0.750 in. thread reach
-
Gasket-style seat
-
1.1 mm / 0.044 in. nominal gap
-
Projected-tip design
Iridium IX vs. V-Power Nickel

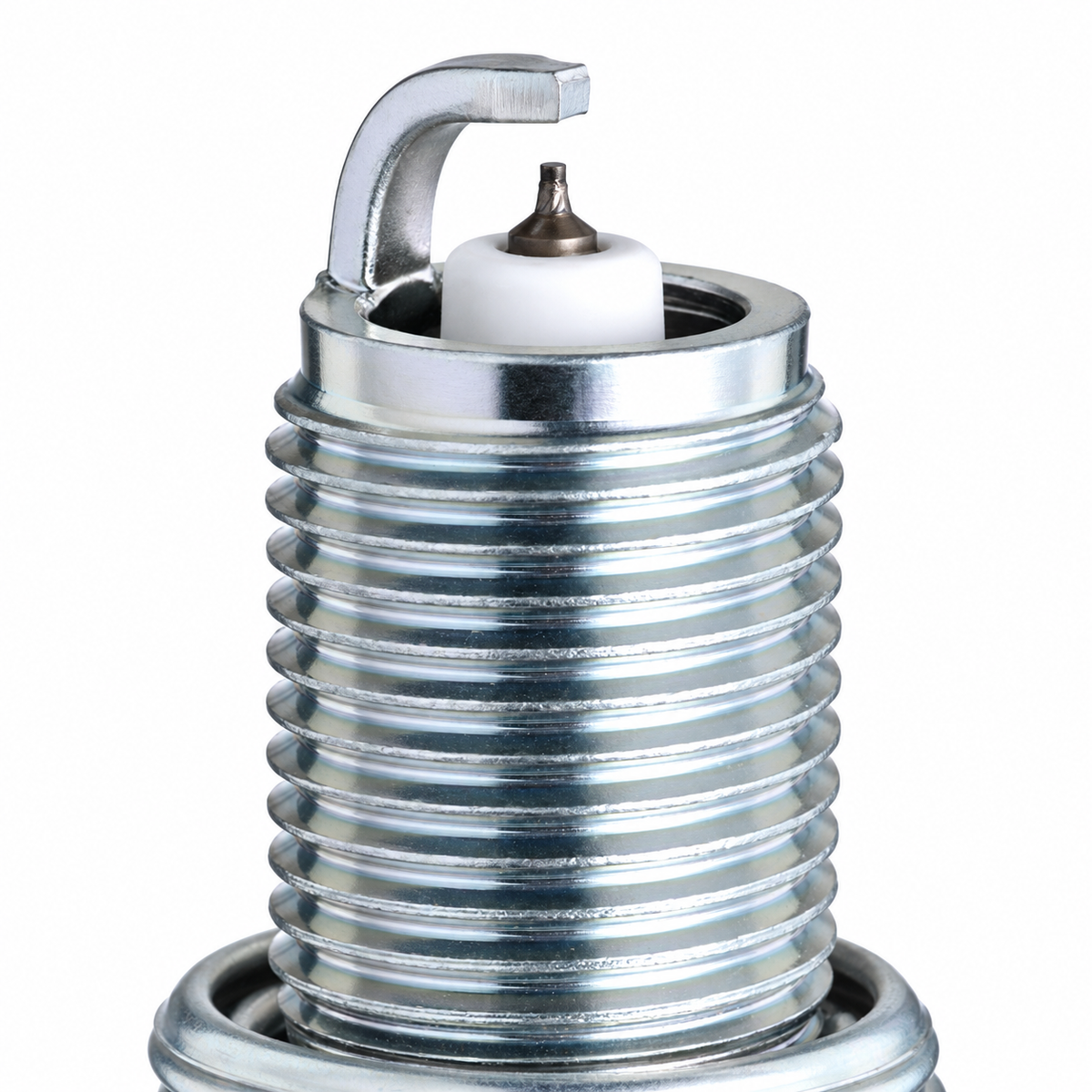

Iridium IX
Uses a fine-wire iridium center electrode designed to provide strong ignitability while offering substantially greater electrode wear resistance than a conventional nickel plug. It is the premium option for owners who want longer-lasting electrode technology and consistent spark performance.

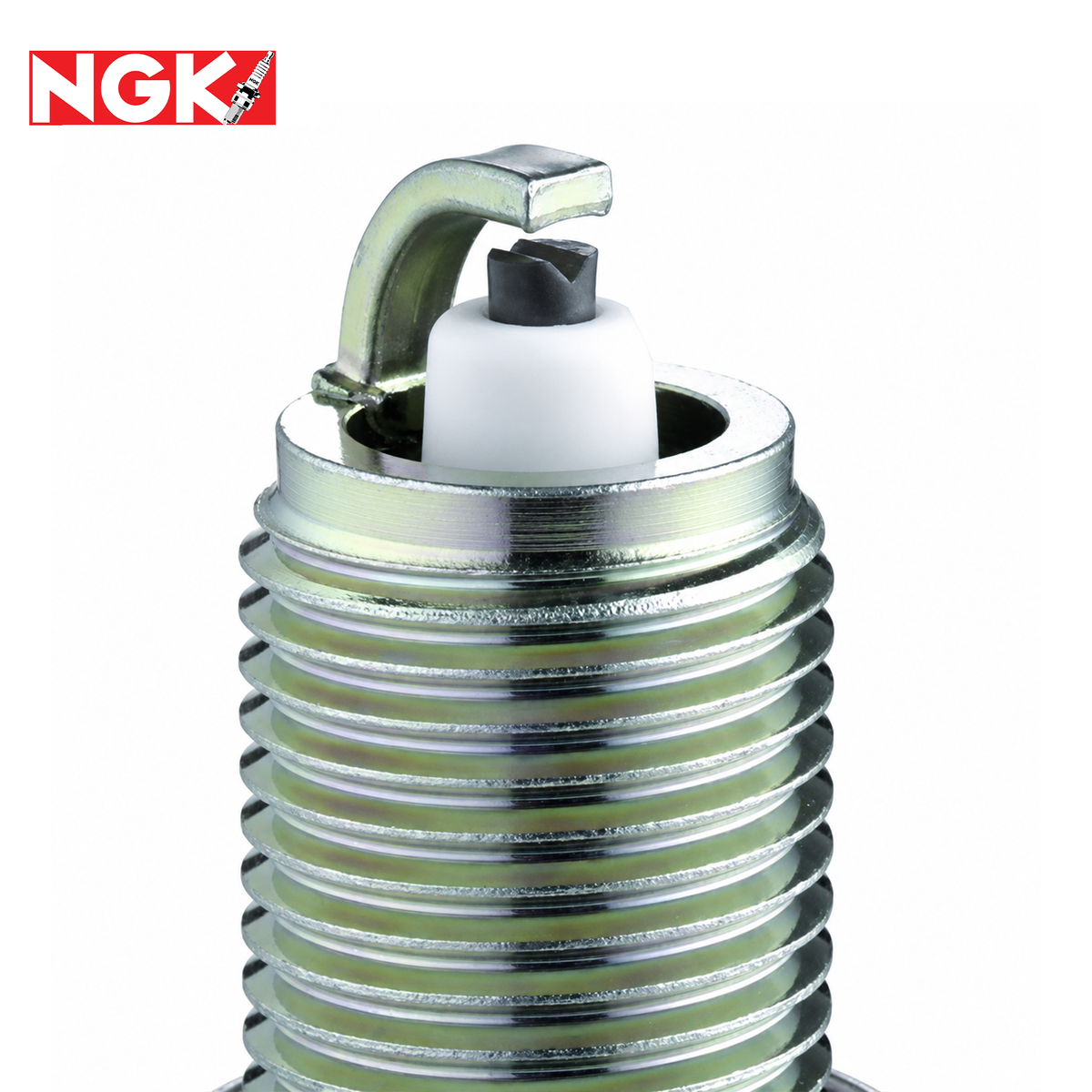

V-Power Nickel
Uses a nickel-alloy center electrode with NGK's V-groove design. It is the straightforward OE-style choice for routine maintenance, restoration work, and stock or lightly modified 4A-C engines.
Both configurations retain the same basic heat range, thread dimensions, reach, resistor construction, and specified spark-plug gap for the 4A-C application.
Vehicle Fitment
Toyota Corolla Sport SR5
-
1984–1987 Toyota Corolla Sport SR5 – AE86 – RWD – 1.6L 4A-C – Manual or Automatic Transmission
Fitment Notes
-
1.6L 4A-C SOHC engine applications
-
Rear-wheel drive AE86 application
-
Four spark plugs are required for a complete engine replacement
-
Specified spark-plug gap is 1.1 mm / 0.044 in.
-
Verify plug gap before installation
-
Does not apply to 4A-GE-powered Corolla Sport GT-S models
Product Specifications
Brand: NGK
Product Type: Spark Plug Set
Engine: 1.6L 4A-C SOHC
Engine Type: Carbureted Inline-4
Heat Range: 5
Thread Size: M14 x 1.25
Thread Reach: 19 mm / 0.750 in.
Seat Type: Gasket
Nominal Gap: 1.1 mm / 0.044 in.
Hex Size: 13/16 in. / approximately 20.8 mm
Resistor Type: Yes
Quantity: 4 Spark Plugs
Available Electrode Types: Nickel V-Power / Iridium IX
Available Configurations
V-Power Nickel
-
(4) NGK V-Power spark plugs
-
Nickel-alloy center electrode
-
V-groove electrode design
-
OE-style replacement configuration
Iridium IX
-
(4) NGK Iridium IX spark plugs
-
Fine-wire iridium center electrode
-
Increased electrode wear resistance
-
Premium ignition configuration
