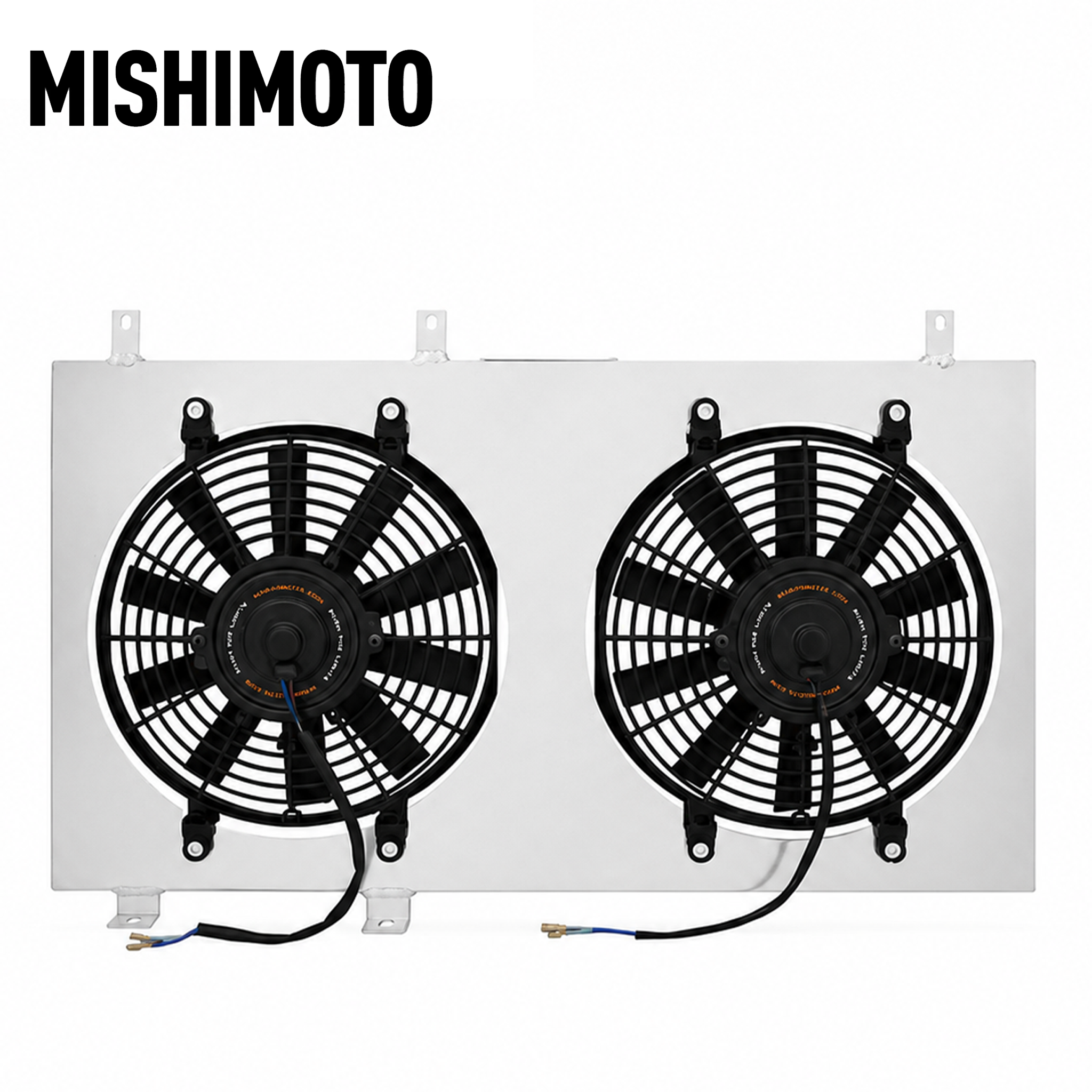

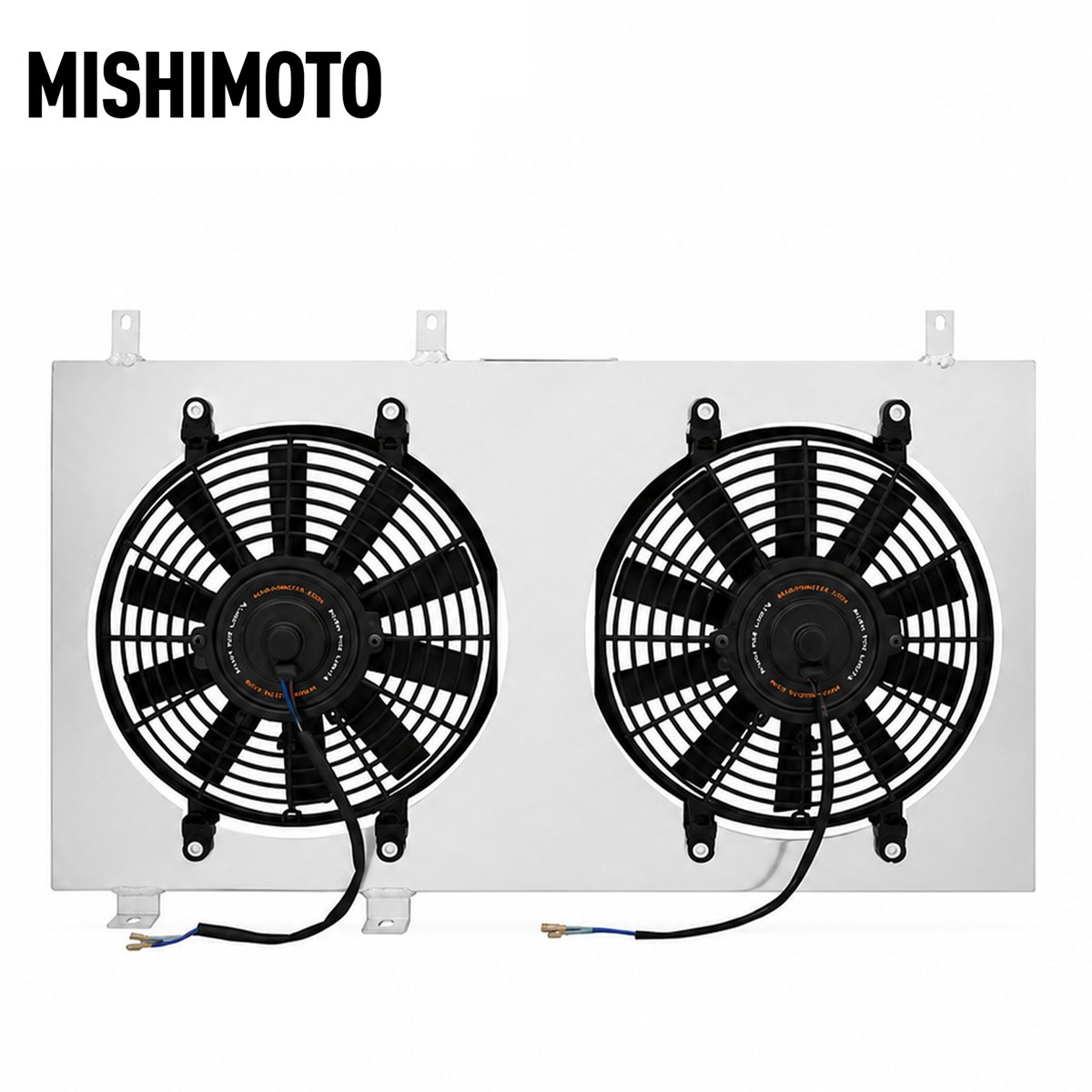

Mishimoto Performance Aluminum Fan Shroud Kit with Dual 12-Inch Fans
For 1983–1987 Toyota Corolla Levin / Sprinter Trueno AE86 & 1984–1987 Toyota Corolla Sport SR5 / 1985–1987 Toyota Corolla Sport GT-S
Overview
The Mishimoto Performance Aluminum Fan Shroud Kit is a vehicle-specific cooling upgrade for the Toyota Corolla AE86. It combines a polished aluminum fan shroud with two 12-inch slim electric fans to improve airflow through the radiator and provide a complete electric fan and shroud assembly.
Each electric fan is rated at 1,150 CFM, providing strong airflow while the fitted shroud helps direct air through the radiator core. The assembly works with both OEM and Mishimoto radiators, making it suitable for restored street cars, modified AE86 builds, and upgraded cooling systems.
The compact assembly measures approximately 22.83 inches long, 15.55 inches high, and 3.5 inches deep, helping maintain engine-bay clearance while providing a dual-fan cooling configuration.
Key Features
- Vehicle-specific aluminum fan shroud kit for the Toyota Corolla AE86
- Includes two 12-inch slim electric cooling fans
- Each fan is rated at 1,150 CFM
- Polished aluminum fan shroud construction
- Designed to maximize airflow through the radiator
- Compatible with OEM and Mishimoto radiators
- Compact 3.5-inch overall depth
- Supports 4A-C and 4A-GE-family AE86 engine applications
- Mishimoto Lifetime Warranty
Dual 12-Inch Electric Fan Cooling
The kit uses two 12-inch electric fans mounted directly to the aluminum shroud, creating a complete radiator airflow assembly. Each fan is rated at 1,150 CFM and draws approximately 7.6 amps while running, with a startup draw of approximately 12.7 amps per fan.
The aluminum shroud helps direct fan airflow through the radiator rather than allowing air to move around the core, supporting more effective use of the radiator's available surface area.
Vehicle Fitment
Toyota Corolla Levin
- 1983–1987 Toyota Corolla Levin – AE86Â
Toyota Sprinter Trueno
- 1983–1987 Toyota Sprinter Trueno – AE86Â
Toyota Corolla Sport SR5
- 1984–1987 Toyota Corolla Sport SR5 – AE86Â
Toyota Corolla Sport GT-S
- 1984–1987 Toyota Corolla Sport GT-S  – AE86
Fitment Notes
- AE86 chassis application
- Engine codes include 4A-GEC, 4A-GEU, 4A-C, and 4A-U
- Compatible with OEM Toyota and Mishimoto radiators
- Electric fans may require additional wiring depending on the vehicle's existing cooling-fan configuration
- Verify adequate wiring, relay, fuse, and fan-control configuration during installation
Product Specifications
Brand: Mishimoto
Product Type: Performance Aluminum Fan Shroud Kit
Vehicle Chassis: AE86
Fan Configuration: Dual Electric Fans
Fan Diameter: 12 in each
Airflow: 1,150 CFM per fan
Shroud Material: Aluminum
Finish: Polished Aluminum
Length: 22.83 in
Height: 15.55 in
Overall Depth: 3.5 in
Running Amp Draw: 7.6 A per fan
Startup Amp Draw: 12.7 A per fan
Engine Codes: 4A-GEC, 4A-GEU, 4A-C, 4A-U
Radiator Compatibility: OEM and Mishimoto Radiators
Warranty: Mishimoto Lifetime Warranty
What's Included
- (1) Aluminum fan shroud
- (2) 12-inch slim electric fans
