Longfield 30-Spline Gun-Drilled Birfield & Axle Super Set | 4WD Solid Axle (1984-95 4Runner / 1979-95 Pickup)

Longfield 30-Spline Gun-Drilled Birfield & Axle Super Set

For 1984–1995 Toyota 4Runner and 1979–1995 Toyota Pickup 4WD with Toyota-Style Solid Front Axle

Overview

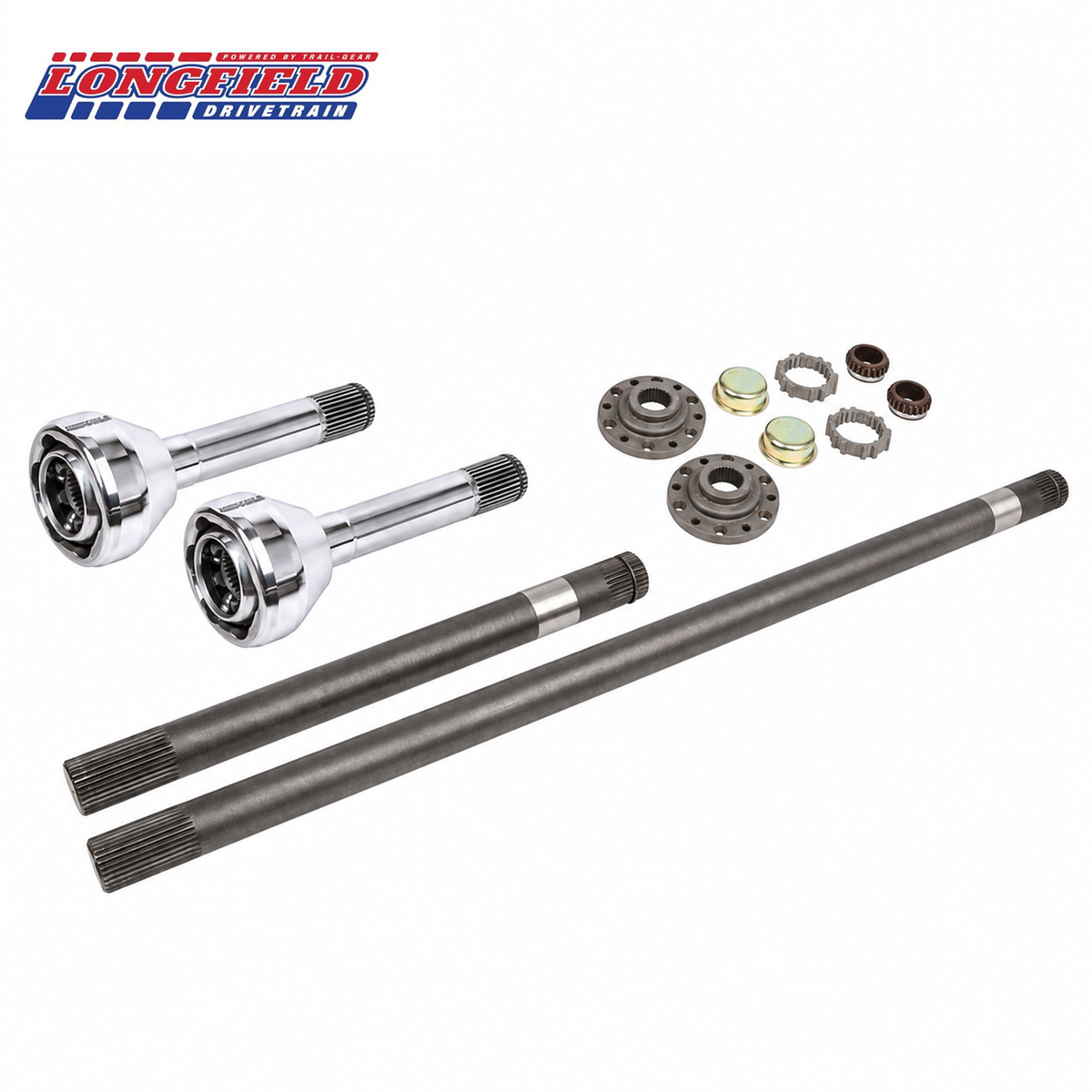

The Longfield 30-Spline Gun-Drilled Birfield & Axle Super Set is a comprehensive heavy-duty front axle upgrade for Toyota-style solid axle applications. The set combines 30-spline Longfield birfields, 4340 chromoly axle shafts, chromoly hub gears, and Creeper Drive Flanges in one upgraded package.

The birfields use forged 4340 chromoly housings with dual heat-treated 4340 chromoly internals. A gun-drilled grease passage provides direct lubrication access through an M8 fitting at the end of the stub shaft, while the Machined Spline Saver design reduces stress concentration near the splines.

The set fits factory solid-axle Toyota trucks through 1985 and can also be used on 1986–1995 Toyota 4Runner and Toyota Pickup 4WD solid axle conversions using a compatible Toyota-style solid front axle housing. Standard-width, +3-inch, and +5-inch configurations support factory-width and widened axle builds.

Key Features

• 30-spline Longfield birfields
• Forged 4340 chromoly birfield housings
• Dual heat-treated 4340 chromoly birfield internals
• 4340 chromoly axle shafts
• Precision-polished birfield construction
• Gun-drilled internal grease passage with M8 grease fitting
• Machined Spline Saver design reduces stress concentration near the stub-shaft splines
• Includes chromoly inner and outer hub gears
• Includes Creeper Drive Flanges
• Standard-width, +3-inch, and +5-inch configurations
• Lifetime warranty for the original purchaser

Gun-Drilled Birfield & Spline Saver Design

The gun-drilled design creates an internal grease passage through the birfield, allowing lubricant to reach the joint through the M8 fitting at the end of the stub shaft. This provides easier access for routine birfield lubrication without disassembling the axle solely to service the joint.

The Machined Spline Saver uses a shallow relief near the stub-shaft spline transition to reduce stress concentration in a high-load area of the birfield.

Vehicle Fitment

Toyota 4Runner — 1st Gen — 4WD

• 1984–1985: Factory solid front axle
• 1986–1989: Toyota-style solid axle conversion

Toyota 4Runner — 2nd Gen — 4WD

• 1990–1995: Toyota-style solid axle conversion

Toyota Pickup — 1st Gen — 4WD

• 1979–1983: Factory solid front axle

Toyota Pickup — 2nd Gen — 4WD

• 1984–1985: Factory solid front axle
• 1986–1988: Toyota-style solid axle conversion

Toyota Pickup — 3rd Gen — 4WD

• 1989–1995: Toyota-style solid axle conversion

Fitment Notes

• 4WD solid front axle applications only
• 1984–1985 4Runner / 1979–1985 Pickup applications use the factory Toyota solid front axle
• 1986–1995 applications require a Toyota-style solid axle conversion
• Fits compatible Toyota solid front axle housings
• Fits Trail-Gear Rock Assault front axle housings
• Does not fit factory Toyota IFS front suspension
• The IFS Hub Gears configuration refers only to the hub gear setup and does not indicate compatibility with a factory IFS front axle
• Select the axle width and hub gear configuration that matches the front axle housing being used
• Standard Width is intended for factory-width Toyota-style solid axle applications
• +3" and +5" configurations require corresponding widened solid axle setups

Product Specifications

Brand: Longfield
Product Type: Birfield & Axle Super Set
Position: Front
Axle Type: Toyota-Style Solid Front Axle
Birfield Spline Count: 30-Spline
Birfield Housing Material: Forged 4340 Chromoly Steel
Birfield Internal Material: 4340 Chromoly Steel
Heat Treatment: Dual Heat-Treated Birfield Internals
Axle Shaft Material: 4340 Chromoly Steel
Grease Fitting: M8 Zerk
Birfield Design: Gun-Drilled
Spline Design: Machined Spline Saver
Warranty: Lifetime Warranty for the Original Purchaser

Which Longfield Axle Package Should You Choose?

Gun-Drilled Birfield & Axle Super Set — Best for a More Complete Axle and Hub Upgrade

The Super Set combines dual heat-treated birfields, gun-drilled grease access, Machined Spline Savers, chromoly inner and outer hub gears, Creeper Drive Flanges, and a lifetime warranty for the original purchaser.

30-Spline Birfield & Axle Kit — Best for a Lower-Cost Birfield and Shaft Upgrade

The kit combines single heat-treated 30-spline birfields with 4340 chromoly axle shafts for builds that do not need the additional Super Set components or gun-drilled features.

Our Recommendation: Choose the Gun-Drilled Super Set when your build needs its hub components and lubrication features. Choose the Birfield & Axle Kit when you primarily need replacement birfields and shafts, selecting the axle width and hub configuration to match your solid-axle setup.

Available Configurations

Standard Width – Solid Axle Hub Gears

Includes:

• (2) Longfield 30-spline gun-drilled birfields
• (1) 15-7/16-inch short-side 4340 chromoly axle shaft
• (1) 31-7/16-inch long-side 4340 chromoly axle shaft
• (2) chromoly inner hub gears for the solid-axle hub configuration
• (2) chromoly outer hub gears
• (2) Creeper Drive Flanges with (2) caps

For standard-width Toyota-style solid front axles with solid-axle hubs.

Standard Width – IFS Hub Gears

Includes:

• (2) Longfield 30-spline gun-drilled birfields
• (1) 15-7/16-inch short-side 4340 chromoly axle shaft
• (1) 31-7/16-inch long-side 4340 chromoly axle shaft
• (2) chromoly inner hub gears for the IFS hub configuration
• (2) chromoly outer hub gears
• (2) Creeper Drive Flanges with (2) caps

For standard-width Toyota-style solid front axles with IFS hubs.

+3" Width – Solid Axle Hub Gears

Includes:

• (2) Longfield 30-spline gun-drilled birfields
• (1) 18-7/16-inch short-side 4340 chromoly axle shaft
• (1) 31-7/16-inch long-side 4340 chromoly axle shaft
• (2) chromoly inner hub gears for the solid-axle hub configuration
• (2) chromoly outer hub gears
• (2) Creeper Drive Flanges with (2) caps

For +3-inch-width Toyota-style solid front axles with solid-axle hubs.

+5" Width – Solid Axle Hub Gears

Includes:

• (2) Longfield 30-spline gun-drilled birfields
• (1) 19-7/16-inch short-side 4340 chromoly axle shaft
• (1) 32-7/16-inch long-side 4340 chromoly axle shaft
• (2) chromoly inner hub gears for the solid-axle hub configuration
• (2) chromoly outer hub gears
• (2) Creeper Drive Flanges with (2) caps

For +5-inch-width Toyota-style solid front axles with solid-axle hubs.
