AE86 FUJITSUBO Legalis R Cat-Back Exhaust (1983-87 Corolla)

FUJITSUBO Legalis R Cat-Back Exhaust System

For 1983–1987 Toyota Corolla AE86 Trueno / Levin, 1985–1987 U.S.-Market Corolla Sport AE86 (GT-S), and 1984–1987 U.S.-Market Corolla Sport AE86 (SR5)

Overview

The FUJITSUBO Legalis R Cat-Back Exhaust System offers three exhaust configurations for the Toyota AE86, covering JDM Trueno and Levin plus U.S.-market GT-S and SR5 applications. SR5 4A-C fitment requires a GT-S-style catalytic converter or GT-S-length test pipe because the factory SR5 upstream section is shorter than the GT-S-style section.

All three systems use a 50.8 mm main pipe while offering different outlet designs and sound levels. The S-Tail uses a single 70 mm slash-cut outlet. The standard W-Tail uses dual 60.5 mm outlets and provides the most restrained sound profile of the three. The W-Tail Powerful Sound retains the dual-tip design while substantially increasing exhaust volume and presence.

This gives AE86 owners a choice between a traditional single-exit appearance, the classic FUJITSUBO twin-tip design, or a considerably more aggressive exhaust note.

Key Features

• Fits AE86 Trueno, Levin, GT-S, and SR5 applications
• Supports 4A-GE and 4A-C engine configurations; SR5 4A-C models require the GT-S-length upstream section
• Fits both right-hand-drive JDM and left-hand-drive U.S.-market applications
• 50.8 mm main pipe diameter across all three configurations
• S-Tail: single 70 mm slash-cut outlet
• W-Tail: dual 60.5 mm outlets
• Choice of standard or powerful W-Tail sound profiles
• Mid-to-rear cat-back exhaust design
• Three distinct configurations available from one listing

Sound & Configuration Comparison

The published sound measurements are based on a 4A-GE AE86 reference configuration. Exhaust volume and tone can vary with the engine, header, catalytic-converter configuration, upstream exhaust components, engine condition, and other modifications. 4A-C SR5 models should not be expected to reproduce the 4A-GE sound measurements exactly.

Vehicle Fitment

Toyota Corolla AE86

• 1983–1987 Trueno (JDM) — 4A-GE / 4A-GEU
• 1983–1987 Levin (JDM) — 4A-GE / 4A-GEU
• 1985–1987 GT-S (U.S.-Market) — 4A-GE, manual transmission
• 1984–1987 SR5 (U.S.-Market) — 4A-C; requires a GT-S-style catalytic converter or GT-S-length test pipe

Fitment Notes

• SR5 4A-C fitment requires a GT-S-style catalytic converter or GT-S-length test pipe.
• The factory SR5 catalytic converter and SR5-length test-pipe section are shorter than the GT-S-style section, so the stock-length SR5 upstream section does not reach the exhaust inlet correctly.
• The required GT-S-style catalytic converter or test pipe is not included with the exhaust.
• The SR5 upstream requirement applies to all three Legalis R configurations.
• U.S.-market rear bumper applications can have reduced clearance at the factory rear tow-hook area.

Product Specifications

Brand: FUJITSUBO
Series: Legalis R
Product Type: Cat-Back Exhaust System
Main Pipe Diameter: 50.8 mm
S-Tail Outlet: Single 70 mm slash-cut
W-Tail Outlet: Dual 60.5 mm
Vehicle Platform: Toyota AE86
Engines: 4A-GE / 4A-C
Drivetrain: RWD
Steering Applications: RHD / LHD
Installation Position: Mid-to-rear

Available Configurations

S-Tail / Single Tip

• Legalis R exhaust system with a single 70 mm slash-cut outlet
• 87 dB proximity exhaust noise at 4,950 rpm on the 4A-GE reference configuration
• Traditional single-exit appearance

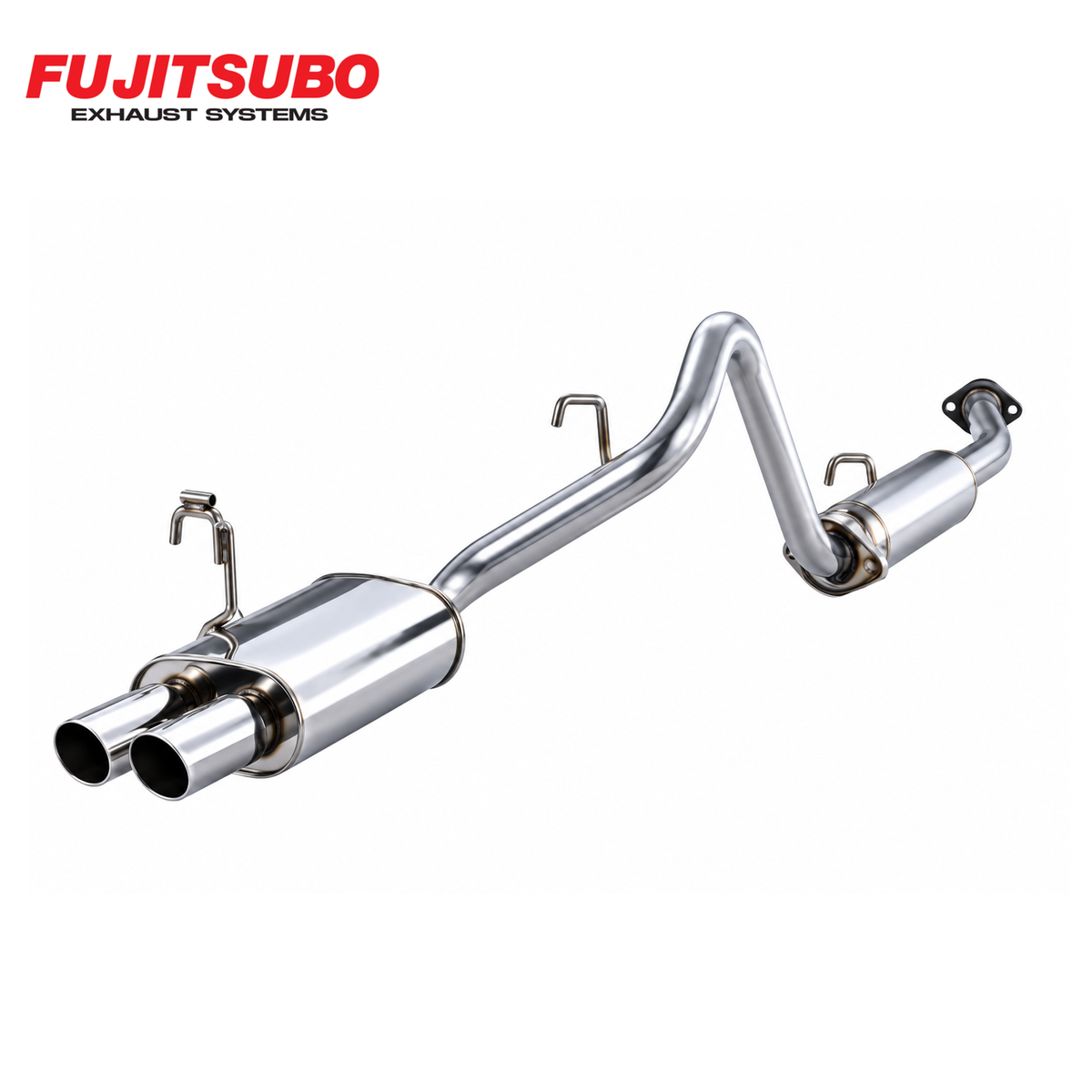

W-Tail / Standard Sound / Dual Tip

• Legalis R exhaust system with dual 60.5 mm outlets
• 88 dB proximity exhaust noise at 4,950 rpm on the 4A-GE reference configuration
• Most restrained sound profile of the three configurations

W-Tail / Powerful Sound / Dual Tip

• Legalis R exhaust system with dual 60.5 mm outlets
• 100 dB proximity exhaust noise at 4,950 rpm on the 4A-GE reference configuration
• Significantly more aggressive sound than the standard W-Tail
