Four Seasons

AW11 Four Seasons Serpentine A/C Evaporator Core (1985-89 MR2)

SKU: 1417
$89.95
Configuration
Fitment support available
Estimate shipping before checkout

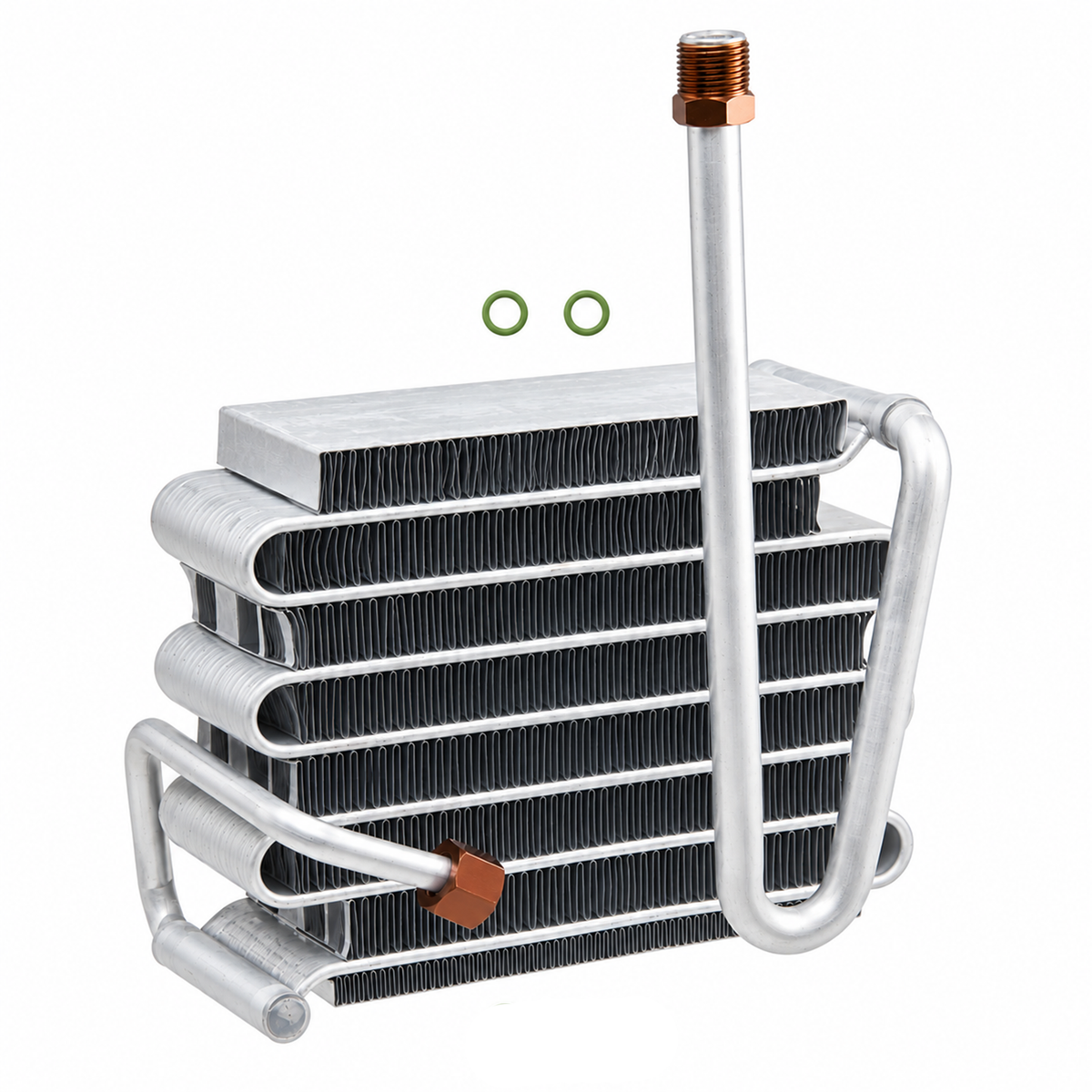

Four Seasons Serpentine A/C Evaporator Core

For 1985–1989 U.S.-Market Toyota MR2 AW11

Overview

This Four Seasons replacement evaporator is the cabin-side heat exchanger for the MR2’s air-conditioning system. Its aluminum serpentine core absorbs heat from cabin airflow as refrigerant passes through it.

The core has attached inlet and outlet tubing for the original cooler assembly. Both purchase options use the same core; the seal-kit option adds the two small liquid-line O-rings needed alongside the core’s supplied seals.

Key Features

  • Serpentine construction with aluminum fins and tubing.
  • Attached inlet and outlet tubes with O-ring connections.
  • HNBR sealing rings supplied for the core connections.
  • Core or core-and-seal kit purchase options with the same vehicle coverage.

Vehicle Fitment

Toyota MR2 (AW11 / MK1)

  • 1985–1989 U.S.-Market — 4A-GE naturally aspirated.
  • 1988–1989 U.S.-Market Supercharged — 4A-GZE.

Fitment Notes

  • Fits manual and automatic transmissions.
  • For the original MR2 A/C housing and line connections. Aftermarket universal A/C housings and altered refrigerant connections require separate fitment assessment.
  • Evaporator Core requires two additional small liquid-line O-rings, not included in that option. Evaporator Core + Liquid-Line Seals includes both.

Product Specifications

  • Brand: Four Seasons
  • Component: A/C evaporator core with attached tubing
  • Core dimensions: 9.500 in wide × 7.250 in high × 3.125 in deep

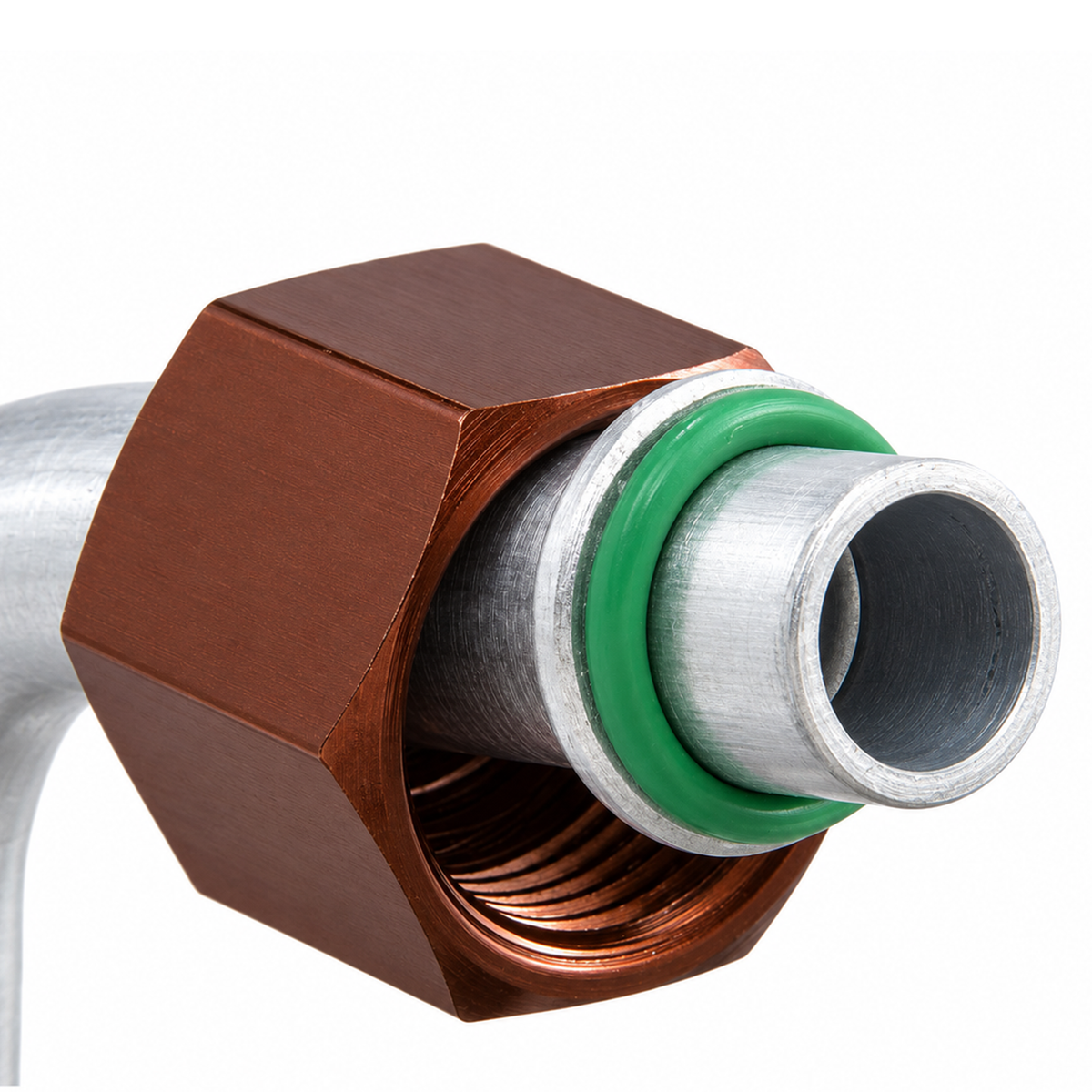

  • Inlet: Female O-ring, No. 8, 3/4–16 thread
  • Outlet: Male insert O-ring, No. 10, 7/8–14 thread
  • Core warranty: 120 days

Available Configurations

Evaporator Core

Includes:

  • (1) Four Seasons evaporator core with attached tubing
  • (1) No. 8 core-connection O-ring
  • (1) No. 10 core-connection O-ring

Evaporator Core + Liquid-Line Seals

Includes:

  • (1) Four Seasons evaporator core with attached tubing
  • (1) No. 8 core-connection O-ring
  • (1) No. 10 core-connection O-ring
  • (2) No. 5 Toyota liquid-line O-rings

Important: Cooler housing, expansion valve, thermistor, liquid pipe, pressure switch, foam insulation and case hardware are not included.
