Fel-Pro Exhaust Manifold Gasket | Toyota 4A-GE / 4A-GZE 16V Applications

Fel-Pro Exhaust Manifold Gasket

For 1985–1987 U.S.-Market Corolla Sport AE86 (GT-S), 1985–1989 U.S.-Market Toyota MR2 AW11, 1987–1988 U.S.-Market Toyota Corolla AE82 FX16, and 1988–1991 U.S.-Market Toyota Corolla AE92 GT-S

Overview

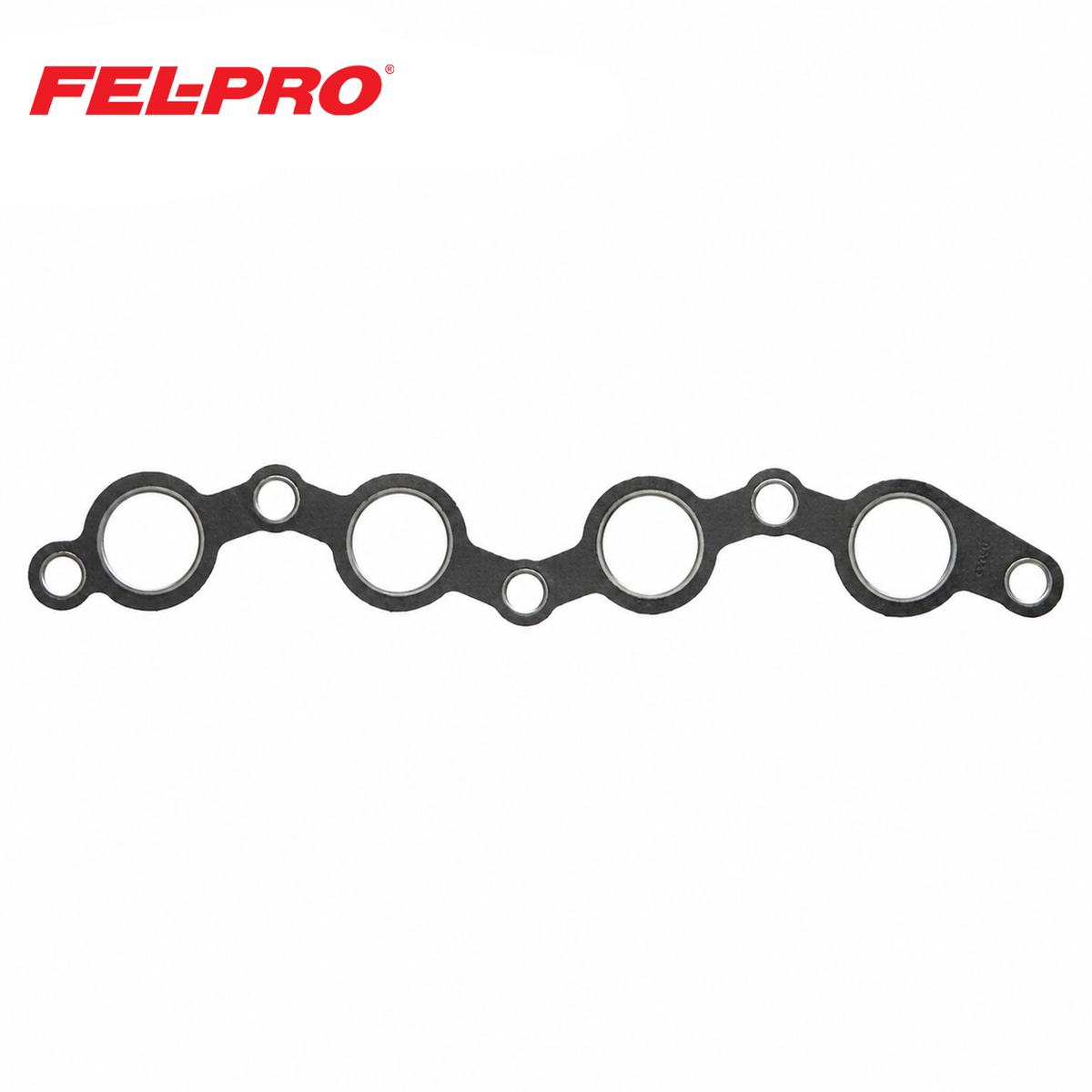

This Fel-Pro gasket seals the cylinder-head-to-exhaust-manifold joint on Toyota’s 16-valve 4A-GE and 4A-GZE engines.

It is a standalone manifold gasket for the U.S.-market applications below. The MR2 naturally aspirated and Supercharged models use the same gasket at this joint.

Key Features

• Composite construction for exhaust-manifold sealing
• One-piece, four-port layout matching the 16-valve cylinder-head interface
• Five fastening openings matching the manifold attachment pattern
• Direct replacement for the original manifold-to-head gasket in the stated applications

Vehicle Fitment

Toyota Corolla AE86

• 1985–1987 GT-S (U.S.-Market) — 4A-GE 16V

Toyota MR2 (AW11 / MK1)

• 1985–1989 U.S.-Market — Naturally Aspirated, 4A-GE 16V
• 1988–1989 U.S.-Market Supercharged — 4A-GZE 16V

Toyota Corolla AE82

• 1987–1988 Toyota Corolla FX16 / FX16 GT-S – 5th Gen / AE82 (U.S.-Market) — 4A-GE 16V

Toyota Corolla AE92

• 1988–1991 Toyota Corolla AE92 GT-S Coupe (U.S.-Market) — 4A-GE 16V

Fitment Notes

• Does not fit 4A-C, 4A-LC, 4A-F, 4A-FE or 20-valve 4A-GE engines.
• Custom headers and engine swaps require separate head/manifold interface confirmation. Factory chassis fitment alone does not establish suitability for modified exhaust components.
• For AW11 front-pipe service involving both downstream joints, the separate consumables are two manifold-to-front-pipe seal rings, three front-pipe mounting nuts and one front-pipe-to-catalyst gasket. The catalyst gasket differs between naturally aspirated and Supercharged configurations.

Product Specifications

• Brand: Fel-Pro
• Component: Exhaust manifold gasket
• Material: Composite
• Sealing interface: Cylinder head to exhaust manifold
• Quantity required per engine: 1

What's Included

• (1) Exhaust manifold gasket

Not included: Exhaust manifold, fasteners, front-pipe seal rings or catalyst gaskets.
