EXEDY Stage 1 Organic Clutch Kit | 4A-GZE, 225 mm (1988-89 MR2 / 1987-90 Corolla)

EXEDY Stage 1 Organic Clutch Kit

For 1988–1989 Toyota MR2 AW11 and 1987–1990 Toyota Corolla AE92 coupe equipped with 4A-GZE engines, manual transmissions and the original 224/225 mm clutch system.

Overview

This EXEDY Stage 1 kit pairs a spring-damped organic clutch disc with a performance pressure plate for street-focused use in the 1988–1989 U.S.-Market Toyota MR2 AW11 Supercharged and 05/1987–10/1990 production JDM Toyota Corolla AE92 coupe 4A-GZE with the original 224/225 mm system. The organic design keeps engagement suited to everyday driving, with firmer pedal effort than a standard replacement clutch.

It retains the 225 mm supercharged clutch format and 21-tooth / 29.8 mm input-spline interface. The kit works with the matching original-equipment supercharged flywheel; a flywheel conversion is not part of this package.

Key Features

• Heat-tolerant organic friction facing for sports and street-performance use.
• Upgraded spring-damping assembly built for sports-clutch use.
• Full-face disc supports controllable partial engagement in everyday driving.
• Performance clutch cover pairs with the disc as a matched assembly.
• Release bearing and alignment tool included with the clutch components.

Vehicle Fitment

Toyota MR2 — AW11 / MK1

• 1988–1989: Supercharged / U.S.-Market / 4A-GZE / E51 five-speed manual / Original 225 mm clutch and release arrangement

Toyota Corolla Levin / Sprinter Trueno — AE92 Coupe

• 05/1987–10/1990 production: JDM / Supercharged 4A-GZE / Manual / Original early 224/225 mm clutch, matching flywheel and release arrangement only

October 1990 is a changeover period: actual original equipment controls fitment. The later 230 mm clutch/flywheel system is not covered, including transition-month cars fitted with that system.

Fitment Notes

• Does not fit factory naturally aspirated 4A-GE, automatic-transmission or later 230 mm AE92 clutch/flywheel configurations.
• The supplied pilot bearing is a kit accessory; these MR2 and AE92 transaxle applications do not use a pilot bearing.
• Requires the matching supercharged flywheel and release arrangement. Engine swaps alone do not establish fitment; mixed transaxle, flywheel or release-system combinations fall outside the factory application.

Product Specifications

Brand: EXEDY
Series: Stage 1
Clutch Design: Single-plate, organic, spring-damped
Disc Diameter: 225 mm
Input Splines: 21
Major Spline Diameter: 29.8 mm
Manufacturer Warranty: 60 days from purchase against manufacturing defects

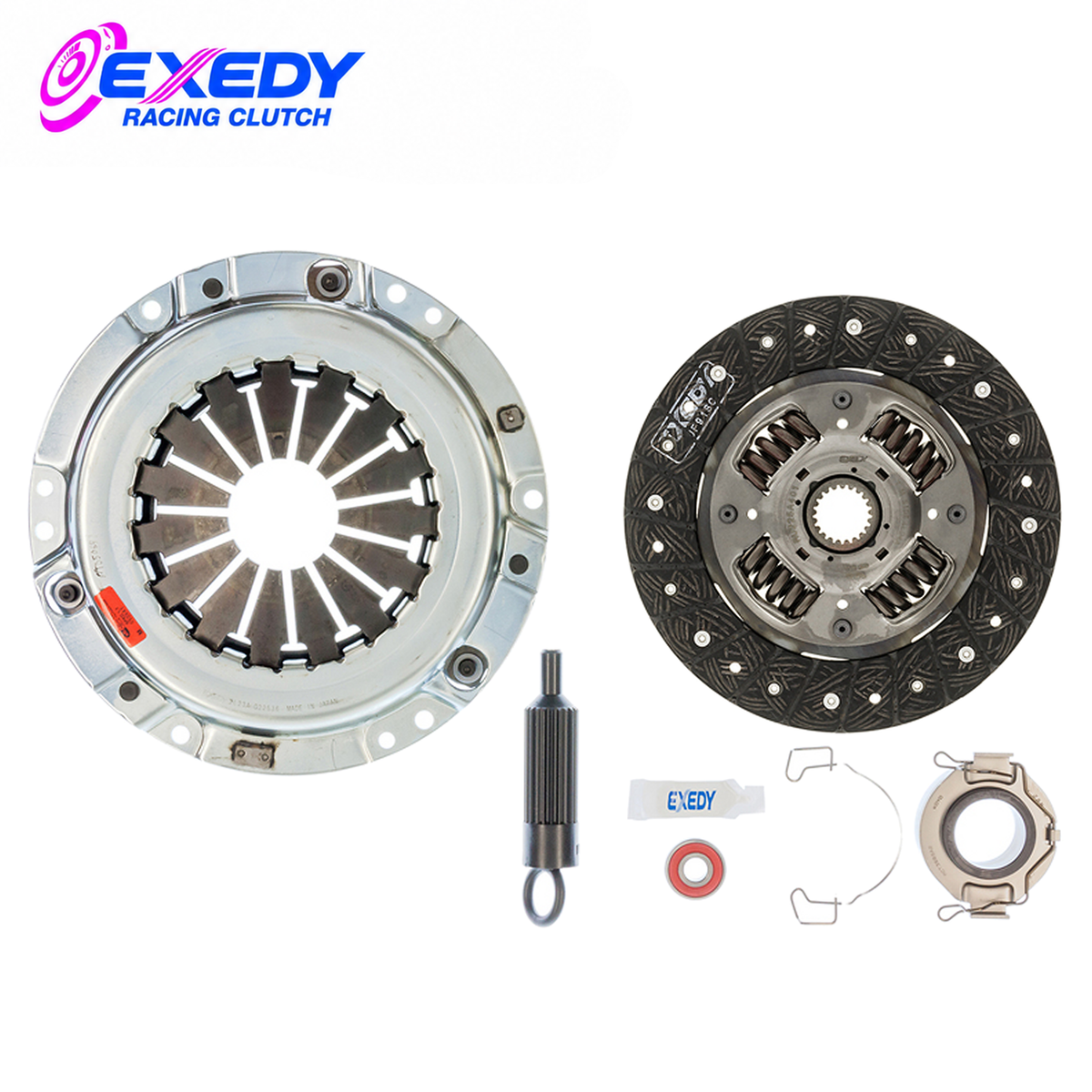

What's Included

• (1) Organic clutch disc
• (1) Clutch cover / pressure plate assembly
• (1) Release bearing
• (1) Pilot bearing
• (1) Alignment tool
• (1) Grease packet
• (1) Wire retaining clip

Flywheel not included.
