EXEDY OE Clutch Kit | Manual (1984-88 Pickup)

EXEDY OE Replacement Clutch Kit

For 1984–1988 2nd Gen Toyota Pickup with Manual Transmission

Overview

The EXEDY OE Replacement Clutch Kit provides factory-style clutch replacement options for 1984–1988 2nd Gen Toyota Pickup manual-transmission models. Configurations cover the naturally aspirated 2.4L 22R / 22RE, turbocharged 2.4L 22R-TE, and 3.0L 3VZ-E V6.

Toyota used more than one clutch configuration during this generation. Naturally aspirated four-cylinder trucks use a 225 mm clutch, while the 22R-TE Turbo and 3VZ-E V6 applications use a larger 236 mm clutch.

The turbo application also has an important May 1987 / June 1987 production-date change, so 22R-TE owners must select the correct configuration based on the truck's production date.

Key Features

• OE-style replacement clutch for 1984–1988 2nd Gen Toyota Pickup
• Available for 22R, 22RE, 22R-TE, and 3VZ-E
• 225 mm naturally aspirated four-cylinder configuration
• 236 mm Turbo and V6 configurations
• Dedicated production-date split for 22R-TE trucks
• Designed for manual transmissions
• Factory-style engagement and drivability
• Vehicle-specific replacement configurations
• Suitable for stock and near-stock engine output

Choosing the Correct Clutch

The 22R / 22RE Non-Turbo application uses the 225 mm clutch throughout the 1984–1988 generation.

Turbo trucks require additional attention. 22R-TE models produced through May 1987 use the early 236 mm configuration, while trucks produced from June 1987 through 1988 use the later 236 mm configuration.

The 1988 3.0L 3VZ-E V6 also uses a 236 mm clutch but requires its own V6-specific clutch assembly.

Vehicle Fitment

Toyota Pickup

• 1984–1988 Toyota Pickup – 2nd Gen – 2.4L 22R / 22RE Non-Turbo – Manual Transmission
• 1985–05/1987 Toyota Pickup – 2nd Gen – 2.4L 22R-TE Turbo – Manual Transmission
• 06/1987–1988 Toyota Pickup – 2nd Gen – 2.4L 22R-TE Turbo – Manual Transmission
• 1988 Toyota Pickup – 2nd Gen – 3.0L 3VZ-E V6 – Manual Transmission

Fitment Notes

• Manual transmission only
• Naturally aspirated 22R / 22RE uses a 225 mm clutch
• 22R-TE Turbo uses a 236 mm clutch
• 3VZ-E V6 uses a 236 mm clutch
• 22R-TE Turbo applications have a production-date split at 05/1987 / 06/1987
• Check the vehicle production date before ordering a 1987 Turbo clutch
• The two 236 mm Turbo configurations are not interchangeable solely because they share the same nominal disc diameter
• Select the application by year, engine, and production date

Product Specifications

Brand: EXEDY
Series: OE Replacement
Product Type: Clutch Kit
Vehicle Generation: 2nd Gen Toyota Pickup
Transmission: Manual
Engines: 2.4L 22R / 22RE / 22R-TE, 3.0L 3VZ-E
Disc Diameter: 225 mm or 236 mm depending on application
Recommended Use: Stock / Near-Stock Power
Fit Type: Vehicle Specific

Available Configurations

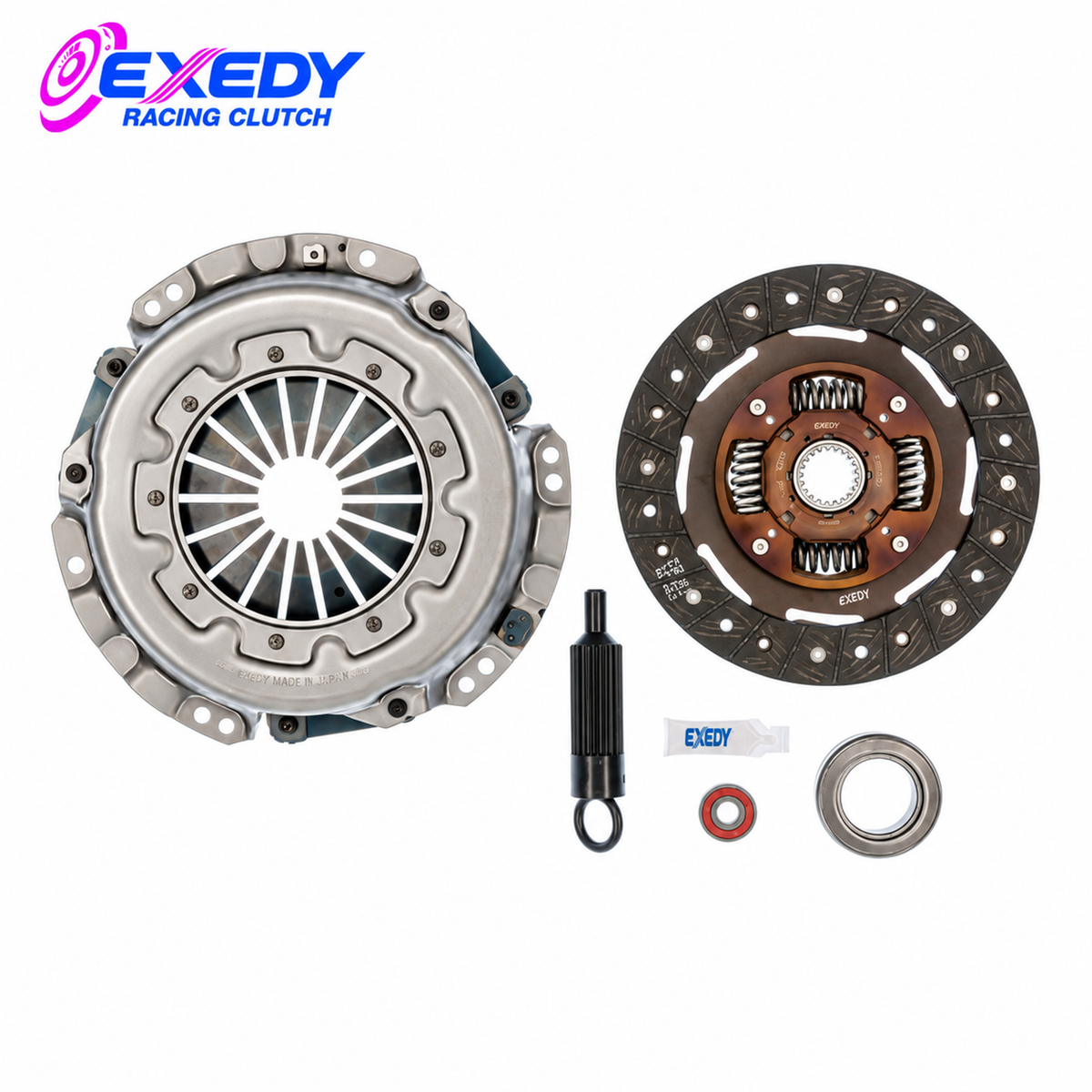

1984–1988 – 2.4L 22R / 22RE – Non-Turbo

• 225 mm clutch
• Manual transmission

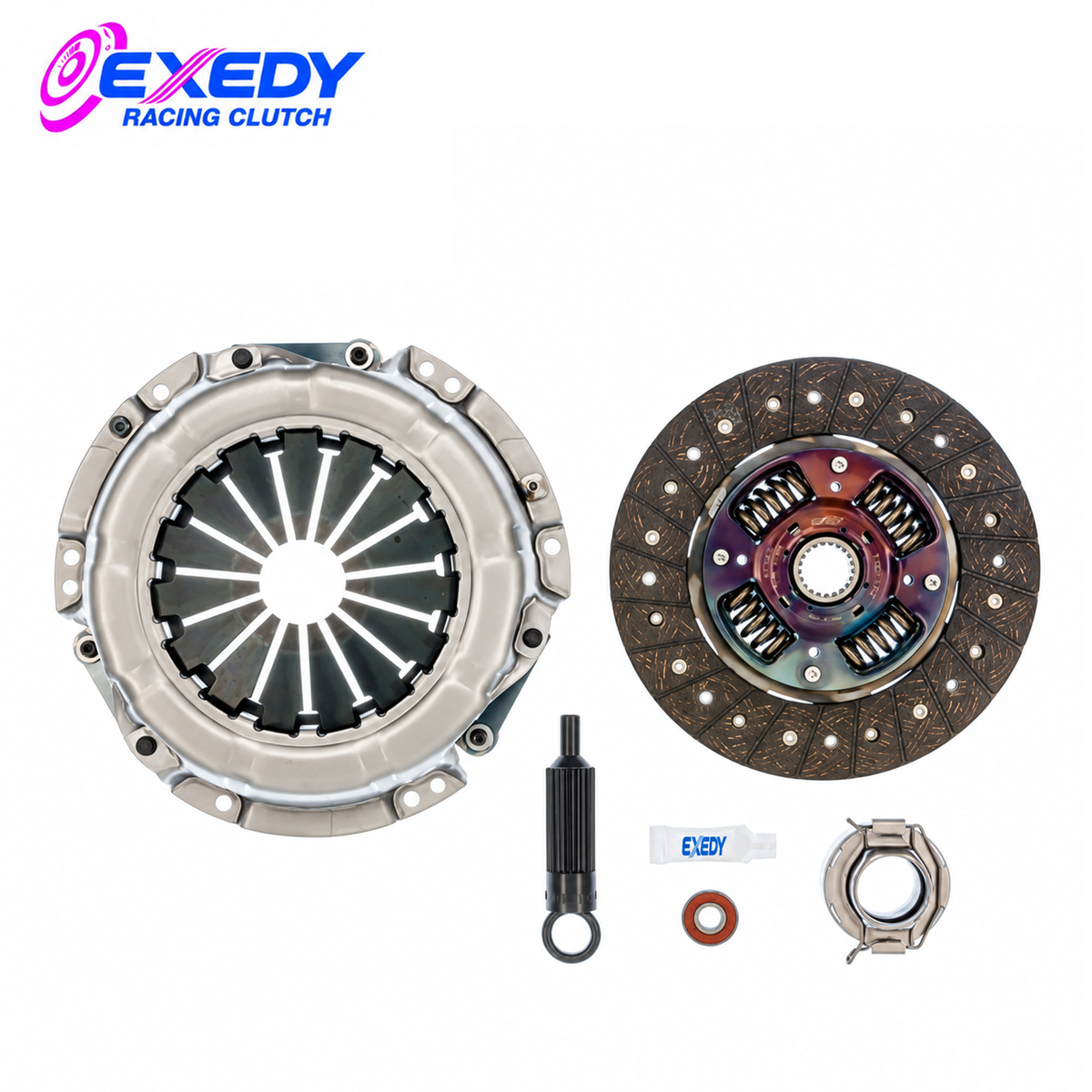

1985–05/1987 – 2.4L 22R-TE Turbo

• 236 mm clutch
• Early Turbo configuration

06/1987–1988 – 2.4L 22R-TE Turbo

• 236 mm clutch
• Late Turbo configuration

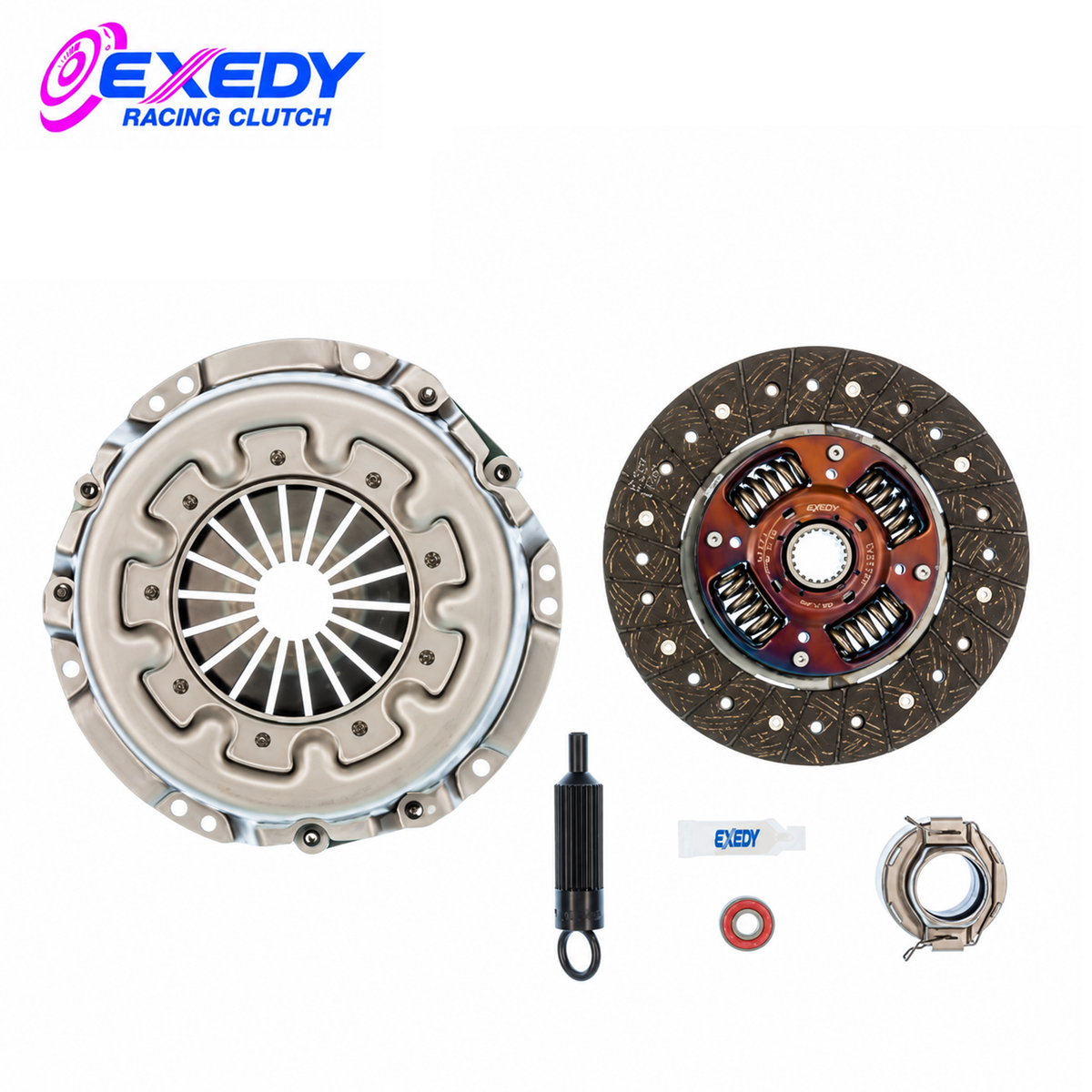

1988 – 3.0L 3VZ-E V6

• 236 mm clutch
• Manual transmission
