EXEDY OE Replacement Clutch Kit
For 1984–1988 2nd Gen Toyota Pickup with Manual Transmission
Overview
The EXEDY OE Replacement Clutch Kit provides factory-style clutch replacement options for 1984–1988 2nd Gen Toyota Pickup manual-transmission models. Configurations cover the naturally aspirated 2.4L 22R / 22RE, turbocharged 2.4L 22R-TE, and 3.0L 3VZ-E V6.
Toyota used more than one clutch configuration during this generation. Naturally aspirated four-cylinder trucks use a 225 mm clutch, while the 22R-TE Turbo and 3VZ-E V6 applications use a larger 236 mm clutch.
The turbo application also has an important May 1987 / June 1987 production-date change, so 22R-TE owners must select the correct configuration based on the truck's production date.
Key Features
- OE-style replacement clutch for 1984–1988 2nd Gen Toyota Pickup
- Available for 22R, 22RE, 22R-TE, and 3VZ-E
- 225 mm naturally aspirated four-cylinder configuration
- 236 mm Turbo and V6 configurations
- Dedicated production-date split for 22R-TE trucks
- Designed for manual transmissions
- Factory-style engagement and drivability
- Vehicle-specific replacement configurations
- Suitable for stock and near-stock engine output
Choosing the Correct Clutch
The 22R / 22RE Non-Turbo application uses the 225 mm clutch throughout the 1984–1988 generation.
Turbo trucks require additional attention. 22R-TE models produced through May 1987 use the early 236 mm configuration, while trucks produced from June 1987 through 1988 use the later 236 mm configuration.
The 1988 3.0L 3VZ-E V6 also uses a 236 mm clutch but requires its own V6-specific clutch assembly.
Vehicle Fitment
Toyota Pickup
- 1984–1988 Toyota Pickup – 2nd Gen – 2.4L 22R / 22RE Non-Turbo – Manual Transmission
- 1985–05/1987 Toyota Pickup – 2nd Gen – 2.4L 22R-TE Turbo – Manual Transmission
- 06/1987–1988 Toyota Pickup – 2nd Gen – 2.4L 22R-TE Turbo – Manual Transmission
- 1988 Toyota Pickup – 2nd Gen – 3.0L 3VZ-E V6 – Manual Transmission
Fitment Notes
- Manual transmission only
- Naturally aspirated 22R / 22RE uses a 225 mm clutch
- 22R-TE Turbo uses a 236 mm clutch
- 3VZ-E V6 uses a 236 mm clutch
- 22R-TE Turbo applications have a production-date split at 05/1987 / 06/1987
- Check the vehicle production date before ordering a 1987 Turbo clutch
- The two 236 mm Turbo configurations are not interchangeable solely because they share the same nominal disc diameter
- Select the application by year, engine, and production date
Product Specifications
Brand: EXEDY
Series: OE Replacement
Product Type: Clutch Kit
Vehicle Generation: 2nd Gen Toyota Pickup
Transmission: Manual
Engines: 2.4L 22R / 22RE / 22R-TE, 3.0L 3VZ-E
Disc Diameter: 225 mm or 236 mm depending on application
Recommended Use: Stock / Near-Stock Power
Fit Type: Vehicle Specific
Available Configurations
1984–1988 – 2.4L 22R / 22RE – Non-Turbo
- 225 mm clutch
- Manual transmission
1985–05/1987 – 2.4L 22R-TE Turbo
- 236 mm clutch
- Early Turbo configuration
06/1987–1988 – 2.4L 22R-TE Turbo
- 236 mm clutch
- Late Turbo configuration

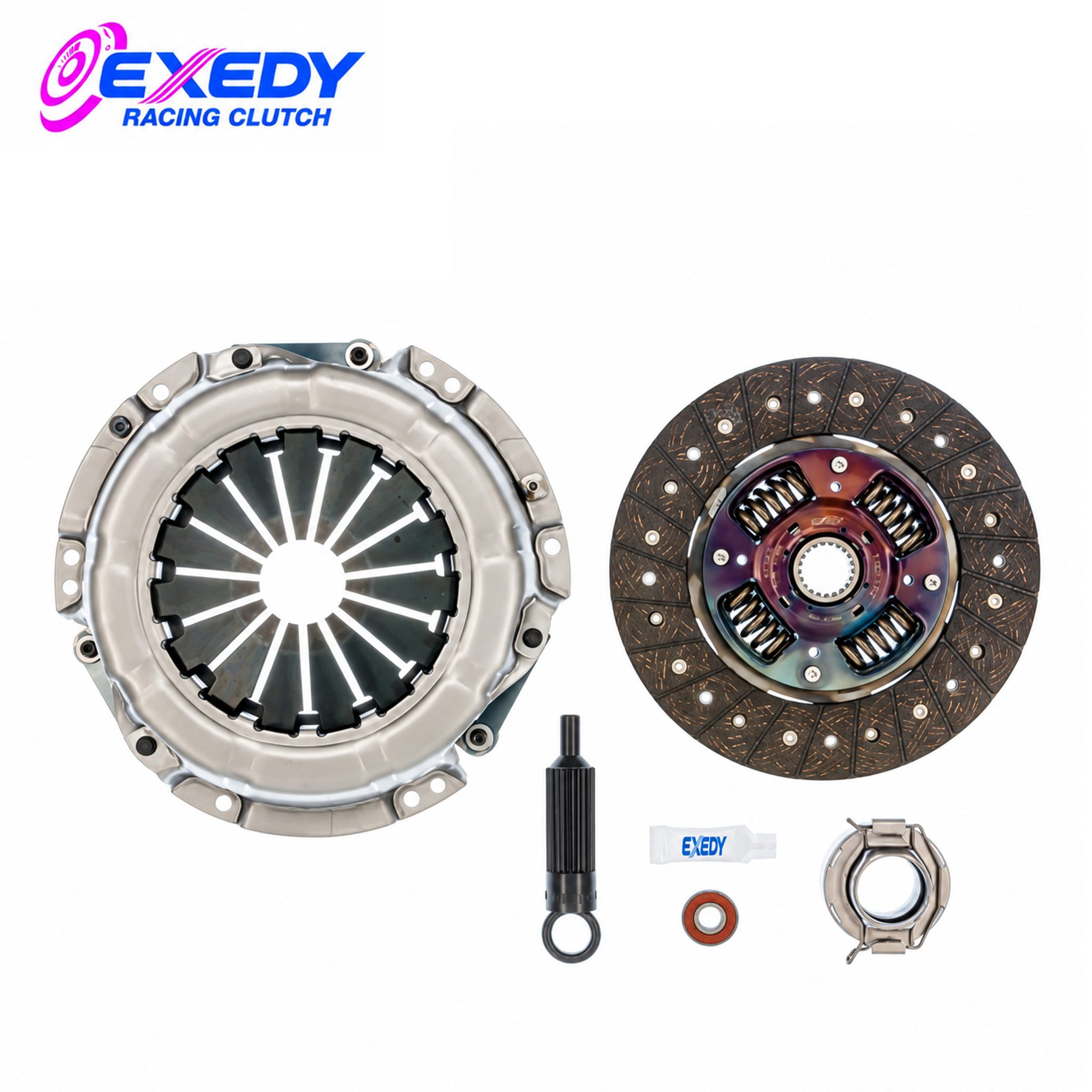

1988 – 3.0L 3VZ-E V6
- 236 mm clutch
- Manual transmission
