Rear Brake Wheel Cylinder | 2WD (1990-95 4Runner)

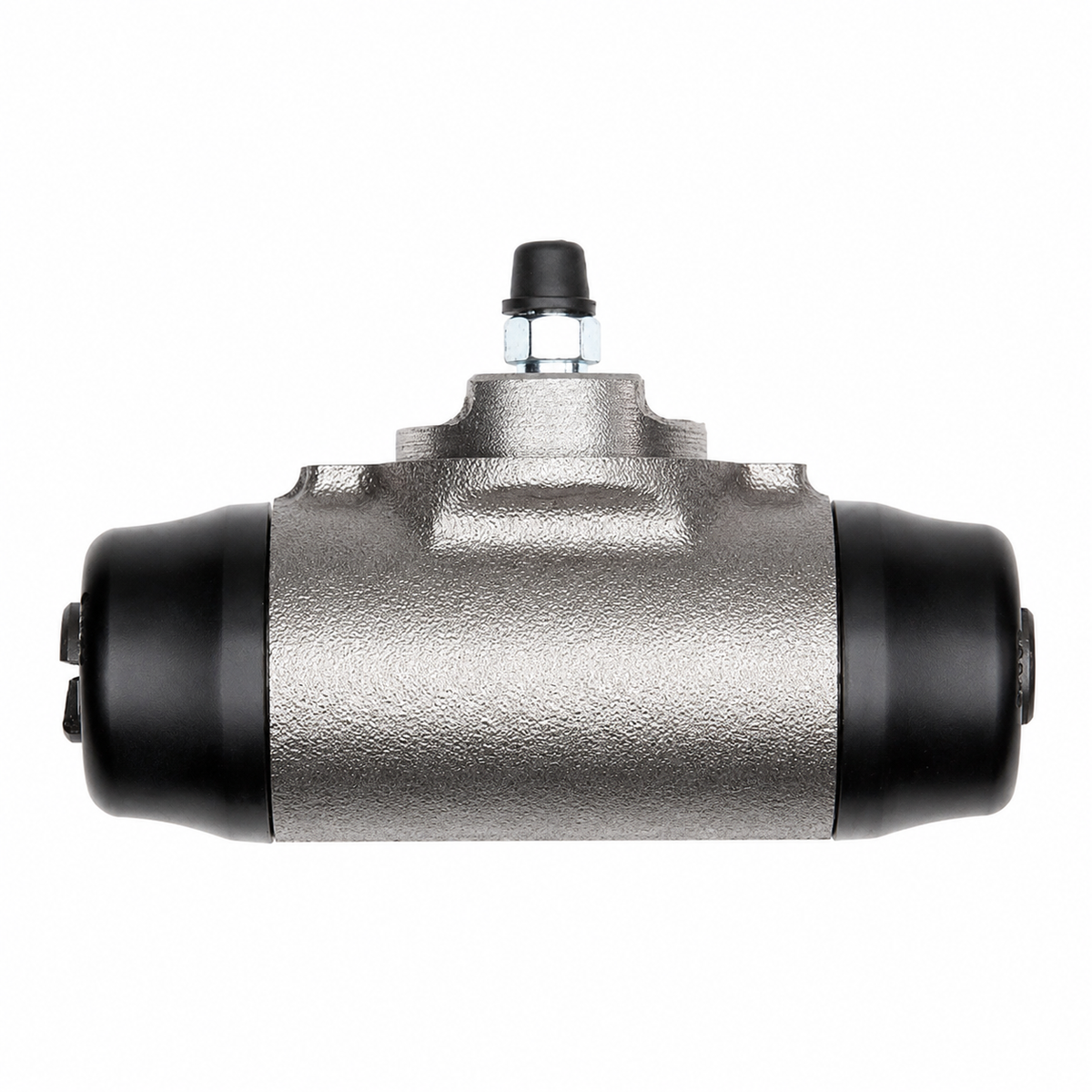

Rear Brake Wheel Cylinder

For 1990–1995 Toyota 4Runner 2WD rear drum brake applications with 22RE or 3VZ-E engines

Overview

The DFC OE Replacement Rear Brake Wheel Cylinder is an OE-style hydraulic replacement for the rear drum brake system used on 1990–1995 2nd Gen Toyota 4Runner 2WD models equipped with either the 22RE or 3VZ-E engine.

Toyota changed the rear wheel-cylinder configuration during the 1991 production year. Vehicles produced through May 1991 use the early 22.23 mm / 7/8-inch bore configuration, while vehicles produced from June 1991 through 1995 use the later 23.83 mm / approximately 15/16-inch bore configuration.

Production date—not engine—determines the correct wheel cylinder. Both 22RE and 3VZ-E 2WD 4Runners use the same early/late production-date split.

Key Features

• OE-style replacement rear brake wheel cylinder
• For 1990–1995 Toyota 4Runner 2WD
• Fits both 22RE and 3VZ-E engine applications
• Two production-date-specific hydraulic configurations
• Fits either rear left or rear right position
• Two-piston hydraulic design
• Two-bolt mounting configuration
• Inverted-flare brake-line connection
• Bleeder screw included
• Available individually or as a matching pair

1991 Production Date Split

1990–05/1991

• 22.23 mm / 7/8-inch bore
• Early-production configuration
• For 22RE or 3VZ-E 2WD 4Runners produced through May 1991

06/1991–1995

• 23.83 mm / approximately 15/16-inch bore
• Late-production configuration
• For 22RE or 3VZ-E 2WD 4Runners produced from June 1991 through 1995

For a vehicle built during June 1991, verify the VIN / frame-specific Toyota application before ordering because Toyota catalog ranges overlap at the changeover month.

Vehicle Fitment

All applications require: 2WD and rear drum brakes.

Toyota 4Runner

• 1990–05/1991 Toyota 4Runner – 2nd Gen — 22RE or 3VZ-E — Early Production
• 06/1991–1995 Toyota 4Runner – 2nd Gen — 22RE or 3VZ-E — Late Production

Fitment Notes

• Production date determines the correct cylinder; engine does not.
• 1990–05/1991: 22.23 mm / 7/8-inch bore configuration.
• 06/1991–1995: 23.83 mm / approximately 15/16-inch bore configuration.
• For June 1991 production, verify the VIN / frame-specific Toyota application before ordering.
• Fits either rear left or rear right position.
• Two wheel cylinders are required to replace both rear sides.

Product Specifications

Brand: DFC / Dynamic Friction Company
Product Type: Drum Brake Wheel Cylinder
Position: Rear Left / Rear Right
Drivetrain: 2WD
Engines: 22RE / 3VZ-E
Early Bore Diameter: 22.23 mm / 7/8 in.
Late Bore Diameter: 23.83 mm / approximately 15/16 in.
Attachment Type: 2-Bolt
Mounting Hole Quantity: 2
Piston Quantity: 2
Flare Type: SAE Inverted Flare
Bleeder Screw: Included
Fit Type: Vehicle-Specific / Direct Fit

Available Configurations

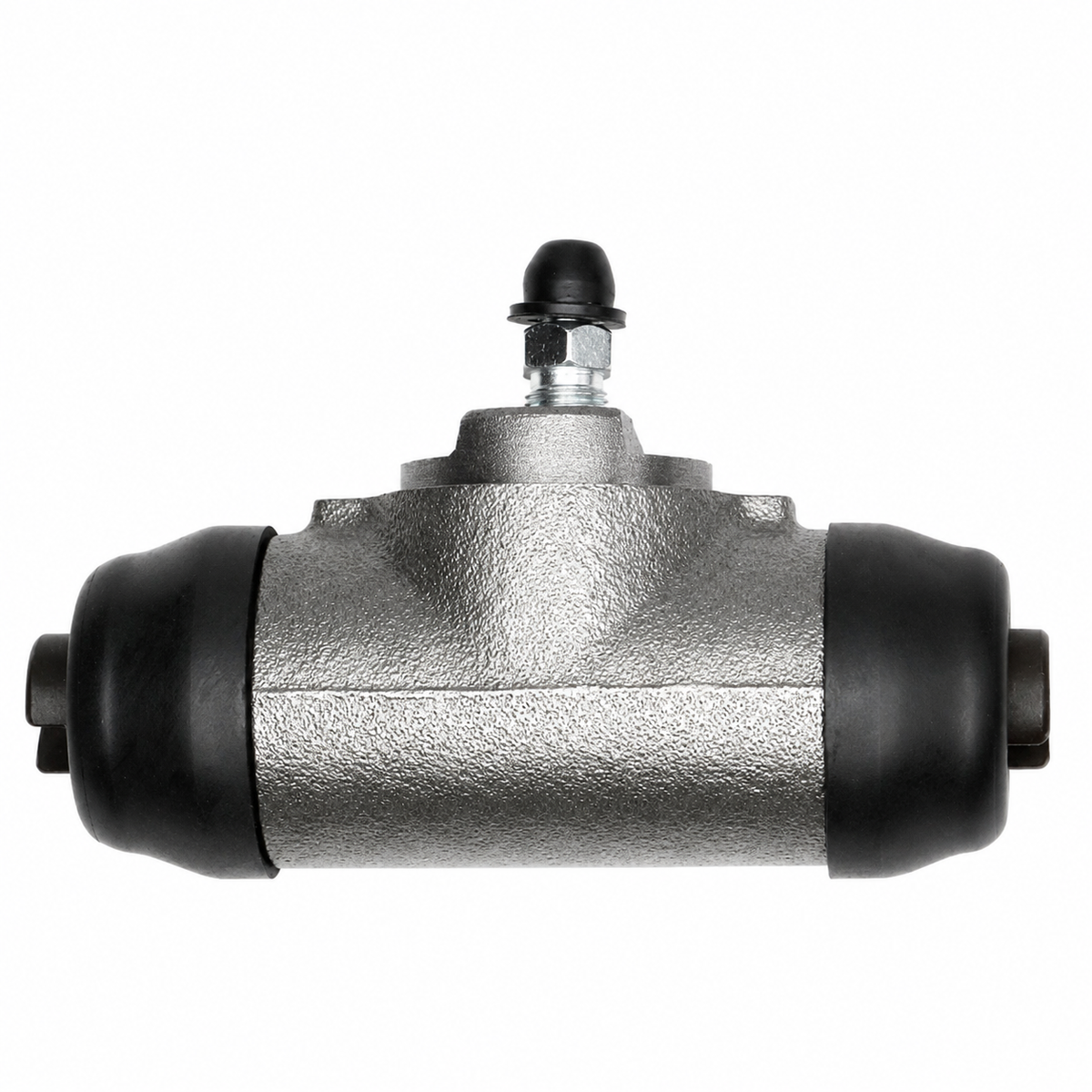

1990–05/1991 / Single

• (1) early-production rear wheel cylinder
• 22.23 mm / 7/8-inch bore

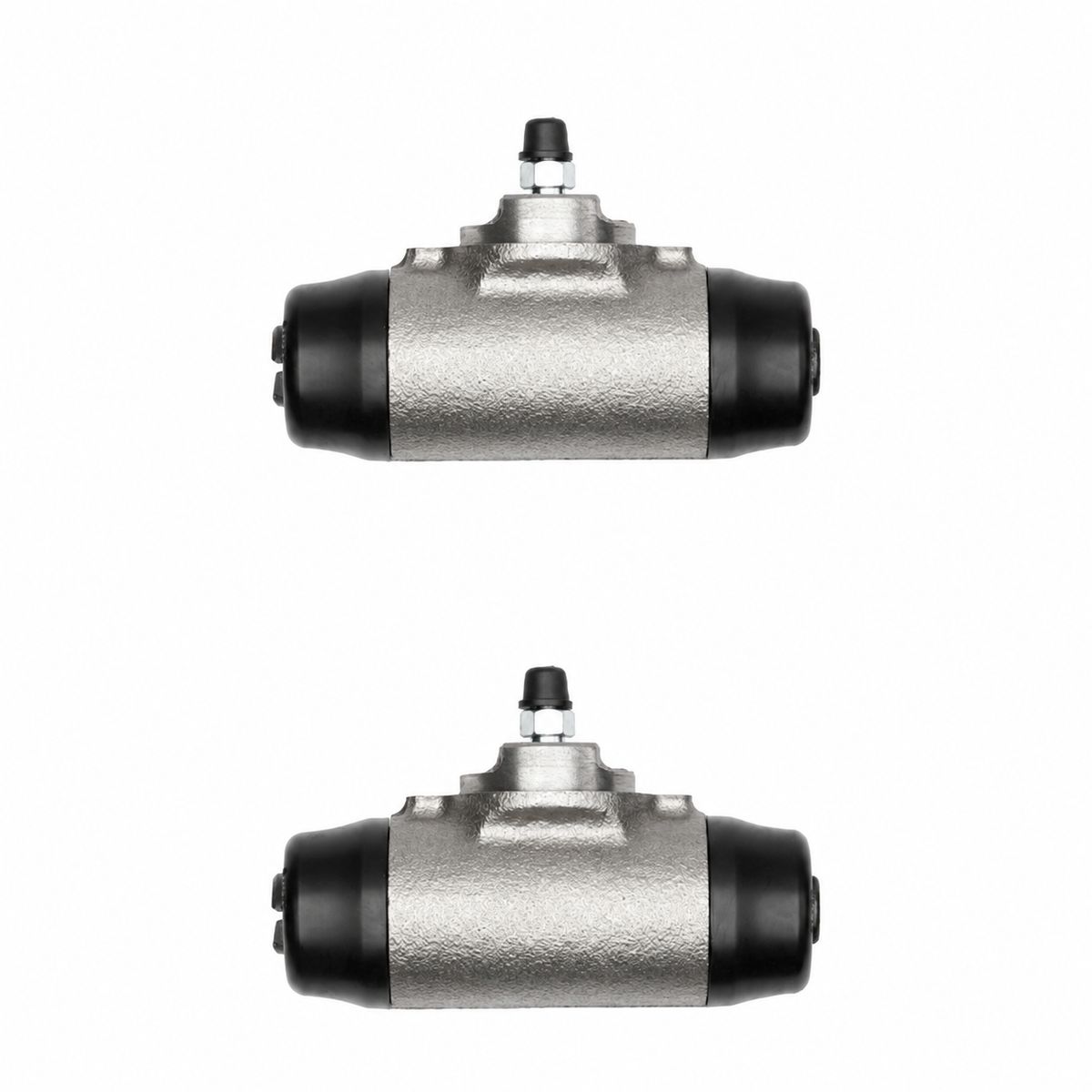

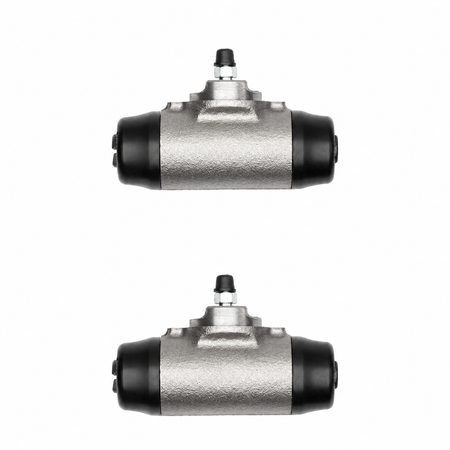

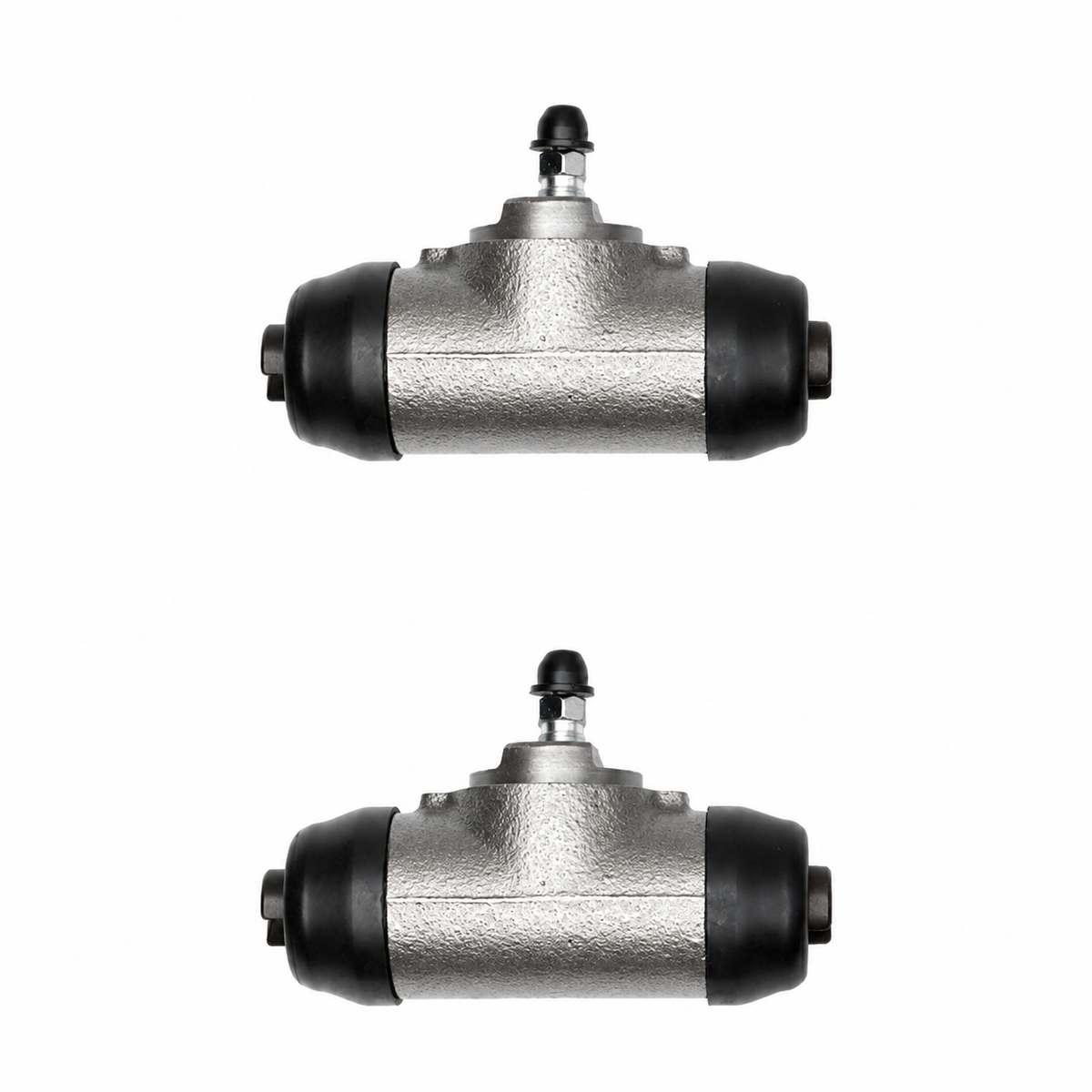

1990–05/1991 / Pair

• (2) matching early-production rear wheel cylinders
• 22.23 mm / 7/8-inch bore

06/1991–1995 / Single

• (1) late-production rear wheel cylinder
• 23.83 mm / approximately 15/16-inch bore

06/1991–1995 / Pair

• (2) matching late-production rear wheel cylinders
• 23.83 mm / approximately 15/16-inch bore
