AW11 Solid Rear Brake Rotor (1985-89 MR2)

SKU: 1419
$39.95
Year Range
Quantity
Fitment support available
Estimate shipping before checkout

Solid Rear Brake Rotor

For 1985–1989 U.S.-Market Toyota MR2 AW11

Overview

The DFC Premium rear brake rotor is available in two factory-size applications for the AW11 MR2. The 1985–1986 version uses a 240 mm disc, while the 1987–1989 version uses a 263 mm disc.

Both versions use one-piece solid iron construction and a plain friction surface for a stock-style rear-brake refresh.

Key Features

  • G3000/G11H18 iron casting
  • CNC-machined friction and mounting surfaces
  • Non-directional friction-surface finish
  • One-piece solid disc construction
  • Either rear side uses the same application-specific rotor

Vehicle Fitment

Toyota MR2 — AW11 / MK1 — U.S.-Market

  • 1985–1986: 4A-GE naturally aspirated; automatic / manual; 240 mm rear rotor
  • 1987–1989: 4A-GE naturally aspirated; automatic / manual; 263 mm rear rotor
  • 1988–1989: 4A-GZE supercharged; automatic / manual; 263 mm rear rotor

Fitment Notes

  • Choose the option matching the vehicle’s model year. Factory 1985–1986 and 1987–1989 rear brake systems use different rotor diameters.
  • Rear axle only. Both applications use the same rotor on the left and right rear.
  • Brake conversions may use different calipers, hubs, or rotor dimensions; match the rotor to the installed brake configuration.

Product Specifications

Brand: DFC
Series: Premium
Product Type: Rear Brake Rotor
Position: Rear axle, left or right
1985–1986 Rotor: 240 mm outside diameter; 10 mm nominal / 9 mm discard thickness
1987–1989 Rotor: 263 mm outside diameter; 10 mm nominal / 9 mm discard thickness
Shared Dimensions: 40 mm overall height; 54 mm center bore; 4 × 100 mm lug pattern; 14.5 mm lug-hole diameter
Construction: One-piece solid disc
Friction Surface: Plain, smooth
Condition: New

Available Configurations

Choose the correct model-year range and purchase quantity using the product options.

1. Model Year

  • 1985–1986: 240 mm rear rotor for 4A-GE naturally aspirated models
  • 1987–1989: 263 mm rear rotor for 4A-GE naturally aspirated and 1988–1989 4A-GZE supercharged models

2. Configuration

  • Single Rear Rotor: Includes (1) application-specific rear brake rotor

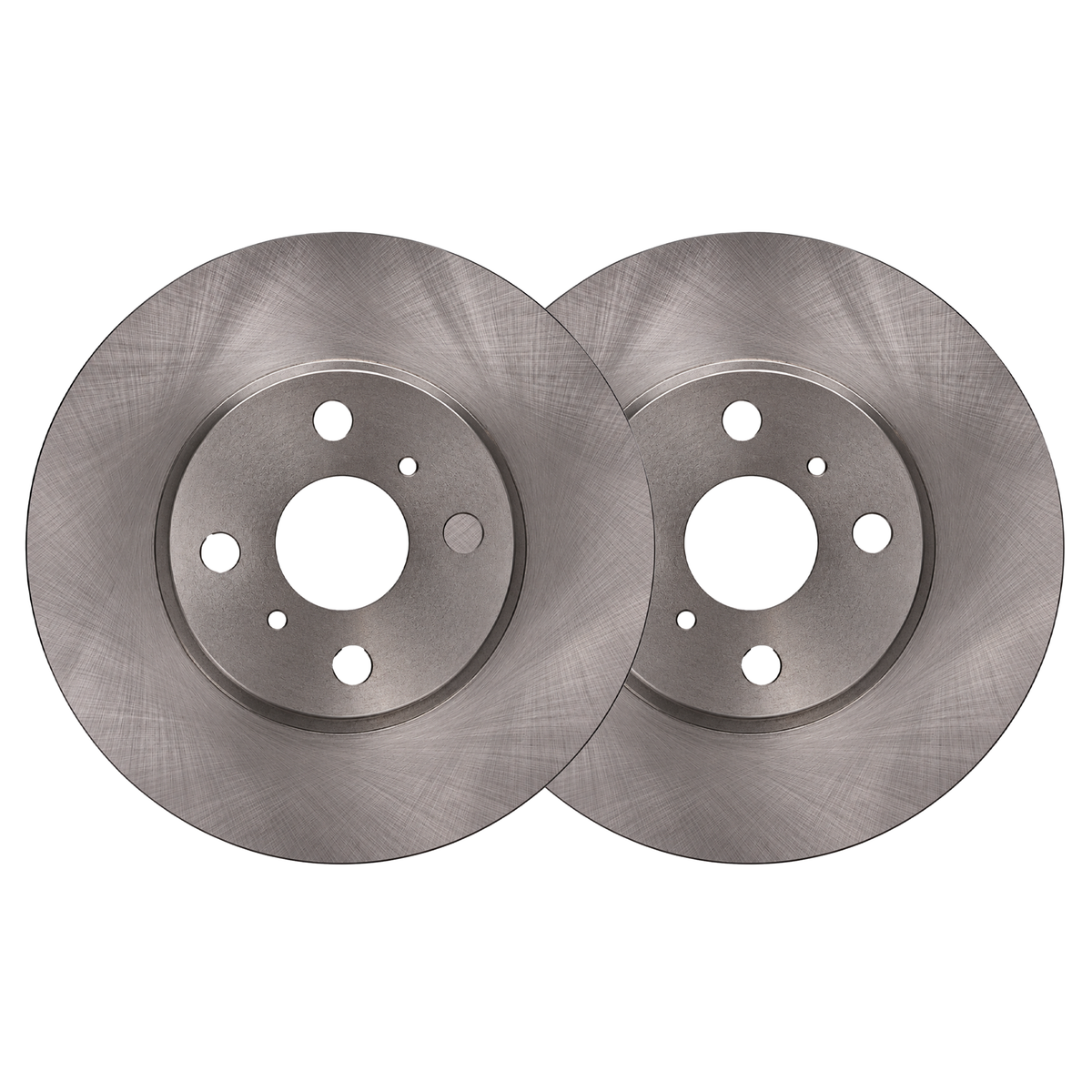

  • Pair of Rear Rotors: Includes (2) matching application-specific rear brake rotors for the full rear axle

Both model-year options are available as a single rotor or matching pair.

Important: Brake pads and calipers are not included.
