Rear Wheel Cylinder | 17S 2WD (1989-95 Pickup)

Rear Wheel Cylinder

For 1989–1995 Toyota Pickup 2WD rear drum brake applications with 17S front calipers

Overview

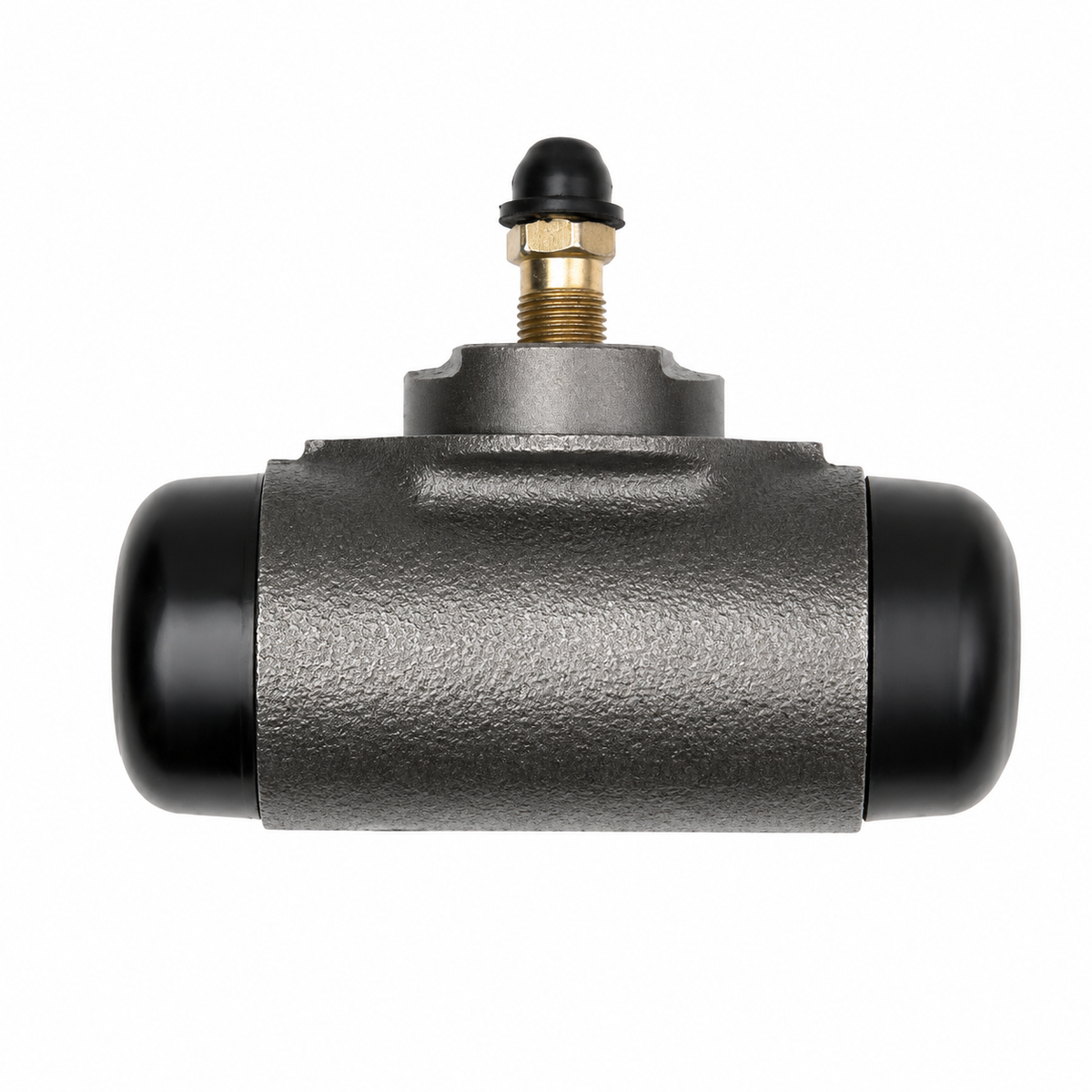

The DFC OE Replacement Rear Wheel Cylinder is a direct-fit rear hydraulic replacement for 1989–1995 Toyota Pickup 2WD models equipped with the 17S front brake package. For these trucks, the front caliper casting identifies the correct rear wheel-cylinder application.

This 17S application uses a 22.23 mm / 7/8-inch bore, fits either rear side, and is available as a Single or Pair.

Key Features

• OE-style rear drum brake wheel cylinder
• For 1989–1995 Toyota Pickup 2WD with 17S front calipers
• 22.23 mm / 7/8-inch bore
• Fits either rear left or rear right position
• Two-piston hydraulic design
• Two-bolt mounting configuration
• Inverted-flare brake-line connection
• Bleeder screw included

Brake Package Identification

Check the casting mark on the front brake caliper before ordering.

• 17S front caliper: uses this rear wheel cylinder
• F18Q front caliper: uses the DFC OE F18Q Rear Wheel Cylinder

Vehicle Fitment

All applications require: 2WD, rear drum brakes, and 17S front calipers.

Toyota Pickup

• 1989–1995 Toyota Pickup – 3rd Gen – 17S Front Brake Package – Rear

Fitment Notes

• Does not fit trucks equipped with F18Q front calipers.
• Fits either rear left or rear right position.
• Two wheel cylinders are required to replace both rear sides.

Product Specifications

Brand: DFC / Dynamic Friction Company
Product Type: Drum Brake Wheel Cylinder
Position: Rear Left / Rear Right
Bore Diameter: 22.23 mm / 7/8 in.
Attachment Type: 2-Bolt
Mounting Hole Quantity: 2
Piston Quantity: 2
Flare Type: Inverted Flare
Bleeder Screw: Included
Drivetrain: 2WD
Front Brake Package: 17S

Available Configurations

Single

• (1) rear wheel cylinder

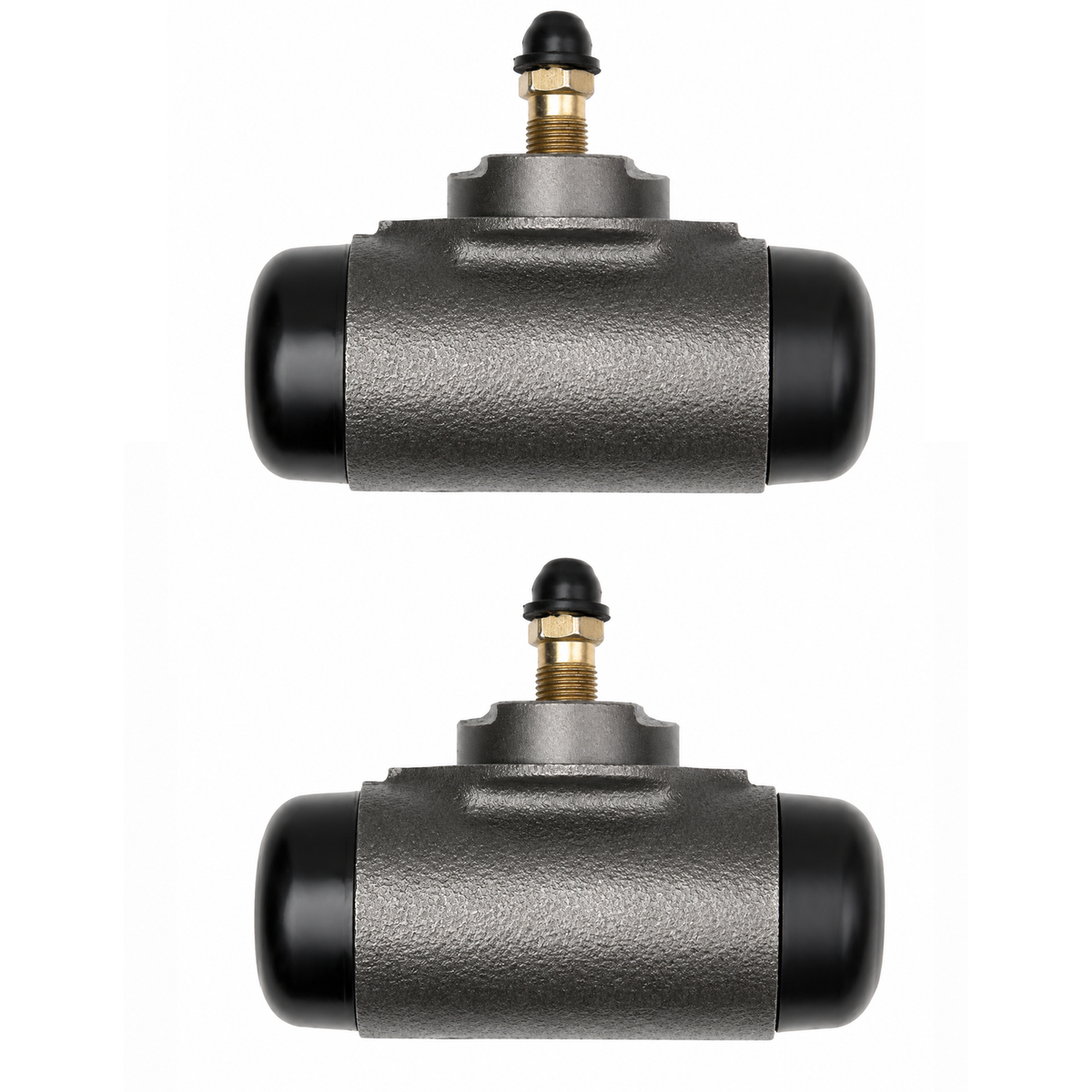

Pair

• (2) matching rear wheel cylinders for both rear sides
