Rear Brake Drums | 2WD Standard 5-Lug (1979-95 Pickup)

Rear Brake Drums

For 1979–1995 Toyota Pickup 2WD standard 5-lug rear drum brake applications listed below

Overview

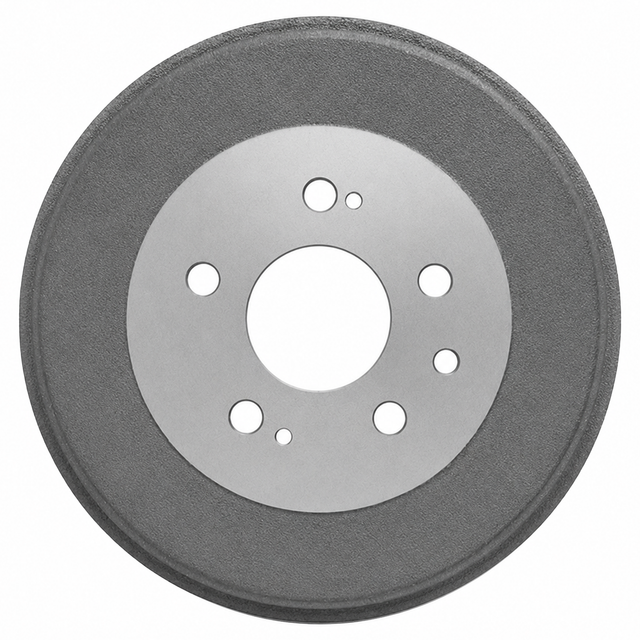

The DFC True Balanced OE Replacement Rear Brake Drum is a direct-fit replacement for standard 5-lug Toyota Pickup 2WD / RWD rear drum brake systems. Two different drum designs are used across these applications: the 1979–1983 application and the later 1984–1995 application.

Truck-class coverage is not identical across every year. The early drum fits 1979–1983 1/2-Ton and 3/4-Ton trucks. The later drum fits 1984 1/2-Ton and 3/4-Ton, 1985–1988 1/2-Ton, and 1989–1995 trucks using the standard 5-lug rear brake system with either the 17S or F18Q front-brake package.

Key Features

• DFC True Balanced OE-style rear brake drum
• Direct-fit replacement for Toyota Pickup 2WD / RWD standard 5-lug applications
• 254 mm nominal drum diameter
• Five-hole, 114.3 mm bolt circle
• 67 mm center hole diameter
• Floating-mount design
• Precision-machined and mill-balanced construction
• Black painted corrosion-resistant exterior finish
• Available individually or as a matching rear pair

Rear Drum Specifications

1979–1983
Nominal Drum Diameter: 254 mm
Maximum Drum Diameter: 256 mm
Outside Diameter: 298 mm
Overall Height: 70.5 mm
Center Hole Diameter: 67 mm
Mounting Hole Quantity: 5
Mounting Hole Diameter: 14.5 mm
Bolt Circle Diameter: 114.3 mm
Mount Type: Floating

1984–1995
Nominal Drum Diameter: 254 mm
Outside Diameter: 305.5 mm
Overall Height: 72 mm
Center Hole Diameter: 67 mm
Mounting Hole Quantity: 5
Bolt Circle Diameter: 114.3 mm
Mount Type: Floating

Vehicle Fitment

All applications require: 2WD / RWD, rear position, and the standard 5-lug rear drum brake configuration.

Toyota Pickup

• 1979–1983 Toyota Pickup – 1st Gen – 1/2-Ton / 3/4-Ton – Rear
• 1984 Toyota Pickup – 2nd Gen – 1/2-Ton / 3/4-Ton – Rear
• 1985–1988 Toyota Pickup – 2nd Gen – 1/2-Ton – Rear
• 1989–1995 Toyota Pickup – 3rd Gen – Standard 5-Lug – 17S or F18Q / F-18Q Front Brake Package – Rear

Fitment Notes

• Rear drum brake application only.
• 2WD / RWD standard 5-lug applications only.
• 1985–1988 3/4-Ton applications are not included.
• 1979–1983 and 1984–1995 use different rear brake drums and are not interchangeable by year.
• 1989–1995 coverage includes trucks using either the 17S or F18Q / F-18Q front brake package.
• Does not fit 4WD six-hole rear brake applications.
• Does not replace the separate 1-Ton / Cab & Chassis rear brake drums.
• Select a pair when replacing both rear brake drums.

Product Specifications

Brand: Dynamic Friction Company (DFC)
Series: True Balanced
Product Type: Brake Drum
Position: Rear
Brake Type: Drum
Drivetrain: 2WD / RWD
Wheel Configuration: Standard 5-Lug
Nominal Drum Diameter: 254 mm
Center Hole Diameter: 67 mm
Bolt Circle Diameter: 114.3 mm
Finish: Black Painted
Fit Type: Vehicle-Specific / Direct Fit

Supporting Brake Service Components

Brake service often involves more than one wear or hydraulic component, so these related parts help complete the same brake-system repair where applicable. DFC Rear Brake Hardware Kit | 2WD — related rear drum brake service hardware for the supported standard-duty Pickup applications.

Available Configurations

1979-1983 / Single

• (1) 1979–1983 application rear brake drum.

1979-1983 / Pair

• (2) Matching 1979–1983 application rear brake drums.

1984-1995 / Single

• (1) 1984–1995 application rear brake drum; year-specific truck-class and brake-package notes above apply.

1984-1995 / Pair

• (2) Matching 1984–1995 application rear brake drums; year-specific truck-class and brake-package notes above apply.
