Rear Brake Drum | 2WD / 4WD (1986-95 4Runner)

Rear Brake Drum

For 1986–1989 Toyota 4Runner 4WD and 1990–1995 Toyota 4Runner 2WD / 4WD Rear Drum Brake Applications

Overview

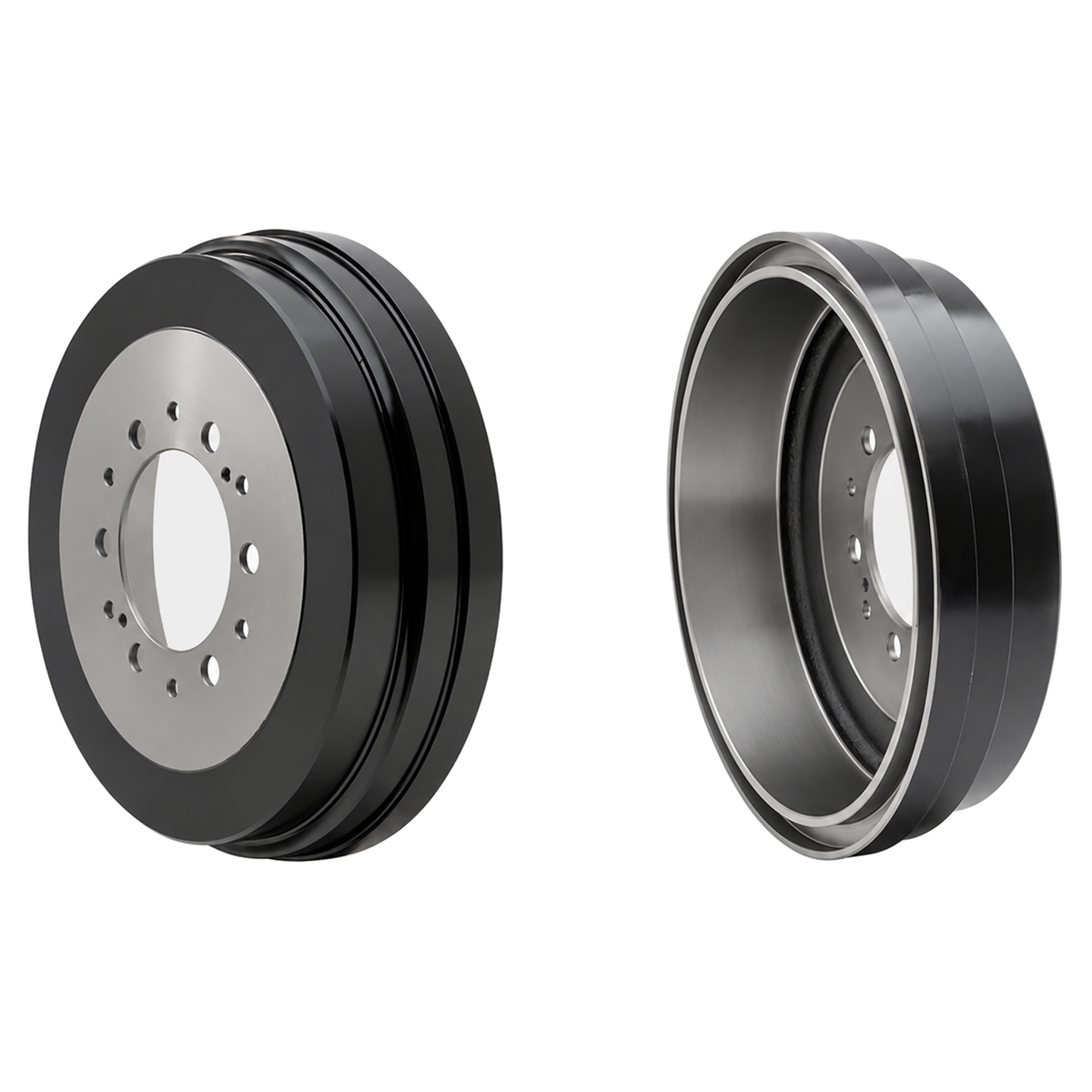

The DFC OE Replacement True Balanced OE Rear Brake Drum is a direct-fit replacement for the rear drum brake system used on the supported Toyota 4Runner applications below. Two drum constructions are available: Standard and Heavy Duty.

Both versions use the same mounting geometry and may be installed as a matched pair. The Heavy-Duty version uses additional material for greater thermal mass, while the Standard version offers lower rotating and unsprung weight.

Key Features

• OE-style direct-fit rear brake drum
• Choice of Standard or Heavy-Duty construction
• Six-hole mounting configuration
• Floating drum design
• Precision-machined braking surface
• Precision balanced for smooth operation
• Black high-temperature protective coating
• Available individually or as a matched pair

Standard vs. Heavy Duty

Standard Drum

• Nominal drum diameter: 295 mm
• Maximum service diameter: 297 mm
• Outside diameter: 342.5 mm
• Overall height: 83 mm
• Center hole diameter: 106 mm
• Mounting holes: 6
• Approximate drum weight: 21.5 lb

The Standard drum is the lighter option and is well suited to normal street use, restoration builds, and routine brake service.

Heavy-Duty Drum

• Nominal drum diameter: 294.2 mm
• Maximum service diameter: 297 mm
• Outside diameter: 343 mm
• Overall height: 83 mm
• Center hole diameter: 106 mm
• Mounting holes: 6
• Approximate drum weight: 24.25 lb

The Heavy-Duty drum adds thermal mass for vehicles that regularly experience heavier braking loads, towing within vehicle limits, mountain driving, or demanding off-road use.

Vehicle Fitment

Toyota 4Runner

• 1986–1989 Toyota 4Runner – 1st Gen – 4WD – Rear
• 1990–1995 Toyota 4Runner – 2nd Gen – 2WD – Rear
• 1990–1995 Toyota 4Runner – 2nd Gen – 4WD – Rear

Fitment Notes

• Rear application only
• 1986–1989 1st Gen 4Runner fitment is 4WD only
• 1990–1995 2nd Gen 4Runner fitment includes 2WD and 4WD
• Standard and Heavy-Duty drums use the same mounting configuration
• When replacing both rear drums, either version may be installed as a matched pair
• When replacing one drum only, match the drum type installed on the opposite side
• Do not mix Standard and Heavy-Duty drums on the same rear axle
• Maximum service diameter: 297 mm

Product Specifications

Brand: DFC / Dynamic Friction Company
Series: True Balanced
Product Type: Rear Brake Drum
Position: Rear
Material: Cast Iron
Finish: Black High-Temperature Coating
Mount Type: Floating
Mounting Hole Quantity: 6
Center Hole Diameter: 106 mm
Maximum Service Diameter: 297 mm
Available Designs: Standard / Heavy Duty
Fit Type: Vehicle-Specific / Direct Fit

Available Configurations

Standard – Single

• (1) Standard rear brake drum

Standard – Pair

• (2) Matching Standard rear brake drums

Heavy Duty – Single

• (1) Heavy-Duty rear brake drum

Heavy Duty – Pair

• (2) Matching Heavy-Duty rear brake drums
