Front Brake Rotors | 4WD (1984-89 4Runner)

Front Brake Rotors | 4WD

For 1984–1989 Toyota 4Runner 4WD front disc brake applications

Overview

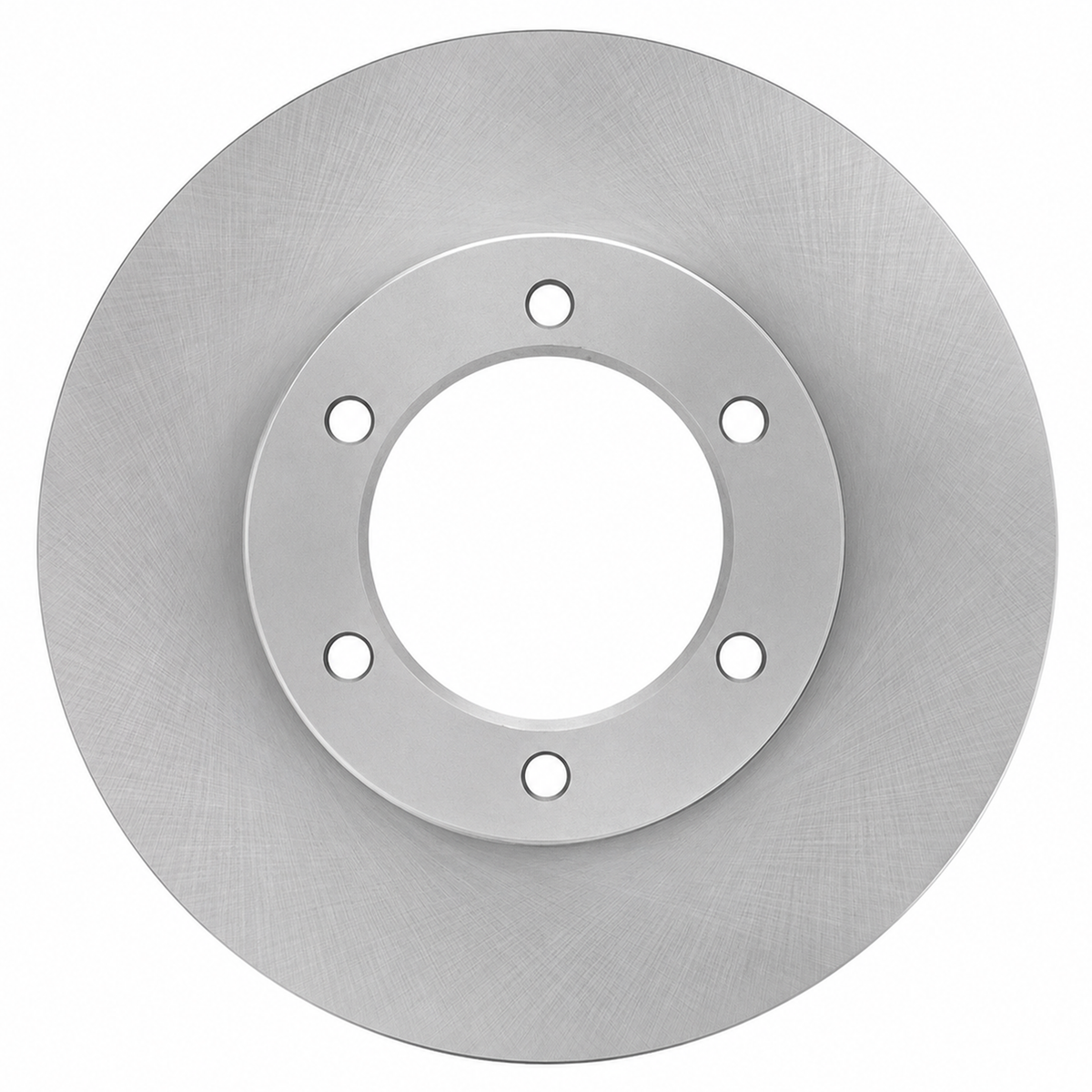

The DFC OE Replacement Front Brake Rotors are direct-fit cast-iron replacement rotors for 1984–1989 Toyota 4Runner 4WD front brake systems. DFC Premium OE rotors use G3000/G11H18 iron castings, CNC machining, and a non-directional braking surface to match factory-style form, fit, and function while promoting consistent pad bed-in and smooth braking.

Two different front rotor designs were used during the 1st Gen 4Runner production run. The 1984–1985 application uses a larger 302 mm solid rotor, while the 1986–1989 application uses a smaller-diameter but thicker 289 mm vented rotor. These configurations are dimensionally different and are not interchangeable.

Key Features

• OE-style front brake rotor replacement
• Premium G3000/G11H18 cast-iron construction
• CNC-machined for accurate fitment
• Non-directional braking surface for even pad bed-in
• Plain smooth rotor finish
• Direct-fit installation with no brake-system modification required
• Separate solid and vented designs by model year
• Available individually or as a pair

Year-Specific Rotor Design

1984–1985 Toyota 4Runner

• Rotor Type: Solid
• Outside Diameter: 302 mm
• Nominal Thickness: 12.5 mm
• Discard Thickness: 11.5 mm
• Overall Height: 48 mm
• Center Bore: 100 mm
• Mounting Holes: 6

1986–1989 Toyota 4Runner

• Rotor Type: Vented
• Outside Diameter: 289 mm
• Nominal Thickness: 20 mm
• Discard Thickness: 18 mm
• Overall Height: 64.4 mm
• Center Bore: 100.1 mm
• Mounting Holes: 6

Vehicle Fitment

• 1984–1985 Toyota 4Runner – 1st Gen – 4WD – Front – 302 mm Solid Rotor
• 1986–1989 Toyota 4Runner – 1st Gen – 4WD – Front – 289 mm Vented Rotor

Fitment Notes

• 4WD models only.
• Front disc brake application only.
• Select the rotor configuration that matches the vehicle model year.
• The 1984–1985 and 1986–1989 rotor designs are not interchangeable.
• The 1986–1989 configuration is used with standard or optional heavy-duty rear drum setups.
• One rotor services one front wheel; a pair services both front wheels.
• Inspect the front brake pads, calipers, wheel bearings, and hub mounting surfaces during rotor replacement.

Product Specifications

Brand: DFC
Product Type: Front Brake Rotor
Position: Front Axle
Brake Type: Disc
Material: Cast Iron
Surface: Smooth / Non-Directional
Finish: Plain
Drivetrain: 4WD
Fit Type: Vehicle-Specific / Direct Fit

Supporting Brake Service Components

Brake service often involves more than one wear or hydraulic component, so these related parts help complete the same brake-system repair where applicable. DFC 5000 Ceramic Front Brake Pads | 4WD — matching DFC front pad option for supported 1st Gen 4Runner applications. 1st Gen 4Runner Brake Parts — browse additional front and rear brake components.

Available Configurations

1984-1985 / Single

• (1) 302 mm solid front brake rotor

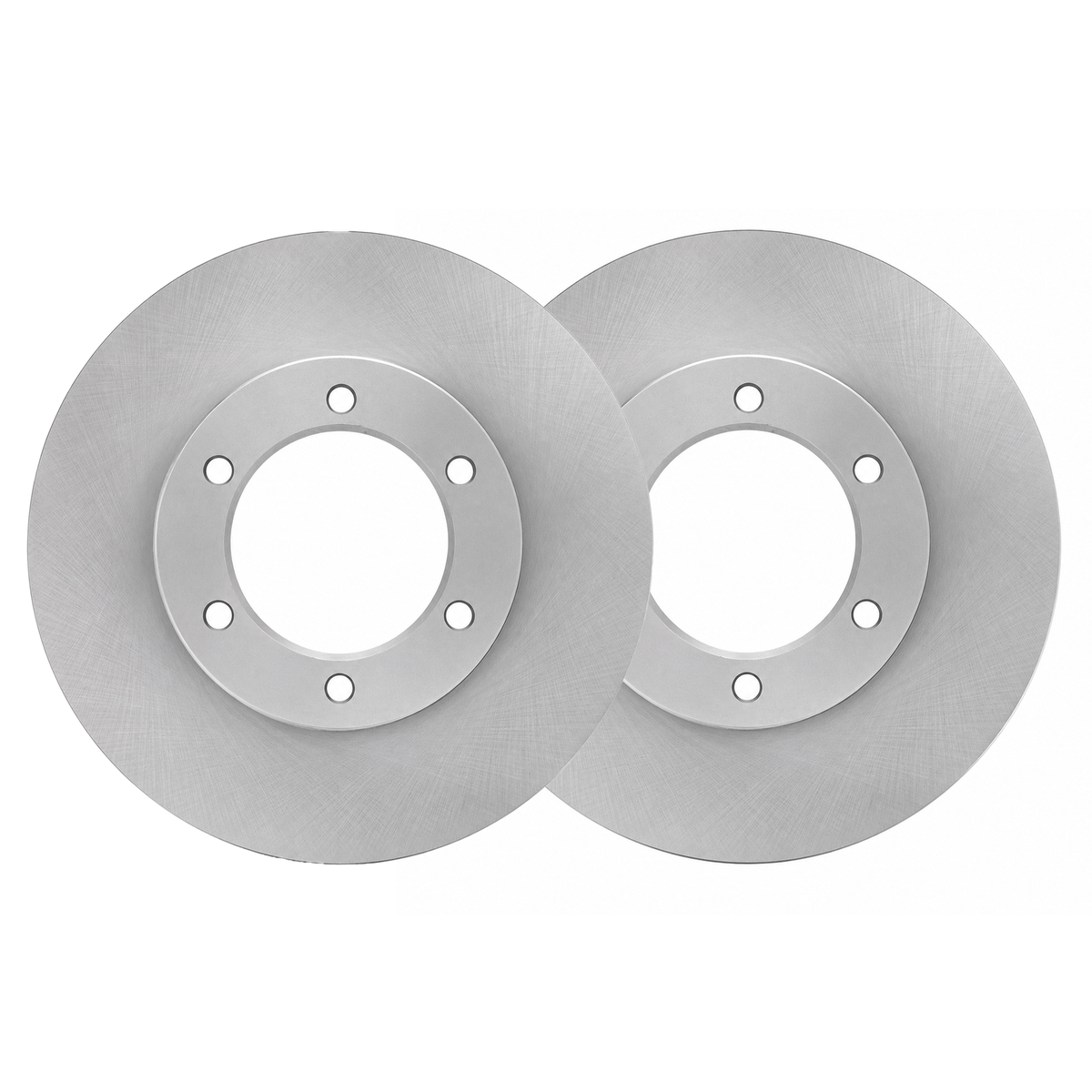

1984-1985 / Pair

• (2) 302 mm solid front brake rotors

1986-1989 / Single

• (1) 289 mm vented front brake rotor

1986-1989 / Pair

• (2) 289 mm vented front brake rotors
