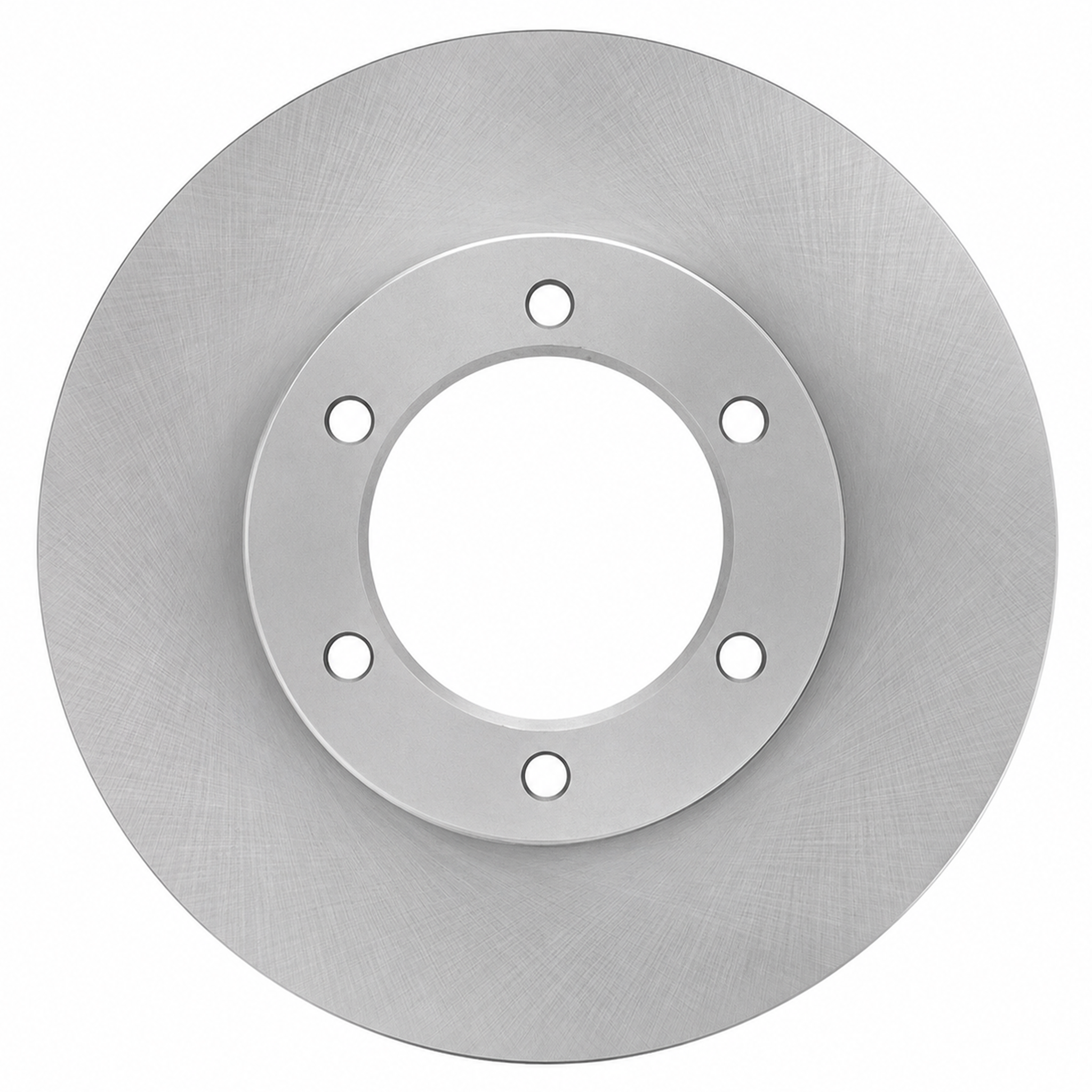

DFC Premium OE Front Brake Rotor
For 1990–1995 Toyota 4Runner 2WD & 4WD
Overview
The Dynamic Friction Company (DFC) Premium OE Front Brake Rotor is a direct-fit replacement for 1990–1995 Toyota 4Runner front disc brake applications. The rotor is designed around original-equipment dimensions and vane configuration for proper fitment, braking surface contact, and heat dissipation.
Two front rotor configurations were used during this generation, with a production change occurring during the 1991 model year. Early vehicles use a 289 × 20 mm vented rotor, while later vehicles use a thicker 290.5 × 25 mm vented rotor. Selecting the correct production range is important when ordering.
DFC Premium OE rotors use G3000/G11H18 cast iron, CNC-machined braking surfaces, precision mill balancing, and a non-directional finish for an OE-style replacement suitable for normal street use.
Key Features
- Direct-fit front brake rotor for 1990–1995 Toyota 4Runner
- Fits 2WD and 4WD models
- Two application-specific rotor configurations
- G3000/G11H18 cast iron construction
- CNC-machined braking surfaces
- Precision mill-balanced construction
- Original-equipment-style vane configuration
- Non-directional surface finish
- Vented rotor design
- Available individually or as a pair
Rotor Specifications by Year / Production Date
1990–05/1991
- Outside Diameter: 289 mm
- New Rotor Thickness: 20 mm
- Minimum Safe Thickness: 18 mm
- Overall Height: 64.4 mm
- Center Hole Diameter: 100.1 mm
- Bolt Circle Diameter: 127 mm
- Rotor Construction: Vented
- Mounting Hole Quantity: 6
06/1991–1995
- Outside Diameter: 290.5 mm
- New Rotor Thickness: 25 mm
- Minimum Safe Thickness: 23 mm
- Overall Height: 65.9 mm
- Center Hole Diameter: 100 mm
- Bolt Circle Diameter: 127 mm
- Rotor Construction: Vented
- Mounting Hole Quantity: 6
For 1991 vehicles, the rotor's original thickness provides an additional way to identify the correct configuration when the production date is uncertain. The early rotor measures 20 mm new, while the later rotor measures 25 mm new.
Vehicle Fitment
Toyota 4Runner
- 1990–05/1991 Toyota 4Runner – 2nd Gen – 2WD – Front – 289 × 20 mm Vented Rotor
- 1990–05/1991 Toyota 4Runner – 2nd Gen – 4WD – Front – 289 × 20 mm Vented Rotor
- 06/1991–1995 Toyota 4Runner – 2nd Gen – 2WD – Front – 290.5 × 25 mm Vented Rotor
- 06/1991–1995 Toyota 4Runner – 2nd Gen – 4WD – Front – 290.5 × 25 mm Vented Rotor
Fitment Notes
- Front application only
- Fits 2WD and 4WD Toyota 4Runner models
- Two front rotor configurations are offered
- Select the correct Year / Production Range before ordering
- 1991 is a production-date split year
- 1990–05/1991 uses the 289 × 20 mm rotor
- 06/1991–1995 uses the 290.5 × 25 mm rotor
- Early rotor minimum safe thickness: 18 mm
- Later rotor minimum safe thickness: 23 mm
- When identifying an existing rotor by thickness, measure across the friction surfaces away from the outer wear lip
- Available individually or as a pair
- Select a pair when replacing both front brake rotors
Product Specifications
Brand: Dynamic Friction Company (DFC)
Series: Premium OE
Product Type: Front Brake Rotor
Position: Front
Material: G3000/G11H18 Cast Iron
Construction: Vented
Surface: Smooth / Non-Directional
Mounting Hole Quantity: 6
Bolt Circle Diameter: 127 mm
Fit Type: Vehicle Specific / Direct Fit
Drivetrain: 2WD & 4WD
Available Configurations
Year / Production Range
- 1990–05/1991 – 289 × 20 mm vented front rotor
- 06/1991–1995 – 290.5 × 25 mm vented front rotor
Single
- (1) Application-correct DFC Premium OE front brake rotor

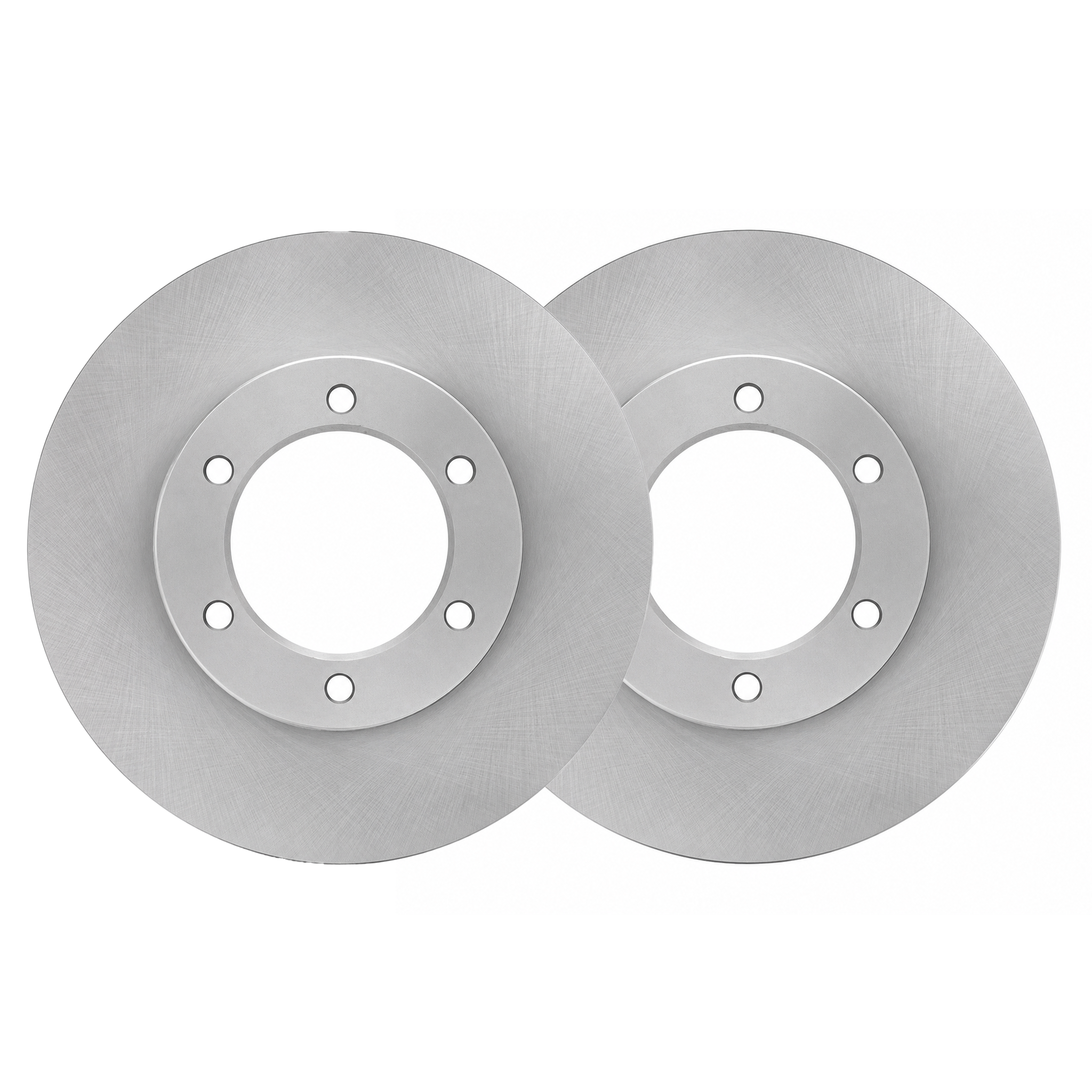

Pair
- (2) Matching application-correct DFC Premium OE front brake rotors
- Provides both rotors required for the driver- and passenger-side front brakes
