1-Ton Rear Wheel Cylinder | 2WD (1979-95 Pickup)

1-Ton Rear Wheel Cylinder

For 1979–1995 Toyota Pickup 2WD 1-Ton rear drum brake applications

Overview

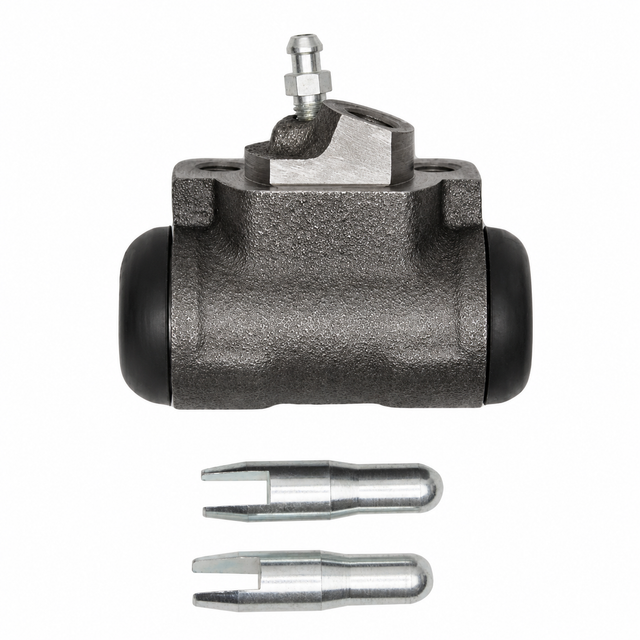

The DFC OE Replacement 1-Ton Rear Wheel Cylinder is a direct-fit hydraulic replacement for Toyota Pickup 2WD 1-ton rear drum brake systems from 1979 through 1995. Two wheel-cylinder configurations are used across this range, with the application split at the 1984 model year.

1979–1983 trucks use the early 20.62 mm / 13/16-inch bore cylinder, while 1984–1995 trucks use the later 22.23 mm / 7/8-inch bore cylinder. Both configurations fit either rear side and are available individually or as a pair.

Key Features

• OE-style rear drum brake wheel cylinder
• Direct-fit replacement for Toyota Pickup 2WD 1-ton applications
• Fits either rear left or rear right position
• Two-piston hydraulic design
• Two-bolt mounting configuration
• Inverted-flare brake-line connection
• Bleeder screw included
• 100% pressure tested

Vehicle Fitment

All applications require: 2WD, 1-ton, rear drum brakes.

Toyota Pickup

• 1979–1983 | 1st Gen
• 1984–1988 | 2nd Gen
• 1989–1995 | 3rd Gen

Fitment Notes

• 1979–1983: uses the 20.62 mm / 13/16-inch bore wheel cylinder.
• 1984–1995: uses the 22.23 mm / 7/8-inch bore wheel cylinder.
• Fits either rear left or rear right position.
• Two wheel cylinders are required to replace both rear sides.
• Does not replace standard 1/2-ton or 3/4-ton rear wheel cylinders.

Product Specifications

Brand: DFC
Product Type: Drum Brake Wheel Cylinder
Position: Rear Left / Rear Right
Drivetrain: 2WD
Truck Class: 1-Ton
1979–1983 Bore Diameter: 20.62 mm / 13/16 in
1984–1995 Bore Diameter: 22.23 mm / 7/8 in
Attachment Type: 2-Bolt
Mounting Hole Quantity: 2
Piston Quantity: 2
Flare Type: Inverted Flare
Bleeder Screw: Included
Fit Type: Vehicle-Specific / Direct Fit

Supporting Brake Service Components

For a complete rear drum brake service, see the DFC 1-Ton Rear Brake Hardware Kit | 2WD, the DFC OE Rear Brake Drum | 1979–1983 Pickup 2WD 1-Ton, and the DFC OE Rear Brake Drums | 1984–1995 Pickup 2WD 1-Ton.

Available Configurations

1979–1983 / Single

• (1) early 13/16-inch rear wheel cylinder

1979–1983 / Pair

• (2) matching early 13/16-inch rear wheel cylinders

1984–1995 / Single

• (1) later 7/8-inch rear wheel cylinder

1984–1995 / Pair

• (2) matching later 7/8-inch rear wheel cylinders
