AE86 CUSCO Safety21 5-Point Steel Roll Cage | Non-Sunroof (1983-87 Corolla)

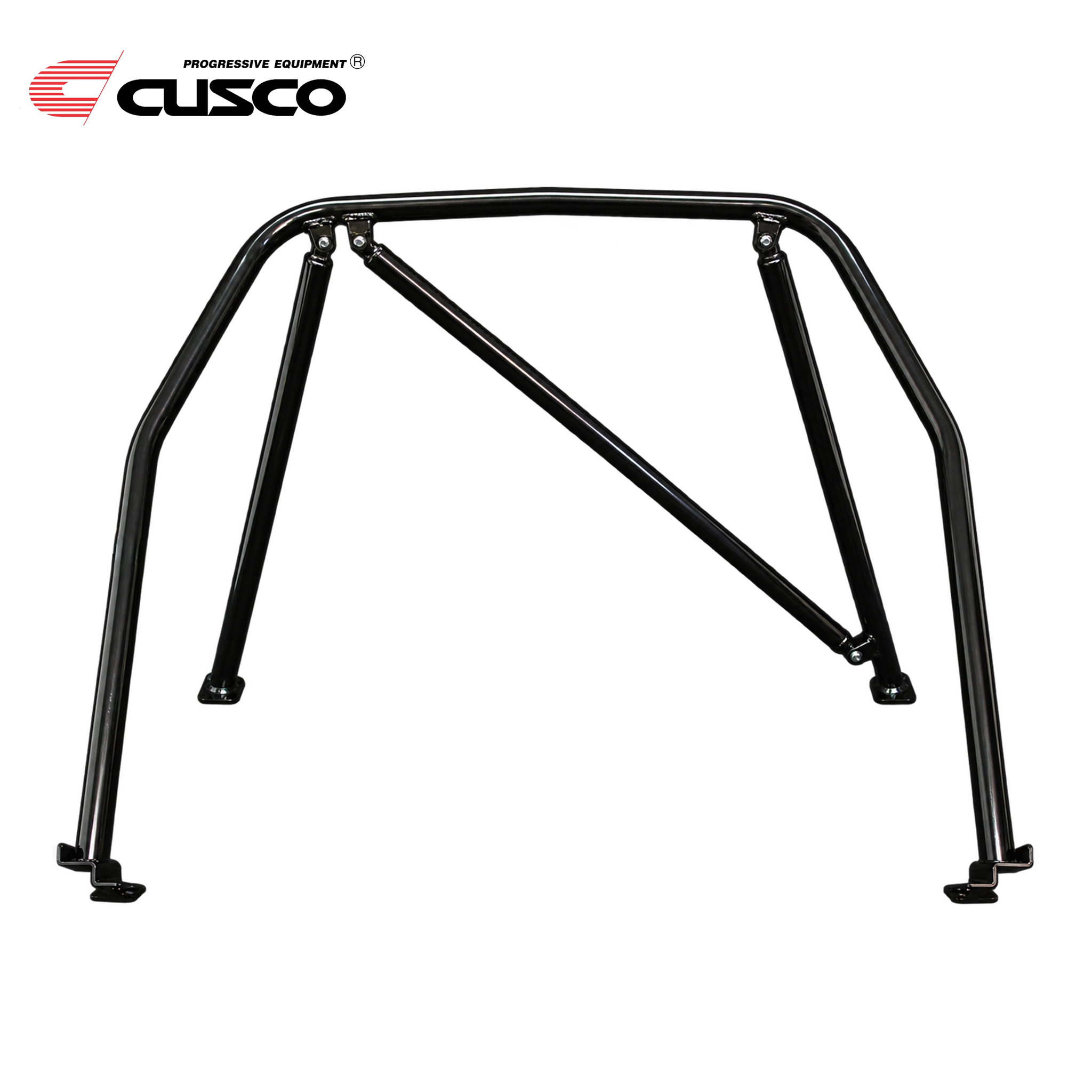

AE86 CUSCO Safety21 5-Point Steel Roll Cage

For 1983–1987 Toyota AE86 2-Door / 3-Door Non-Sunroof Applications – LHD / RHD

Overview

The CUSCO Safety21 5-Point Steel Roll Cage is a vehicle-specific rear 5-point, 2-passenger cage for Toyota AE86 non-sunroof applications. The cage uses 40 mm OD steel tubing with a 2.0 mm wall thickness and incorporates a rear diagonal bar for additional chassis reinforcement.

The Safety21 design is intended for performance-oriented street, drift, circuit, autocross, and competition builds where additional chassis reinforcement is desired while retaining the compact layout of a rear cage.

Key Features

• 5-point rear roll cage with diagonal bar
• 2-passenger configuration
• 40 mm OD steel tubing
• 2.0 mm tubing wall thickness
• STKM13C-SC cold-drawn seamless carbon-steel construction
• Standard black painted finish
• Designed for 2-door and 3-door AE86 body styles
• Non-sunroof applications only

Safety21 Steel Construction

The Safety21 series uses STKM13C-SC cold-drawn seamless carbon steel with 40 mm outside-diameter tubing and a 2.0 mm wall thickness. The steel construction provides a rigid vehicle-specific structure for additional chassis reinforcement.

This 5-point configuration is a rear cage with a diagonal bar and is designed for two-passenger use.

Vehicle Fitment

1983–1987 Toyota Sprinter Trueno – AE86 – JDM

• RHD
• 2-Door Coupe / 3-Door Hatchback
• Non-Sunroof
• 4A-GE / 4A-GEU

1983–1987 Toyota Corolla Levin – AE86 – JDM

• RHD
• 2-Door Coupe / 3-Door Hatchback
• Non-Sunroof
• 4A-GE / 4A-GEU

1985–1987 Toyota Corolla Sport GT-S – AE86 – U.S.-Market

• LHD
• 2-Door Coupe / 3-Door Hatchback
• Non-Sunroof
• 4A-GE

1984–1987 Toyota Corolla Sport SR5 – AE86 – U.S.-Market

• LHD
• 2-Door Coupe / 3-Door Hatchback
• Non-Sunroof
• 4A-C

Fitment Notes

• Non-sunroof models only.
• 2-passenger configuration.
• Rear 5-point cage with diagonal bar.
• Designed for 2-door and 3-door AE86 body styles.
• Interior removal and body drilling or modification may be required during installation.
• Professional installation is recommended.
• Competition requirements vary by sanctioning body; verify the applicable regulations before motorsport use.

Product Specifications

Brand: CUSCO
Series: Safety21
Product Type: Roll Cage
Configuration: 5-Point Rear Cage
Passenger Configuration: 2 Passenger
Rear Bar Design: Diagonal Bar
Tubing Diameter: 40 mm OD
Tubing Wall Thickness: 2.0 mm
Material: STKM13C-SC Steel
Finish: Black Paint
Body Style: 2-Door / 3-Door
Roof Configuration: Non-Sunroof
Vehicle Platform: Toyota AE86

What's Included

• (1) CUSCO Safety21 5-point steel roll cage assembly
