AE86 Cusco Type OS Rear Strut Tower Bar (1983-87 Corolla)

CUSCO Type OS Rear Strut Bar – 2-Point / 3-Point

For 1983–1987 Toyota Corolla AE86

Overview

The CUSCO Type OS Rear Strut Bar is a chassis reinforcement upgrade for the Toyota AE86, designed to reduce flex across the rear of the chassis and help the suspension mounting structure remain more stable under cornering loads.

This listing is available in two configurations. The 2-point version uses the Type OS rear bar to brace the left and right sides of the rear chassis. The 3-point version includes that same Type OS bar plus the Type OS-T third-point reinforcement, adding diagonal braces from the main rear bar to a central chassis-floor mounting point.

Both configurations use CUSCO's lightweight polished aluminum oval-shaft construction with blue steel mounting brackets. The 3-point setup provides additional triangulation for customers looking for a more extensively reinforced rear chassis.

Key Features

• Rear chassis reinforcement for Toyota Corolla AE86 applications
• Available as a 2-point or 3-point configuration
• Lightweight aluminum oval-shaft construction
• Polished aluminum finish
• CUSCO blue steel mounting brackets
• Helps reduce chassis flex between rear mounting areas
• 3-point configuration triangulates the rear brace to the chassis floor
• Vehicle-specific rear installation
• Designed for performance, street, and motorsport-oriented AE86 builds
• 3-point option includes the required third-point add-on rather than requiring it to be purchased separately

2-Point vs. 3-Point Design

The 2-point configuration connects the left and right rear mounting areas with a single Type OS oval aluminum shaft. This provides a direct reinforcement path across the rear of the chassis while keeping the design relatively simple and lightweight.

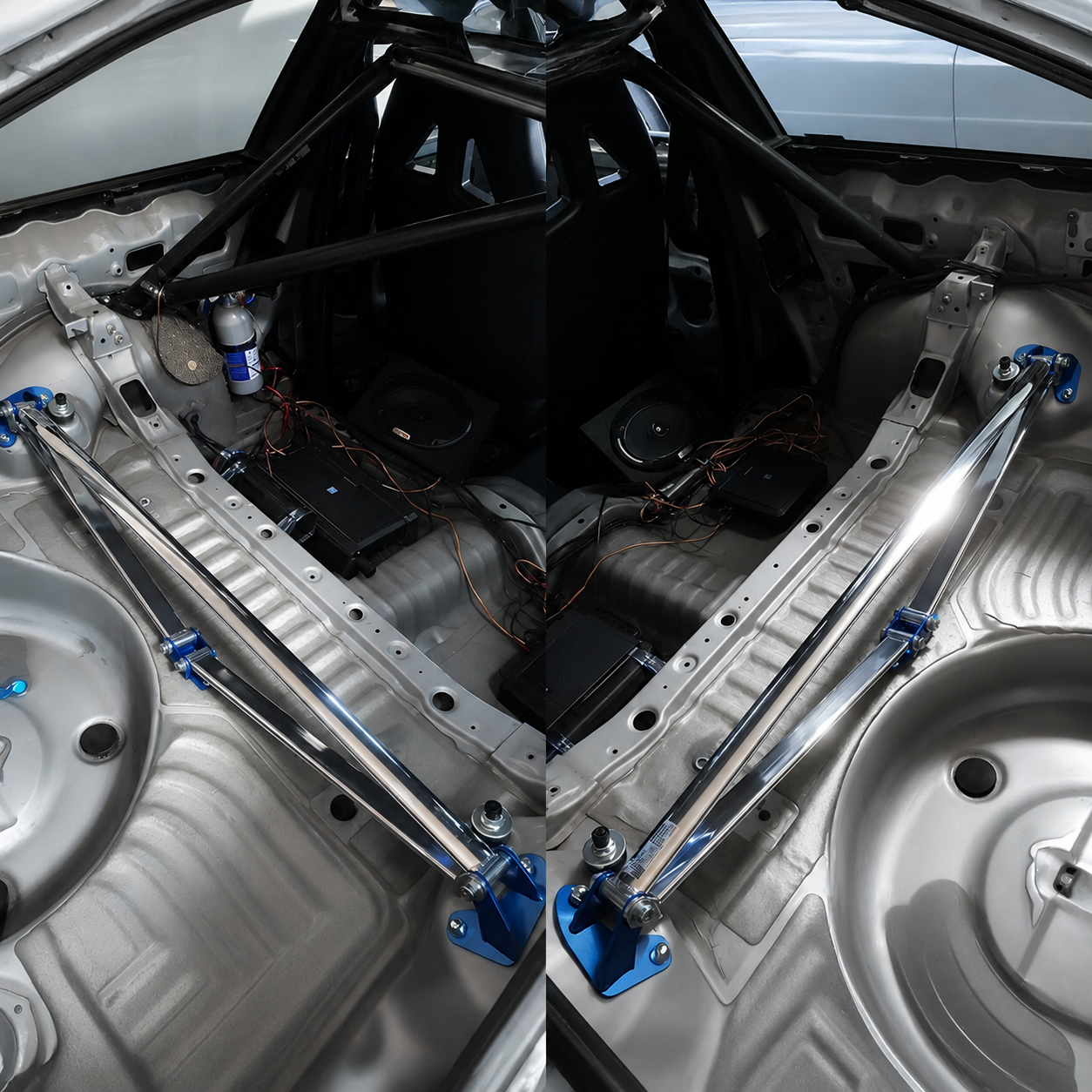

The 3-point configuration begins with the same 2-point rear strut bar and adds the Type OS-T reinforcement system. Two additional diagonal braces extend downward to a central chassis-floor mount, forming a triangulated structure.

The third-point reinforcement cannot be installed by itself. The 3-point option in this listing includes both the primary rear Type OS strut bar and the matching third-point assembly.

Vehicle Fitment

Toyota Corolla Levin

• 1983–1987 Toyota Corolla Levin – AE86

Toyota Sprinter Trueno

• 1983–1987 Toyota Sprinter Trueno – AE86

Toyota Corolla Sport

• 1985–1987 Toyota Corolla Sport SR5 – AE86 – 4A-C
• 1985–1987 Toyota Corolla Sport GT-S – AE86 – 4A-GE

Fitment Notes

• Rear installation only
• Drilling is required for installation
• Rear interior trim requires modification for proper installation
• The 3-point configuration requires mounting the additional reinforcement to the rear floor area
• The third-point reinforcement cannot be installed as a standalone component
• The 3-point option sold in this listing includes the required 2-point Type OS rear bar

Product Specifications

Brand: CUSCO
Series: Type OS / Type OS-T
Product Type: Rear Strut Tower Brace / Chassis Reinforcement
Position: Rear
Shaft Material: Aluminum
Shaft Design: Oval
Shaft Finish: Polished
Bracket Material: Steel
Bracket Color: CUSCO Blue
Configurations: 2-Point or 3-Point
Fit Type: Vehicle Specific
Installation: Drilling and rear trim modification required

Available Configurations

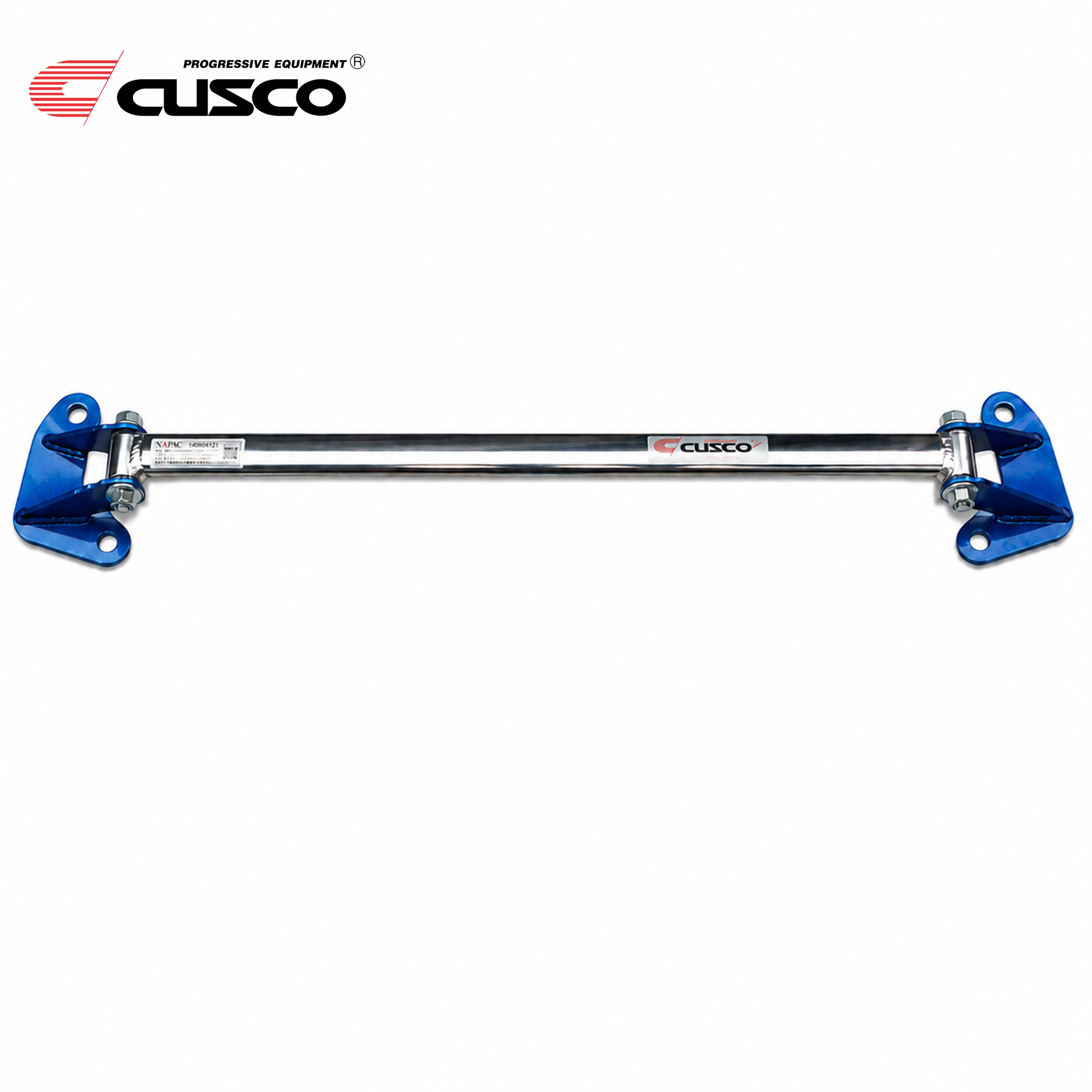

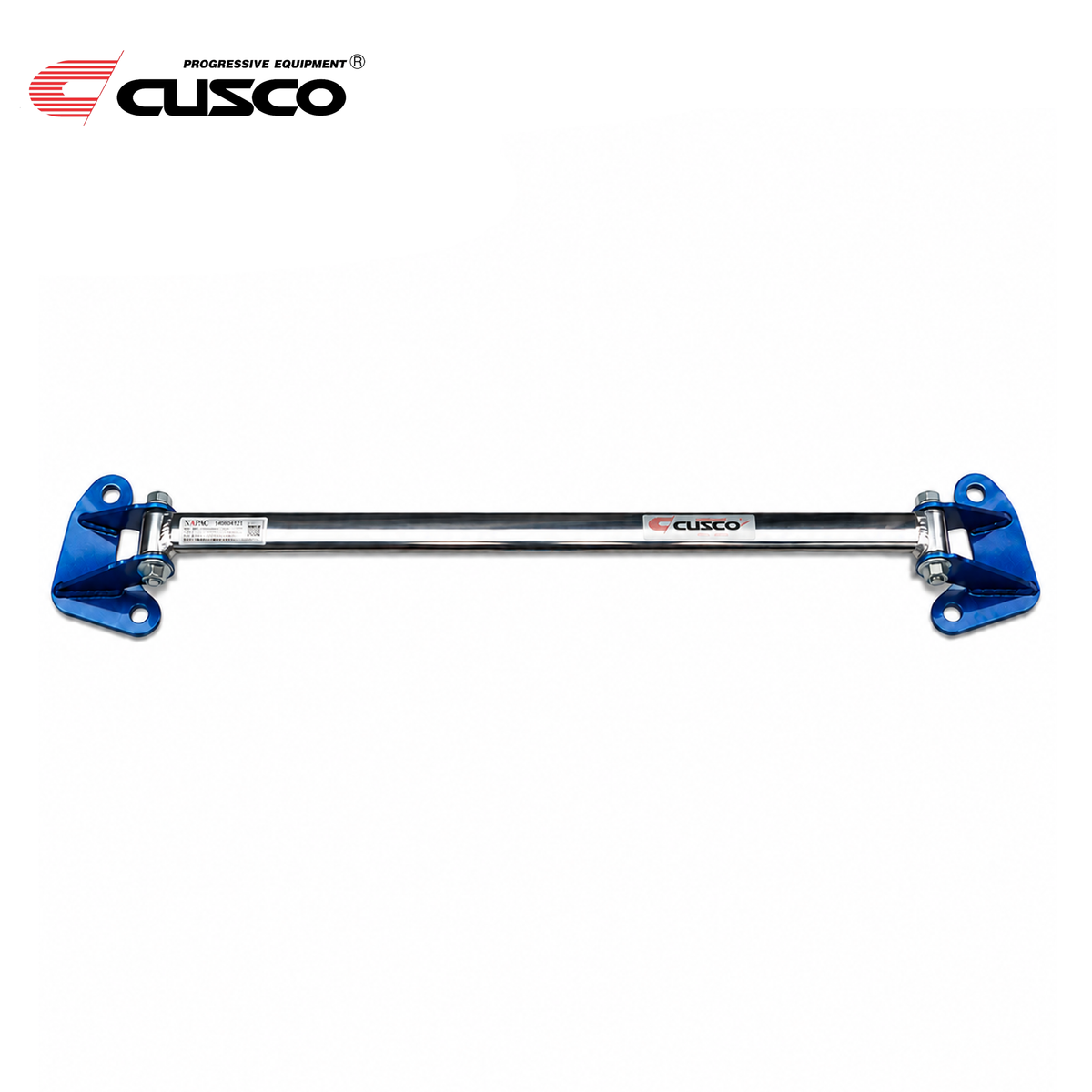

2-Point Rear Strut Bar

• (1) CUSCO Type OS rear strut bar assembly
• Connects the left and right rear chassis mounting areas
• Polished oval aluminum shaft with blue mounting brackets

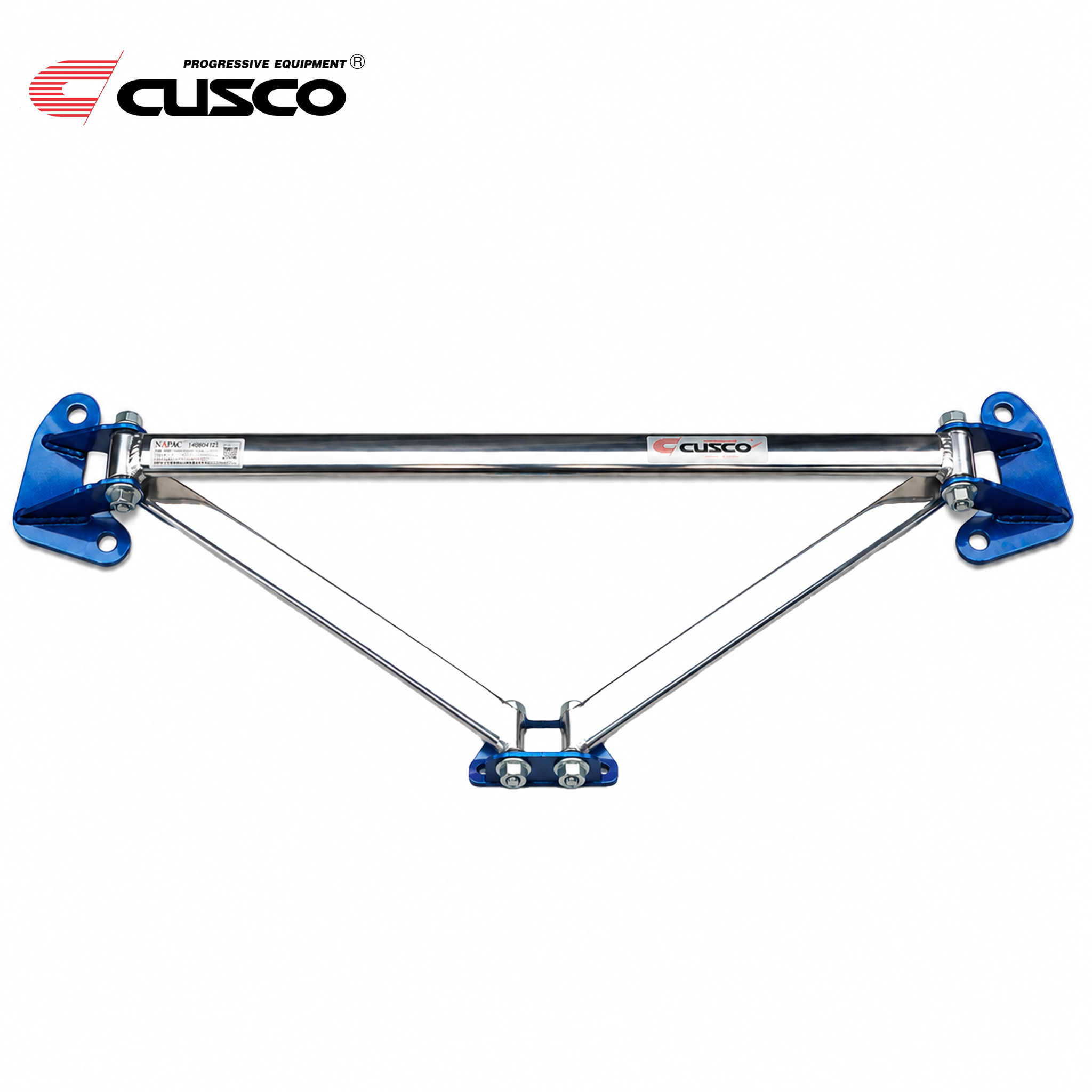

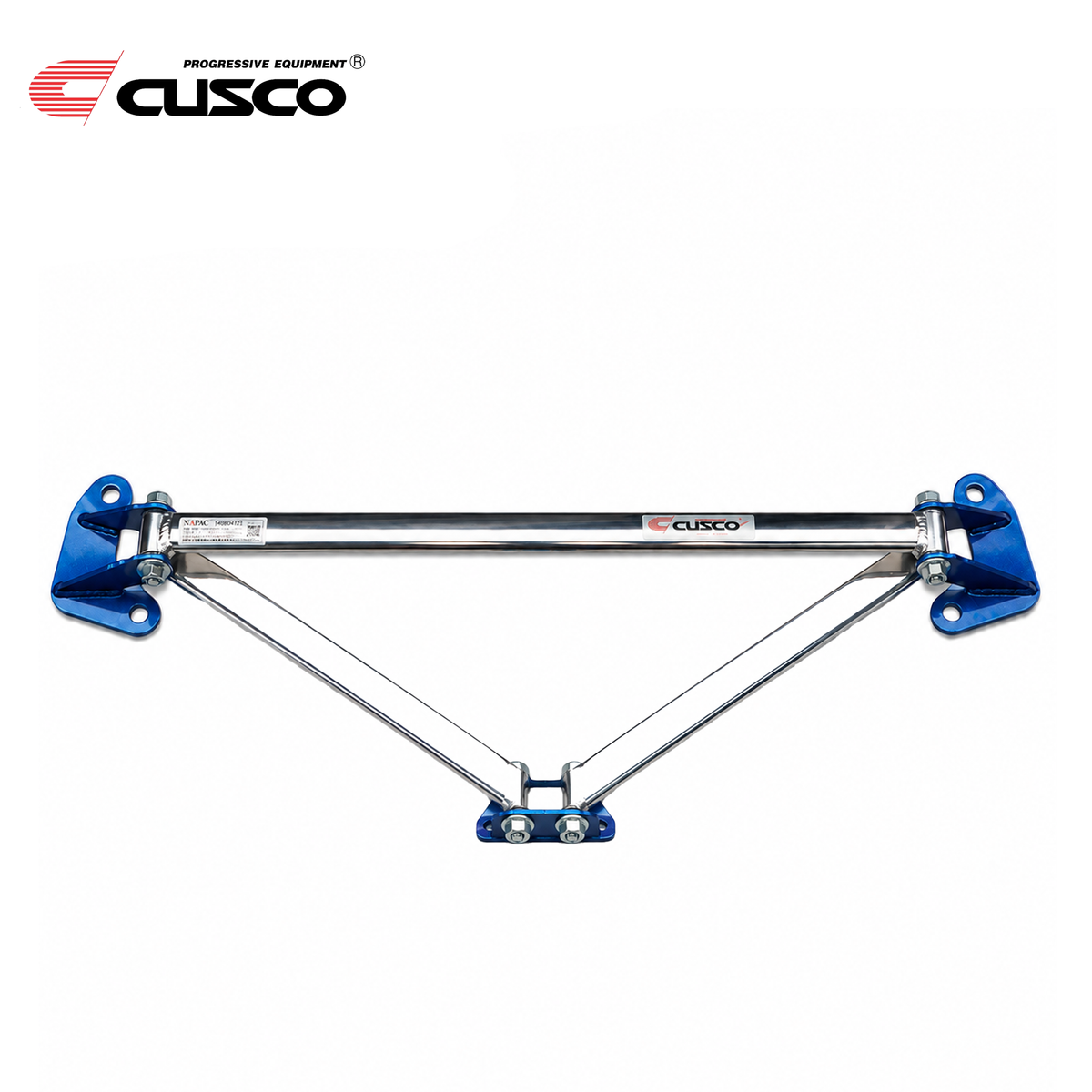

3-Point Rear Strut Bar Kit

• (1) CUSCO Type OS 2-point rear strut bar assembly
• (1) CUSCO Type OS-T third-point reinforcement assembly
• Adds two diagonal braces and a central floor mounting point
• Creates a complete triangulated 3-point rear chassis brace
