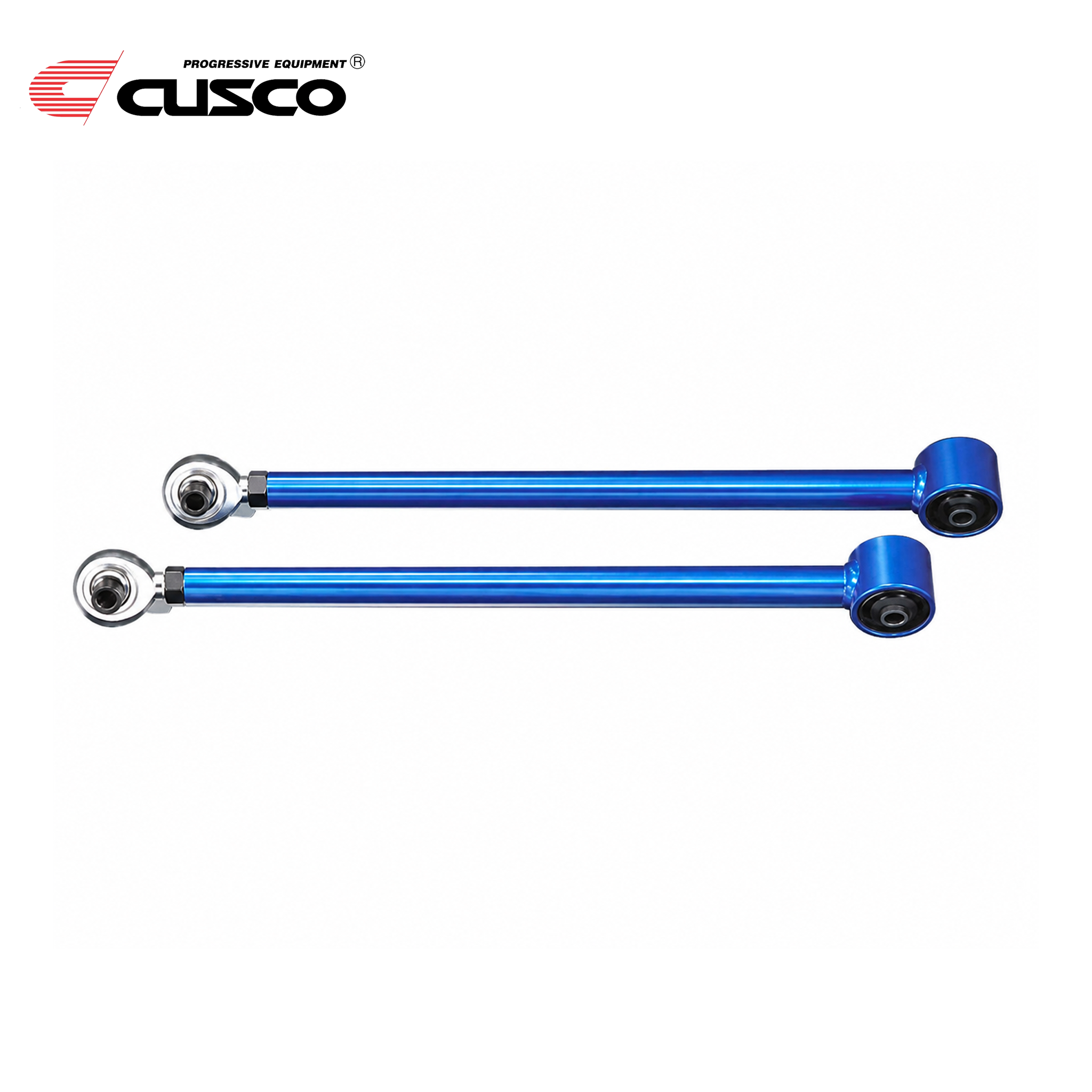

AE86 CUSCO Formula Link Jr. Adjustable Rear Lower Control Arm Set product image
AE86 CUSCO Formula Link Jr. Adjustable Rear Lower Control Arm Set product image
CUSCO

AE86 CUSCO Formula Link Jr. Adjustable Rear Lower Control Arm Set (1983-87 Corolla)

SKU: 769
$513.00
Fitment support available
Estimate shipping before checkout

CUSCO Formula Link Jr. Adjustable Rear Lower Control Arm Set

For 1983–1987 Toyota Corolla AE86 Trueno / Levin, 1985–1987 U.S.-Market Corolla Sport AE86 (GT-S), and 1984–1987 U.S.-Market Corolla Sport AE86 (SR5)

Overview

The CUSCO Formula Link Jr. Adjustable Rear Lower Control Arm Set replaces the factory lower links in the Toyota AE86 rear 4-link suspension with adjustable steel arms. The +7 mm to -5 mm adjustment range allows rear lower-link length to be fine-tuned for modified suspension setups and performance-oriented AE86 builds.

Each arm uses CUSCO's hybrid Formula Link Jr. configuration, combining a metal rod-end pillowball at one end with a hard-rubber bushing at the opposite end. This provides a more direct suspension connection at the pillowball side while retaining a rubber-bushed mounting point at the other end.

The set installs as a direct bolt-on replacement for the factory rear lower control arms and includes both left- and right-side links.

Key Features

  • Adjustable rear lower control arm set for Toyota AE86
  • +7 mm to -5 mm length adjustment range
  • Metal rod-end pillowball at one end
  • Hard-rubber bushing at the opposite end
  • Steel control arm construction
  • Designed for the AE86 solid-axle rear 4-link suspension
  • Direct OE-replacement bolt-on design
  • Supplied as a matched pair
  • Suitable for fine-tuning rear lower-link length in adjustable suspension setups

Formula Link Jr. Hybrid Joint Design

Formula Link Jr. combines two different joint styles within each control arm. The metal rod-end pillowball reduces movement at one mounting point, while the hard-rubber bushing at the opposite end retains a rubber-isolated connection.

This configuration provides an intermediate option between CUSCO's fixed rubber-bushed rear links and full Formula Link arms that use metal rod-end pillowballs at both ends.

Vehicle Fitment

Toyota Sprinter Trueno

  • 1983–1987 Toyota Corolla AE86 – Trueno (JDM)

Toyota Corolla Levin

  • 1983–1987 Toyota Corolla AE86 – Levin (JDM)

Toyota Corolla Sport GT-S

  • 1985–1987 Toyota Corolla Sport AE86 – GT-S (U.S.-Market)

Toyota Corolla Sport SR5

  • 1984–1987 Toyota Corolla Sport AE86 – SR5 (U.S.-Market)

Fitment Notes

  • Rear lower suspension application
  • Installs in the lower position of the factory rear 4-link suspension
  • Direct OE-replacement bolt-on design
  • Adjustment range: +7 mm to -5 mm
  • Rear axle position and suspension geometry should be checked after changing control-arm length

Product Specifications

Brand: CUSCO
Series: Formula Link Jr.
Product Type: Adjustable Rear Lower Control Arm Set
Position: Rear Lower
Suspension Application: Rear 4-Link
Adjustment Range: +7 mm to -5 mm
Joint Design: Metal Rod-End Pillowball / Hard-Rubber Bushing
Material: Steel
Fit Type: Vehicle Specific / Direct Fit
Quantity: Pair

CUSCO AE86 Rear Control Arm Comparison

CUSCO offers three rear four-link control-arm series for the Toyota AE86, ranging from fixed hard-rubber-bushed links to fully adjustable pillowball-equipped arms. All three are steel, vehicle-specific replacements designed for the AE86 solid-rear-axle four-link suspension and are available in matching rear upper and rear lower configurations.

Feature Formula Link Formula Link Jr. N1 Link
Rear Upper Available Yes Yes Yes
Rear Lower Available Yes Yes Yes
Length Design Adjustable Adjustable Fixed
Adjustment Range +20 mm to -10 mm +7 mm to -5 mm Fixed length
Joint Design Pillowball rod ends at both ends Pillowball rod end at one end / hard-rubber bushing at the other Hard-rubber bushings at both ends
Rubber-Bushed Connections None One per arm Both ends
Suspension Compliance Lowest Moderate Highest of the three
Adjustment Capability Widest range Moderate fine adjustment None
Suspension Response Most direct More direct while retaining some isolation More compliant, rubber-isolated response
Road / Drivetrain Vibration Transfer Highest of the three Moderate Lowest of the three
Primary Purpose Maximum rear four-link adjustability and precise geometry setup Adjustable performance setup with some retained bushing compliance Fixed-length replacement with hard-rubber bushings
Upper-Link Function Extensive upper-link and pinion-angle adjustment Moderate upper-link and pinion-angle adjustment Maintains fixed upper-link geometry
Lower-Link Function Extensive lower-link length and rear suspension geometry adjustment Moderate lower-link length adjustment Maintains fixed lower-link geometry
Construction Steel Steel Steel
Quantity per Set Pair Pair Pair
Fitment AE86 JDM Levin / Trueno; USDM GT-S & SR5 AE86 JDM Levin / Trueno; USDM GT-S & SR5 AE86 JDM Levin / Trueno; USDM GT-S & SR5

Series Overview

Formula Link is the fully adjustable option. Pillowball rod ends at both ends eliminate rubber-bushing compliance and provide the widest adjustment range of the three series.

Formula Link Jr. combines one pillowball rod end with one hard-rubber bushing in each arm, providing adjustable link length while retaining some isolation at one mounting point.

N1 Link uses hard-rubber bushings at both ends and a fixed link length. It retains more isolation than either adjustable series and does not require suspension-link length adjustment.

Supporting Suspension Components

AE86 Suspension & Steering Parts — Browse additional suspension and steering components for 1983–1987 Toyota Corolla AE86 applications.

What's Included

  • (2) CUSCO Formula Link Jr. adjustable rear lower control arms
