AE86 CUSCO D1 8-Point Chromoly Roll Cage | LHD (Corolla 1983-87)

CUSCO D1 8-Point Chromoly Roll Cage – LHD

For 1984–1987 Toyota Corolla Sport SR5 & 1985–1987 Toyota Corolla Sport GT-S AE86 – USDM – LHD – Non-Sunroof

Overview

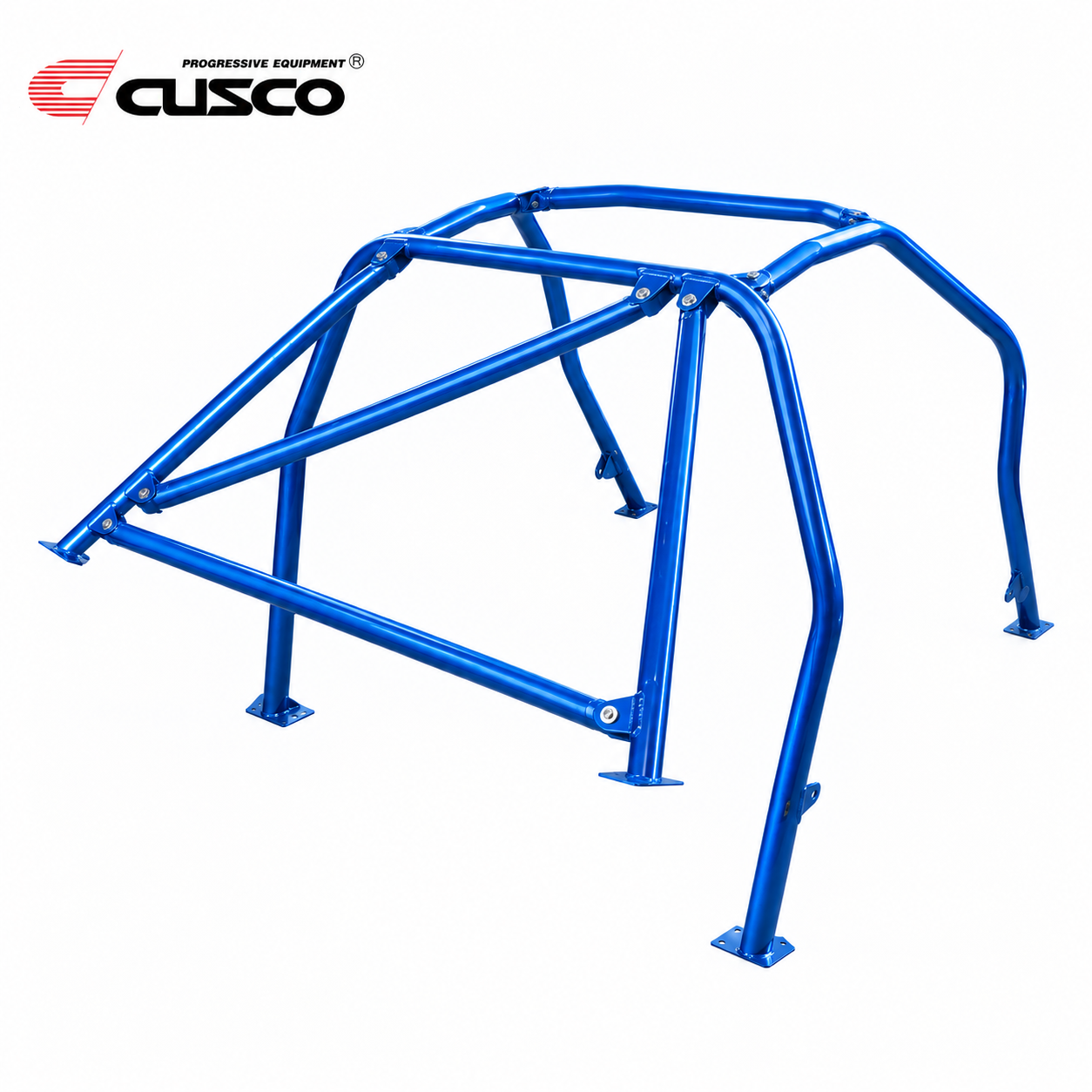

The CUSCO D1 8-Point Chromoly Roll Cage is a vehicle-specific chassis and safety upgrade for left-hand-drive Toyota Corolla Sport SR5 and GT-S AE86 models. This configuration is designed specifically for non-sunroof LHD cars and uses an 8-point, 2-passenger layout for performance-oriented street, drift, circuit, and motorsport builds.

The front section uses an around-dashboard / dash-escape design, routing the cage around the dashboard rather than through it. Straight rear side bars complete the 2-passenger layout, providing a more extensive chassis structure than CUSCO's lower-point cage configurations.

CUSCO's D1 construction uses 40 mm OD chromoly tubing with a 1.6 mm wall thickness and a Blue Metallic finish. The chromoly design is approximately 33% lighter than a comparable steel CUSCO roll cage, reducing unnecessary weight while increasing structural reinforcement.

Key Features

• 8-point CUSCO D1 roll cage configuration
• Left-hand-drive AE86 application
• Non-sunroof models only
• 2-passenger layout with straight rear side bars
• Around-dashboard / dash-escape front design
• 40 mm OD chromoly tubing
• 1.6 mm tubing wall thickness
• CUSCO Blue Metallic finish
• Approximately 33% lighter than comparable steel CUSCO roll cage construction


D1 Chromoly Construction

The D1 series uses chromoly tubing rather than the heavier carbon-steel tubing used in CUSCO's Safety21 line. The 40 mm OD, 1.6 mm-wall chromoly construction reduces weight while maintaining the rigidity required from a multi-point chassis reinforcement system.

The 8-point layout provides additional structural connections compared with 6-point and 7-point configurations, making it particularly suitable for AE86 builds where increased chassis rigidity and a comprehensive interior cage structure are priorities.

The dash-escape front layout also avoids routing the main front cage tubes directly through the dashboard, simplifying the dashboard relationship compared with a dash-through competition-style configuration.

Vehicle Fitment

Toyota Corolla Sport SR5

• 1984–1987 Toyota Corolla Sport SR5 – Corolla – AE86 – USDM – LHD – Non-Sunroof
• 2-door coupe and 3-door liftback / hatchback configurations

Toyota Corolla Sport GT-S

• 1985–1987 Toyota Corolla Sport GT-S – Corolla – AE86 – USDM – LHD – Non-Sunroof
• 2-door coupe and 3-door liftback / hatchback configurations

Fitment Notes

• Left-hand-drive models only
• Non-sunroof models only
• Designed for 2-door coupe and 3-door liftback / hatchback AE86 body styles
• 2-passenger cage configuration
• Rear passenger seating is not retained with the 2-passenger cage layout
• Around-dashboard / dash-escape front cage design
• Not the correct application for factory RHD JDM Corolla Levin or Sprinter Trueno models
• Installation may require drilling and modification of interior trim or related interior components
• Professional installation is recommended
• Competition and sanctioning-body roll-cage requirements vary; confirm the applicable regulations before motorsport use

Product Specifications

Brand: CUSCO
Series: D1
Product Type: Roll Cage / Roll Bar
Configuration: 8-Point
Passenger Configuration: 2-Passenger
Front Design: Around Dashboard / Dash Escape
Rear Bar Design: Straight Rear Side Bars
Material: Chromoly Steel
Tubing Diameter: 40 mm OD
Wall Thickness: 1.6 mm
Color: CUSCO Blue Metallic
Steering Configuration: Left-Hand Drive
Roof Configuration: Non-Sunroof
Vehicle Chassis: AE86
Fit Type: Vehicle Specific

What's Included

• (1) CUSCO D1 8-point chromoly roll cage kit
