AE86 CUSCO D1 6-Point Chromoly Roll Cage (1983-87 Corolla)

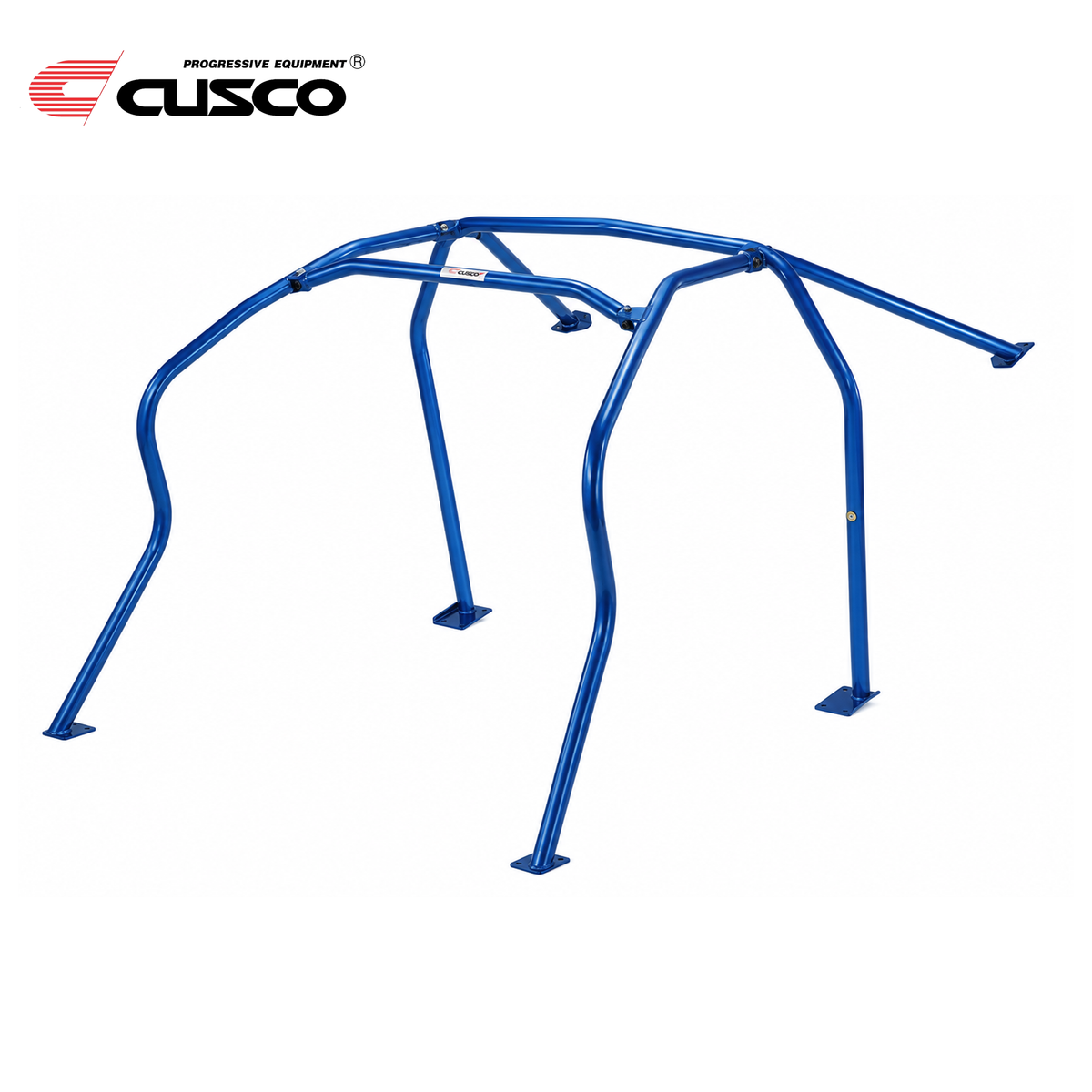

CUSCO D1 6-Point Chromoly Roll Cage

For 1983–1987 Toyota Corolla AE86 – LHD & RHD – Sunroof & Non-Sunroof

Overview

The CUSCO D1 6-Point Chromoly Roll Cage is a vehicle-specific chassis reinforcement system for the Toyota AE86, available in configurations for left-hand-drive and right-hand-drive cars with either sunroof or non-sunroof roofs.

The D1 cage uses 40 mm OD chromoly tubing with a 1.6 mm wall thickness and CUSCO's blue metallic finish. Its chromoly construction is approximately 33% lighter than comparable CUSCO steel roll-cage construction, providing increased chassis rigidity while minimizing additional weight.

This 6-point configuration uses an around-dashboard / dash-escape front layout with curved rear side bars designed around retaining the rear seating area. Select the correct Steering Orientation and Roof Type for your vehicle when ordering.

Key Features

• CUSCO D1 6-point chromoly roll cage
• 40 mm OD x 1.6 mm wall chromoly tubing
• Approximately 33% lighter than comparable CUSCO steel cage construction
• Available for LHD and RHD AE86 models
• Available for sunroof and non-sunroof models
• Around-dashboard / dash-escape front bar design
• Curved rear side-bar configuration
• Designed around retaining the rear seating area
• Vehicle-specific AE86 construction
• CUSCO blue metallic finish

4/5-Passenger Regulation-Capacity Design

This D1 configuration uses curved rear side bars rather than the straight rear side bars found on CUSCO's more competition-focused 2-passenger configurations.

The layout is designed around retaining the rear seating area while incorporating front cage bars that route around the dashboard. CUSCO categorizes this configuration as a 4/5-passenger, 6-point, dash-escape design depending on market and vehicle specification.

Vehicle Fitment

Toyota Corolla AE86

• 1983–1987 Toyota Corolla AE86 – LHD – Non-Sunroof – 2-Door / 3-Door
• 1983–1987 Toyota Corolla AE86 – LHD – Sunroof – 2-Door / 3-Door
• 1983–1987 Toyota Corolla AE86 – RHD – Non-Sunroof – 2-Door / 3-Door
• 1983–1987 Toyota Corolla AE86 – RHD – Sunroof – 2-Door / 3-Door

Fitment Notes

• Select LHD (Left-Hand Drive) or RHD (Right-Hand Drive) to match the vehicle
• Select Sunroof or Non-Sunroof to match the roof configuration
• Fits applicable 2-door coupe and 3-door hatchback / liftback AE86 body styles
• LHD and RHD versions use different vehicle-specific cage configurations
• Sunroof and non-sunroof versions use different cage configurations
• Around-dashboard / dash-escape front cage design
• Curved rear side bars are designed around retaining the rear seating area
• Vehicle-specific installation requires drilling and proper mounting
• Professional installation is recommended
• Confirm applicable motorsport and local regulations before use
• CUSCO designates its competition products for off-road and competition use

Product Specifications

Brand: CUSCO
Series: D1
Product Type: Roll Cage / Roll Bar
Configuration: 6-Point
Material: Chromoly Steel
Tubing Diameter: 40 mm OD
Tubing Wall Thickness: 1.6 mm
Finish: CUSCO Blue Metallic
Passenger Configuration: 4/5 Passenger
Rear Side-Bar Design: Curved
Front Arch Design: Around Dashboard / Dash Escape
Roof Configurations: Sunroof or Non-Sunroof
Steering Configurations: Left-Hand Drive or Right-Hand Drive
Body Styles: 2-Door Coupe & 3-Door Hatchback / Liftback
Chassis: AE86
Fit Type: Vehicle-Specific

Available Configurations

Steering Orientation

• LHD (Left-Hand Drive)
• RHD (Right-Hand Drive)

Roof Type

• Sunroof
• Non-Sunroof

Each configuration includes:

• (1) CUSCO D1 6-Point Chromoly Roll Cage Kit
