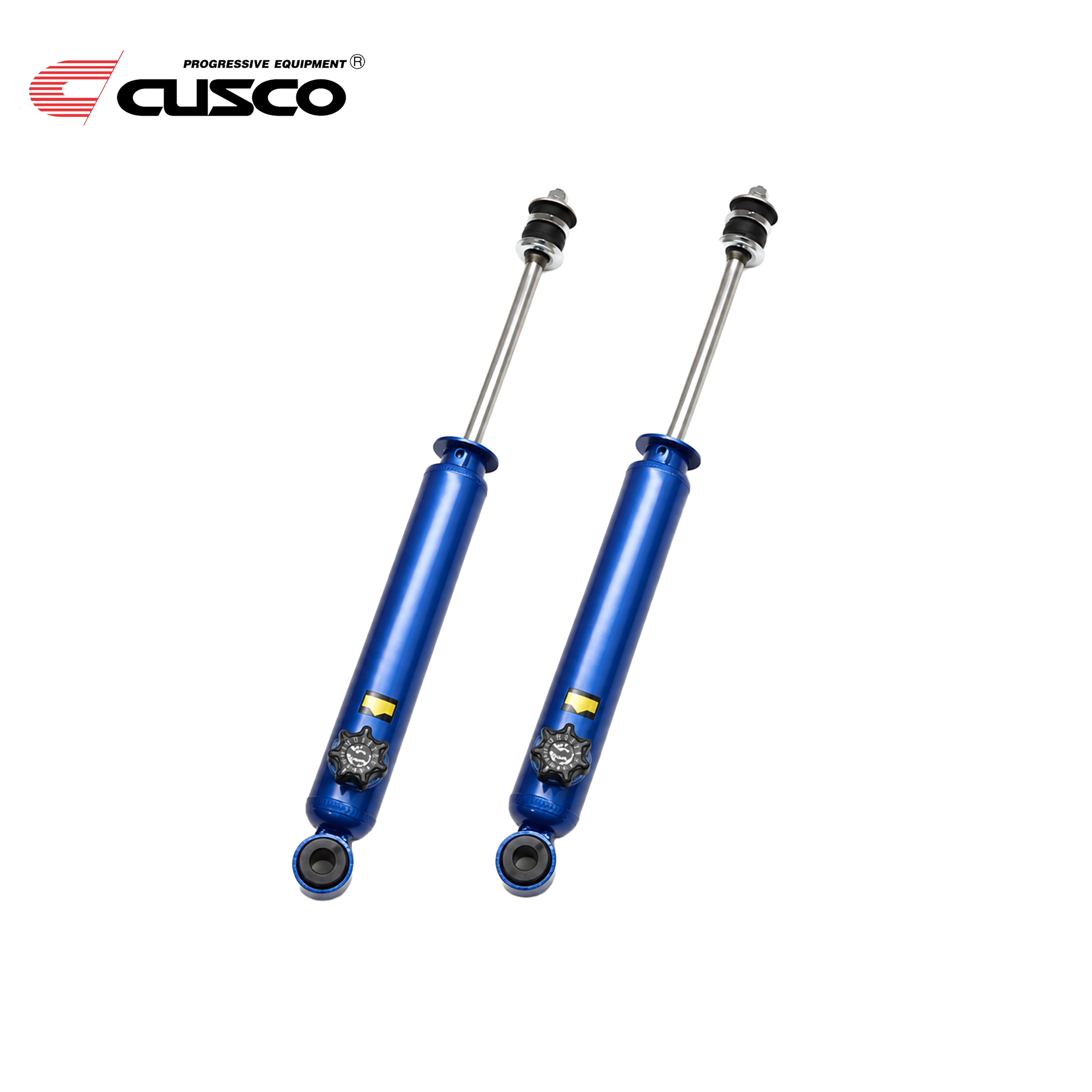

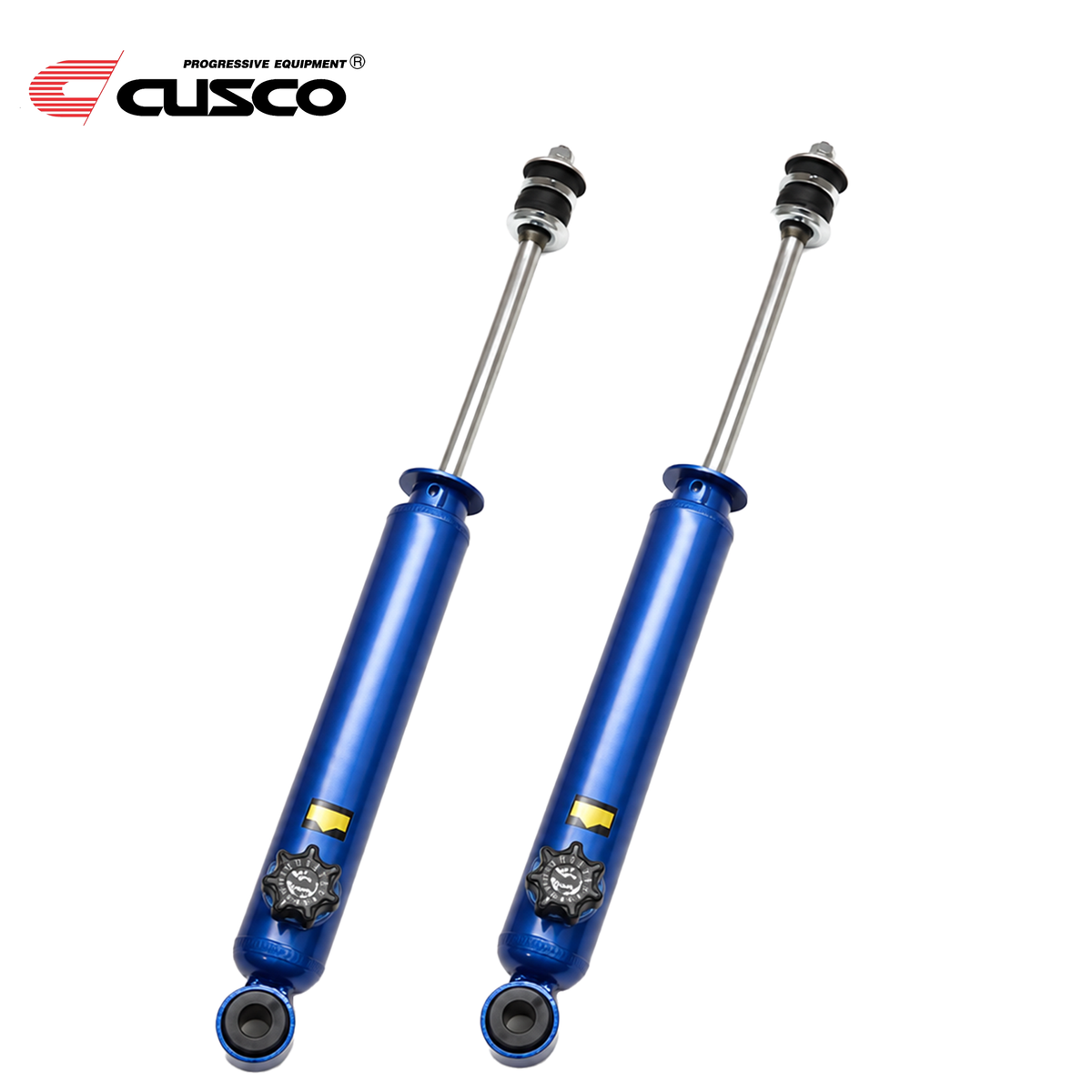

CUSCO 14-Way Adjustable Twin-Tube Rear Shock Absorber Set
For 1983–1987 Toyota Corolla Levin / Sprinter Trueno AE86, 1984–1987 Toyota Corolla Sport SR5 AE86 & 1985–1987 Toyota Corolla Sport GT-S AE86
Overview
The CUSCO 14-Way Adjustable Twin-Tube Rear Shock Absorber Set is a vehicle-specific rear suspension upgrade for Toyota AE86 rear-wheel-drive Corolla applications. The set replaces the rear shock absorbers with a bolt-on twin-tube design featuring 14-position damping force adjustment.
The adjustable damping allows the rear suspension response to be fine-tuned for street driving, spirited driving, or a modified suspension setup. Both rear shocks are included along with the required mounting bushings, providing a complete left-and-right rear damper set.
Key Features
- 14-way adjustable rear damping
- Twin-tube shock absorber construction
- Vehicle-specific AE85 / AE86 rear design
- Bolt-on, direct OE replacement-style installation
- Allows rear damper response to be tuned for different driving and suspension setups
- Left and right rear shock absorbers supplied as a pair
- Mounting bushings included
- Designed for rear-wheel-drive Toyota Corolla Levin, Sprinter Trueno, SR5, and GT-S applications
14-Way Damping Adjustment
The 14-position adjustment provides a broad range of rear damper settings without replacing the shock absorbers. At the 8th adjustment position, damping force is rated at 1,630 N extension / 840 N compression at 0.3 m/s.
Maximum shock length is 450 mm, while minimum compressed length is 300 mm.
The adjustment controls damping force rather than vehicle ride height, making these shocks well suited to AE86 owners who want to fine-tune rear suspension behavior while retaining the vehicle's separate rear spring and shock layout.
Vehicle Fitment
Toyota Corolla Levin
- 1983–1987 Toyota Corolla Levin – AE86
Toyota Sprinter Trueno
- 1983–1987 Toyota Sprinter Trueno – AE86
Toyota Corolla Sport SR5
- 1984–1987 Toyota Corolla Sport SR5 – AE86
Toyota Corolla Sport GT-S
- 1985–1987 Toyota Corolla Sport GT-S – AE86
Fitment Notes
- Rear application only
- Vehicle-specific bolt-on shock absorber design
- Damping force is adjustable through 14 positions
- Damping adjustment does not provide ride-height adjustment
- Rear springs and front suspension components are not included
- Mounting bushings are included
Product Specifications
Brand: CUSCO
Product Type: Adjustable Rear Shock Absorber Set
Position: Rear
Damper Design: Twin-Tube
Damping Adjustment: 14-Way
Maximum Length: 450 mm
Minimum Length: 300 mm
Damping Force: 1,630 N Extension / 840 N Compression at 0.3 m/s, 8th Setting
Fit Type: Vehicle-Specific / Direct OE Replacement
Installation: Bolt-On
What's Included
- (2) CUSCO adjustable rear shock absorbers
- Rear shock mounting bushings
