CSF 3-Row All-Metal Radiator (1979-83 Pickup)

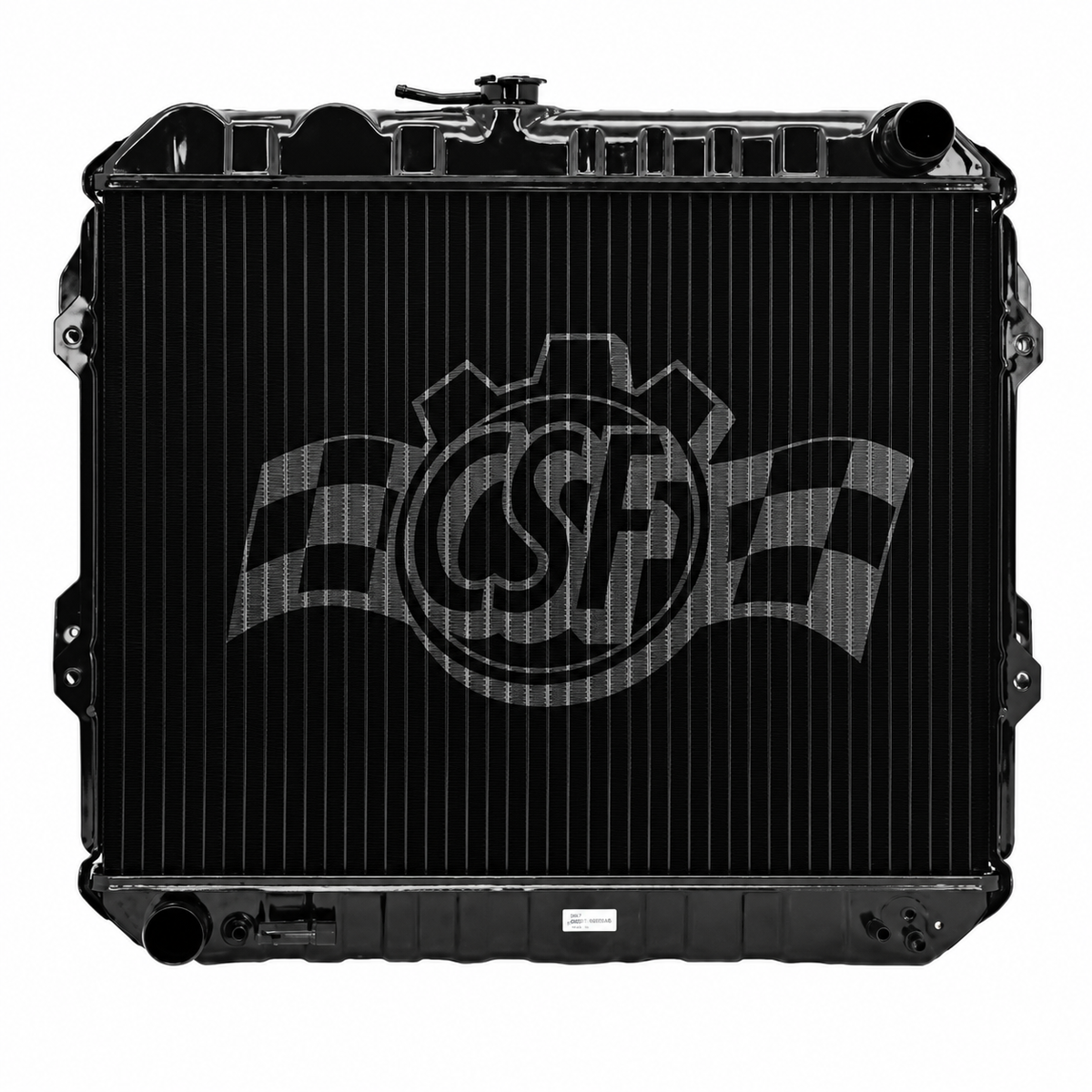

CSF Heavy-Duty 3-Row All-Metal Radiator

For 1979–1983 1st Gen Toyota Pickup 2WD & 4WD

Overview

The CSF Heavy-Duty 3-Row All-Metal Radiator is an upgraded cooling solution for 1979–1983 1st Gen Toyota Pickup 2WD and 4WD models equipped with the 2.2L 20R or 2.4L 22R engine.

Built with a three-row copper core and brass tanks, this radiator provides durable, serviceable all-metal construction with additional cooling capacity over common factory-style 2-row and light-duty replacement radiators. The three-row design is commonly referred to by enthusiasts as a 3-core radiator.

This radiator should be considered a heavy-duty cooling upgrade rather than a stock-style replacement. Preserve Rad recommends stepping up to a quality 3-row radiator when replacing an aging radiator on these classic Toyota Pickups whenever the correct configuration is available. Because of the thicker core and differences between original, replacement, and previously modified cooling systems, minor fan-shroud, mounting, or clearance modifications may be required during installation.

Key Features

• Heavy-duty 3-row copper radiator core

• Commonly referred to as a 3-core radiator upgrade

• Upgrade over common factory-style 2-row and light-duty replacement radiators

• Copper core with brass tanks

• Fully all-metal construction

• Fits both 2WD and 4WD 1st Gen Toyota Pickups

• Integrated automatic-transmission cooler

• Downflow radiator design

• Serviceable copper/brass construction

• Designed for increased cooling reserve under demanding operating conditions

Heavy-Duty 3-Row Upgrade

Many early Toyota trucks use relatively thin factory-style or replacement radiators that are adequate for a properly functioning stock cooling system. This CSF radiator uses a three-row copper core to provide additional coolant-tube surface area and cooling reserve.

The additional capacity can be particularly beneficial for trucks operating in:

• Hot climates

• Slow-speed off-road conditions

• Towing or hauling situations

• Extended idling

• Increased vehicle weight

• Modified or restored applications

• Other conditions that place additional demand on the cooling system

A 3-row radiator is commonly referred to as a 3-core radiator, although 3-row is the technically correct radiator terminology.

For owners already replacing an aging radiator, Preserve Rad recommends upgrading to the heavy-duty 3-row configuration rather than installing another basic light-duty replacement when the correct application is available.

Heavy-Duty Upgrade vs. Stock-Style Replacement

This radiator is not intended to simply duplicate the dimensions and construction of every original factory radiator. Its thicker three-row core is designed as a heavy-duty upgrade.

Because of the increased core thickness, installation clearances can differ from a stock-style radiator. Depending on the fan shroud, mounting hardware, and cooling-system components currently installed on the truck, installation may require:

• Minor fan-shroud trimming or clearance adjustment

• Different fan-shroud hardware

• Minor mounting-hole alignment adjustment

• Clearance changes around surrounding components

• Other small installation modifications

These trucks are more than four decades old, and many have already had radiators, fan shrouds, engines, or other cooling-system components replaced. Existing vehicle configuration should therefore be inspected before installation.

Material & Construction

The radiator uses a three-row copper core with single-piece brass tanks. Coated steel side channels provide structural support, while reinforced inlet and outlet connections add durability.

Copper/brass construction is particularly well suited to long-term ownership of a classic Toyota because a properly equipped radiator shop can often solder, repair, or recore the radiator rather than requiring complete replacement after minor damage.

An integrated transmission cooler supports automatic-transmission applications. Manual-transmission trucks can use the same radiator with the transmission-cooler connections left unused.

Vehicle Fitment

Toyota Pickup

• 1979–1980 Toyota Pickup – 1st Gen – 2WD – 2.2L 20R

• 1979–1980 Toyota Pickup – 1st Gen – 4WD – 2.2L 20R

• 1981–1983 Toyota Pickup – 1st Gen – 2WD – 2.4L 22R

• 1981–1983 Toyota Pickup – 1st Gen – 4WD – 2.4L 22R

Fitment Notes

• Fits both 2WD and 4WD models

• 1979–1980 applications use the 2.2L 20R

• 1981–1983 applications use the 2.4L 22R

• Automatic-transmission models can use the integrated transmission cooler

• Manual-transmission models leave the transmission-cooler connections unused

• This is a heavy-duty 3-row upgrade rather than a stock-style replacement radiator

• The thicker radiator core can affect fan-shroud and surrounding-component clearance

• Fan-shroud trimming, different mounting hardware, hole-alignment adjustment, or other minor modifications may be required

• Previously replaced radiators or fan shrouds may differ from the original factory configuration

• Inspect existing cooling-system components and clearances before installation

• Radiator cap is not included

Product Specifications

Brand: CSF
Product Type: Heavy-Duty Engine Radiator
Construction: All-Metal
Core Material: Copper
Tank Material: Brass
Core Design: 3-Row
Radiator Design: Downflow
Core Height: 15 3/4 in.
Core Width: 20 13/16 in.
Core Thickness: 1 11/16 in.
Top Hose Fitting: 1 3/8 in. – Right
Bottom Hose Fitting: 1 3/8 in. – Left
Transmission Cooler: Integrated 14 3/4 in.
Drivetrain: 2WD & 4WD
Radiator Cap: Not Included
Fit: Vehicle-Specific Heavy-Duty Upgrade
Installation: Minor fan-shroud, mounting, or clearance modification may be required

What's Included

• (1) CSF Heavy-Duty 3-Row All-Metal Radiator
