Cometic MLS Cylinder Head Gasket | 22R / 22RE / 22R-TE (1984-95 4Runner / 1981-95 Pickup)

Cometic MLS Cylinder Head Gasket | 22R / 22RE / 22R-TE

For 1984–1995 Toyota 4Runner and 1981–1995 Toyota Pickup applications using 22R, 22RE, or 22R-TE engines

Overview

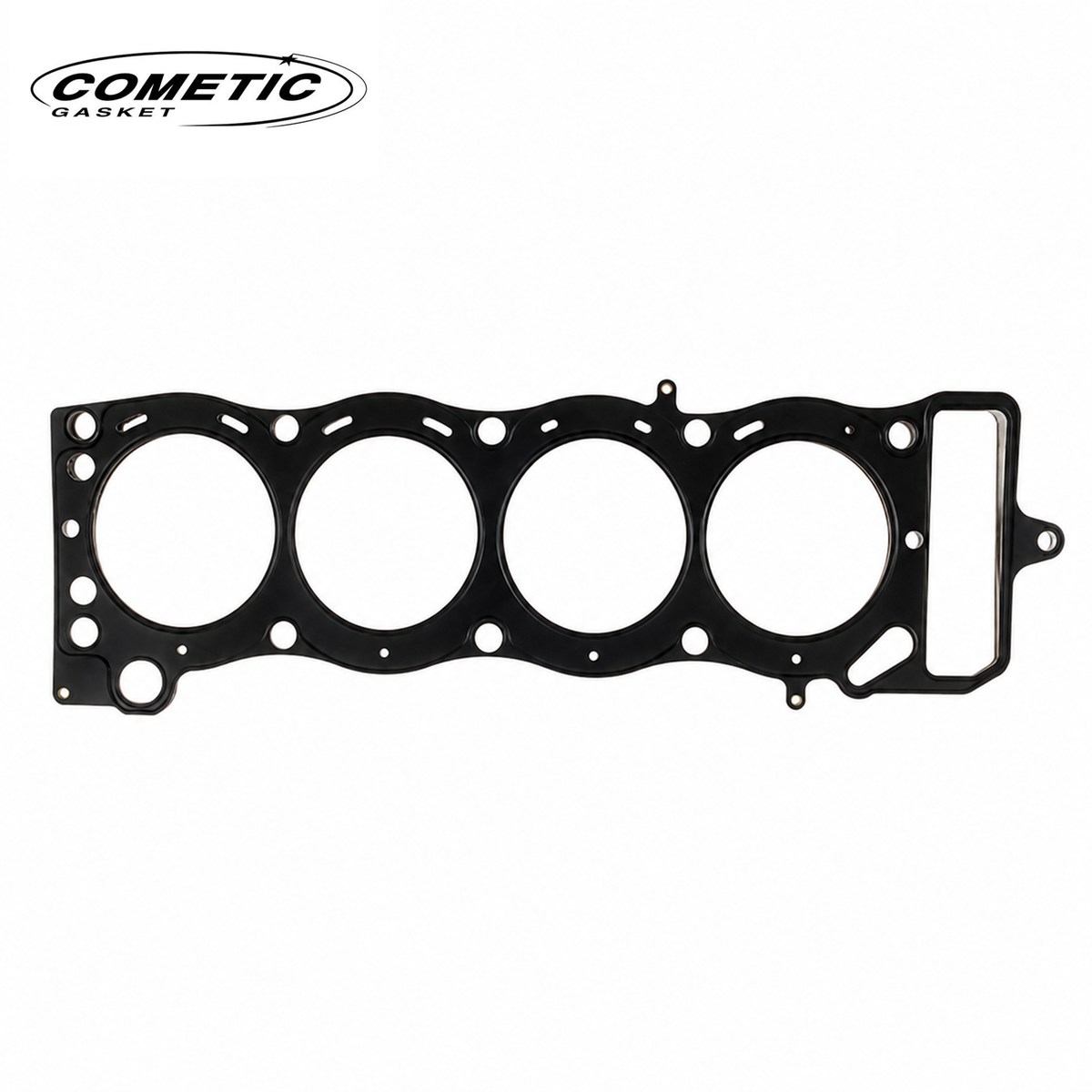

The Cometic Multi-Layer Steel cylinder head gasket is a performance-oriented sealing upgrade for Toyota 22R-series engines. The 0.040-inch gasket uses a three-layer MLS construction with embossed coated outer layers and a stainless-steel center layer to maintain combustion sealing across changing cylinder pressure and temperature.

The head gasket is offered in 93 mm and 95 mm gasket-bore selections. Final selection should be based on the engine's measured finished bore and build configuration rather than vehicle model year alone.

Key Features

• Three-layer Multi-Layer Steel construction
• Embossed coated outer layers with stainless-steel center layer
• 0.040-inch compressed thickness
• 93 mm and 95 mm gasket-bore selections
• Round cylinder-bore openings
• Suitable for naturally aspirated and turbocharged 22R-series engine builds
• Designed for properly prepared cylinder-head and block-deck sealing surfaces
• Installs clean and dry without additional gasket sealer

Installation Requirements

• Verify the actual finished cylinder bore before ordering.
• Do not select gasket bore solely from vehicle model year.
• Cylinder-head and block-deck surfaces should be flat, clean, and dry.
• 50 Ra or finer surface finish is recommended for MLS sealing.
• Do not apply copper spray or additional gasket sealer.
• Use the correct cylinder-head tightening sequence.
• Use the torque specification supplied for the installed head bolts or studs.
• Professional machining and engine assembly are recommended when deck or head surface condition is unknown.

Vehicle Fitment

Toyota 4Runner

• 1984–1989 Toyota 4Runner – 1st Gen – 22R / 22RE / 22R-TE as equipped
• 1990–1995 Toyota 4Runner – 2nd Gen – 22RE

Toyota Pickup

• 1981–1983 Toyota Pickup – 1st Gen – 22R
• 1984–1988 Toyota Pickup – 2nd Gen – 22R / 22RE / 22R-TE as equipped
• 1989–1995 Toyota Pickup – 3rd Gen – 22R / 22RE as equipped

Fitment Notes

• For 22R, 22RE, and 22R-TE engines.
• 0.040-inch compressed thickness.
• Current storefront bore selections are 93 mm and 95 mm.
• Confirm piston bore, cylinder-head configuration, and required gasket thickness before final engine assembly.
• The gasket bore must provide appropriate clearance for the finished cylinder bore.
• MLS installation requires properly prepared sealing surfaces.

Product Specifications

Brand: Cometic
Product Type: Cylinder Head Gasket
Material: Multi-Layer Stainless Steel
Construction: 3-Layer MLS
Compressed Thickness: 0.040 in
Bore Selections: 93 mm / 95 mm
Bore Shape: Round
Engines: 22R / 22RE / 22R-TE
Installation: Dry / No Additional Sealant

Available Configurations

1981–1984 Early 22R

• 93 mm storefront bore selection
• 95 mm storefront bore selection

1985–1995 Late 22R / 22RE / 22R-TE

• 93 mm storefront bore selection
• 95 mm storefront bore selection

Measure and verify the finished engine bore before ordering; the model-year group should not be used as the sole gasket-selection criterion.
