Carlson

Front Caliper Bolt Kit (1985-89 MR2 / 1987-91 Corolla)

SKU: 1683
$8.95
Quantity
Fitment support available
Estimate shipping before checkout

Front Caliper Bolt Kit

For 1985–1989 Toyota MR2 AW11 and 1987–1991 Toyota Corolla AE92 coupe equipped with original front calipers.

Overview

This Carlson kit supplies the two different-length installation bolts for one front brake caliper. It provides a focused hardware replacement when the caliper, torque plate, sliding bushings, collars, boots and threaded mounting points remain serviceable.

The bolts secure the caliper assembly; the separate hollow sliding bushings provide its sliding surfaces. This is a bolt kit, not a complete caliper-slide rebuild kit.

Key Features

  • Front left or front right: the same bolt kit serves either side.
  • Short-and-long bolt pair: two different lengths match the caliper's two mounting positions.
  • Steel construction with a corrosion-resistant coating.
  • Hex heads and metric threads.

Vehicle Fitment

Toyota MR2 — AW11 / MK1

  • 1985–1989: U.S.-Market / 4A-GE
  • 1988–1989: Supercharged (U.S.-Market) / 4A-GZE

Toyota Corolla — AE92 Coupe

  • 1988–1989: U.S.-Market SR5 coupe / 4A-F
  • 1988–1991: GT-S coupe (U.S.-Market) / 4A-GE
  • 1990–1991: U.S.-Market SR5 coupe / 4A-FE

Toyota Corolla Levin — AE92 Coupe (JDM)

  • 1987–1991: 4A-GE 16V / 4A-GZE

Toyota Sprinter Trueno — AE92 Coupe (JDM)

  • 1987–1991: 4A-GE 16V / 4A-GZE

Fitment Notes

  • Front calipers only. Does not fit Corolla AE86. Brake conversions and swapped calipers require hardware matched to the installed caliper assembly.
  • Single covers one front caliper; Pair covers both front calipers. Pair contains two complete bolt kits.
  • The AW11 sliding-bushing production change does not change this bolt pair. Bushings and collars remain specific to the caliper assembly.
  • Brake pads are separate friction components. ADVICS Ceramic Front Brake Pads are an optional companion for a front-pad replacement on the 1985–1989 MR2.

Product Specifications

Brand: Carlson
Thread Size: M9-1.25

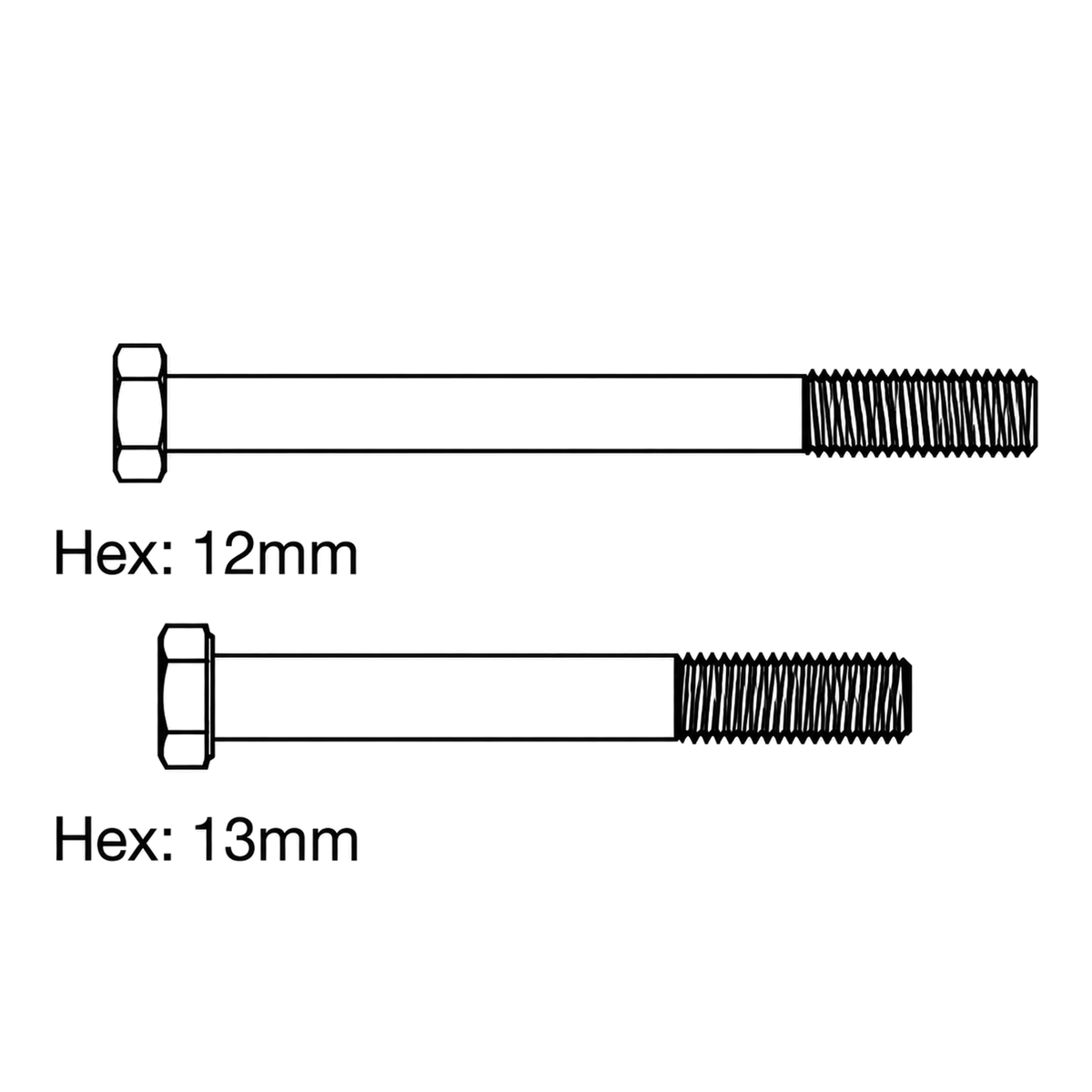

Bolt Lengths: 77.5 mm and 97.8 mm
Thread Length: 25.4 mm each
Hex-Head Sizes: 13 mm and 12 mm

Available Configurations

Single

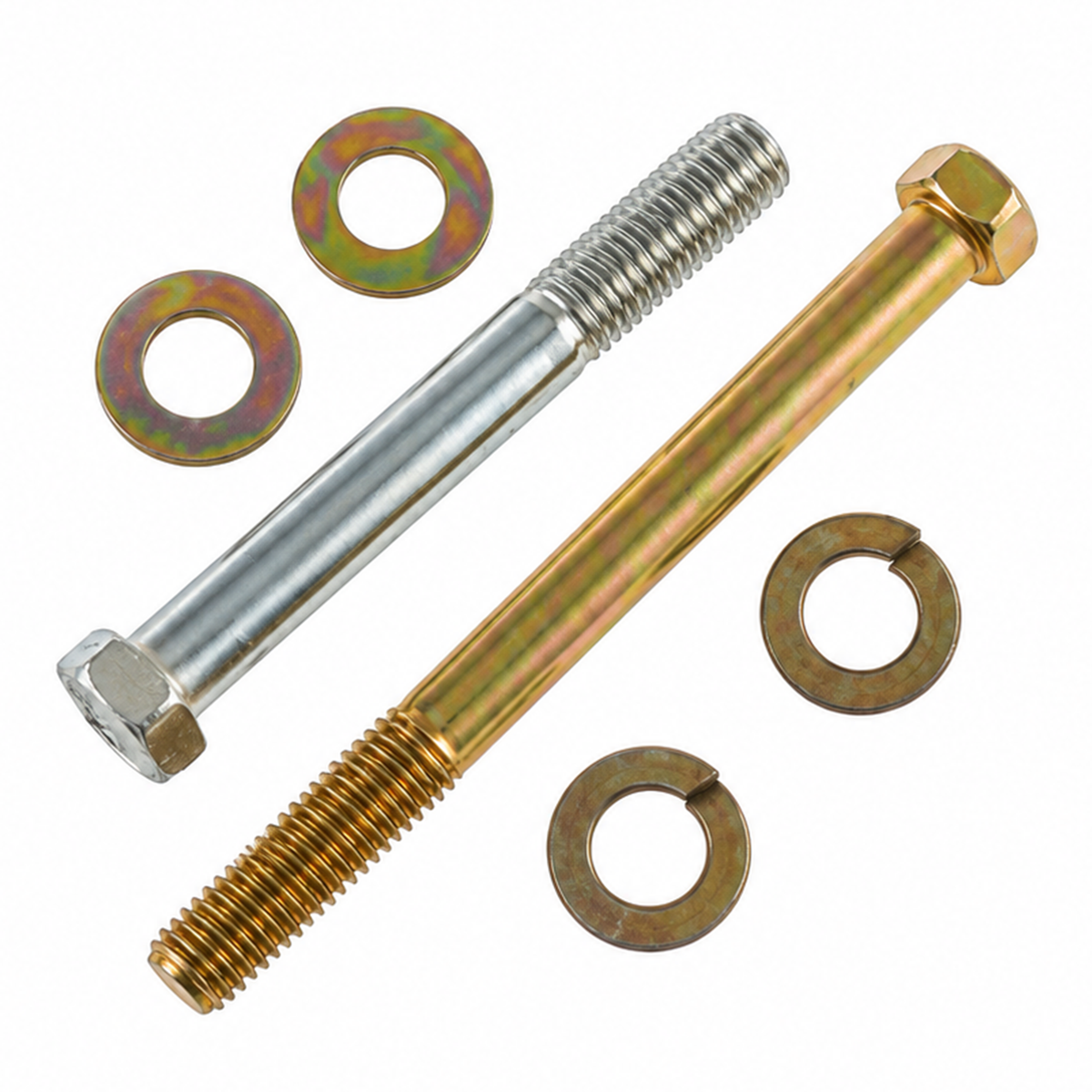

  • (1) front caliper bolt kit containing (2) steel bolts—one short and one long—and (4) washers.

Pair

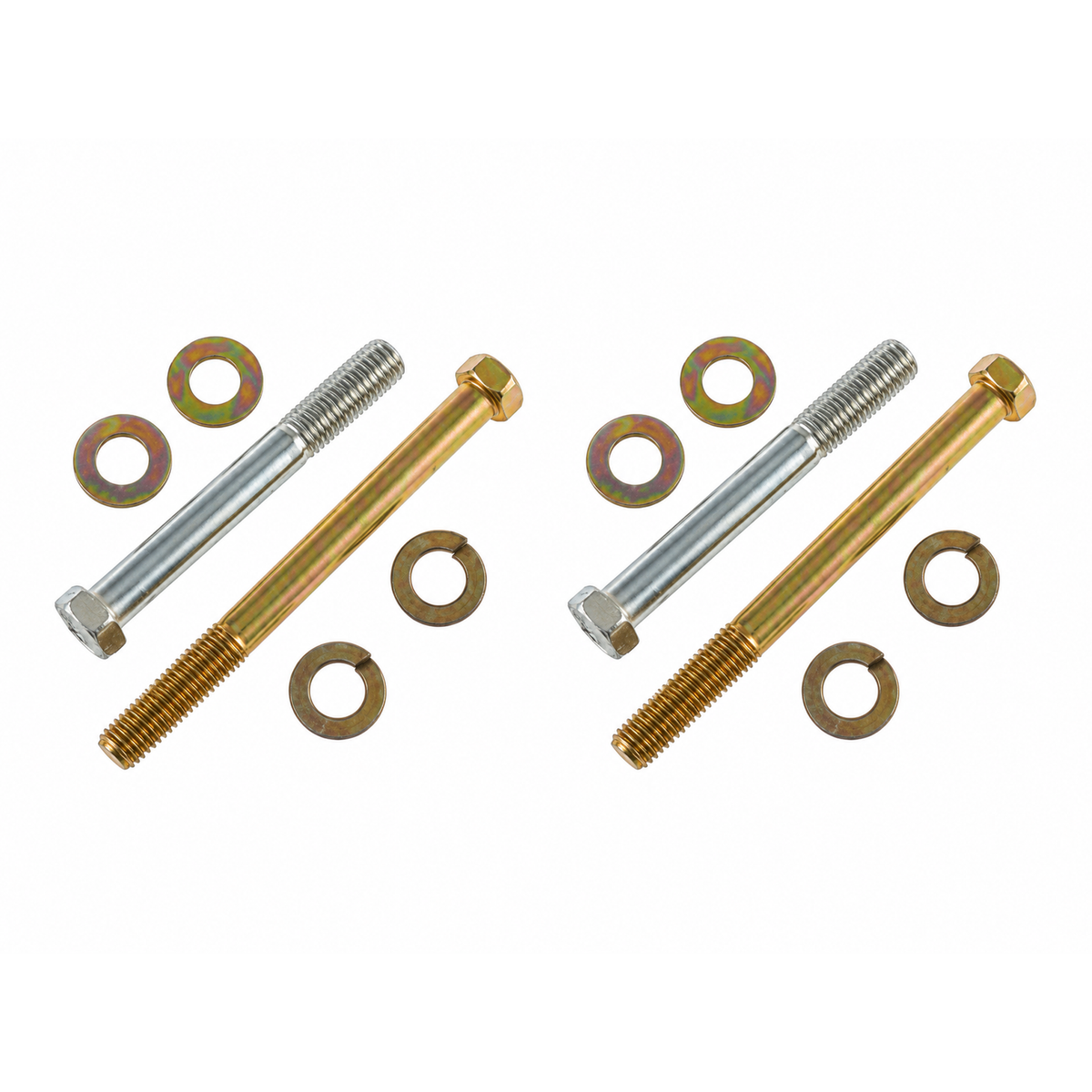

  • (2) front caliper bolt kits containing (4) steel bolts—two short and two long—and (8) washers.

Not included: sliding bushings, collars, dust boots, caliper grease, nuts, brake pads or a caliper assembly.
