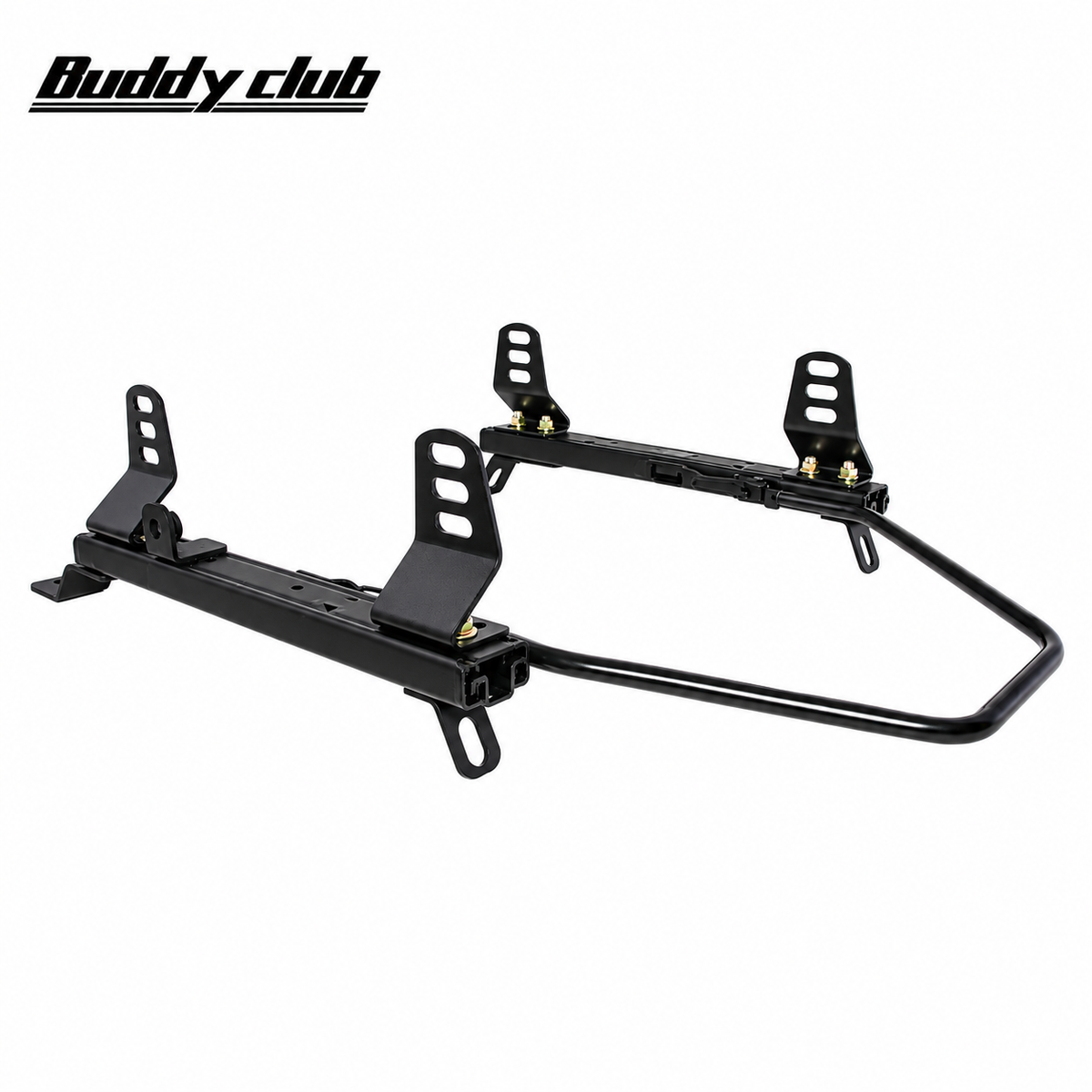

AE86 Buddy Club Racing Spec Seat Rail (1983-87 Corolla)

Buddy Club Racing Spec Seat Rail

For 1983–1987 Toyota Corolla AE86 Trueno / Levin, 1985–1987 U.S.-Market Corolla Sport AE86 (GT-S), and 1984–1987 U.S.-Market Corolla Sport AE86 (SR5)

Overview

The Buddy Club Racing Spec Seat Rail is a vehicle-specific low-position mounting system for aftermarket seats in the Toyota Corolla AE86. Its integrated rail-and-slider design keeps the seat mounting stack compact while retaining fore/aft adjustment for street and track use.

Left and Right refer to the physical side of the vehicle, so the rails can be selected correctly for both left-hand-drive and right-hand-drive AE86 applications. A Complete Set includes one Left rail and one Right rail. The rail also incorporates a seat-belt buckle mounting tab for retaining the factory buckle where compatible.

Key Features

• Vehicle-specific Toyota Corolla AE86 front seat rail
• Super-low seating position for added helmet and occupant clearance
• Integrated rail-and-slider construction
• Double-locking slider mechanism
• Three front and three rear height-adjustment positions
• Integrated factory seat-belt buckle mounting tab
• Designed primarily for aftermarket side-mount racing bucket seats
• Available for the physical Left side, Right side, or as a complete pair
• Compatible with both left-hand-drive and right-hand-drive AE86 applications

Seat Compatibility & Mounting

The Racing Spec rail is primarily designed for aftermarket side-mount racing bucket seats. Seat shell width and side-mount hole spacing must be compatible with the rail.

Bottom-mount reclining or sport seats require a compatible bottom-mount adapter solution. For U.S.-market left-hand-drive GT-S and SR5 applications using a bottom-mount seat, Preserve Rad also carries the Sparco 600 Series Complete Bottom-Mount Seat Mounting Kit as an alternative mounting system.

Vehicle Fitment

Toyota Corolla AE86

• 1983–1987 Trueno (JDM) — 4A-GE — Right-Hand Drive — Front Left / Front Right
• 1983–1987 Levin (JDM) — 4A-GE — Right-Hand Drive — Front Left / Front Right
• 1985–1987 GT-S (U.S.-Market) — 4A-GE — Manual — Left-Hand Drive — Front Left / Front Right
• 1984–1987 SR5 (U.S.-Market) — 4A-C — Automatic / Manual — Left-Hand Drive — Front Left / Front Right

Fitment Notes

• Left and Right identify the physical side of the vehicle, not driver/passenger position.
• Left rail: driver side on LHD cars; passenger side on RHD cars.
• Right rail: passenger side on LHD cars; driver side on RHD cars.
• Complete Set: includes one Left rail and one Right rail for both front seating positions.
• Primary seat application is a side-mount racing bucket seat.
• Bottom-mount reclining or sport seats require a compatible adapter solution.
• Non-Buddy Club seats require compatible shell width and side-mount hole spacing.

Product Specifications

Brand: Buddy Club
Series: Racing Spec
Product Type: Seat Rail
Vehicle: Toyota Corolla AE86
Position: Front Left / Front Right
Steering Configuration: Left-Hand Drive / Right-Hand Drive
Mounting Design: Integrated Seat Rail & Slider System
Slider Locking: Double Locking
Height Adjustment: Three Front / Three Rear Positions
Primary Seat Mount: Side Mount
Drivetrain: RWD

Available Configurations

Left

• One physical left-side Buddy Club Racing Spec seat rail
• LHD: driver-side front seating position
• RHD: passenger-side front seating position

Right

• One physical right-side Buddy Club Racing Spec seat rail
• LHD: passenger-side front seating position
• RHD: driver-side front seating position

Complete Set (Left + Right)

• One Left seat rail
• One Right seat rail
• Complete front-seat rail pair for LHD or RHD AE86 applications
