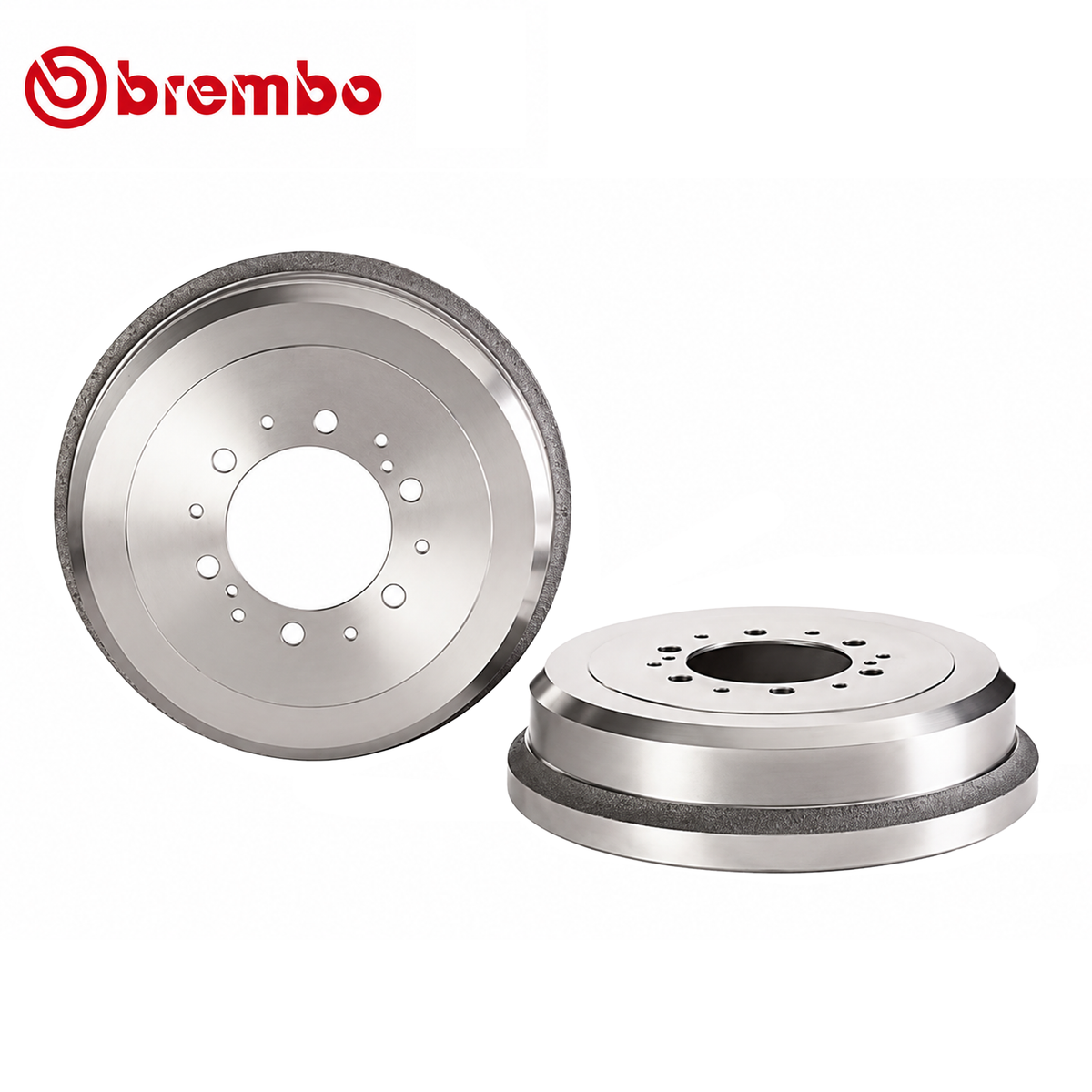

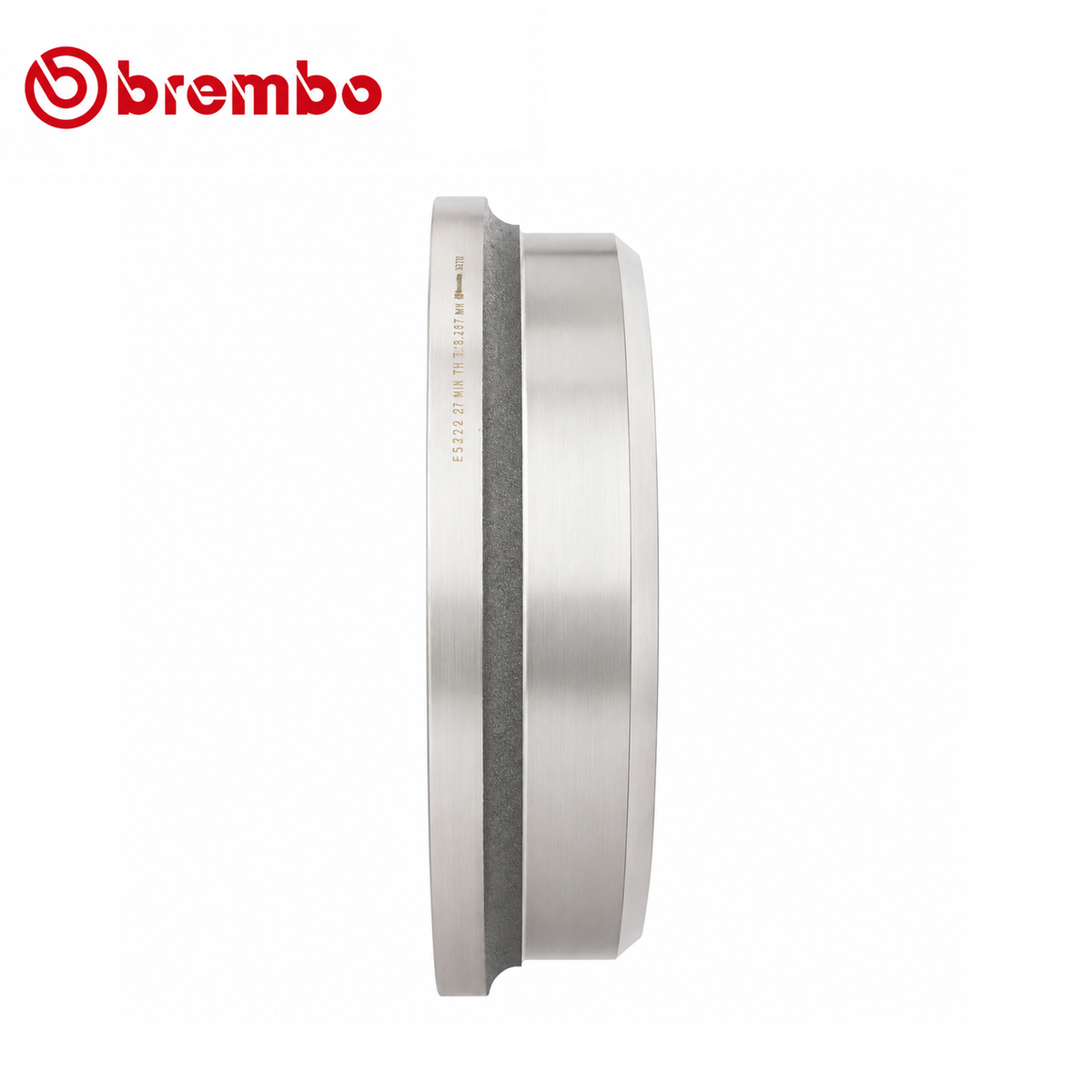

Brembo Essential OE Rear Brake Drum

For 1986–1989 Toyota 4Runner 4WD and 1990–1995 Toyota 4Runner 2WD / 4WD Rear Drum Brake Applications

Overview

The Brembo Essential OE Rear Brake Drum is an OE-equivalent replacement for the rear drum brake system used on the supported Toyota 4Runner applications below. Its cast-iron construction and factory-style dimensions are designed to maintain the original rear brake geometry and installation layout.

This drum uses a 295 mm nominal diameter, 67 mm drum width, 83 mm overall height, 106 mm centering diameter, and a six-hole mounting configuration.

Key Features

OE-equivalent rear brake drum for factory-style replacement
295 mm nominal drum diameter
297 mm maximum drum diameter
67 mm drum width
83 mm overall height
106 mm centering diameter
Six-hole mounting configuration
Cast-iron construction
Available individually or as a matching pair

295 mm Rear Drum Configuration

This brake drum uses the larger Toyota 295 mm rear drum configuration. The nominal diameter, drum width, centering diameter, overall height, and six-hole mounting pattern can be compared with the existing drum when confirming the vehicle's rear brake setup.

Vehicle Fitment

Toyota 4Runner

1986–1989 Toyota 4Runner – 1st Gen – 4WD – Rear
1990–1995 Toyota 4Runner – 2nd Gen – 2WD – Rear
1990–1995 Toyota 4Runner – 2nd Gen – 4WD – Rear

Fitment Notes

Rear application only
Fits the 295 mm, six-hole rear brake drum configuration
1986–1989 1st Gen 4Runner fitment is 4WD only
1990–1995 2nd Gen 4Runner fitment includes 2WD and 4WD
Compare the existing drum dimensions when confirming the rear brake configuration
Select the pair configuration when replacing both rear brake drums

Product Specifications

Brand: Brembo
Series: Essential
Product Type: Brake Drum
Position: Rear
Recommended Use: OE-Equivalent Replacement
Material: Cast Iron
Nominal Drum Diameter: 295 mm
Maximum Drum Diameter: 297 mm
Drum Width: 67 mm
Overall Height: 83 mm
Centering Diameter: 106 mm
Mounting Hole Quantity: 6
Fit Type: Vehicle-Specific / Direct Fit

Available Configurations

Single

(1) Brembo Essential OE Rear Brake Drum

Pair

(2) Matching Brembo Essential OE Rear Brake Drums
Includes both drums required for the driver- and passenger-side rear brakes
